PeopleLink 4K 20X Tele Health Cart CameraProfessional PTZ Camera

4K UHD PTZ camera with 20X optical zoom for telemedicine carts and clinical rooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the PeopleLink 4K 20X Tele Health Cart Camera in PDF.
Overview

What is the PeopleLink 4K 20X Tele Health Cart Camera?

The PeopleLink 4K 20X Tele Health Cart Camera is a professional PTZ camera built for telemedicine carts and clinical rooms. It captures 4K UHD video and offers 20X optical zoom, so a single camera can frame the whole room and reach detail at distance. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

4K60FPS

Utilizing a 1/2.8-inch, 8.4 million pixels UHD CMOS sensor, it outputs 4K60FPS. It is also backward compatible with various resolutions, including 1080P and 720P.

20x Optical Zoom + HD Wide-Angle Lens

Equipped with a full HD telephoto lens, supporting a maximum 20× optical zoom, and a 61.2° horizontal FoV.

Built-in Button Controls

The camera has convenient onboard buttons for quick control, eliminating the need for a remote control and facilitating on-site installation and setup.

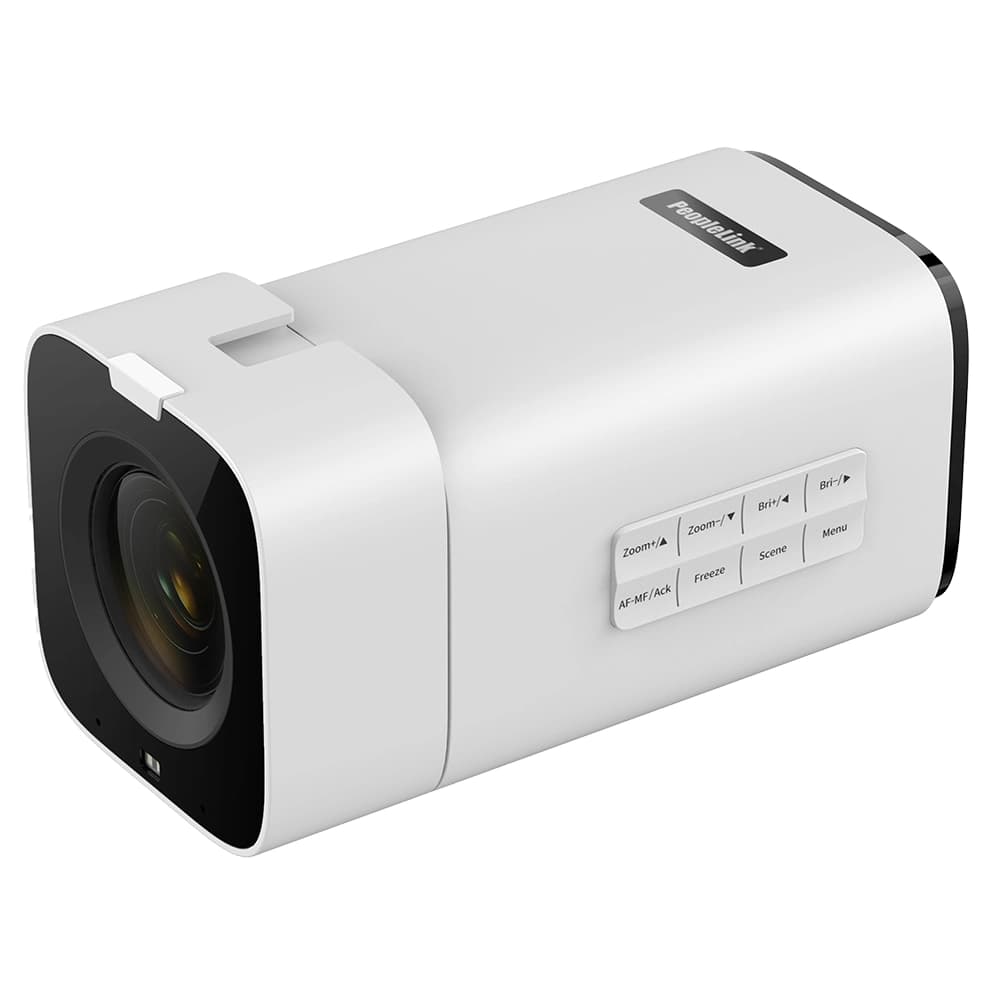

PeopleLink 4K 20X Tele Health Cart Camera
Specifications

PeopleLink 4K 20X Tele Health Cart Camera specifications

Verified from the official datasheet. Download the full PDF for complete details.

Camera Spec
Shutter1/30s ~ 1/10000s
White BalanceAuto, Indoor, Outdoor, One Push, Manual, VAR
Backlight CompensationSupport
Signal SystemHDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60 etc.; 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P25, 720P60 etc.
Digital Noise Reduction2D/3D Digital Noise Reduction
SNR≥ 55dB
Anti-flickerSupport
Image FlipSupport
Image FreezeSupport
PoESupport
Preset Position255
Sensor1/2.8 inches, CMOS, Effective Pixels: 8.4 Megapixels
Optical Zoom20x
Horizontal FOV61.2° ~ 3.38°
Vertical FOV35.3° ~ 1.90°
Focus ModeAuto, One Push, Manual
Minimum Illumination0.5Lux
I/O
HD Output1 x HDMI: Version 2.0; 1 x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard
Network Interface1 x RJ45: 10M/100M/1000M adaptive Ethernet Support: PoE(802.3af)
Audio Input1 × Line In, 3.5mm Jack；2 × Microphone input
Audio Output1 × Line Out, 3.5mm Jack
USB Interface1 x USB 2.0, Type-A(Host)
Control Interface1 x RS485: 3pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P;
Power InterfaceJEITA type(DC IN 12V)
Network Spec
Video CompressionH.264 / H.265 / MJPEG
Video StreamFirst Stream, Second Stream
First Stream Resolution3840x2160, 1920x1080, 1280x720 etc.
Second Stream Resolution1920x1080, 1280x720, 1024x576 etc.
Video Bit RateFirst Stream: 32Kbps~81920Kbps; Second Stream: 32Kbps~6144Kbps
Bit Rate ControlVBR, CBR
Frame Rate50Hz: 1fps~50fps, 60Hz:1fps~60fps
Audio CompressionAAC
Sampling Rate48K
Audio Bit Rate96Kbps, 128Kbps, 256Kbps
ProtocolsNDI®|HX2,SRT,TCP/IP, HTTP, RTSP, RTMP(s), Onvif,DHCP,GB/T 28181, Multicast, etc.
USB Spec
Operating System SupportedWindows 7 (only supports UVC1.1 features), Windows 8 and above version, Mac OS X, Linux 2.4.6 and above version, Android needs to include the version of UVC-related drivers
Color System / CompressionMJPEG / YUY2
Video FormatYUY2: Max.1080P30; MJPEG: Max.2160P
USB AudioSupport
USB Video Communication ProtocolUVC 1.1
UVC PTZ ControlSupport
Generic Spec
Input VoltageDC 12V /PoE (802.3af)
Input Current1A (Max.)
Operating Temperature-10° C ~ 40° C
Storage Temperature-40° C ~ 60° C
Dimension145mm (W) x 76mm (D) x 78.5mm (H)

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink 4K 20X Tele Health Cart Camera captures 4K UHD video and offers 20X optical zoom.

The PeopleLink 4K 20X Tele Health Cart Camera uses a 1/2.8 inches, CMOS, Effective Pixels: 8.4 Megapixels, with a 61.2° ~ 3.38° field of view.

The PeopleLink 4K 20X Tele Health Cart Camera is focused on image quality and simple deployment. For automatic speaker tracking, PeopleLink also offers dedicated AI tracking cameras. Contact PeopleLink for a recommendation.

The PeopleLink 4K 20X Tele Health Cart Camera connects over standard interfaces including 1 x HDMI: Version 2.0; 1 x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard, with PoE support, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.

Use the download button on this page to request the full PeopleLink 4K 20X Tele Health Cart Camera PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
