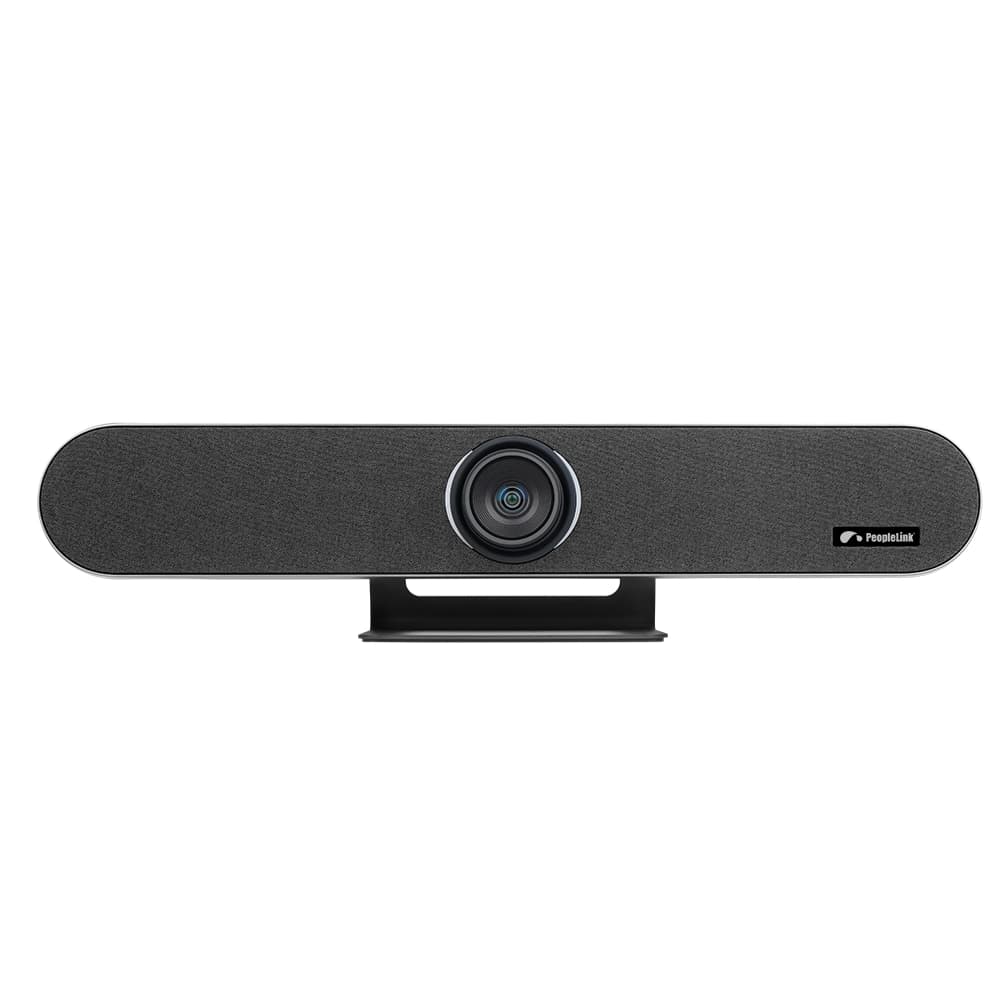

PeopleLink 4K AF Camera Soundbar 20MPCamera and Soundbar

4K UHD camera and soundbar with 5X digital zoom for huddle and small meeting rooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the PeopleLink 4K AF Camera Soundbar 20MP in PDF.
Overview

What is the PeopleLink 4K AF Camera Soundbar 20MP?

The PeopleLink 4K AF Camera Soundbar 20MP is an all-in-one camera and soundbar built for huddle and small meeting rooms. It captures 4K UHD video and offers 5X digital zoom, so one device covers the camera and room audio in a single unit. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Integrated Design

The all-in-one design combines a 4K UHD camera, beamforming microphone, and full-range speaker, simplifying setup and making video communication seamless.

4K UHD

Featuring a 1/1.8-inch, 20-megapixel UHD CMOS sensor, it delivers clear 4K (3840x2160) video at 30fps. It's also backward compatible with 1080P and 720P to suit different video needs.

Wide Field of View

With a 120° wide field of view (105° horizontal), 5x digital zoom, and built-in electronic pan / tilt (±15°), the optical lens is designed for conference use, ensuring clear coverage of all participants.

PeopleLink 4K AF Camera Soundbar 20MP
Specifications

PeopleLink 4K AF Camera Soundbar 20MP specifications

Verified from the official datasheet. Download the full PDF for complete details.

Camera Spec
Signal System4KP30, 1080P30, 720P30 etc.
Sensor1/1.8 inches, CMOS, Effective Pixels: 20 Megapixels
Zoom5x Digital zoom,
FoV120° (DFOV), 105° (HFOV),
LensHorizontal/pitch ±15°
PTZMechanical PTZ (MPTZ) + e-PTZ (EPTZ)
Digital Noise Reduction2D & 3D Digital Noise Reduction
SNR≥ 55dB
Backlight CompensationSupport
Audio Spec
Full-frequency SpeakerAn 8w full-range speaker
Microphone Array4 beamforming microphones with 6m pickup distance
Expansion MICSupports up to 3 microphones
Audio AlgorithmAI Noise Reduction
USB Spec
Type of ConnectionUSB 3.0, downward compatible with USB 2.0
Color System / CompressionMJPEG / YUY2 / H.264
USB Audio48K sampling rate, UAC 1.0 support
USB Video Communication ProtocolUVC 1.1
UVC PTZ ControlSupport (ePTZ)
Color System / CompressionMJPEG / YUY2 / H.264
I/O
USB 3.01 × USB3.0,Type-A, female; 1 × USB 3.0, Type-C, female connector, supports audio and video transmission, supports firmware upgrade
HDMI1 × HDMI OUT；1 × HDMI IN (optional)
Network Interface11 × RJ45:10M/100M/1000M adaptive Ethernet
Network Interface21 × RJ45:Connected to expansion mic, support POE
Power1 × Power connector
WiFiWi-Fi 5 supports wireless screen projection and BYOM mode (requires additional device connection)
Remote ControllerSupport
Others
Installation MethodSupport desktop placement, wallmounting and TV-mounting etc.
Supplied CablesUSB Cable
Safety
ProtectionAnti-theft lock
Generic Spec
Power SupplyDC 12V, 5A(Max.)
Operating Temperature0° C ~ 40° C
Storage Temperature-40° C ~ 60° C
Dimension600mm (W) × 135mm (D) × 117mm (H) (with bracket)
Net Weight2.5kg

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink 4K AF Camera Soundbar 20MP captures 4K UHD video and offers 5X digital zoom.

The PeopleLink 4K AF Camera Soundbar 20MP uses a 1/1.8 inches, CMOS, Effective Pixels: 20 Megapixels, with a 120° (DFOV), 105° (HFOV), field of view.

The PeopleLink 4K AF Camera Soundbar 20MP is focused on image quality and simple deployment. For automatic speaker tracking, PeopleLink also offers dedicated AI tracking cameras. Contact PeopleLink for a recommendation.

The PeopleLink 4K AF Camera Soundbar 20MP connects over standard interfaces, with PoE support, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.

Use the download button on this page to request the full PeopleLink 4K AF Camera Soundbar 20MP PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
