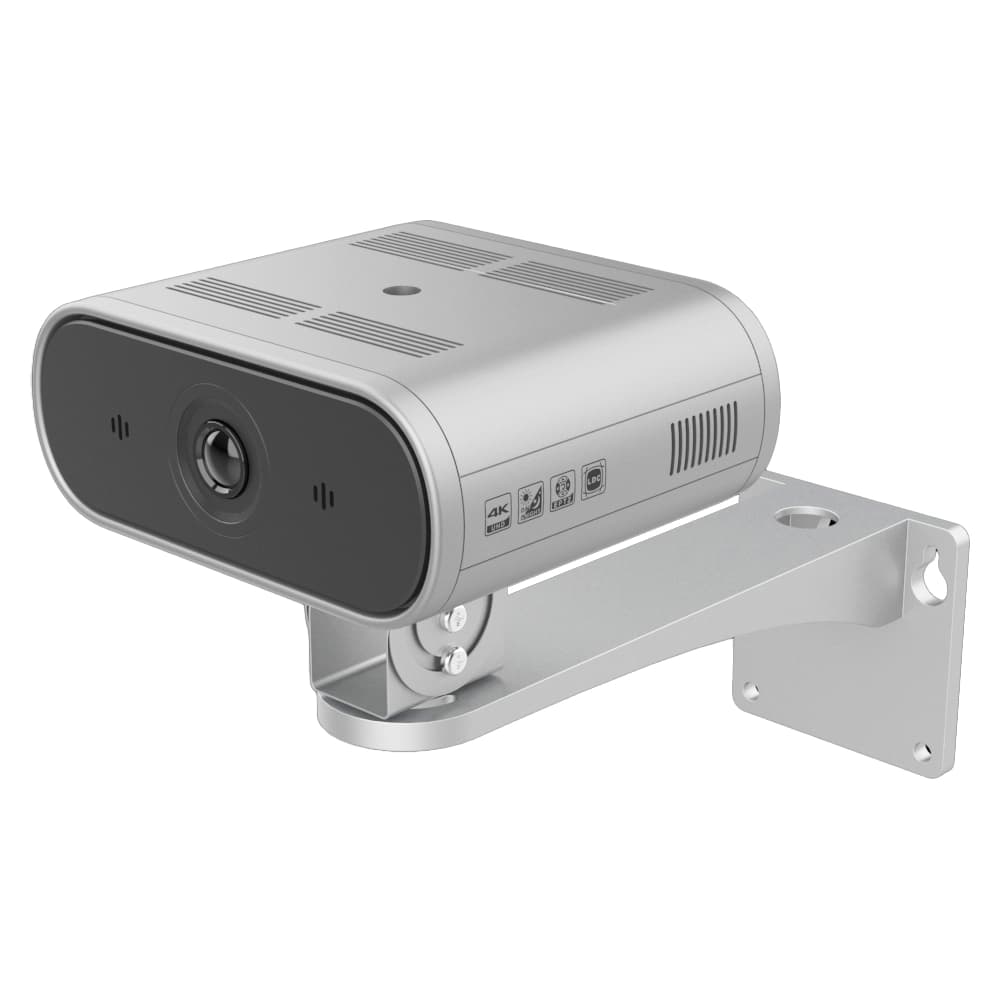

PeopleLink 4K Intelligent Tracking Camera (Teacher/Student)AI Auto-Tracking Camera

4K UHD AI tracking camera with 8X digital zoom for classrooms and training rooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) in PDF.
Overview

What is the PeopleLink 4K Intelligent Tracking Camera (Teacher/Student)?

The PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) is an AI auto-tracking camera built for classrooms and training rooms. It captures 4K UHD video and offers 8X digital zoom, and it automatically tracks the presenter so the room stays in frame. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

4K UHD

Utilizes a 1/2.7-inch UHD CMOS image sensor. Offers an output of 4K at 30/25 frames per second Downward compatibility with resolutions such as 1080p and 720p for clear images.

Dual-Camera Design: Teacher Camera

Equipped with a 440 wide-angle fixed-focus lens. Supports automatic focus ensuring quick focus adjustments when the teacher moves.

Student Camera

Features a 950 low-distortion wide-angle lens. Provides a broad FoV, easily accommodating all students in the classroom.

PeopleLink 4K Intelligent Tracking Camera (Teacher/Student)
Specifications

PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) specifications

Verified from the official datasheet. Download the full PDF for complete details.

Camera Spec
Digital Noise Reduction2D&3D Digital Noise Reduction
EPTZSupport
Auto FocusSupport (Teacher machine)
PoESupport
Select Lens I/IICorresponding to the teacher/ student tracking mode, respectively
Sensor1/2.7 inches, CMOS, Effective Pixels: 8.31 Megapixels
Scanning ModeProgressive
Type of Lens MountM12
Lens (Teacher)Focal length: f=7.2mm, Horizontal FOV: 44°
Lens (Student)Focal length: f=2.8 mm, Horizontal FOV: 95°
Digital Zoom8X
Minimum Illumination0.5Lux @ (F1.8, AGC ON)
Shutter1/30s ~ 1/10000s
White BalanceAuto, Indoor, Outdoor, One Push, Manual, VAR
Backlight CompensationSupport
Network Spec
Video CompressionH.265 / H.264 / MJPEG
Video StreamFirst Stream, Second Stream Third Stream, Fourth Stream
First Stream Resolution1920x1080, 1280x720, 1024x576, etc.
Second Stream Resolution3840×2160, 1920x1080, 1280x720, etc.
Third Stream Resolution1920x1080, 1280x720, 1024x576, etc.
Fourth Stream Resolution1024×576, 960×540, 720×576(50Hz), 720×480(60Hz), 720×480, etc.
Video Bit Rate32kbps~16384kbps
Bit Rate ControlVBR, CBR
Frame Rate1~30fps
Audio CompressionAAC, G.711A
Audio Bit Rate96Kbps, 128Kbps
ProtocolsTCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, GB/T 28181, Multicast, etc.
Generic Spec
Input VoltageDC 12V / POE (802.3af)
Input Current0.5A (Max.)
Operating Temperature0° C ~ 40° C
Storage Temperature-40° C ~ 60° C
Power Consumption6W (Max.)
Dimension110mm (W) × 96mm (D) × 44mm (H)
Net Weight0.2kg
I/O
Network Interface1 × RJ45: 10M/100M adaptie Ethernet, PoE support
USB Interface1 × USB2.0, Type-C
Audio Interface1 × LINE IN, 1x LINE OUT
Power InterfaceDC005 type (DC12V)
Remote Control ReceivingRemote control optional

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) captures 4K UHD video and offers 8X digital zoom.

The PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) uses a 1/2.7 inches, CMOS, Effective Pixels: 8.31 Megapixels.

Yes. The PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) provides AI tracking and auto framing that keep the active presenter framed as they move.

The PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) connects over standard interfaces, with PoE support, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.

Use the download button on this page to request the full PeopleLink 4K Intelligent Tracking Camera (Teacher/Student) PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
