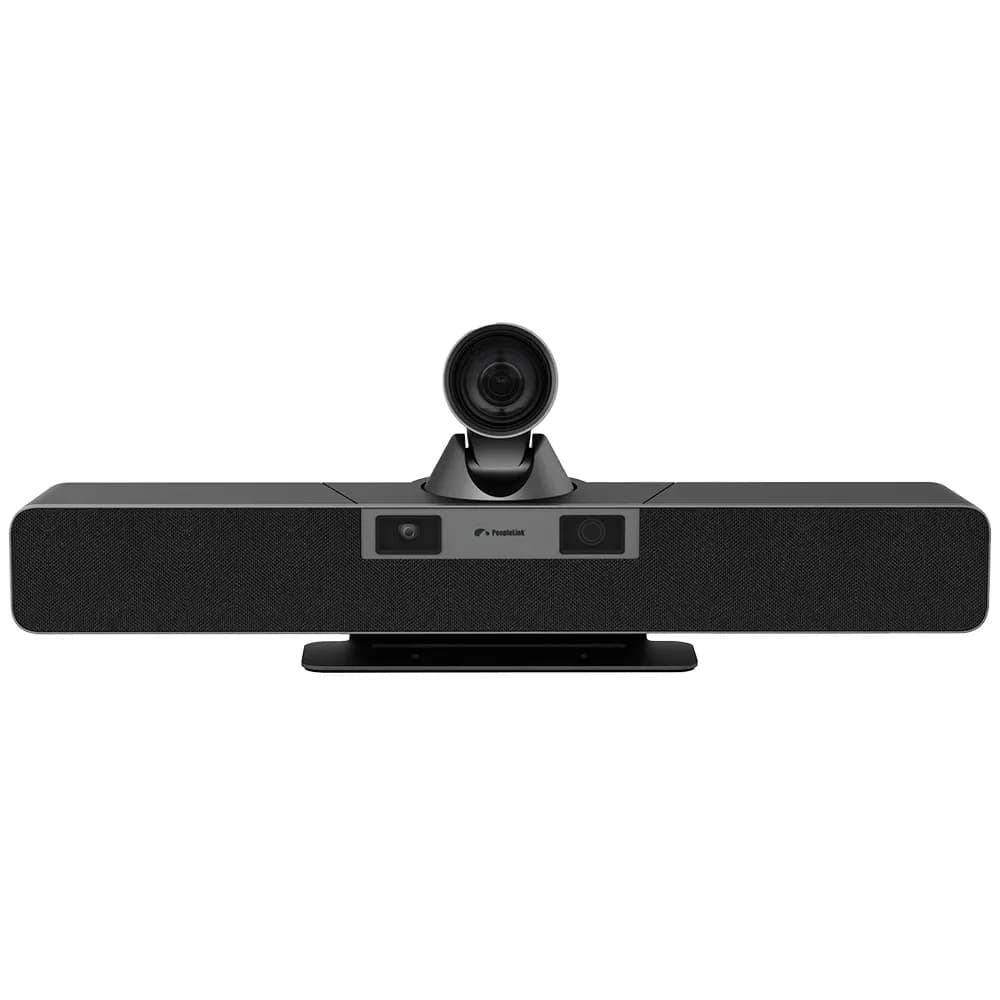

4K Videobar with PTZ CameraAll-in-One Video Bar

4K UHD video bar with 12X optical zoom for meeting and conference rooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the 4K Videobar with PTZ Camera in PDF.
Overview

What is the 4K Videobar with PTZ Camera?

The 4K Videobar with PTZ Camera is an all-in-one video bar built for meeting and conference rooms. It captures 4K UHD video and offers 12X optical zoom, so one device covers the camera, microphones and speaker for the room. It includes AI presenter tracking that keeps the active speaker framed as they move. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Dual-Lens Integration

This system features a dual-lens design with both panoramic and close-up lenses equipped with 4K ultra-high-definition UHD CMOS sensors, delivering clear and detailed images. The panoramic lens offers a wide 117° angle for an expansive field of view, while the close-up lens features a 70° wide angle and 12x optical zoom, supported by a ±140° rotating mechanical pan-tilt head to accurately capture distant meeting details.

All-in-One Integration

The device integrates a 4K panoramic camera, a 4K close-up camera, a digital microphone array, and a full-range speaker into a single unit, achieving high integration with minimal cabling. This streamlined setup ensures a professional audio-visual experience for meetings with ease of deployment.

Group Framing

Equipped with facial, human shape recognition, and intelligent framing algorithms, it can identify the number of participants and their positional changes, automatically moving the lens and adjusting the focus to achieve intelligent composition and optimal framing.

4K Videobar with PTZ Camera
Specifications

4K Videobar with PTZ Camera specifications

Verified from the official datasheet. Download the full PDF for complete details.

Close-up Camera
Signal System4KP30, 1080P30, 720P30 etc.
Sensor1/2.5 inches, CMOS, Effective Pixels: 8.29 Megapixels CMOS
Lens12X Optical Zoom
Focal lengthf=4.4~51.1mm, F1.8~2.6
Horizontal FOV70.1° ~7.4°
Vertical FOV40.7° ~4.2°
Pan Angle-90° ~ +90°
Tilt Angle-23° ~ +23°
Pan Speed1.7° ~ 76° /s
Tilt Speed0.5° ~ 15° /s
Image FlipSupport
Image FreezeSupport
Preset Position255
Preset Accuracy0.1°
PTZSupport
AFSupport
White BalanceAuto, Indoor, Outdoor, One Push, Manual
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
SNR≥ 55dB
Panoramic Camera
Signal System4KP30, 1080P30, 720P30, 640*360P30 etc.
Sensor1/2.82 inches, CMOS, Effective Pixels: 8.51 Megapixels CMOS
LensFocal Length: 2.8mm, DFOV: 107°, HFOV: 110°, VFOV: 74.6°
EPTZSupport
White BalanceAuto
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
SNR≥ 55dB
Audio Spec
Speaker2 full-range speakers, individual output power: 8W
Microphone Array6 analog silicon microphones, beamforming microphones, pickup distance of 8 meters
Audio 3A AlgorithmSupport
Sampling RateMic 48K, Speaker 48K
Extended MICSupports DMIC interface to extend digital microphone
USB Spec
Operating System SupportedWindows ®7 (only supports 1080p and below), Windows 8.1, Windows 10 or higher; MacOS 10.10 or higher; Google Chromebook Version 29.0.1547.70 or higher; Linux (requires support for UVC)
Configuration Requirements2.4 GHz Intel ®Core 2 Duo processor or higher; 2GB memory or higher; USB 2.0 interface (4K requires USB 3.0)
Connection TypeUSB 3.0, backward compatible with USB 2.0
Color System / CompressionH.264 / MJPEG / YUY2
USB Video Communication ProtocolUVC 1.1, UAC 1.0
UVC PTZ ControlSupport (ePTZ)
In/Out
USB 3.01 × USB 3.0, Type-C, Support audio/video transmission and firmware upgrade
HDMI1 × HDMI OUT；1 × HDMI IN (optional)
USB 3.01 × USB 3.0, Type-A,,Connecting a USB wired extension mic
Network Interface11 × RJ45, Connect to the network port expansion microphone and support PoE power supply
Network Interface21 × RJ45, 10/100/1000M adaptive Ethernet port, supporting network transmission of audio and video
Power InterfaceDC 12V
BYOMSupports BYOM wireless transmission and BYOD wireless screen casting function (requires additional casting device)
Remote ControlSupport
Generic Spec
Safety ProtectionKingston anti-theft lock socket
PowerDC 12V
Operating Temperature0° C ~ 40° C
Storage Temperature-40° C ~ 60° C
DimensionWithout Stand: 600mm (W) x 127.1mm (D) x 182.1mm (H); With Stand: 600mm (W) x 127.1mm (D) x 217.1mm (H)
Net WeightTBD

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The 4K Videobar with PTZ Camera captures 4K UHD video and offers 12X optical zoom.

The 4K Videobar with PTZ Camera uses a 1/2.5 inches, CMOS, Effective Pixels: 8.29 Megapixels CMOS, with a 70.1° ~7.4° field of view.

Yes. The 4K Videobar with PTZ Camera provides AI tracking and auto framing that keep the active presenter framed as they move.

The 4K Videobar with PTZ Camera connects over standard interfaces, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.

Use the download button on this page to request the full 4K Videobar with PTZ Camera PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
