PeopleLink Active LED Fine Pitch SeriesLED Video Wall

LED Video Wall line, available in 4 models (P0.9 COB, P1.25 COB, P1.5 COB, P1.53 GOB). View the verified model specifications and download the full datasheet.

Product datasheet
Download the full datasheets
Complete specifications for each PeopleLink Active LED Fine Pitch Series model in PDF.
Overview

What is the PeopleLink Active LED Fine Pitch Series?

The PeopleLink Active LED Fine Pitch Series is a direct-view LED video wall series, available in 4 models (P0.9 COB, P1.25 COB, P1.5 COB, P1.53 GOB), built for control rooms, studios and premium meeting spaces. Built for bright, seamless large-format visuals. Because PeopleLink builds its Active LED range as one OEM, it integrates cleanly with PeopleLink processing, control and room solutions. The model specifications below are drawn from the official datasheets, and the full PDF for each model is available on request.

Remarkable Image

Patented coating technology provides an exceptionally pure black base for better contrast ratio.

View from Any Angle

More than 160 degrees viewing angle allows all viewers to enjoy an excellent visual experience no matter which part of the room they're standing.

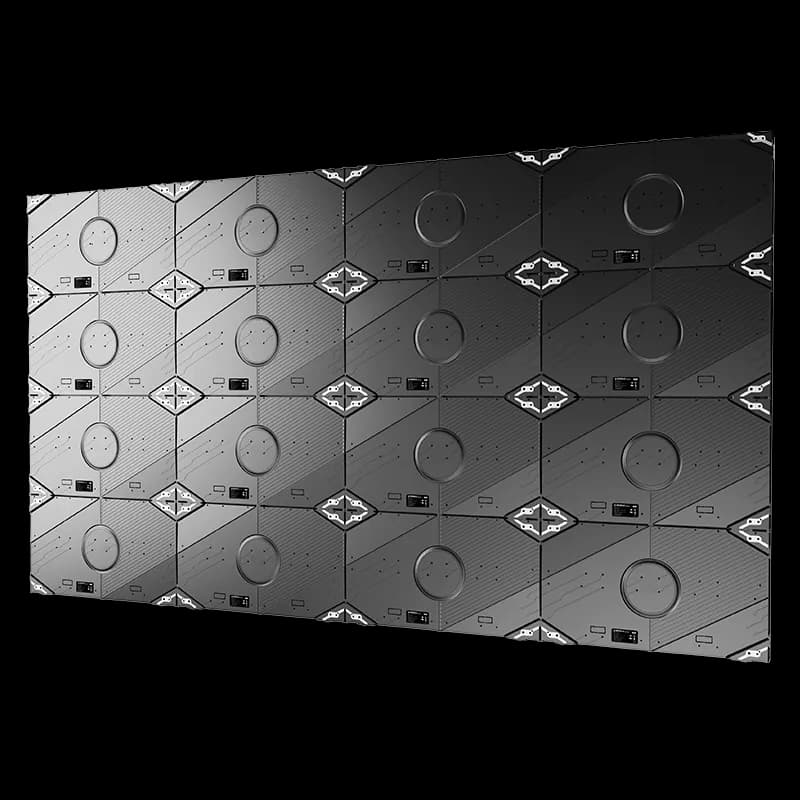

Modular Design

PeopleLink Active LED Fine Pitch Series
Specifications

PeopleLink Active LED Fine Pitch Series model specifications

Verified from the official datasheets. Download the full PDF for any model below.

SpecificationP0.9 COBP1.25 COBP1.5 COBP1.53 GOB
Pixel Pitch0.951.251.561.538mm
Pixel Density1137778640000409600-
Pixel density(pixel/m²)---422753 dots/m²
Cabinet Resolution640 X 360480 X 270384 X 216-
Cabinet Resolution (pixels)---416 x 312
Module Resolution---208 X 104
Pixel Configuration1R1G1B MicroLED1R1G1B MicroLED1R1G1B MicroLEDSMD1010 GOB
Led Packaging TypeCOBCOBCOB-
Module Size150 X 168.75150 X 168.75150 X 168.75320mm x 160mm
No.of Module/Cabinet---2*3
Cabinet Size600 X 337.5mm600 X 337.5mm600 X 337.5mm640 x 480mm
Cabinet Area (m²)---0.3072
Cabinet MaterialDiecast AluminiumDiecast AluminumDiecast AluminiumAluminum Die-Cast
Cabinet Weight7.5kg7.5kg7.5kg6.5kg
Power Consumption (Max W/M2)350350350-
Power Consumption (Avg W/M2)100100100-
Avg power Consumption (w/m²)---300W
Max power Consumption (w/m²)---650W
Input VoltageAc 100-240 (50-60hz)Ac 100-240 (50-60hz)Ac 100-240 (50-60hz)-
Working Voltage---AC100-240V, 50-60Hz
Frame Rate50/60 Hz50/60 Hz50/60 Hz-
Colors16.9 Million16.9 Million16.9 Million-
Refresh Rate3840 Hz3840 Hz3840 Hz>=3840Hz
IP Rating (Front)IP65IP65IP65-
IP Rating---IP 5X with GOB
Brightness (Nits)600 nits600 nits600 nits-
Brightness (cd/m²)---600-800 Nits
Gray Scale14-16bit14-16bit14-16bit-
Color Processing---16 Bit
Viewing AngleV 160 /H 160V 160 /H 160V 160 /H 160-
Viewing Angel---160°/160°
Viewing Distance---1.5-60m
Contrast Ratio5000:15000:15000:17000:1
Color Temperature3000k -10000k3000k -10000k3000k -10000k5000-10000 Adjustable
Lifetime--->=1000,000 hours
Operating Temperature (Min To Max)-10 0c To +45 0 C-10 0c To +45 0 C-10 0c To +45 0 C-
Working Temperature----20°C-60°C
Storage Temperature (Min To Max)-40 0 C To +60 0 C-40 0 C To +60 0 C-40 0 C To +60 0 C-
Working Humidity---60%-90%RH
MaintenanceFrontFrontFrontFront
Certification---CE, BIS, LVD, FCC, RoHS, EMC
