PeopleLink AOE Ceiling Tile MicrophoneCeiling Microphone

Ceiling Microphone for conference rooms that need hands-free ceiling audio. View the verified specifications and download the full datasheet.

Audio datasheet
Download the full datasheet
Complete specifications for the PeopleLink AOE Ceiling Tile Microphone in PDF.
Overview

What is the PeopleLink AOE Ceiling Tile Microphone?

The PeopleLink AOE Ceiling Tile Microphone is a ceiling microphone built for conference rooms that need hands-free ceiling audio. It is designed for clear, hands-free voice pickup from the ceiling. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

High Density Microphone Array

128 units for detailed audio capture.

Advanced Noise Reduction Algorithms

Blocks background noise for clearer communication.

Built-in PTZ Camera & Audio Tracking

Captures and follows speakers' movements for enhanced interaction.

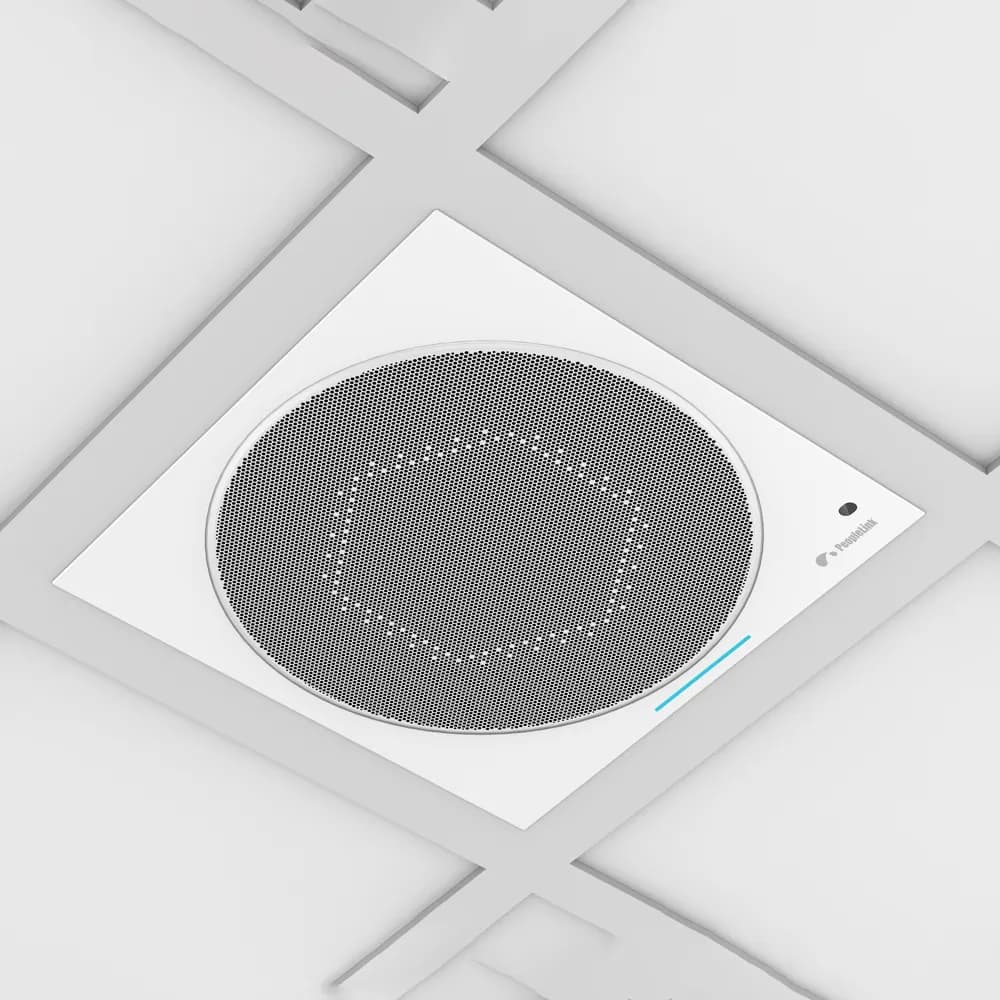

PeopleLink AOE Ceiling Tile Microphone
Specifications

PeopleLink AOE Ceiling Tile Microphone specifications

Verified from the official datasheet. Download the full PDF for complete details.

Microphone Type
Mic Type128-unit MEMS Microphone Array
Sensitivity-38 dBv / 94 dB SPL @ 1 kHz
Signal-to-Noise Ratio65 dBv / 94 dB SPL @ 1 kHz, A-weighted
AOEYes
Number of Channels2×2
Remote Meeting / Local Sound Reinforcement Channels1/1
Remote Conversation Pickup Zones8
Local Sound Reinforcement Pickup Zones8
Sampling Rate48 kHz
Maximum Background Noise Suppression35 dB
Size597mm x 597mm x 53.5mm
Audio Performance
AI Noise Reduction SuppressionSupport
AI Reverberation SuppressionSupport
AI Feedback SuppressionSupport
AI Echo CancellationSupport
Delay (Automatic Mixing Output, Including Dante)≤ 25 ms
Cascade Performance
Cascade QuantityUnlimited
Cascade MethodAOE Audio
RJ45 Port1 (AOE Audio Transmission, PoE)
Reset ButtonSupport

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink AOE Ceiling Tile Microphone is a ceiling microphone from PeopleLink, designed for clear, hands-free voice pickup from the ceiling. It works with common video conferencing platforms.

The PeopleLink AOE Ceiling Tile Microphone connects over ≤ 25 ms, and works with common video conferencing platforms.

Yes. As one OEM, PeopleLink supplies the ceiling microphone alongside cameras, audio, control and room solutions, so the room works together.

Use the download button on this page to request the full PeopleLink AOE Ceiling Tile Microphone PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
