PeopleLink AOE DSPAudio DSP Processor

Audio DSP Processor for managing and processing room audio. View the verified specifications and download the full datasheet.

Audio datasheet
Download the full datasheet
Complete specifications for the PeopleLink AOE DSP in PDF.
Overview

What is the PeopleLink AOE DSP?

The PeopleLink AOE DSP is an audio DSP processor built for managing and processing room audio. It is designed to manage, mix and process room audio. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Independent Channel (AFC)

Supports independent audio channels with a boost of 10dB, allowing precise control over each channel's sound characteristics for optimized audio management.

Noise Suppression (ANS)

Enhances the signal-to-noise ratio by 18dB, effectively reducing background noise and ensuring clearer, more intelligible audio.

Gain-Shared Automatic Mixing (Gate Mixer)

Automatically manages multiple audio sources to prevent feedback and distortion while maintaining optimal sound levels.

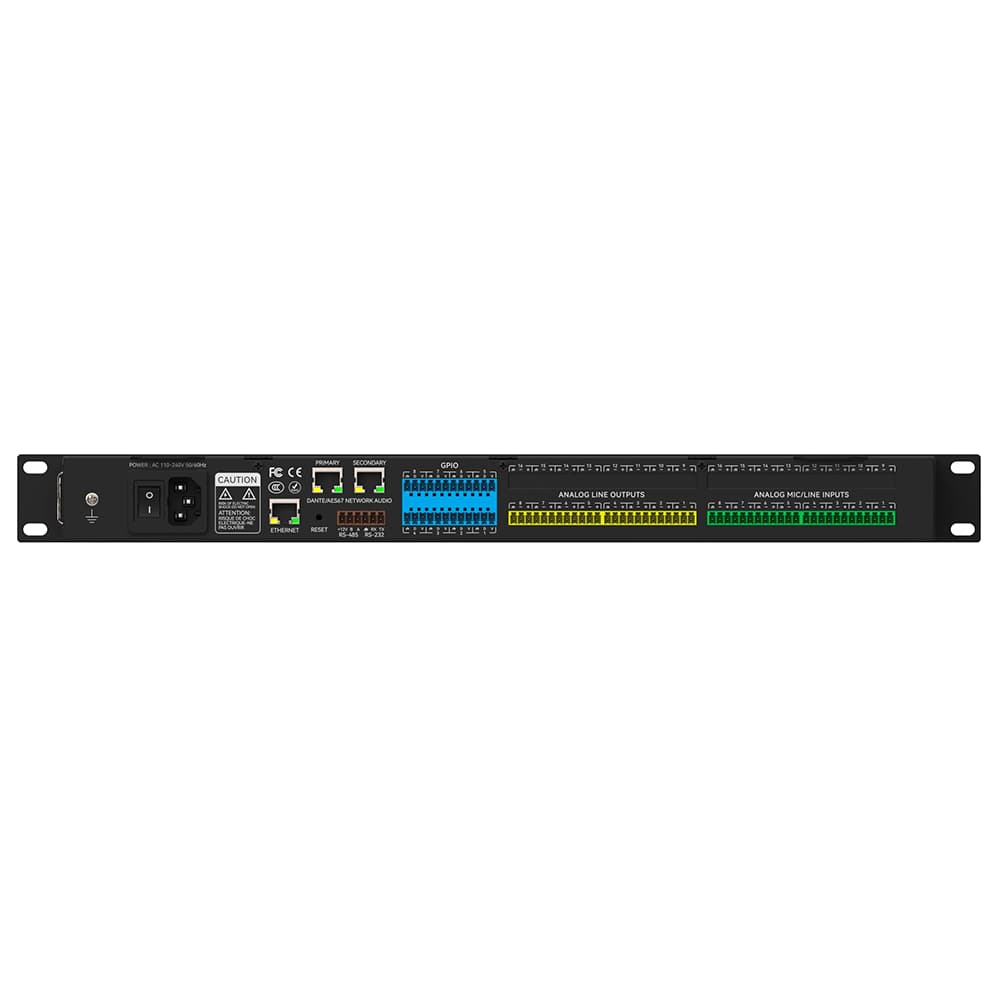

PeopleLink AOE DSP
Specifications

PeopleLink AOE DSP specifications

Verified from the official datasheet. Download the full PDF for complete details.

General Specifications
ProcessorADI SHARC 21489, 450 MHz SIMD, 400 MIPS, 1.6 GFLOPS
Product Size482 mm × 260 mm × 45 mm
Net Weight< 5 kg
Power SupplyAC 110-240 V, 50 Hz / 60 Hz
Installation MethodRack mount
Independent Channel (AFC)Supported, boosted by 10 dB
Noise Suppression (ANS)Supported, signal-to-noise ratio boosted by 18 dB
DuckerSupported
Noise Gain Compensation (ANC)Supported
Gain-shared Automatic Mixing (Gate Mixer)Supported
Remote Bus AECTail length time: 512 ms
Convergence Rate60 dB/s
Echo Cancellation Amplitude60 dB
Maximum Level+18 dBu
THD+N< -94 dB @ 4 dBu
Input Gain0 / 3 / 6 / 9 / 12 / 15 / 18 / 21 / 24 / 27 / 30 / 33 / 36 / 39 / 42 / 45 dBu
Input / Output Dynamic Range110 dB / 112 dB
Delay (Automatic Mixing Output, Including AOE)< 30 ms
UAC Audio InterfaceUSB-A × 1
GPIO InterfaceLogic input / output
Analog Input / Output8 × 8, 16 × 16 (Optional)
AOE / AEC67 Network Interface8 × 8, 16 × 16 (Optional)
Network Control Interface1
RS-485 Interface / RS-232 Interface1/1
Phantom Power+48 V / 10 mA max, 1

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink AOE DSP is an audio DSP processor from PeopleLink, designed to manage, mix and process room audio. It works with common video conferencing platforms.

The PeopleLink AOE DSP connects over USB-A × 1, and works with common video conferencing platforms.

Yes. As one OEM, PeopleLink supplies the audio processor alongside cameras, audio, control and room solutions, so the room works together.

Use the download button on this page to request the full PeopleLink AOE DSP PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
