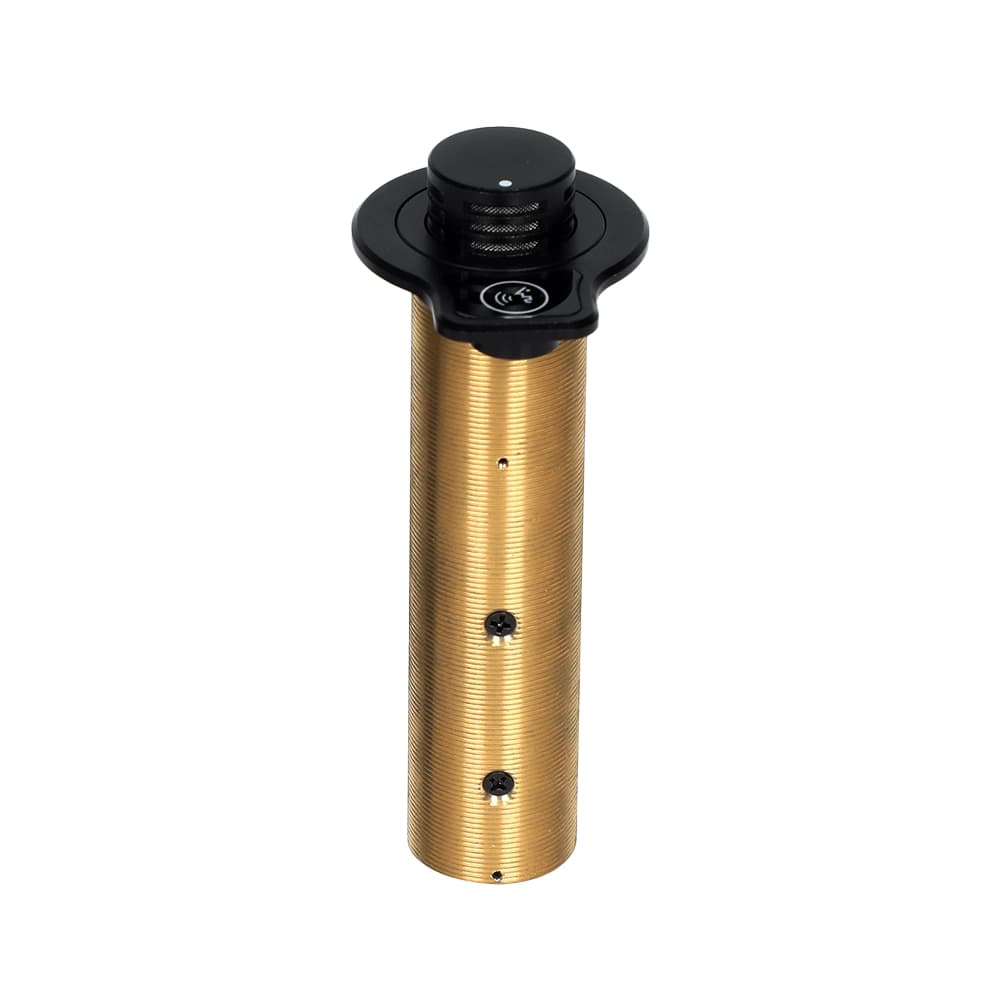

PeopleLink Delegate Boundary Layer Flush MountConference Discussion Microphone

Conference Discussion Microphone for boardrooms and council chambers. View the verified specifications and download the full datasheet.

Audio datasheet
Download the full datasheet
Complete specifications for the PeopleLink Delegate Boundary Layer Flush Mount in PDF.
Overview

What is the PeopleLink Delegate Boundary Layer Flush Mount?

The PeopleLink Delegate Boundary Layer Flush Mount is a discussion microphone built for boardrooms and council chambers. It is designed for structured discussion in conference and council rooms. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Low profile

Low profile on any desktop or surface

Reed switch

The microphone is equipped with a reed switch, which is designed to switch at the beginning and end of each session when the microphone is no longer used. When the microphone is in the up position, the switch contact is closed (ON), and when it is retracted, the switch will be OFF.

Capacitive touch button

Capacitive touch button can be optionally installed to easily set the microphone off or on for sound pickup.

PeopleLink Delegate Boundary Layer Flush Mount
Specifications

PeopleLink Delegate Boundary Layer Flush Mount specifications

Verified from the official datasheet. Download the full PDF for complete details.

General Specifications
Mic capsuleElectrostatic capacitive type
Directivity PatternCardioid
Frequency response40-19,000 Hz
Turn-on sensitivity-40 dB (10 mV) at 1V at 1 Pa Impedance 200 ohm
High maximumSPL 142 dB SPL, 1 kHz at 3% T.H.D.
Dynamic range(Typical) 113 dB, 1 kHz at highest sound pressure level
S/N65 dB, 1 kHz at 1 Pa
Phantom powerDC 11-52V, power consumption 5.7 mA typical
Switch Touch controlOn / Mute
Weight65 g
Overalllength 84.8 mm, diameter 38.0 mm, maximum width 48.0 mm
Output terminalBuilt-in 3-pin XLR
Standard configuration1 pair of shock-proof isolator
Analog interface Box - General Specifications
Voltage supply48V DC
Static power consumption1W
Frequency Response20Hz ~ 20KHz
Noise ratio (S / N)> 80dB
Total harmonic distortion<0.05%
Channel Crosstalk> 80dB
Dimensions (mm)120L x 100W x30H with two ears for screw fix
ColorBlack
Weight0.5KG
Headphone Output independence16 Ω
Speaker output independence8Ω
Frequency response20~15000hz
LED Power+5 V, max. 40 mA
