PeopleLink Elite FHD Pro Series 12X Gen2.1Professional PTZ Camera

Full HD 1080p PTZ camera with 12X optical zoom for conference rooms and classrooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the PeopleLink Elite FHD Pro Series 12X Gen2.1 in PDF.
Overview

What is the PeopleLink Elite FHD Pro Series 12X Gen2.1?

The PeopleLink Elite FHD Pro Series 12X Gen2.1 is a professional PTZ camera built for conference rooms and classrooms. It captures Full HD 1080p video and offers 12X optical zoom, so a single camera can frame the whole room and reach detail at distance. It includes AI presenter tracking that keeps the active speaker framed as they move. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

1080P Full HD

Utilizing a 1/2.8-inch, 2.07 million pixels HD CMOS sensor, delivering superior image quality with a maximum resolution of 1920x1080.

Wide-angle + Long Zoom

Features a 72.5° wide-angle lens, supporting 12x optical zoom and 16x digital zoom.

Multiple Control Options

Supports control through RS232 (optional RS485) serial ports, network, and USB interfaces, meeting various application needs.

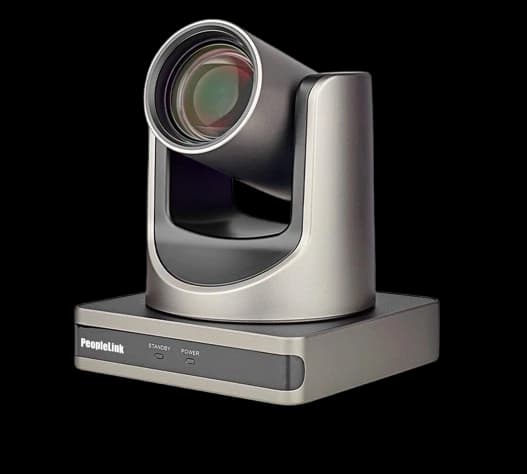

PeopleLink Elite FHD Pro Series 12X Gen2.1
Specifications

PeopleLink Elite FHD Pro Series 12X Gen2.1 specifications

Verified from the official datasheet. Download the full PDF for complete details.

Camera Spec
Sensor1/2.8 inches, CMOS, Effective Pixels: 2.07 Megapixels
Signal System1080P 60 , 1080 P 50 , 1080 P 30, 1080 P25 , 720P60, 720P50
Lens12X Optical Zoom
Focal Lengthf3.5mm~42.3mm, F1.8~F2.8
Scanning ModeProgressive
Digital Zoom16×
Minimum Illumination0.5Lux @ (F1.8, AGC ON)
Shutter1/30s ~ 1/10000s
White BalanceAuto, Indoor, Outdoor, One Push, Manual, VAR
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
SNR≥ 55dB
Pan Angle±170°
Tilt Angle-30° ~ +90°
Pan Speed2.7° ~ 35.7° /s
Tilt Speed2.7° ~ 31.5° /s
Horizontal FOV72.5° ~ 6.9°
Vertical FOV44.8° ~ 3.9°
Video FormatYUY2: Max. 1080P60；H.264 AVC: Max. 1080P60；MJPEG: Max. 1080P60；H.264 SVC (Optional): Max. 1080P60
Frame Rate50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Image FlipSupport
Image FreezeSupport
Preset Position255
Preset Accuracy0.1°
I/O
USB Interface1 x USB 3.0, Type-C
HD Output1 x HDMI1.4b1
Network Interface1 x RJ45: 10M / 100M adaptive Ethernet
Audio Interface1 x Line In, 3.5mm Jack
Power InterfaceJEITA (DC IN 12V)/USB Type-C (DC IN 5V)/ PoE
Control Interface1 x RS232 In: 8pin Min DIN, Max. Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P 1 x RS485 In(Optional): 2pin phoenix port, Max. Distance: 1200m, Protocol: VISCA /Pelco-D / Pelco-P
Network Spec
Video CompressionH.264 / MJEPG
Video StreamFirst Stream, Second Stream
First Stream Resolution1920x1080,1280x720,1024x576 etc.
Second Stream Resolution1280x720,1024x576,720x480 etc.
Video Bit Rate for First Stream32Kbps ~ 10240Kbps
Bit Rate ControlVBR, CBR
Audio CompressionAAC
Audio Bit Rate96Kbps, 128Kbps, 256Kbps
ProtocolsNDI®|HX2,TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP, SRT,GB/T 28181,Multicast,etc.
USB Spec
Operating System SupportedWindows 7 (only supports UVC1.1 features), Windows 8 and above version, MacOS 10.5 and above version, Linux 2.4.6 and above version, Android needs to include the version of UVC-related drivers
Color System / CompressionYUY2 / H.264 / MJPEG
UVC AudioSupport
USB Video Communication ProtocolUVC 1.1~1.5
UVC PTZ ControlSupport
Generic Spec
Input VoltageDC 12V/DC 5V/PoE(802.3af)
Input Current12V 1.0A(Max.)/5V 1.5A
Operating Temperature-10° C ~ 40° C
Storage Temperature-40° C ~ 60° C
Dimension144mm (W) × 144mm (D) × 166.89mm (H)
Net Weight1.41kg
Power Consumption12W

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink Elite FHD Pro Series 12X Gen2.1 captures Full HD 1080p video and offers 12X optical zoom.

The PeopleLink Elite FHD Pro Series 12X Gen2.1 uses a 1/2.8 inches, CMOS, Effective Pixels: 2.07 Megapixels, with a 72.5° ~ 6.9° field of view.

Yes. The PeopleLink Elite FHD Pro Series 12X Gen2.1 provides AI tracking and auto framing that keep the active presenter framed as they move.

The PeopleLink Elite FHD Pro Series 12X Gen2.1 connects over standard interfaces including 1 x HDMI1.4b1, with PoE support, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.

Use the download button on this page to request the full PeopleLink Elite FHD Pro Series 12X Gen2.1 PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
