PeopleLink i5 FHD Mini PCAccessory

A 1.3L slim mini PC supporting Intel 12th to 14th Gen processors, dual-channel DDR4 and triple display output. View the verified specifications and download the full datasheet.

Product datasheet
Download the full datasheet
Complete specifications for the PeopleLink i5 FHD Mini PC in PDF.
Overview

What is the PeopleLink i5 FHD Mini PC?

The PeopleLink i5 FHD Mini PC is a 1.3L slim mini PC that supports Intel 12th, 13th and 14th Gen Core desktop processors on the LGA1700 socket, with dual-channel DDR4-3200 memory up to 64GB and integrated UHD Graphics. It supports up to three independent displays through one HDMI 2.0b and two DisplayPort outputs, and provides rich connectivity for office use, digital signage, kiosks and multi-platform deployments. Because PeopleLink is one OEM, it pairs cleanly with PeopleLink displays and room solutions. The specifications below are drawn from the official datasheet, and the full PDF is available on request.

Intel LGA1700 Support

Supports Intel 12th, 13th and 14th Gen Core i3/i5/i7/i9 processors.

Triple Display

One HDMI 2.0 and two DisplayPort outputs drive three independent displays with 4K playback.

Rich Connectivity

USB 3.2 Gen1 including Type-C, USB 2.0, RS232 and dual LAN with Wake-On-LAN.

M.2 Expansion

M.2 2280 Type M and M.2 2230 Type E slots for fast SSD and Wi-Fi modules.

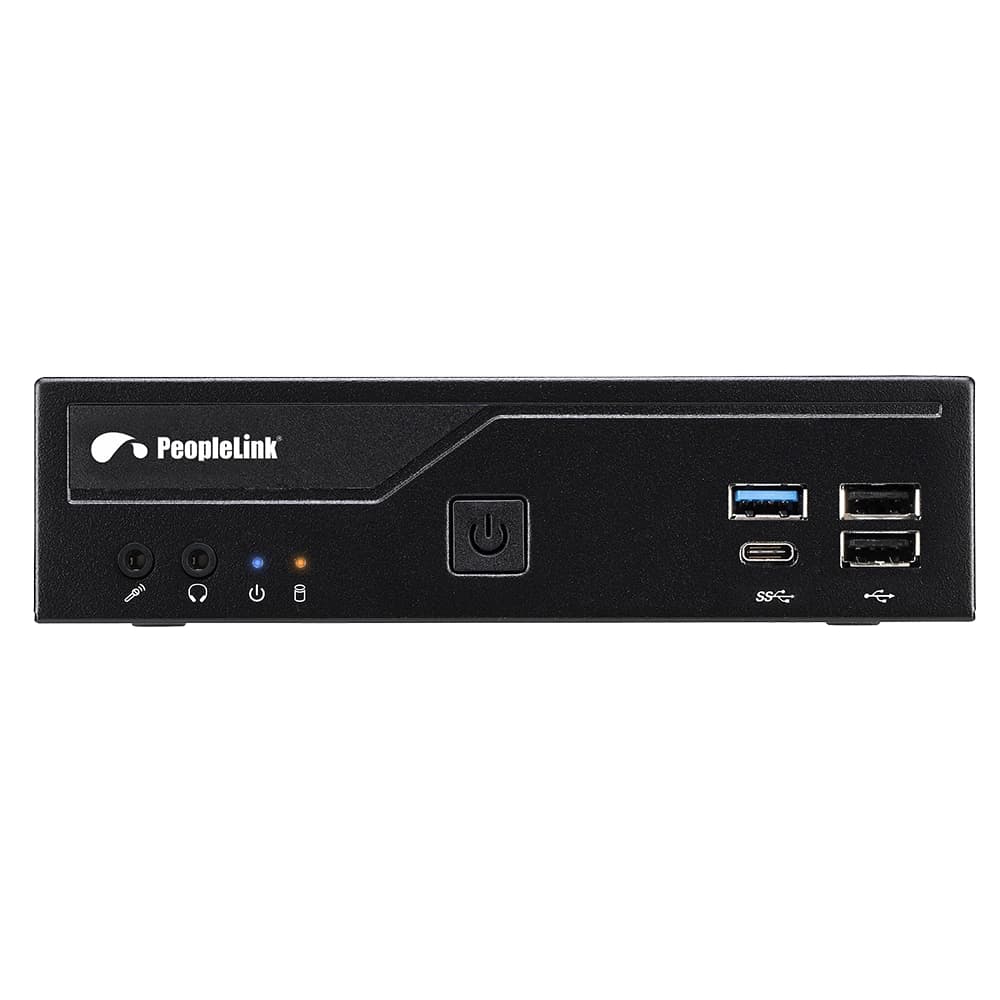

PeopleLink i5 FHD Mini PC
Specifications

PeopleLink i5 FHD Mini PC specifications

Verified from the official datasheet. Download the full PDF for complete details.

Core
Form Factor1.3L chassis
ProcessorIntel 12th/13th/14th Gen, LGA1700 socket, Core i3/i5/i7/i9
ChipsetIntel Express chipset
Memory2x DDR4 SODIMM, 32GB per DIMM (max 64GB), up to 3200 MHz
RAM Options8GB / 16GB / 24GB / 32GB / 64GB
Storage Options256GB / 512GB / 1TB SSD (optional)
Storage InterfaceSATA 6.0Gb/s, NVMe
Graphics and Audio
Video OutputHDMI 2.0 x1 + DisplayPort x2, triple video outputs
4K PlaybackSupported (dual channel memory recommended), integrated in CPU
AudioRealtek High-Definition Audio
Connectivity
Ethernet1x Intel GbE LAN and 1x 2.5GbE LAN; 10/100/1000 Mbps; Wake-On-LAN
Front Panel2x USB 3.2 Gen1 (incl. Type-C x1), 2x USB 2.0, Microphone-In, Line-Out, power button
Back Panel2x RJ45 GbE, 1x HDMI, 2x DisplayPort, 2x USB 3.2 Gen1, 2x USB 2.0, 1x RS232, 1x RS232/RS422/RS485, DC-in, Kensington lock
Expansion Slots1x M.2 2280 Type M key socket; 1x M.2 2230 Type E key socket
Power and Environment
Power120W power adapter, input 100 to 240V AC, 19V 6.32A; supports 12V DC input
Operating SystemWindows 10/11 64-bit, Linux
Operating Temperature0 C to 50 C
Dimensions190 (L) x 165 (W) x 43 (H) mm

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

It is a 1.3L slim mini PC supporting Intel 12th to 14th Gen LGA1700 processors, dual-channel DDR4 up to 64GB and triple display output, built for office use, digital signage, kiosks and multi-platform deployments.

It supports up to three independent displays through one HDMI 2.0b and two DisplayPort outputs, with 4K playback.

It supports Intel 12th, 13th and 14th Gen Core i3/i5/i7/i9 on the LGA1700 socket, with two DDR4 SODIMM slots up to 64GB at 3200 MHz.

It offers SATA 6.0Gb/s and NVMe storage with 256GB, 512GB or 1TB SSD options, plus M.2 2280 Type M and M.2 2230 Type E slots.

Use the download button on this page to request the full PDF datasheet. Share a few contact details and the datasheet opens immediately, and a PeopleLink specialist can follow up with pricing.
