PeopleLink iCam FHD 3XProfessional PTZ Camera

Full HD 1080p PTZ camera with 3X optical zoom and 16X digital zoom for huddle rooms and small meeting rooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the PeopleLink iCam FHD 3X in PDF.
Overview

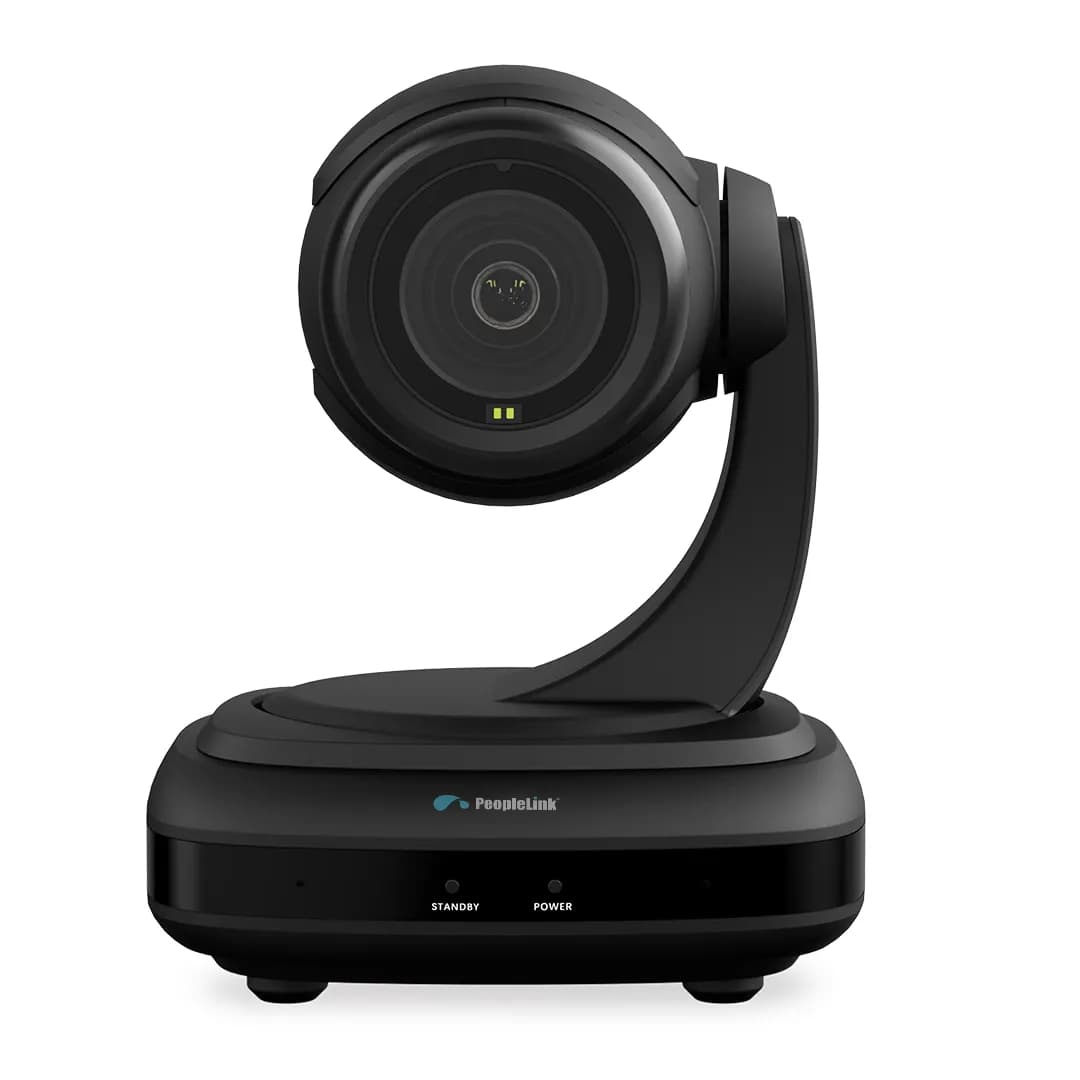

What is the PeopleLink iCam FHD 3X?

The PeopleLink iCam FHD 3X is a professional PTZ camera built for huddle rooms and small meeting rooms. It captures Full HD 1080p video and offers 3X optical zoom and 16X digital zoom, so a single camera can frame the whole room and reach detail at distance. It includes AI presenter tracking that keeps the active speaker framed as they move. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

USB Plug-And-Play

With just a single USB cable, it enables audio and video transmission as well as camera power supply, offering a hassle-free deployment experience.

1080p + 3x Optical Zoom

Using a new generation HD CMOS sensor, it delivers a Full HD 1080P video experience, combined with 3X optical zoom, ensuring clear images for both panoramic and close-up shots.

Wide Field of View

It features a 90° ultra-wide-angle lens that supports ±170° horizontal and -30°to +90°vertical rotation, capturing the entire meeting space without blind spots.

PeopleLink iCam FHD 3X
Specifications

PeopleLink iCam FHD 3X specifications

Verified from the official datasheet. Download the full PDF for complete details.

Camera Spec
Sensor1/2.9'', CMOS, 2.07 Megapixels
Scanning ModeProgressive
Focal Lengthf3.41mm ~ 10.33mm, F1.66 ~ F3.03
Lens3x Optical Zoom, 16x Digital Zoom
Minimal Illumination0.5Lux @ (F1.8, AGC ON)
Shutter1/30s ~ 1/10000s
White BalanceAuto, Indoor, Outdoor, One Push, Manual, Adjustable color temperature
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
Video S/N≥ 55dB
Horizontal Angle of View90° ~ 30.7°
Vertical Angle of View52° ~ 18.4°
Horizontal Rotation Range±170°
Vertical Rotation Range-30° ~ +90°
Pan Speed Range2.7° ~ 35.7° /s
Tilt Speed Range2.7° ~ 31.5° /s
H & V FlipSupport
Image FreezeSupport
Number of Preset255
Preset Accuracy0.1°
Input / Output Interface
USB1x USB 2.0, Type-C Jack
Audio InputBuilt-in dual mic
Communication Interface1x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power JackJEITA (DC IN 12V) / USB Type-C (USB 5V)
USB Spec
Operating SystemWindows 8, Windows 10, Windows 11, Mac OS X, Linux, Android
Color System / CompressionYUY2 / MJPEG
Video FormatYUY2 (Isochronous): Max 640x480P30 MJPEG: Max 1920x1080P30
USB AudioOptional
USB Video Communication ProtocolUVC 1.1
UVC PTZ ControlSupport
Generic Spec
Input VoltageDC 12V / USB 5V
Input Current12V 1.0A (max.)/ 5V 1.5A (max.)
Operating Temperature0° C ~ 40° C
Storage Temperature-40° C ~ 60° C
Power Consumption12W(Max)
MTBF>30000H
Dimension107.9mm(W) × 114.3mm(D) × 136.5mm(H)
Weight0.5kg

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink iCam FHD 3X captures Full HD 1080p video and offers 3X optical zoom and 16X digital zoom.

The PeopleLink iCam FHD 3X uses a 1/2.9'', CMOS, 2.07 Megapixels.

Yes. The PeopleLink iCam FHD 3X provides AI tracking and auto framing that keep the active presenter framed as they move.

The PeopleLink iCam FHD 3X connects over standard interfaces, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.

Use the download button on this page to request the full PeopleLink iCam FHD 3X PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
