PeopleLink Impact Digital Array MicrophoneArray Microphone

Array Microphone for meeting and conference rooms. View the verified specifications and download the full datasheet.

Audio datasheet
Download the full datasheet
Complete specifications for the PeopleLink Impact Digital Array Microphone in PDF.
Overview

What is the PeopleLink Impact Digital Array Microphone?

The PeopleLink Impact Digital Array Microphone is an array microphone built for meeting and conference rooms. It is designed for clear, hands-free voice pickup across the room. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Digital Microphone Array

Built with six high SNR microphones forming a ring array.

PoE

The clear pickup range is 3 meters, with an effective range of 6 meters. Supports up to 6 microphones in a PoE cascade.

AI Audio Algorithm

Uses blind beamforming to automatically locate sound sources and adjust pickup direction for balanced audio. The 3A algorithms effectively suppresses environmental noise, reverberation, and enhances sound quality.

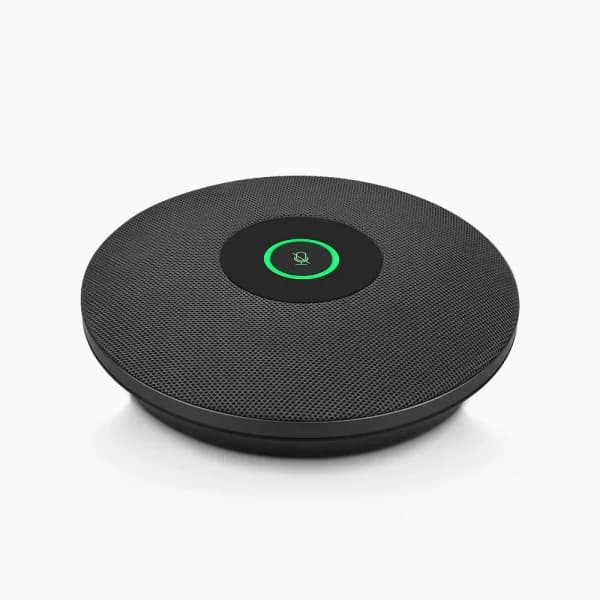

PeopleLink Impact Digital Array Microphone
Specifications

PeopleLink Impact Digital Array Microphone specifications

Verified from the official datasheet. Download the full PDF for complete details.

General Specifications
Pickup MethodOmnidirectional Microphone
Pickup Range360° omnidirectional pickup
Pickup Distance3 meters clear pickup, 6 meters effective pickup
Network InterfaceRJ45 uplink and downlink cascade ports
Cascade MethodPoE
Power InputPoE cascade 48V power supply, support IEEE 802.3 at standard / USB 5V 500mA (single)
SystemWindows / Mac / Linux
Dimension170 mm × H 40 mm
Net Weight370 g
Audio Parameters
Microphone ArrayBuilt-in 6 high signal-to-noise ratio digital microphones
SNR65 dB(A)
Sensitivity< -35 dBFS
Sampling Rate32K
Number of Cascades6
Audio AlgorithmAcoustic Echo Cancellation,(AEC); Automatic Noise Suppression (ANS); Automatic Gain Control(AGC)
USB InterfaceUSB audio interface (Type-C), UAC1.0 protocol, Audio data communication, software upgrade and parameterization
Analog AudioAUX1, AUX2 Linear audio inputs and outputs
Weight370g
Usage ScenariosConference desktop
Control modeMute button

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink Impact Digital Array Microphone is an array microphone from PeopleLink, designed for clear, hands-free voice pickup across the room. It works with common video conferencing platforms.

The PeopleLink Impact Digital Array Microphone connects over RJ45 uplink and downlink cascade ports, and works with common video conferencing platforms.

Yes. As one OEM, PeopleLink supplies the array microphone alongside cameras, audio, control and room solutions, so the room works together.

Use the download button on this page to request the full PeopleLink Impact Digital Array Microphone PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
