Product Features:

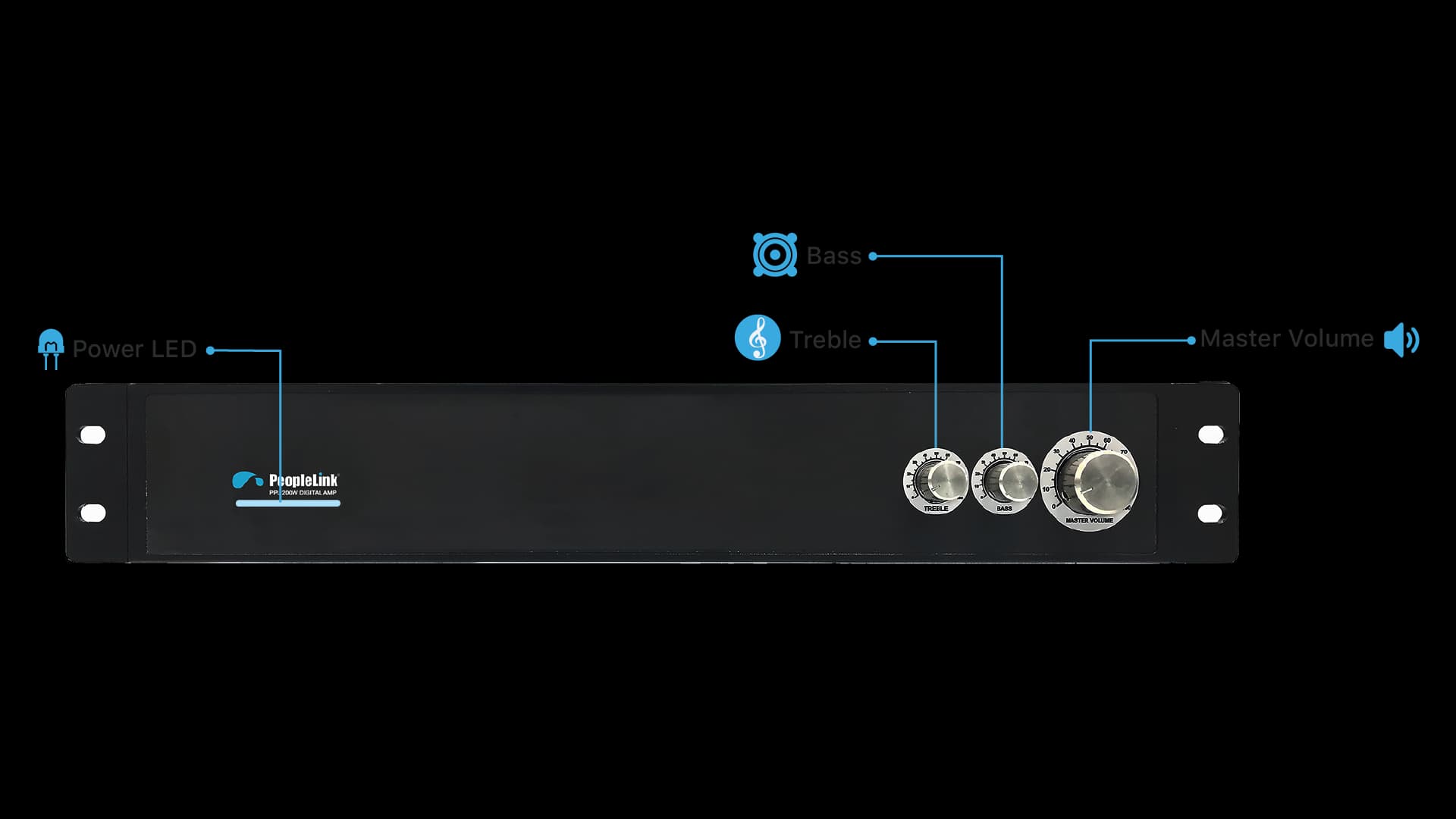

- 200 Watts Class D Mixer Amplifier with Bass, Trebble Equilizer
- 2 Balance Phantom Microphone Inputs with XLR
- 1 Unbalanced Microphone Phono Input
- RS232 connection for controller
Product Specifications:
Amplifier Parameters
Channel Type | : | 2 Channel Stereo Amplifier |
---|---|---|
Equilizer (Tone Controller) | : | Yes |
Power Output RMS | : | 200Watts |
Power Output @ 8 Ohms | : | 2*100Watts VCC = 24V DC |
Minimum Impedance | : | 8 Ohms @50 Watts |
Frequency Response | : | 20 Hz, 20000Hz |
Operating Supply Voltage | : | 12 volts to 24 volts |
Type | : | Class-D (Digital) |
Frequency Range | : | 30 Hz to 16 kHz |
Operating Supply | : | 8V to 24 volts |
Interface
Line Input | : | 1x2RCA |
---|---|---|
Line Output | : | 1x2RCA |
Unbalanced Mic Input | : | 1×6.5mm phono jack with gain controller |
Balanced 48Volts /12Volts phantom Mic inputs | : | 2x XLR ports with separate gain controllers |
Controlling | : | Rs232 Visca |

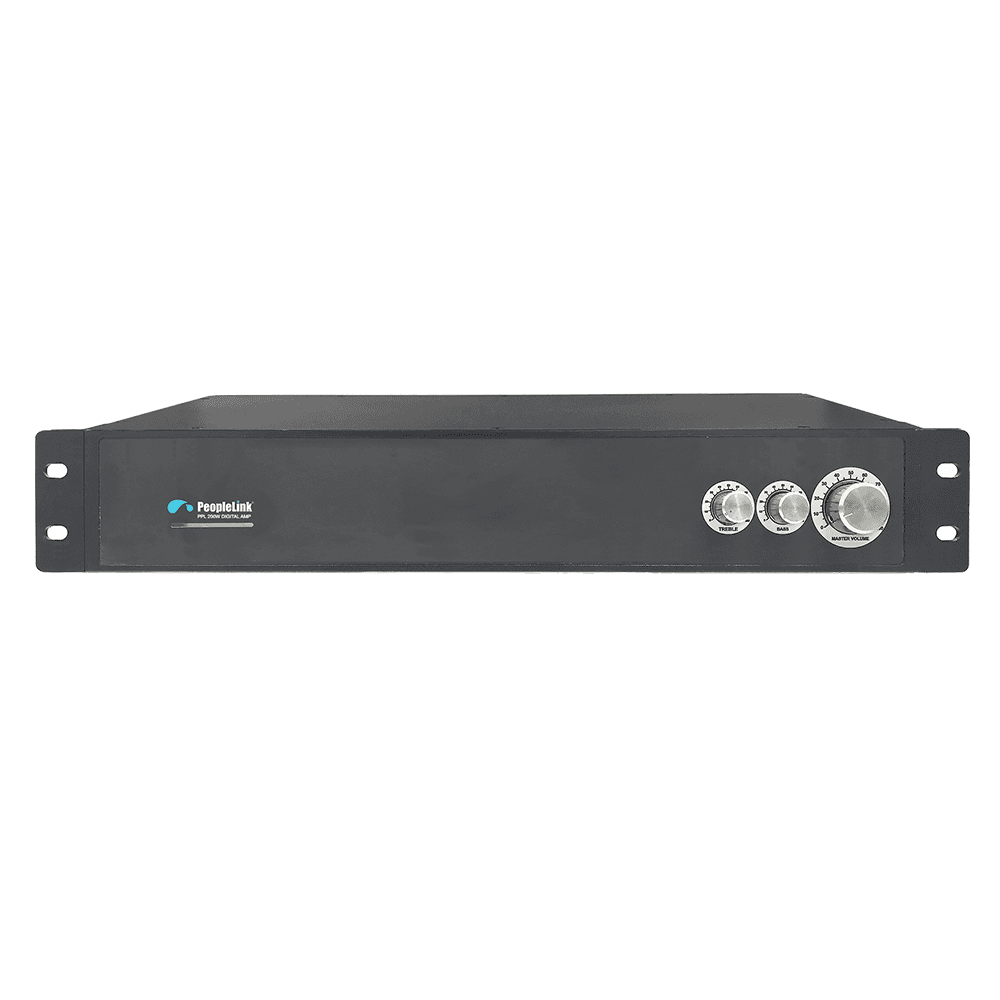

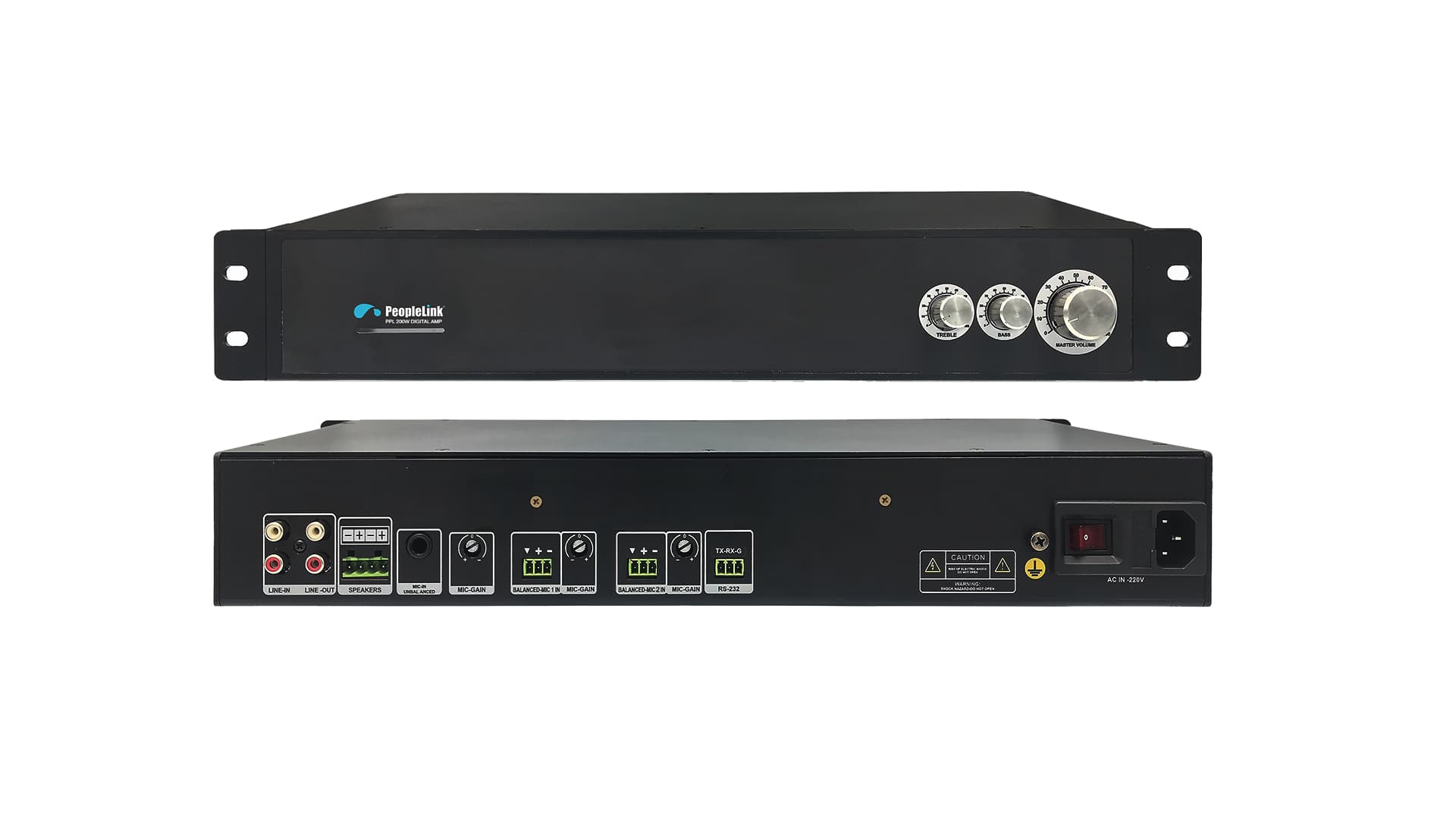

Physical Dimensions and Chassis Details

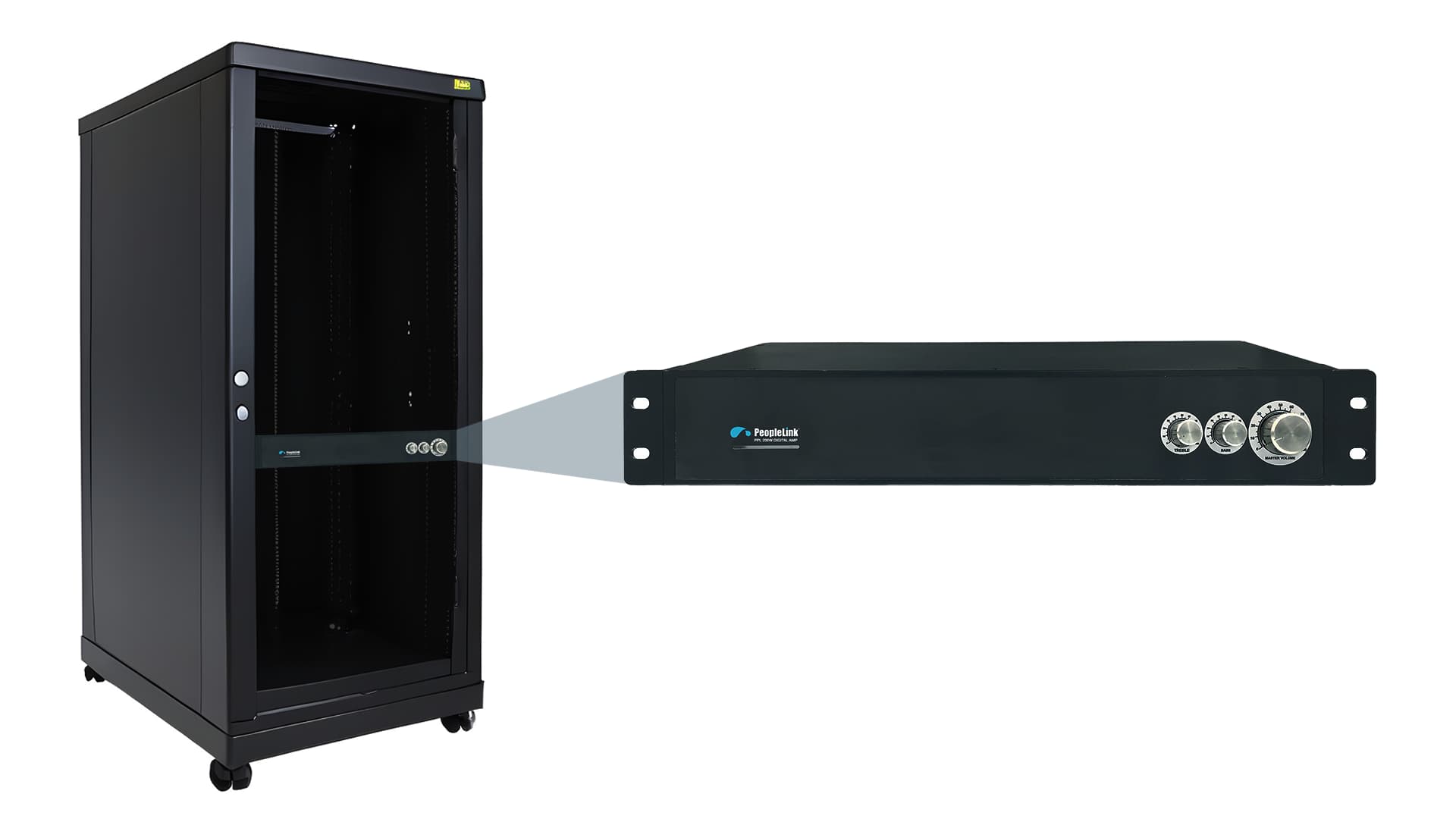

Made with MS and Aluminum metal with black matt fine structure powder coating and 2 U Size with Rack-mountable
Dimensions | : | 435mm X 8.9mm X 175mm LxWxD |
---|
Ordering Information
Part Code | : | PPU-MCC-AMP-200W |
---|
