The PeopleLink Wireless Digital Conference System is a 5G Wi-Fi Digital Conference System for Meeting Rooms and Large Conference Rooms. It supports up to 300 wireless units with 20 active at once, each carrying a pluggable gooseneck condenser microphone, 360-degree audio coverage and a built-in speaker at a 48K audio sampling rate. One AP transmitter reaches 30 metres and up to 50 units, and a full charge on the charger unit takes 4 hours. RS232 or RS485 sends PELCO or VISCA for Camera Auto-Tracking, with USB Recording for the record. Because nothing is cabled to the table, the same room can be set out and cleared between sessions.
5G Wi-Fi units, chairman and delegate roles and cable-free setup, explained.

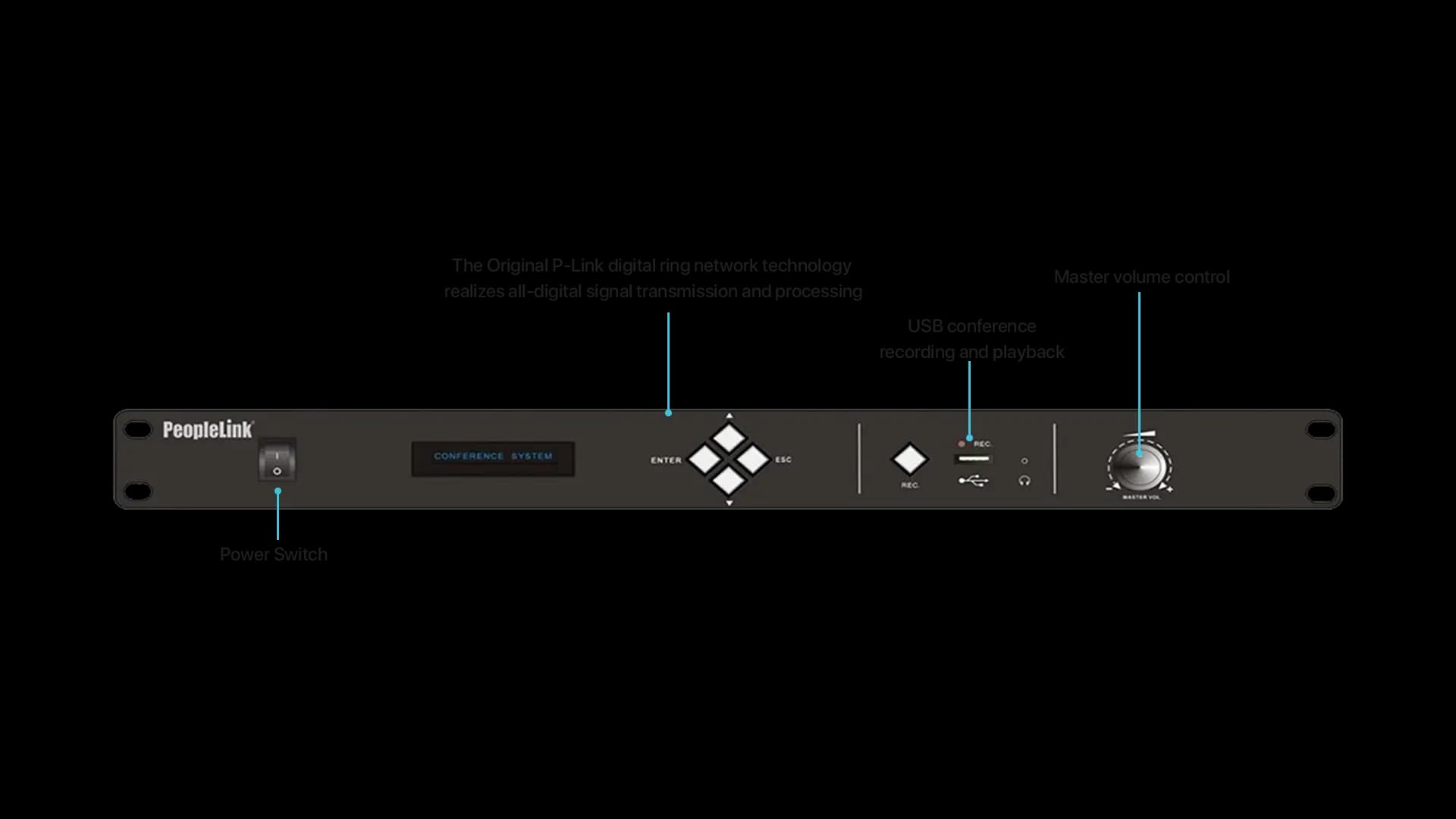

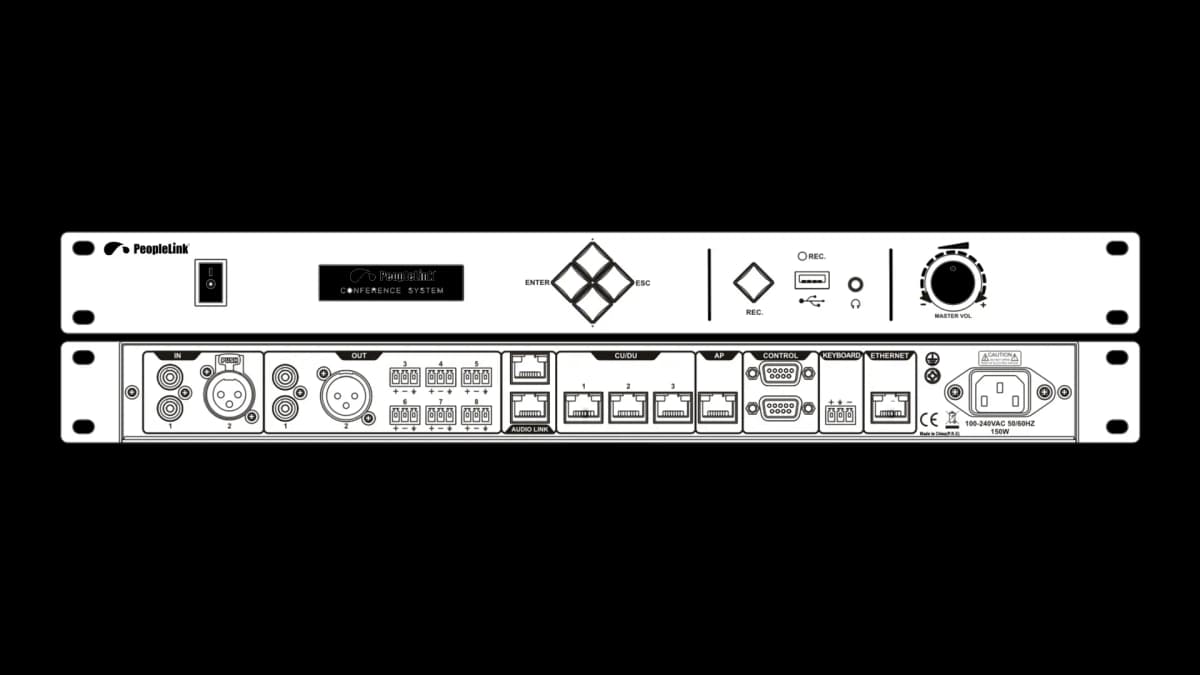

Immerse yourself in the convenience of PeopleLink's Wireless Conference System, allowing you to start meetings anytime, anywhere. With standard Wi-Fi technology seamlessly integrating with existing networks, our wireless units operate on a variety of frequency points, ensuring zero interference. The Central Unit, boasting a sleek 1U design, serves as the hub, providing power and seamless integration with third-party devices. Empower your meetings with high-tech intelligence, including timing functions, overtime reminders, and global firmware updates. 64 Channels Interpretation AUDIO link Digital input/output Audio analog input TCP/IP software control port 4-way CU/DU connection for MIC

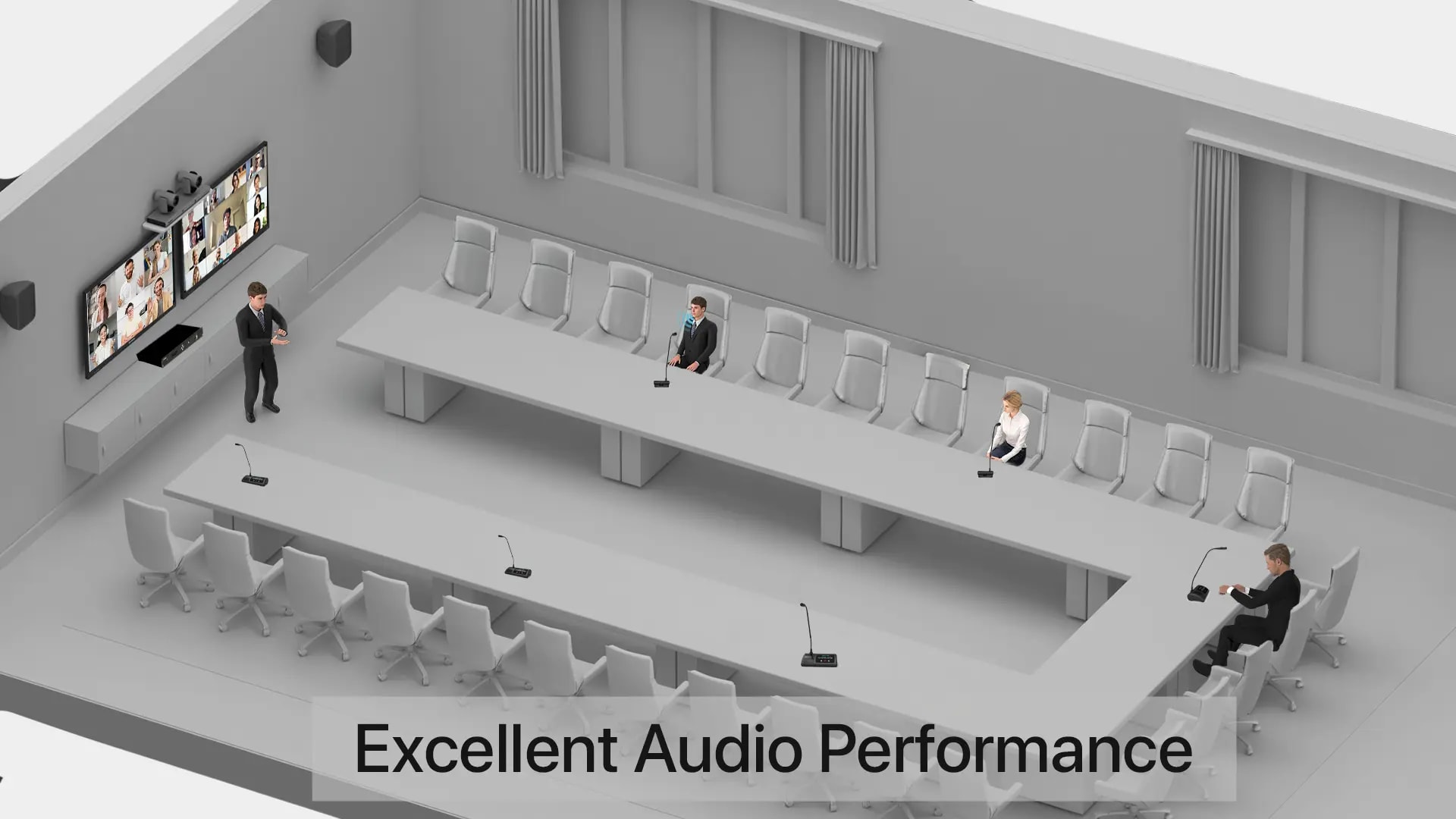

This revolutionary unit accurately captures and reproduces the nuances of the human voice through built-in audio systems or outside PA structures. Additionally, P-Link digital ring network technology, coupled with Automatic Gain Control Volume (AGC) and automated frequency management (AFC) technology, allows the gadget to acquire better volumes without inducing a disruptive impact.

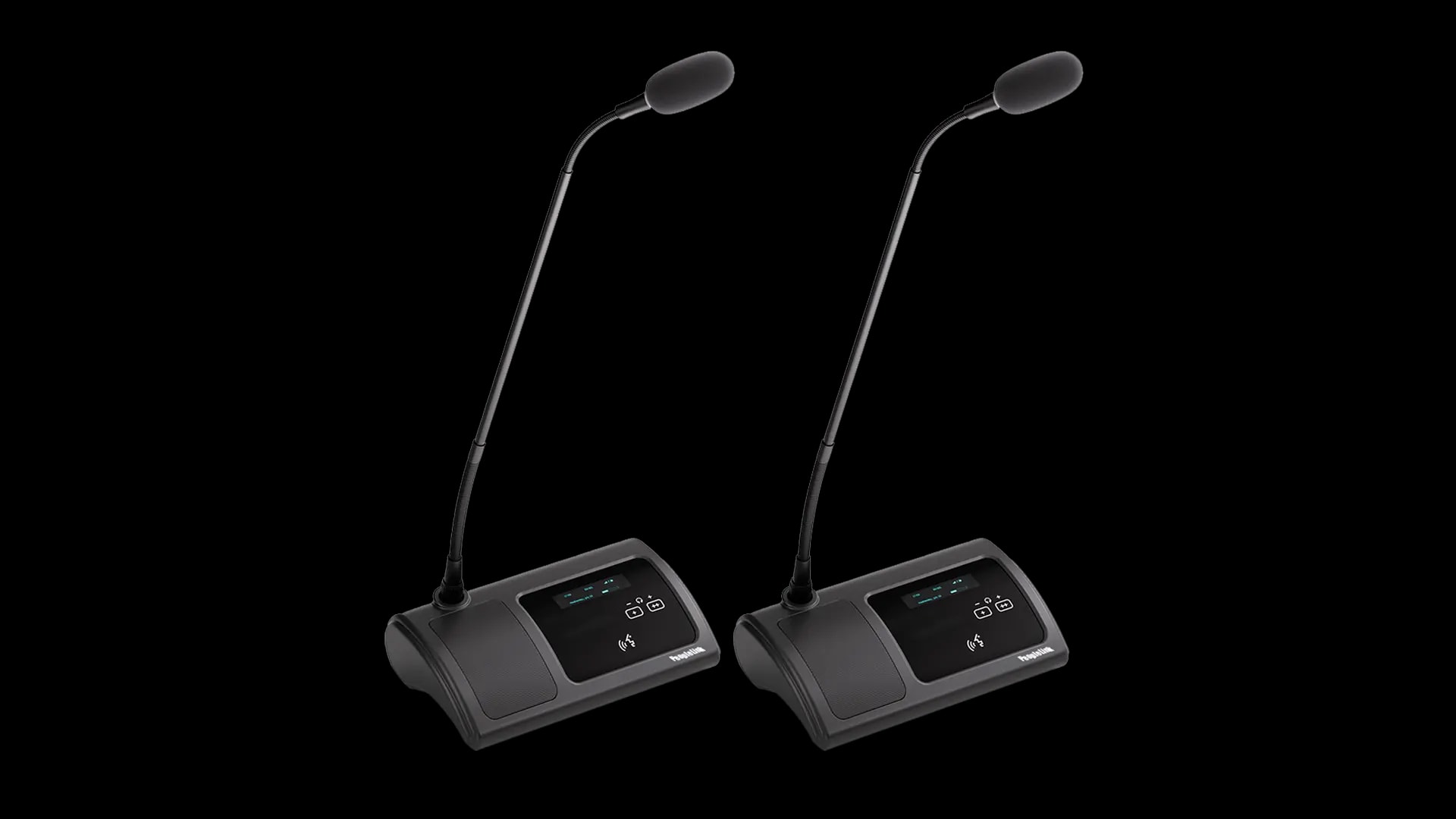

Experience the future of conferencing with our visually appealing chairman/delegate units featuring a curved panel and touch-sensitive buttons. The 2.5-inch display provides clear and intuitive information, while the arc-shaped glass operation area is dust/water-proof. Say goodbye to noise and damage risks associated with common physical buttons, thanks to our anti-scratch cover technology. Enjoy a smooth glass surface even after thousands of touches. Amplify conference audio using built-in speakers for everyday sound needs. For larger meetings, utilize Audio Link POE speaker columns to ensure optimal audio quality. 5G WiFi Tabletop OLED display Touchable button Dual earphones jack Line-in jack

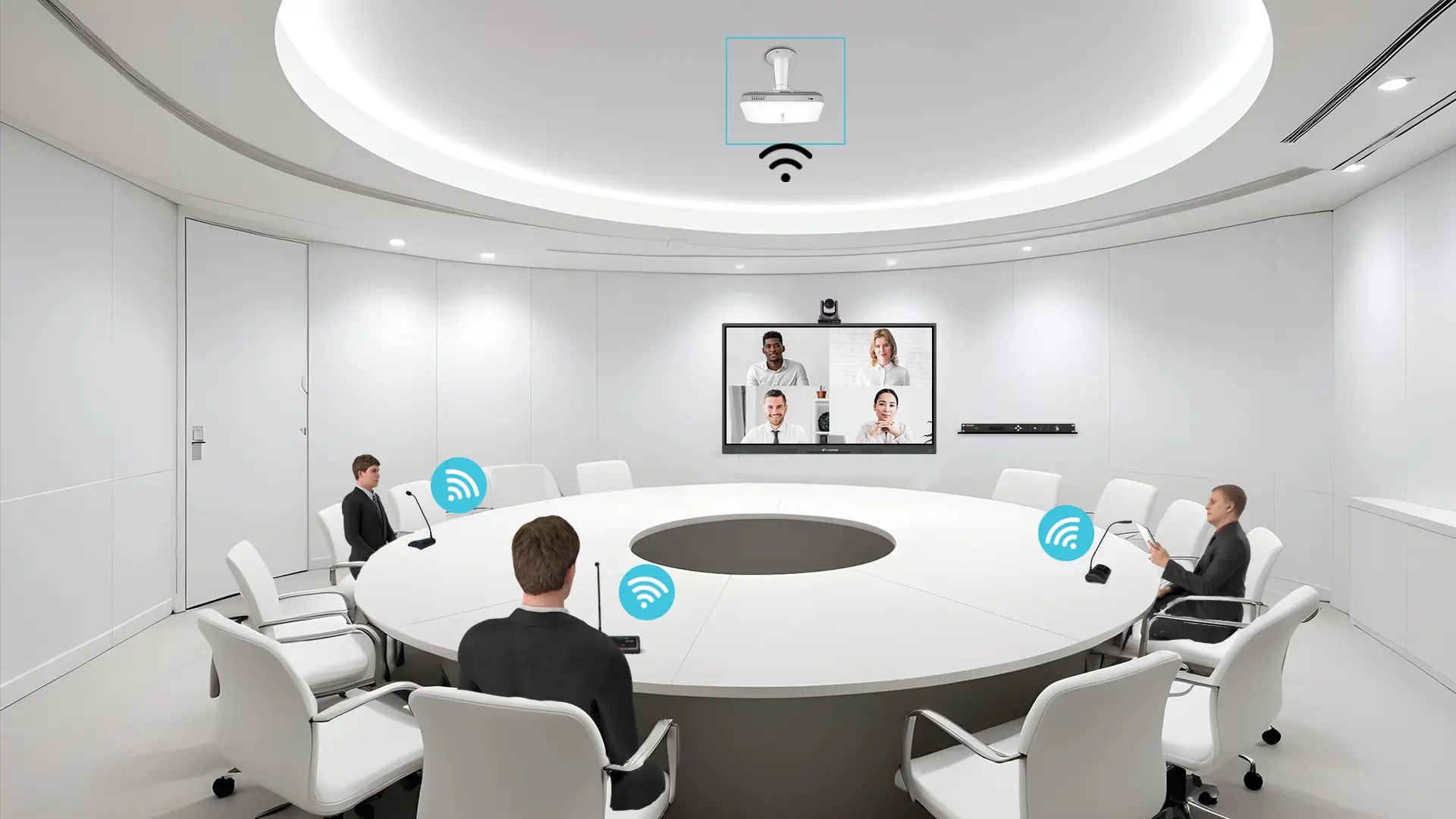

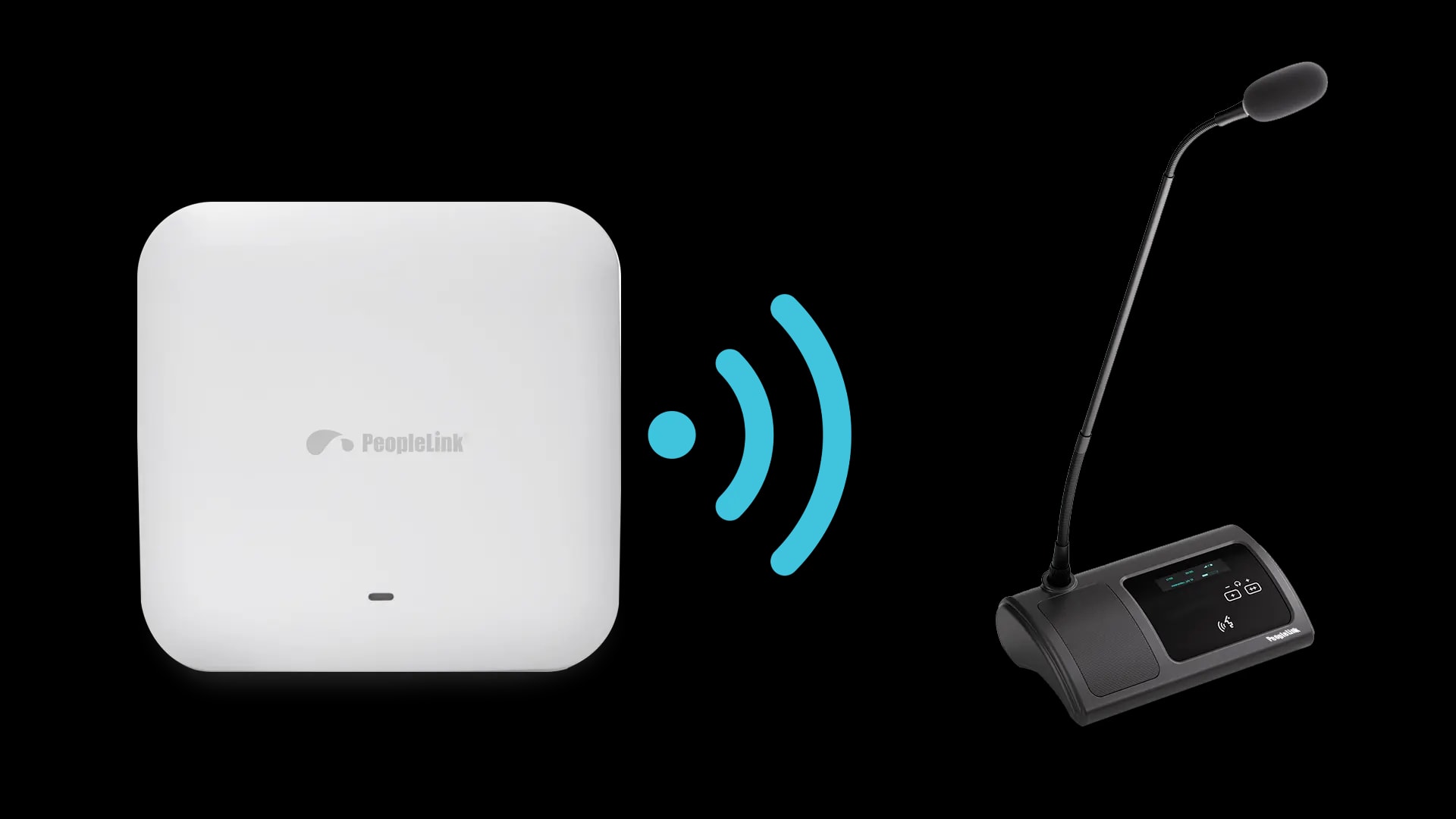

Transform your workspace with our clutter-free desktop solution. The AP Transmitter ensures a clean, organized environment by eliminating messy cables. This powerful 5G Wi-Fi access point, optimized for PeopleLink wireless series products, provides stable performance for all connected discussion units. Install it on the ceiling, wall, or with a stand rack mount for flexibility. 5G WiFi Wireless access point 5GHz dual band Typical coverage range of 30m Install on ceiling, wall or with stand rack mount White color modern design

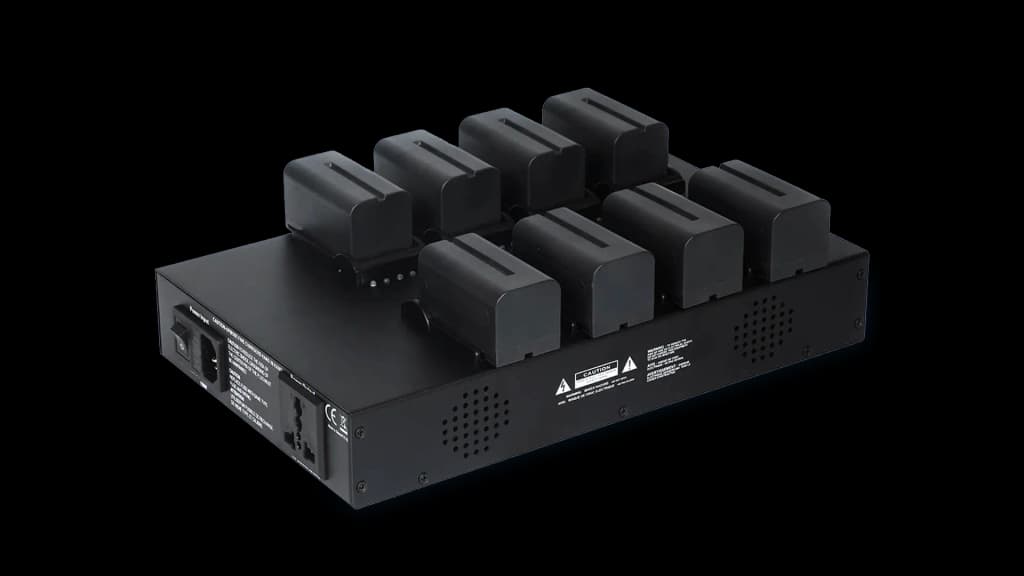

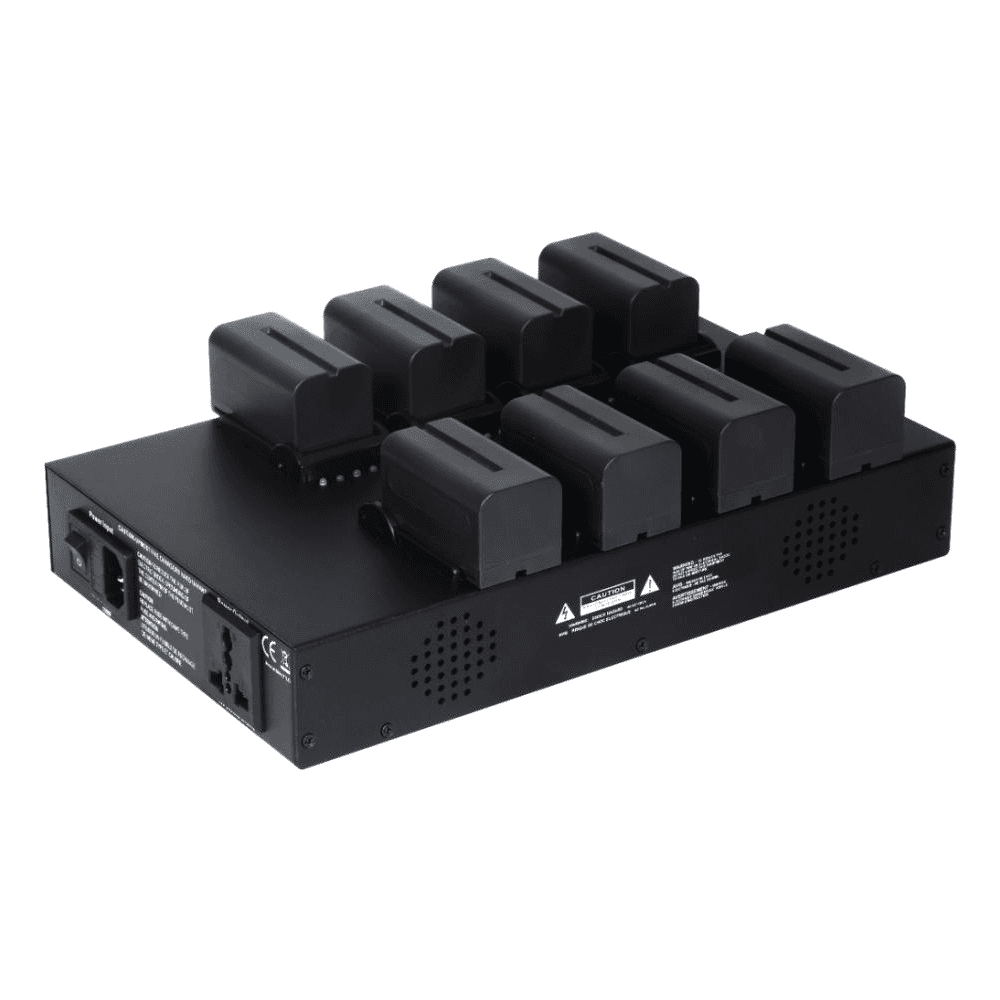

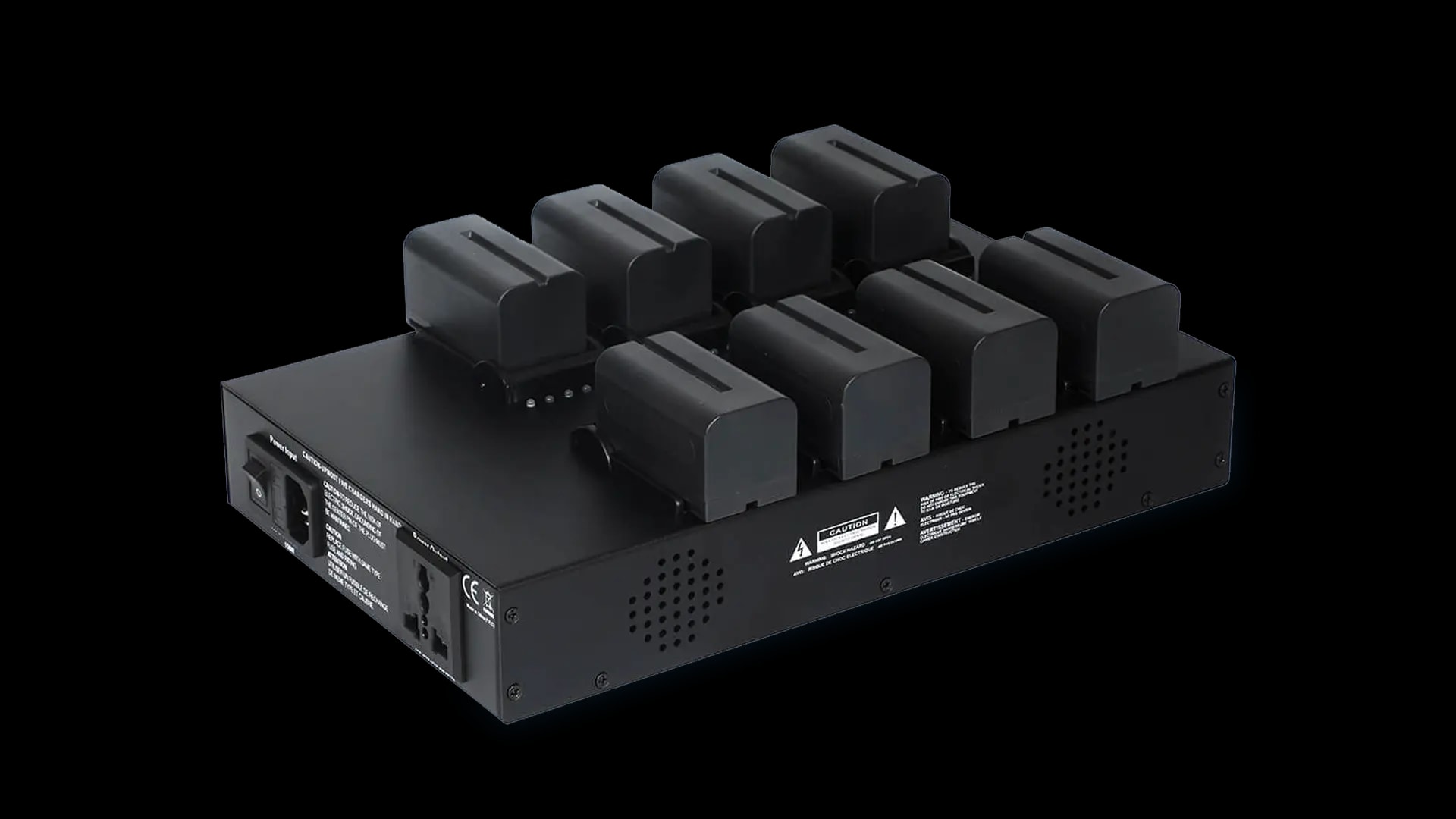

Ensure uninterrupted conference sessions with our Charger Box for wireless conference units. The buckle housing prevents poor contact or dropping, offering a lightweight design for easy mobility. LED indicator for charging 8 batteries charge at same time Three hours needed to fully charge Wide range power input: 100V~240V AC

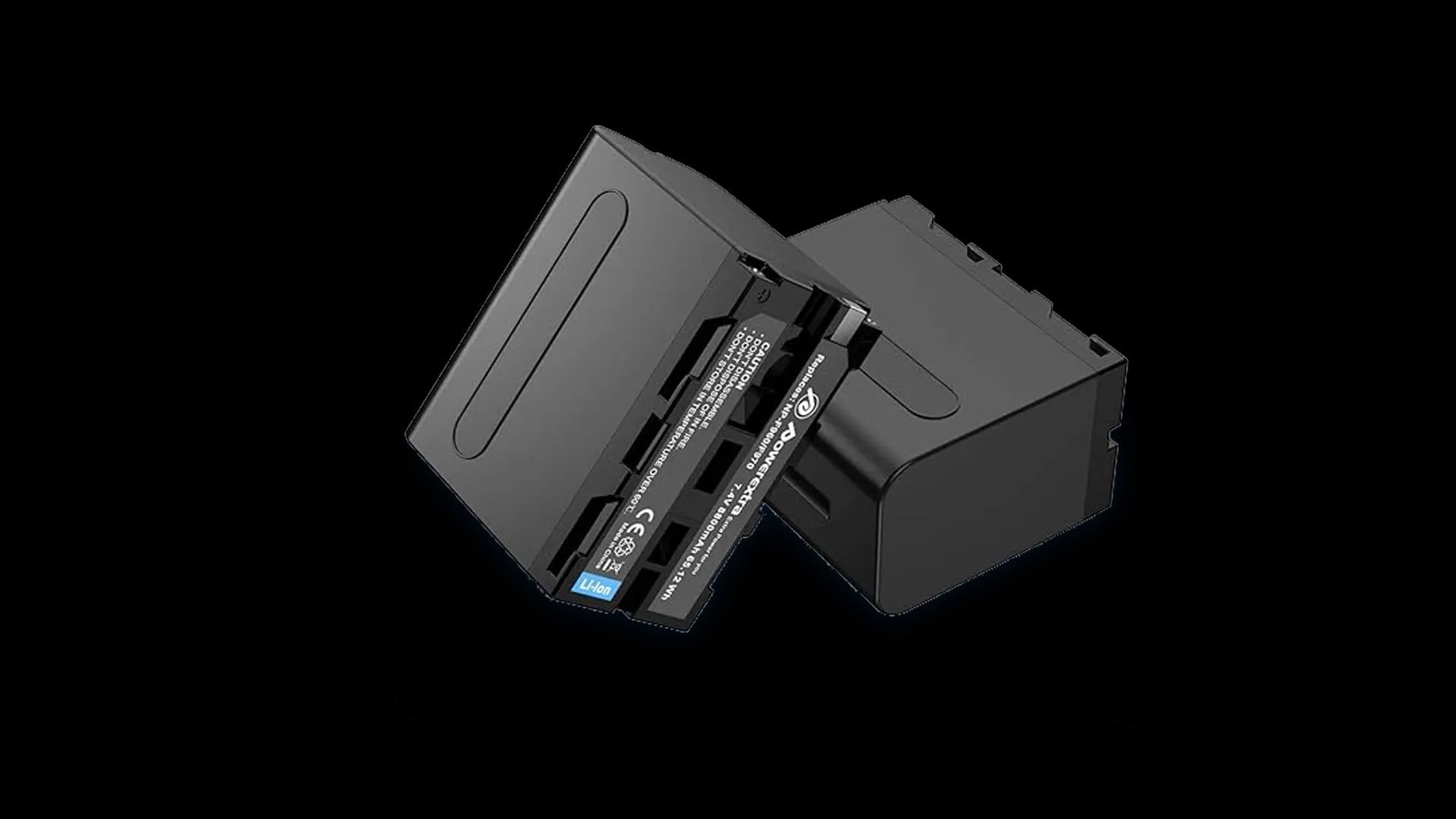

It provides a convenient replaceable battery energy delivery. The device boasts an outstanding 20 hours of runtime with a fully charged battery, imparting lengthy-lasting electricity for extended convention classes. This person-friendly design compliments the system's flexibility, allowing for uninterrupted and dependable operation without the restrictions of common recharging.
Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.
| Item | Wireless Digital Conference System |
|---|---|
| Units supported | Up to 300 |
| Connectivity | 5G Wi-Fi Wireless |
| Sampling rate | 48K Audio |
| Full charge | 4 Hours |
Cable-free 5G Wi-Fi Discussion Units with 360-degree coverage.
Scales to 300 Units with 20 active at once.
Camera Auto-Tracking and USB Recording for the record.
How organisations deploy a Digital Conference System, and what changes for the teams that use it
A district administration sets out wireless units before a session and clears them afterwards, so the same room serves as a hall on other days. Each unit runs on 5G Wi-Fi with a pluggable gooseneck condenser microphone, 360-degree audio coverage and a two colour LED that shows its state to the floor. RS232 or RS485 carries PELCO or VISCA to a PeopleLink Camera, which turns to the speaker while USB recording keeps the session for the record.
A consulting firm dropped cable trunking from its meeting room refit and put the PeopleLink Wireless Digital Conference System on the table instead. One AP transmitter reaches 30 metres and up to 50 units, more than the room will ever seat, and a 48K audio sampling rate keeps voices natural on a recorded call. Units take four hours for a full charge on the charger unit, so a room booked morning and afternoon is ready for both.
A university moves one set of units between a Convocation Hall, a senate room and a training suite. The system scales to 300 units with 20 open at once, so a large session runs without the AV team rationing microphones between speakers. Four discussion modes, OPEN, VOICE, OVERRIDE and APPLY, let the chair change how the floor is managed between an open debate and a formal address. The controller sits in a 19-inch rack with the rest of the room.
Tell us the room size and seating. A PeopleLink specialist will recommend the right model.
| Capability | Wireless Digital Conference System | Typical Alternative |
|---|---|---|
| Connectivity | 5G Wi-Fi wireless, no cable clutter | Wired-only units |
| Scale | Up to 300 units, 20 active | Limited unit count |
| Power | Replaceable battery, ~20 hour runtime | Mains-only operation |
| Camera tracking | PELCO/VISCA auto-tracking, USB recording | No camera control or recording |
Cameras, Audio, Control and Collaboration Platforms, built by one OEM.
PeopleLink Audio Devices pair with PeopleLink Cameras, Control and Room Solutions out of the box.
Trusted across Enterprise, Government, Education and Healthcare environments.
Talk to PeopleLink AV Specialists for sizing, integration and rollout.
Get one consolidated quote covering Hardware, Software and Installation from One OEM.
| Connectivity | : Wireless |
| Microphone Units | : Supports Max 300 Units |
| Audio Coverage | : 360-Degree Coverage |
| Built-in Speaker | : Yes |
| Concurrent Unit Activity | : 20 Active Concurrent Units |
| LED Indicators for Units | : Two Color LED Indicators |
| Sampling Rate | : 48K Audio Sampling Rate |
| Discussion Modes | : 4 Modes: OPEN, VOICE, OVERRIDE, APPLY |
| Pluggable Gooseneck Microphones | : Yes |
| Microphone Type | : Condenser |
| Mic Frequency Response | : |
| AP Transmitter | : Yes, 30m Coverage Range |
| AP Supports Max Units | : 50 Conference Units |
| Charger Unit | : Yes |
| Full Charging Time | : 4 Hours |
| Interfaces | : USB, 3.5 mm, RCA, XLR, Phoenix, RJ45, DP9 |
| Protocols | : RS232 or RS485 To Send The PELCO/VISCA Protocol For Camera Auto-Tracking. |
| USB Recording | : Yes |
| Rack Mountable | : 19" Standard Rack |
| Application | : Meeting rooms, Large Conference rooms |
| Product | Wireless System | Wired System |
| Connectivity | Wireless | Wired |
| Microphone Units | Supports Max 300 Units | Supports Max 5200 Units |
| Audio Coverage | 360-Degree Coverage | 360-degree coverage |
| Built-in Speaker | Yes | Yes |
| Concurrent Unit Activity | 20 Active Concurrent Units | 20 Active Concurrent Units |
| LED Indicators for Units | Two Color LED Indicators | Two Color LED Indicators |
| Sampling Rate | 48K Audio Sampling Rate | 48K Audio Sampling Rate |
| Discussion Modes | 4 Modes: OPEN, VOICE, OVERRIDE, APPLY | 4 Modes: OPEN, VOICE, OVERRIDE, APPLY |
| Pluggable Gooseneck Microphones | Yes | Yes |
| Microphone Type | Condenser | Condenser |
| Mic Frequency Response | ✗ | 30Hz~20KHz |
| AP Transmitter | Yes, 30m Coverage Range | No |
| AP Supports Max Units | 50 Conference Units | N/A |
| Charger Unit | Yes | No |
| Full Charging Time | 4 Hours | N/A |
| Interfaces | USB, 3.5 mm, RCA, XLR, Phoenix, RJ45, DP9 | USB, 3.5 mm, RCA, XLR, Phoenix, RJ45, DP9 |
| Protocols | RS232 or RS485 To Send The PELCO/VISCA Protocol For Camera Auto-Tracking. | RS232 or RS485 To Send The PELCO/VISCA Protocol For Camera Auto-Tracking. |
| USB Recording | Yes | Yes |
| Rack Mountable | 19" Standard Rack | 19" Standard Rack |
| Application | Meeting rooms, Large Conference rooms | Meeting rooms, Large Conference rooms |
Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.
