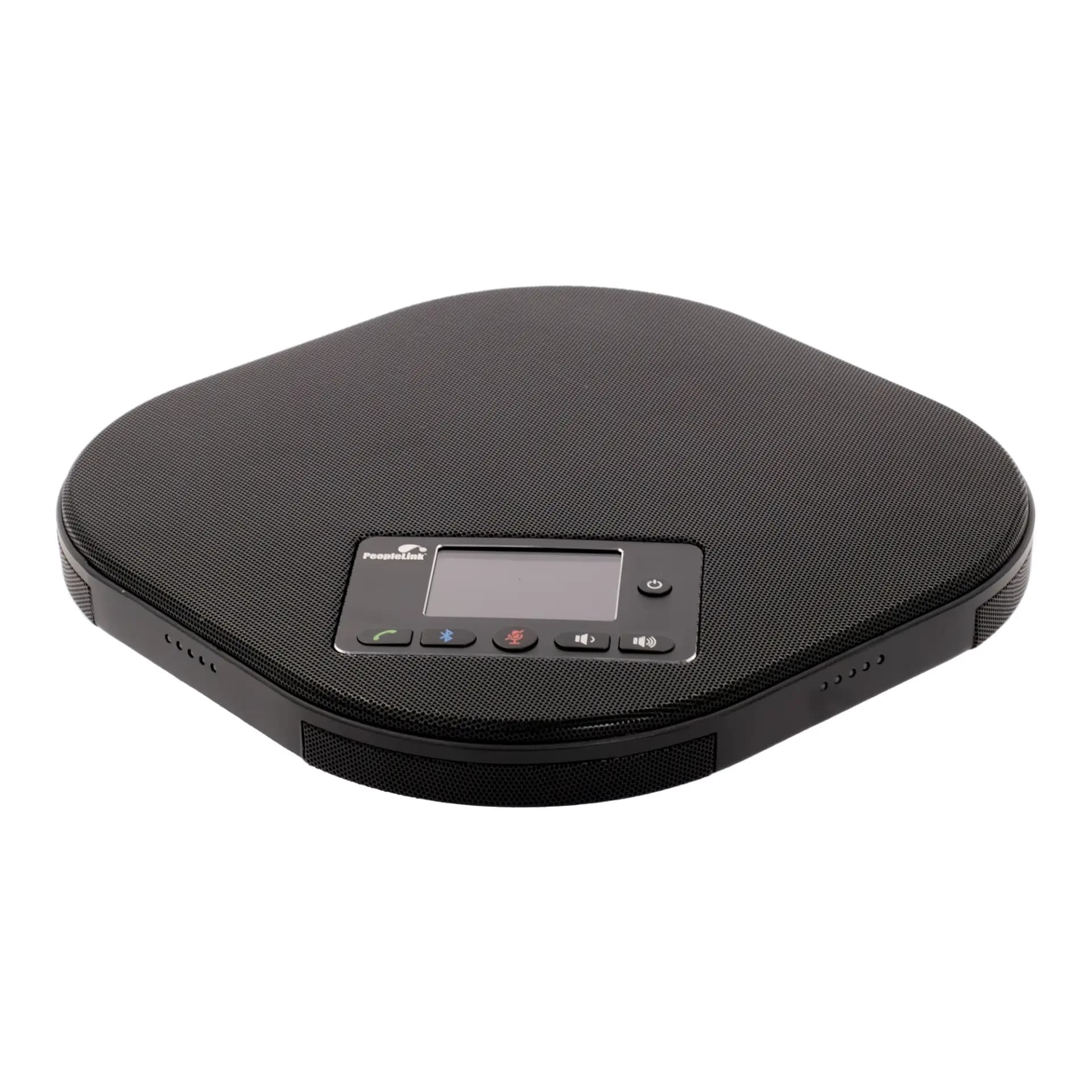

The PeopleLink Quad Speakerphone 12 is a Speakerphone for Mid to Large Meeting Rooms, Boardrooms and Hybrid Classrooms. A 12 mic array gives 360 degree pickup out to a 6 metre radius, with speaker output of 95dB and a 48KHz sampling rate. Full-Duplex audio with AEC, ANS and AGC handles deep echo cancellation above 65dB and two-way noise compression above 18dB. USB, Bluetooth and 2.4G connect it to a room PC beside a PeopleLink Camera, and a built-in battery covers tables with no cable run. Two extension mics on RJ9 widen pickup as a room grows, so one unit is not outgrown by a longer table.
12 mic array, 6 metre pickup and daisy-chain expansion, explained.
PeopleLink Quad Speakerphone 12 is designed for efficient collaboration and is ideal for medium- to large-sized meeting rooms. Its small and has USB/ Bluetooth connectivity allow you to always carry it with you. It offers exceptional audio thanks to recent beamforming technologies. It can handle the radio frequency signal through the same point, which uses different antennas to transmit the same signal.

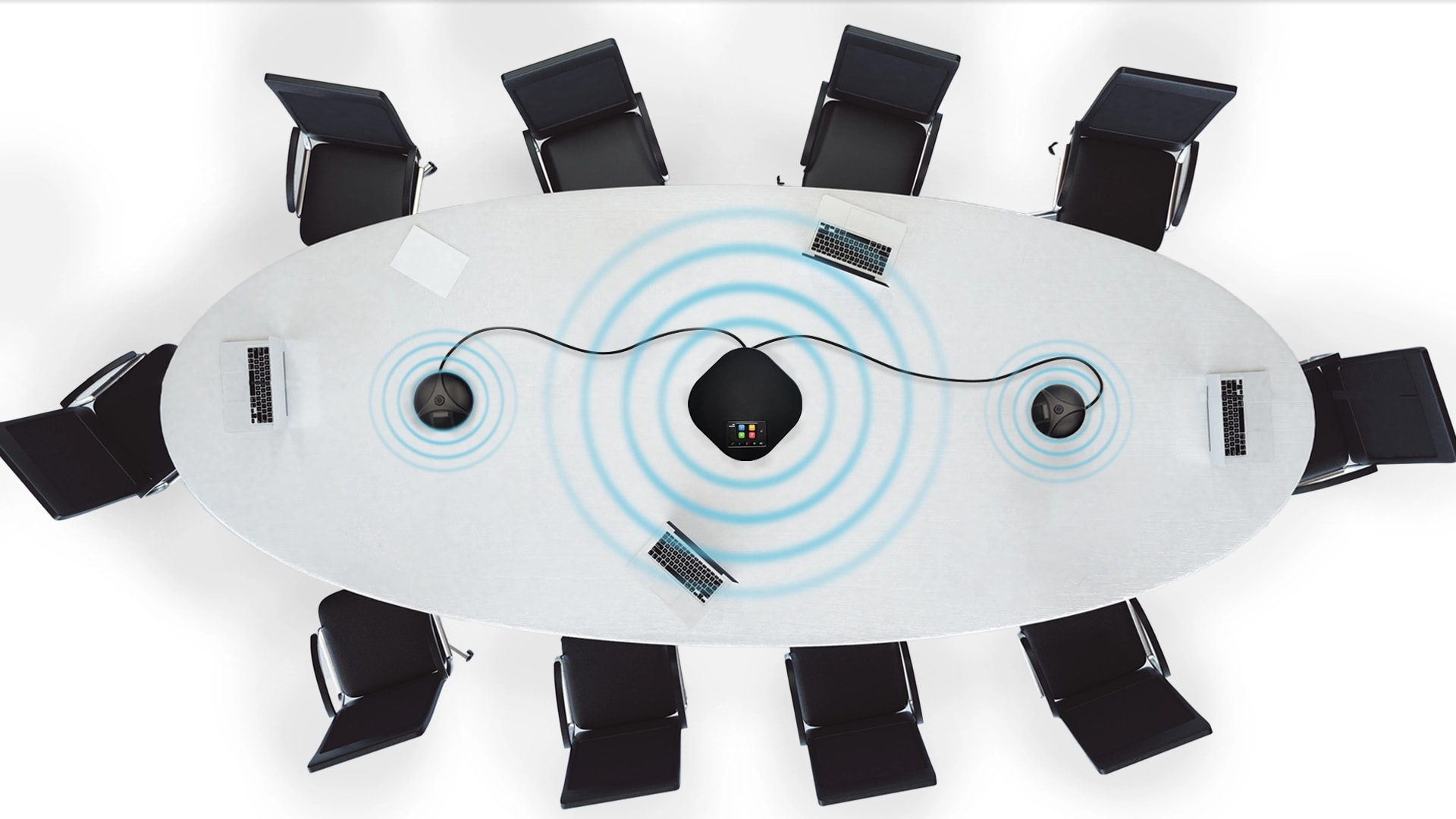

Built-in 12 high-sensitivity microphone arrays can cover a 6-meter pickup distance, and with 2 optional expansion microphones, the distance can be extended to 8 meters. Plus, it offers broadband echo cancellation with HD Voice, the perfect option for 20-60m conference rooms with up to 20 participants. Includes easy-to-use buttons for Mute, Volume, and On/Off, which can be used without loss of audio quality within a radius of 6 meters.

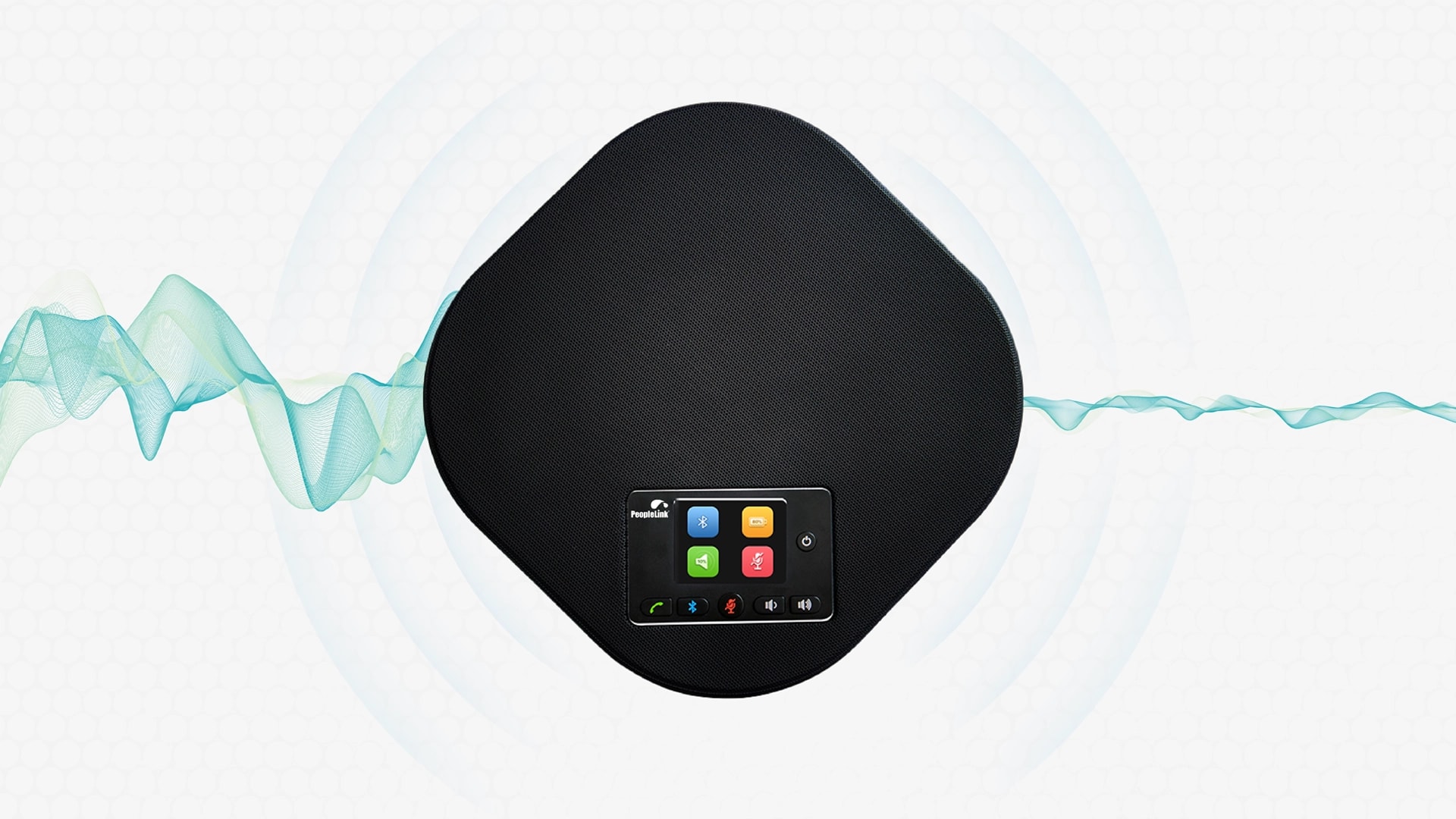

Wide-band acoustic echo cancellation, dynamic noise suppression, and automatic gain control to support comfortable, natural-sounding conversation on both ends of the call.

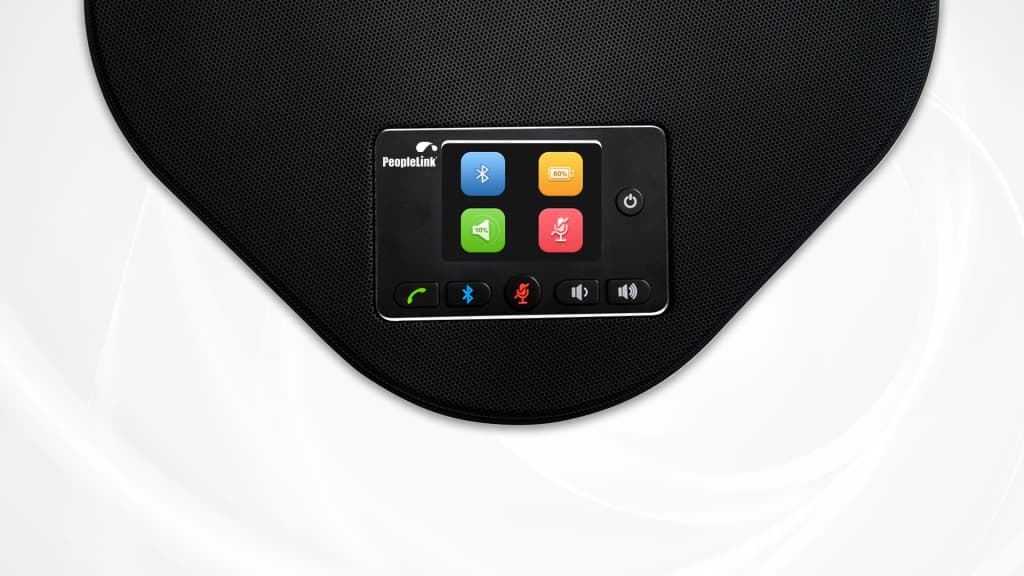

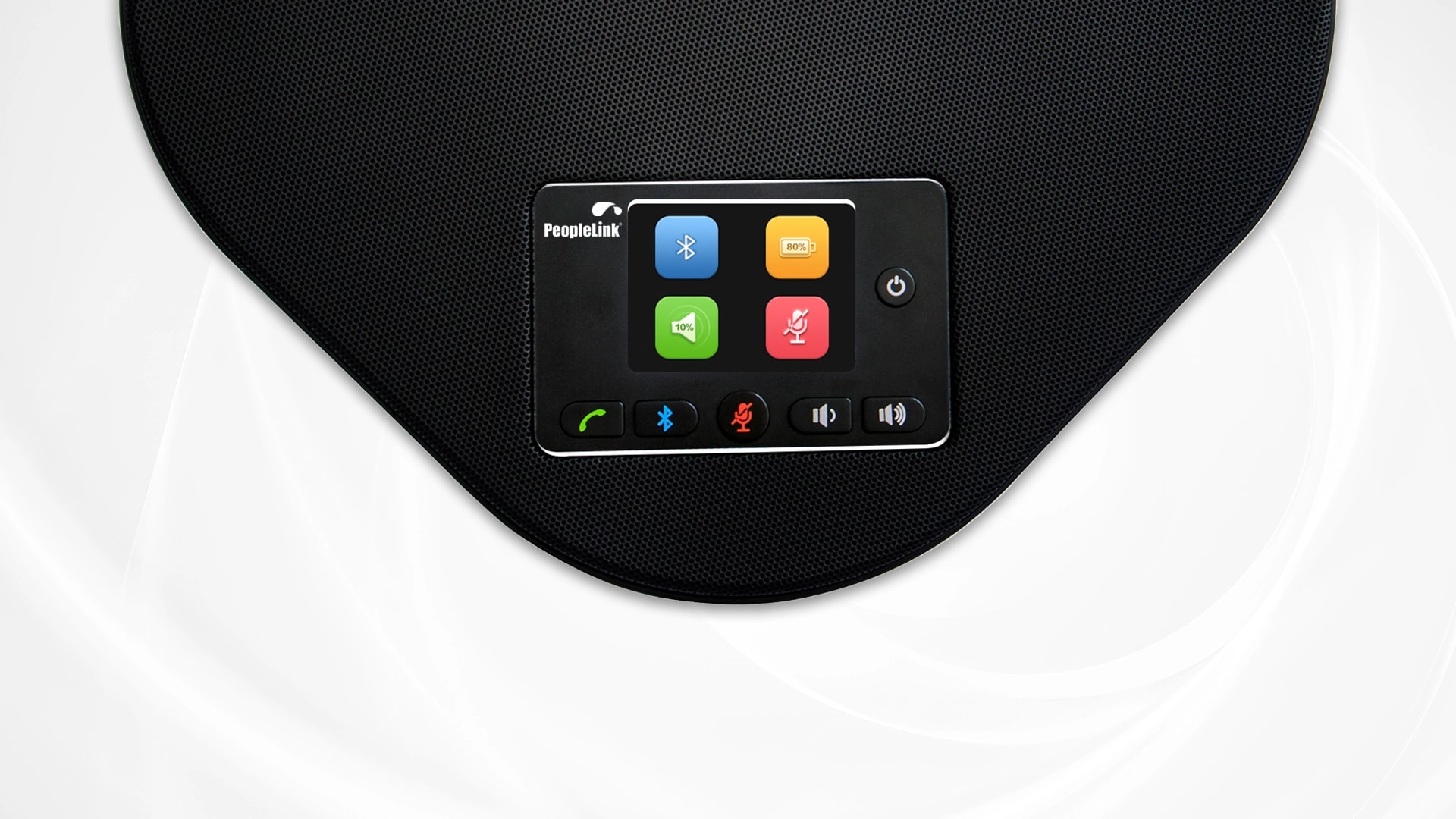

The status of each button can be shown on the LCD screen for more intuitive operation. It's convenient for users to know the volume percentage, connection status, and battery status from the screen.

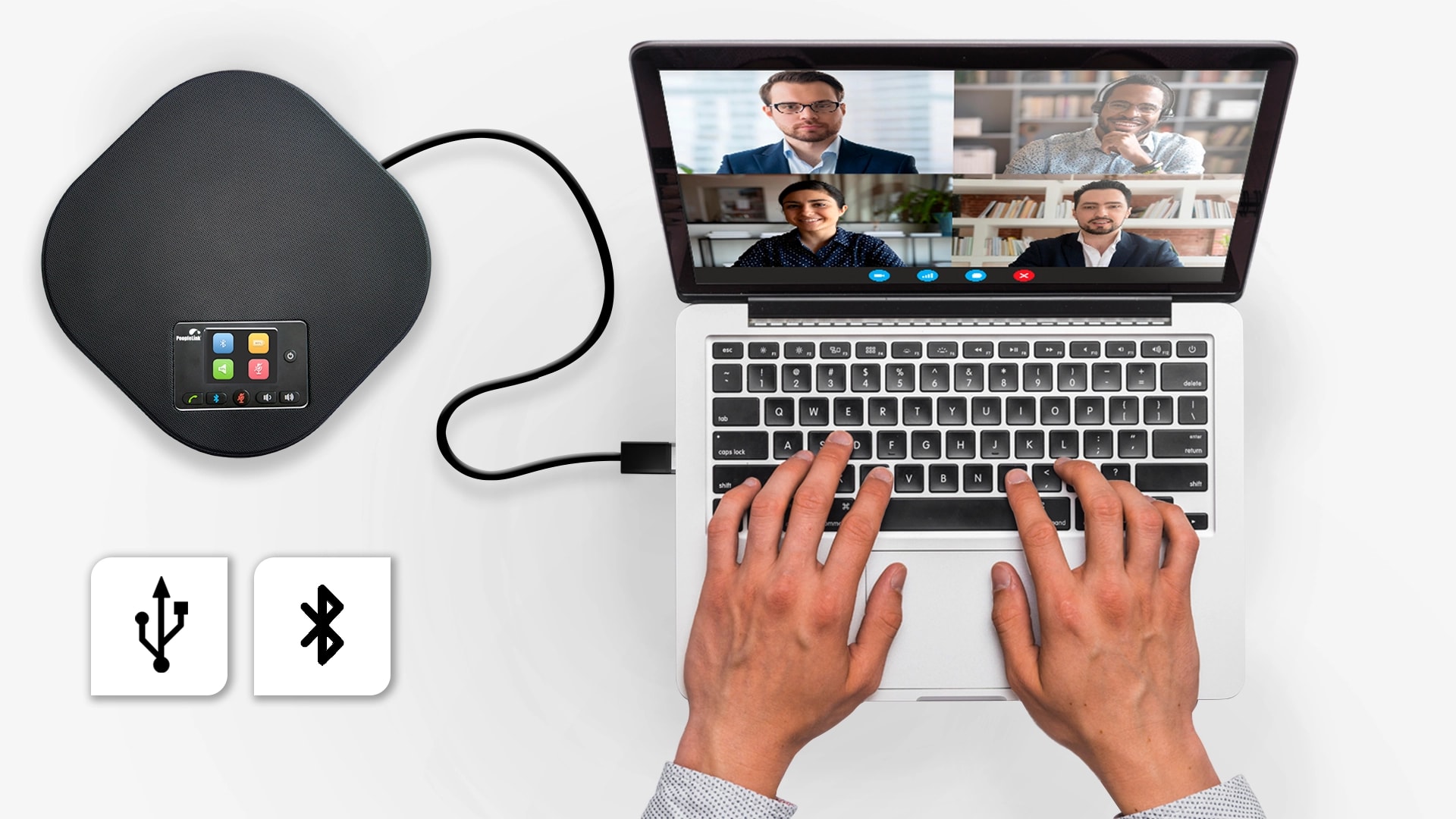

Plug the USB into the PC or display port, turn on the speakerphone, or connect via Bluetooth, and wait for the wireless connection to be successful, it's so easy to plug and play.

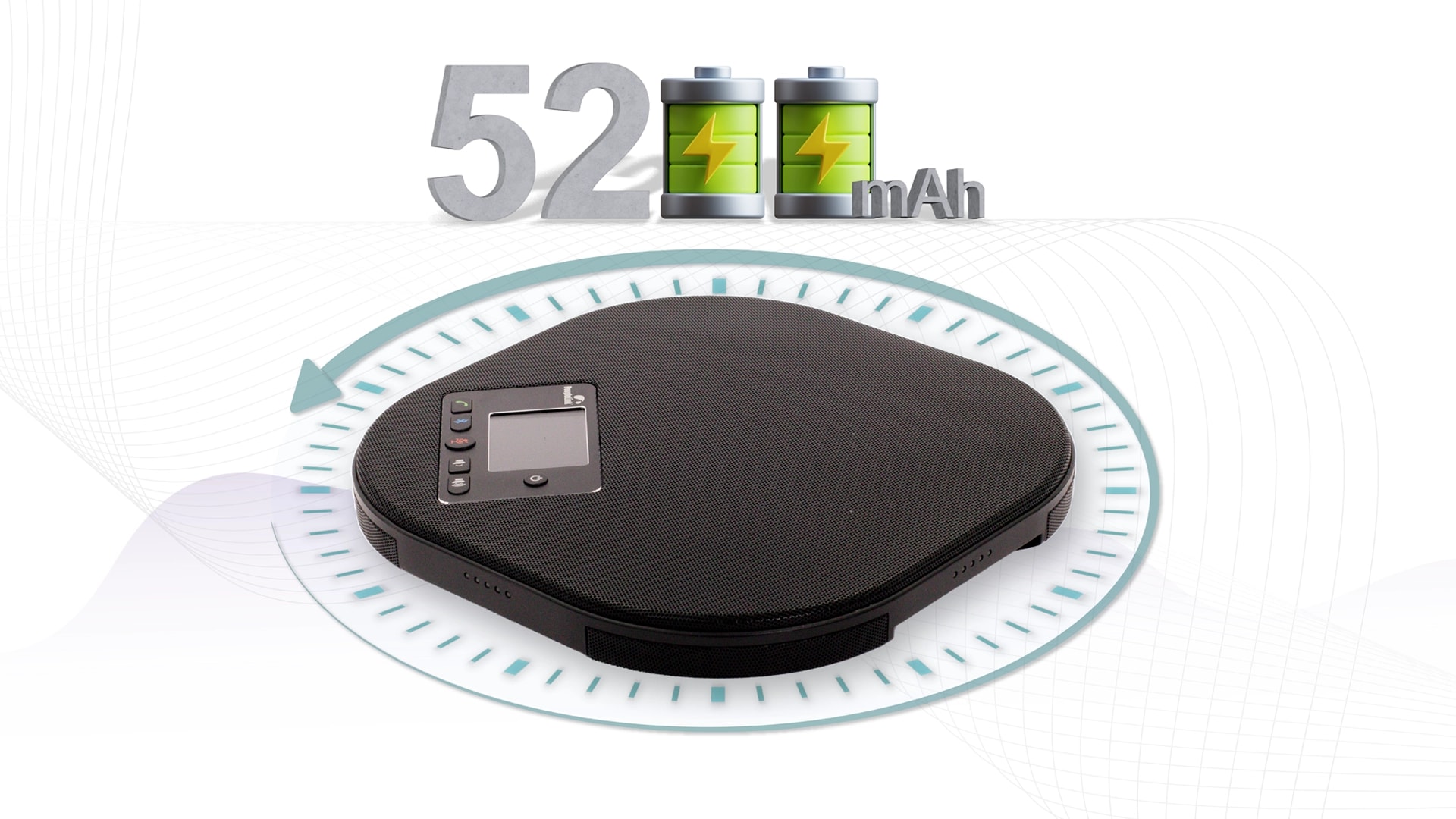

Featuring a powerful 5200mAh rechargeable battery, the PeopleLink Quad Speakerphone 12 ensures long talk times, making it suitable for extended meetings, webinars, classes, and collaborative discussions.
It is compatible with the main video conferencing platforms based on Windows or Mac OS. You will have the opportunity to use the software you prefer without installing any program.

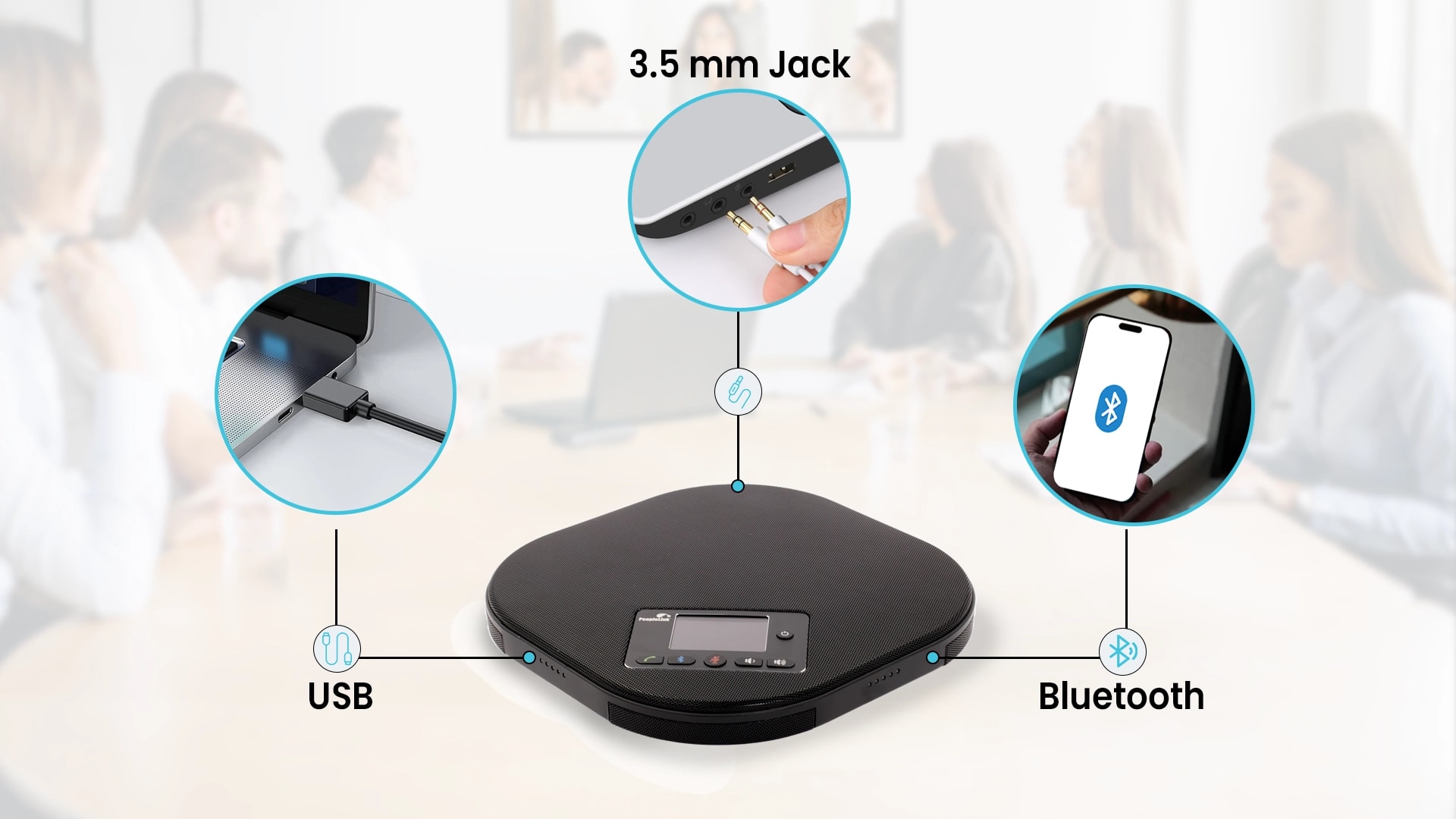

Thanks to its small size and Plug and Play connection via USB, Bluetooth, and 3.5 mm Jack, the device provides great compatibility with PCs, tablets, and smartphones, making your video conferences more practical. Furthermore, you can connect it to telephones, USB cameras, or interactive whiteboards for more optimized use.
Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.
| Item | PeopleLink Quad Speakerphone 12 |
|---|---|
| Mic array | 12 mics |
| Best pickup radius | 6 meters |
| Speaker volume | 95dB |
| Interface | Type-B, RJ9, Line in/out, Din6 |
A 12 Mic Array with 6m Pickup covers larger tables.
Two Extension Mics on RJ9 widen coverage for bigger groups.
USB, Bluetooth and 2.4G work with common Video Conferencing platforms.
How organisations deploy a Speakerphone, and what changes for the teams that use it
A manufacturing headquarters runs its Boardroom on a PeopleLink Quad Speakerphone 12 placed at the centre of a long table. The 12 mic array picks up voices across a 6 metre radius in full 360 degrees, and two extension mics on RJ9 carry that out to 8 metres for the far seats. Speaker output of 95dB reaches the ends of the table. A USB connection to the room PC lets the speakerphone sit alongside a PeopleLink Camera and an Interactive Display.
A state secretariat uses the PeopleLink Quad Speakerphone 12 in a Training Room of roughly 50ft by 20ft seating 15 to 20 people. Wideband Echo Cancellation, Dynamic Noise Suppression and Automatic Gain Control keep questions from the back rows audible to trainers joining remotely. The built-in 5200mAh battery covers long sessions where the table has no cable run, and staff switch the speakerphone between USB and Bluetooth depending on which laptop is presenting.
A university department fits a Hybrid Classroom with the PeopleLink Quad Speakerphone 12 so students attending remotely hear the room and not just the lecturer. Twelve high-sensitivity omnidirectional microphones and a 6 metre pickup radius reach students seated across the front of the room, and Full-Duplex audio lets both sides speak at once. The speakerphone plugs into the teaching PC over USB and works with the Video Conferencing platform already in use on Windows or Mac.
Tell us the room size and seating. A PeopleLink specialist will recommend the right model.
| Capability | PeopleLink Quad Speakerphone 12 | Typical Alternative |
|---|---|---|
| Mic array | 12 mics, 6m radius | A basic USB speakerphone |
| Connectivity | USB, Bluetooth and 2.4G | USB only typical |
| Expansion | Up to 2 extension mics | No expansion |
| Processing | AEC, ANS, AGC, full duplex | Half duplex typical |
Cameras, Audio, Control and Collaboration Platforms, built by one OEM.
PeopleLink Audio Devices pair with PeopleLink Cameras, Control and Room Solutions out of the box.
Trusted across Enterprise, Government, Education and Healthcare environments.
Talk to PeopleLink AV Specialists for sizing, integration and rollout.
Get one consolidated quote covering Hardware, Software and Installation from One OEM.
| Connectivity | : USB & Bluetooth |
| Microphone | : 12 mic array |
| Frequency | : 100Hz-22KHz |
| Voice Pickup Range | : 6 meters |
| Voice Pickup Radius | : 360° Voice pickup |
| Speaker | : 95 dB Speaker Out |
| Expansion Mic | : Supports 2 extension mics |
| Ext Mic audio Pickup Range | : 3 meters |
| Echo Length Cancellation | : 500ms |
| Interface | : Type-B, RJ9, Line in/out, Din6 |
| User Interface | : LCD Display with Keypad |
| 3A Algorithm | : Built in AEC, AGC & ANS |
| Bluetooth | : Yes |
| Bluetooth range | : 10 meters |
| Built-in battery | : Built-in 5200mAh battery |
| Operating System | : IOS/Android/Windows |
| Ideal Room Size | : 50ft by 20ft |
| Seating Capacity | : 15 - 20 seater |
| Application | : Medium to Large conference room |
| Product |  Quadro |  Quad Speakerphone 6 |  Quad Speakerphone 12 |
| Connectivity | USB Connection | USB & Bluetooth | USB & Bluetooth |
| Microphone | 4 bi-directional microphones | 4 mic array | 12 mic array |
| Frequency | 100 Hz to 22KHz | 100Hz-22KHz | 100Hz-22KHz |
| Voice Pickup Range | 3 meters | 4 meters | 6 meters |
| Voice Pickup Radius | 360° Voice pickup | 360° Voice pickup | 360° Voice pickup |
| Speaker | 92 dB Speaker Out | 85 dB Speaker Out | 95 dB Speaker Out |
| Expansion Mic | Supports 2 extension mics | Yes (Optional) | Supports 2 extension mics |
| Ext Mic audio Pickup Range | 2 meters | 4 meters | 3 meters |
| Echo Length Cancellation | 500ms | 500ms | 500ms |
| Interface | USB 2.0 B TypeB | Type-B, RJ45, Line in/out | Type-B, RJ9, Line in/out, Din6 |
| User Interface | Keypad | Keypad | LCD Display with Keypad |
| 3A Algorithm | Built in AEC, AGC & ANS | Built in AEC, AGC & ANS | Built in AEC, AGC & ANS |
| Bluetooth | N/A | Yes | Yes |
| Bluetooth range | N/A | 10 meters | 10 meters |
| Wireless | N/A | N/A | N/A |
| Built-in battery | N/A | Built-in 4000mAh battery | Built-in 5200mAh battery |
| Operating System | IOS/Android/Windows | IOS/Android/Windows | IOS/Android/Windows |
| Ideal Room Size | 30ft by 20ft | 40ft by 20ft | 50ft by 20ft |
| Seating Capacity | 15 - 20 seater | 15 - 20 seater | 15 - 20 seater |
| Application | Board room, conference room | Medium to Large conference room | Medium to Large conference room |
Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.
Boardrooms and meeting rooms photographed on site.
Power Adapter

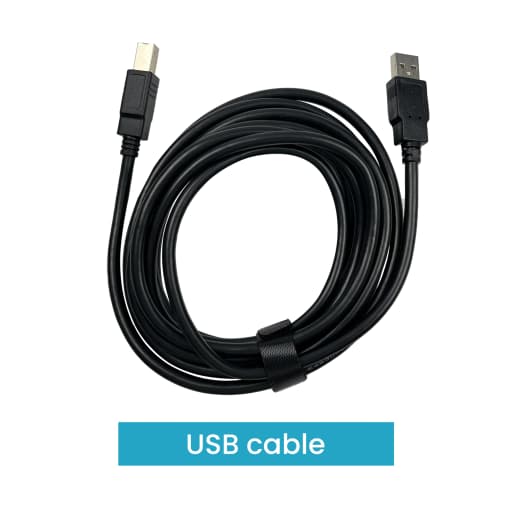

USB Cable

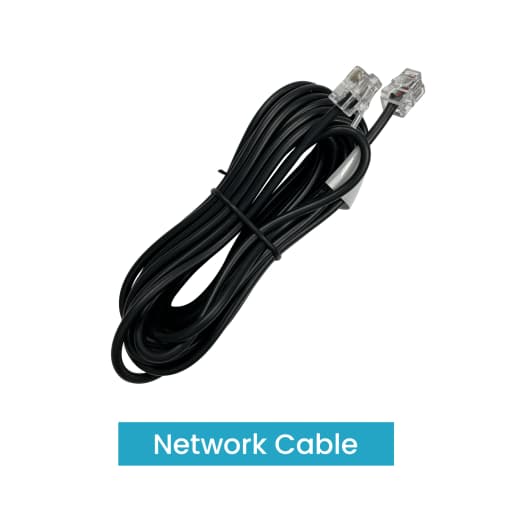

Network Cable
User Manual
