Impact Pro 12X EndpointH.323 and SIP Video Conferencing Endpoint with 12x PTZ Camera and built-in VPN

The PeopleLink Impact Pro 12X Endpoint is an Endpoint for Video Conferencing with a built-in PTZ Camera, for Meeting Rooms and Conference Rooms.

  • 12x Optical zoom
  • 1080p FHD @60fps Resolution
  • 72.5° Field of view

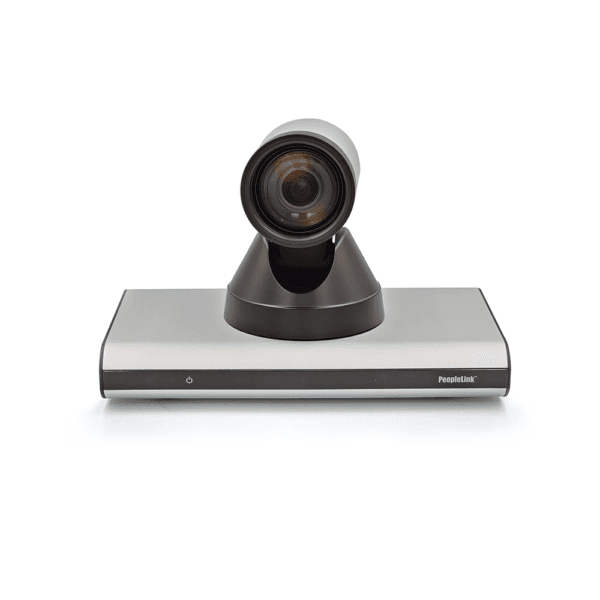

Impact Pro Endpoint 12X - Main Product Image
1 / 4

  • One OEM

    Hardware and Software from a single vendor

  • Deployed Globally

    Enterprise, Government, Education and Healthcare

  • Regional Partner Support

    Service and Support through PeopleLink Partners and Resellers in your region

  • Published Specifications

    PDF Datasheets available for PeopleLink products

Overview

What an H.323/SIP Video Conferencing Endpoint does for a Low-Bandwidth Site

The PeopleLink Impact Pro 12X Endpoint is an Endpoint for Video Conferencing with a built-in PTZ Camera, for Meeting Rooms and Conference Rooms. It runs 1080p FHD at 60fps with 12x Optical Zoom, 16x Digital Zoom and a 72.5 degree field of view, plus auto-focus and automatic backlight correction. H.323 and SIP carry the call and H.239 and BFCP the content stream, with a built-in MCU for P2P and 1+3 sessions. A bandwidth range of 64kbps to 8Mbps, a built-in VPN and AES encryption suit sites on a thin or public link. USB, HDMI, DVI, D-MIC and Line In connections take PeopleLink Audio and existing room sources.

  • High-definition video conferencing experience
  • Multiple Connectivity Ports
  • USB recording in Full HD
  • Supports H.323 / SIP, H.239/BFCP Protocols
Features

Endpoint features for standards-based Video Conferencing

12x Optical Zoom, H.323 and SIP interoperability and built-in VPN, explained.

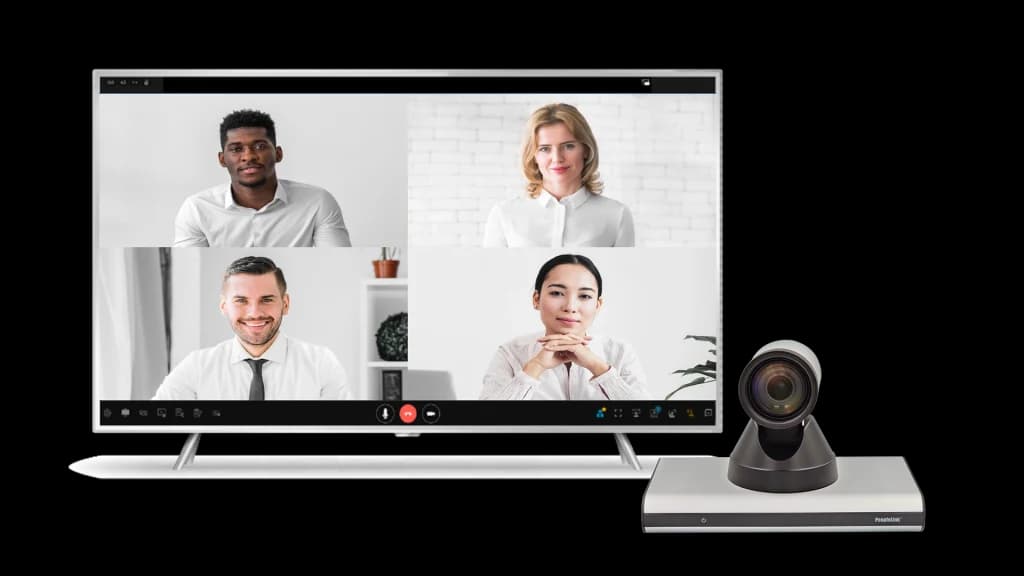

True HD Resolution
Features

Immersive Visual Experience with 1080p @60fps True HD Resolution

Enjoy vivid clarity with a true high-definition experience at 1080p resolution and a smooth 60 frames per second, ensuring crystal-clear video quality for your communication needs.

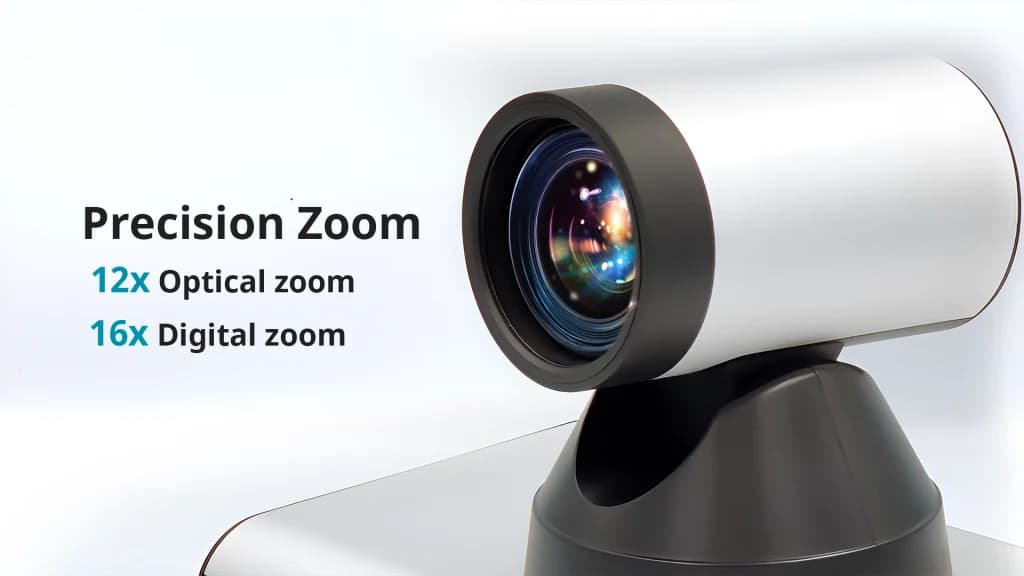

Precision Zoom
Features

Precision Zoom Technology with Advanced Image Sharpening

Capture details precisely using the Full HD PTZ camera's 12x optical zoom and 16x digital zoom enhanced by cutting-edge image sharpening technology for exceptional clarity even at a distance.

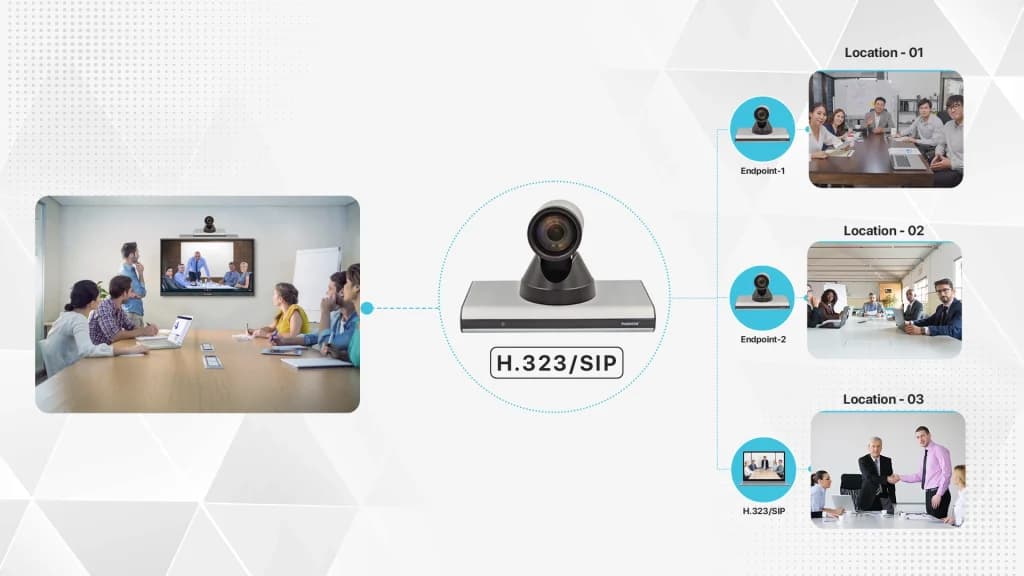

H.323 SIP Support
Features

Flexible Communication Protocols, Effortless Content Sharing

Embrace real-time multimedia communication over IP with support for H.323 and SIP protocols, providing flexibility and interoperability for diverse communication environments. Utilize industry-standard protocols like H.239 and BFCP for efficient and seamless content sharing, ensuring compatibility and smooth multimedia communication over various networks. PeopleLink ensures a seamless integration with the other hardware-based endpoints to conduct conferencing & presentation sharing to ensure effective visual collaboration for your organization with necessary licenses.

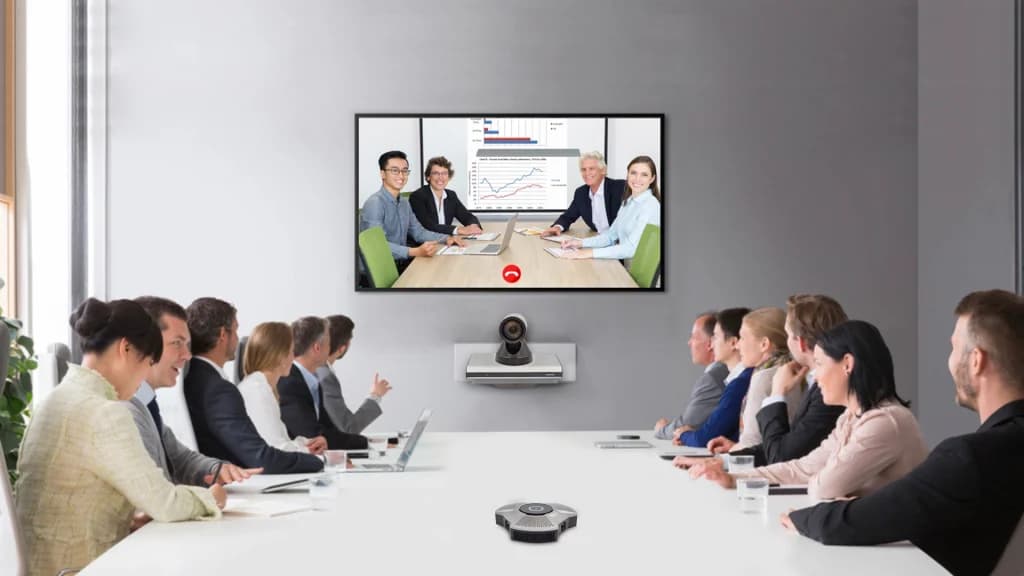

Audio Quality
Features

Exceptional Audio Quality

Advanced Microphone Technology benefits from clear and crisp audio with a built-in omnidirectional microphone featuring echo cancellation and noise suppression, ensuring optimal sound quality during meetings and conferences.

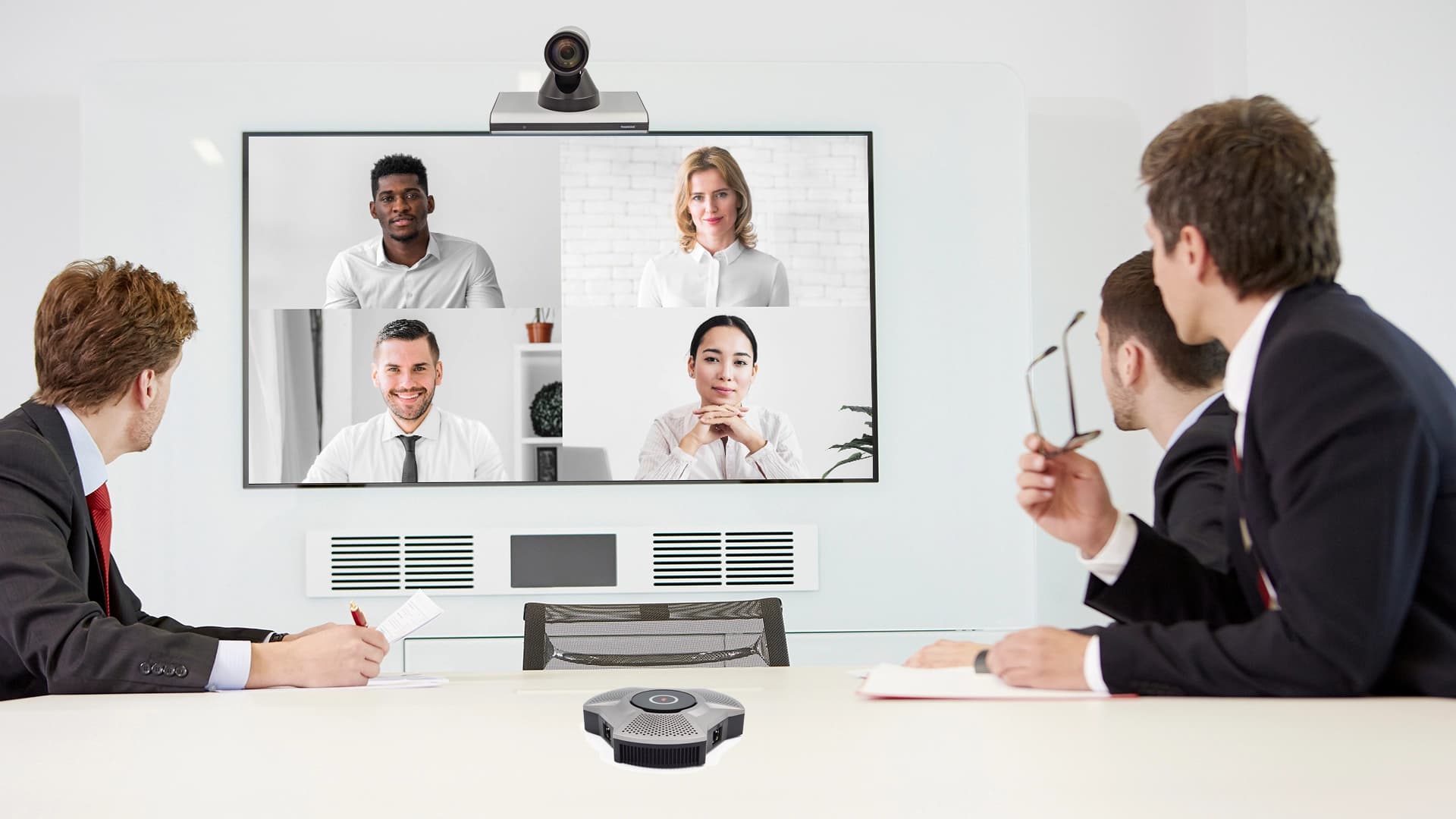

True HD Resolution - Versatile Multiparty Functionality
Features

Versatile Multiparty Functionality

Experience Full HD endpoint capabilities at 1080p@60fps and easily transition to multiparty communication (P2P) (1+3) with the option to upgrade using a simple soft key, providing versatility for different meeting scenarios.

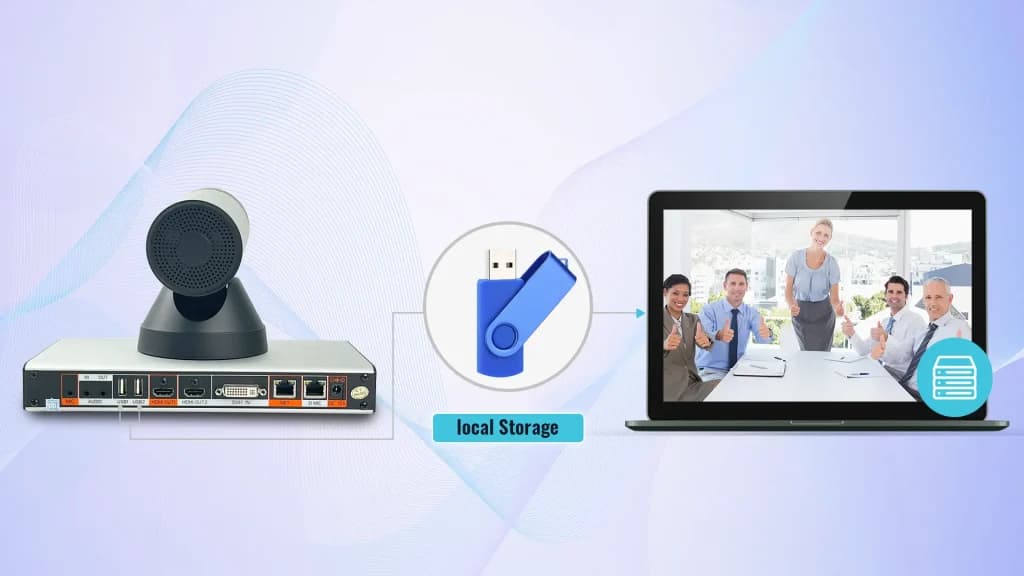

USB Recording
Features

Record Your Meetings on a USB Device in Full HD

This unique feature of Impact Pro Endpoint facilitates one-touch USB recording, transforming a USB drive into an elaborate video archive. The entire conference and shared content are stored directly on a USB device to avoid loss of post-meeting information.

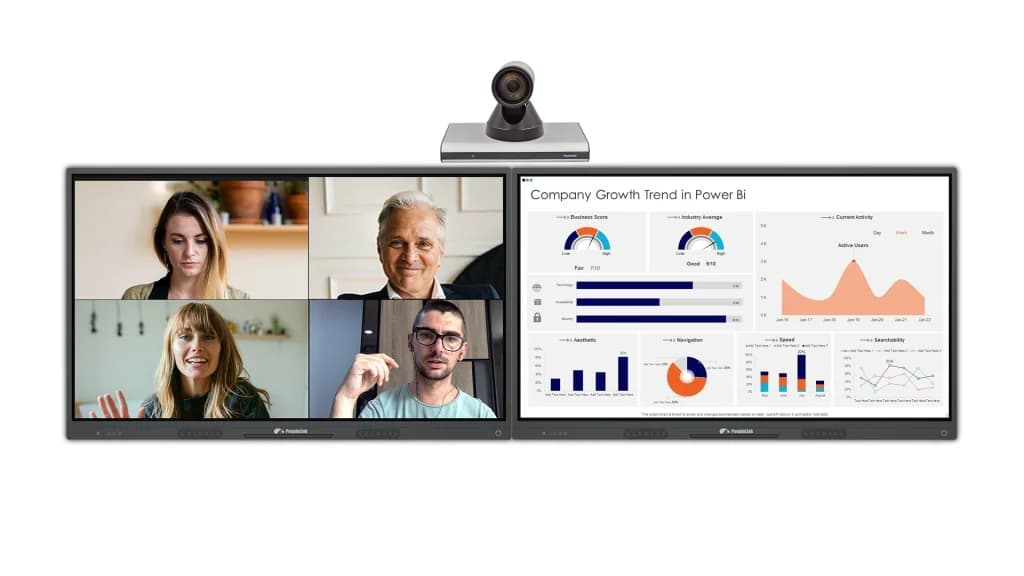

Dual Display
Features

Dual Display Capability, Feasible Connectivity

PeopleLink Video Conferencing Endpoint is equipped with input HDMI ports for content sharing to allow users to connect multiple input devices, including a video conferencing camera, laptop, and PC. With the help of HDMI output ports, users can enjoy video output on multiple displays simultaneously.

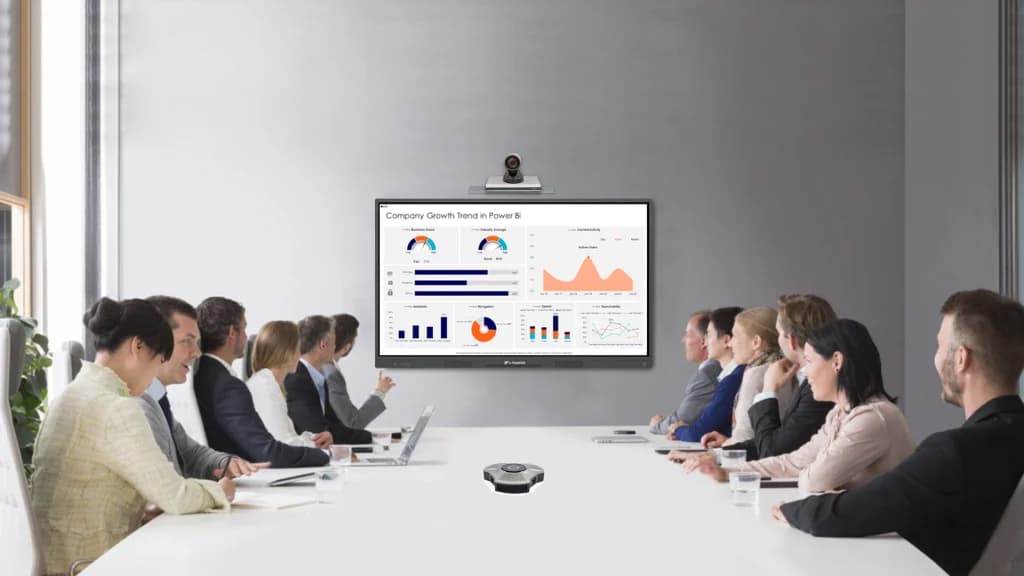

Collaboration
Features

Collaborate & Share Ideas

Experience natural, real-time collaborations and communications with Content Sharing, allowing presenters to share presentations, files, animations, images, and more to create a smooth and interactive video conferencing environment.

Security
Features

Safe & Secure Conferencing

Data security and privacy cannot be overlooked when holding an important video conference. Therefore, PeopleLink Impact Video Conferencing Endpoints are equipped with industry-leading AES encryption to safeguard your virtual meetings.

How it Works

Front View

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

ItemImpact Pro 12X Endpoint
Optical zoom12x
Resolution1080p FHD @60fps
Field of view72.5°
ProtocolsH.323 / SIP

Rooms It Serves

Meeting rooms

12x Optical and 16x Digital Zoom frame the room at 1080p and 60fps.

Conference rooms

H.323 and SIP interoperability with a built-in MCU for P2P and 1+3 calls.

Low-bandwidth sites

HD audio and visuals from 64kbps, with a built-in VPN and AES encryption.

Where an Endpoint Fits in Your Organisation

How organisations deploy an Endpoint, and what changes for the teams that use it

Manufacturing

Remote Site Endpoint for a Mining Company

A mining company connects its remote site offices with the PeopleLink Impact Pro 12X Endpoint, where the link back to headquarters is the constraint. It works across a bandwidth range from 64kbps to 8Mbps, so a review still runs when the connection is thin, and a built-in VPN with AES encryption protects the traffic. 12x Optical Zoom and 16x Digital Zoom bring a small group into frame, while 2D and 3D Digital Noise Reduction clean up the picture in a dim site office.

Education

Campus Meeting Room Endpoint for a Technical Institute

A technical institute fits its Campus Meeting Rooms with the PeopleLink Impact Pro 12X Endpoint so departments meet across sites. The camera runs 1080p at 60fps with a 72.5 degree field of view, which covers a full table without panning. Auto-focus and automatic backlight correction hold the image steady in rooms with daylight down one side. Standards-based H.323 and SIP interoperability lets each room join meetings on the cloud platforms the institute already uses.

Public Sector

District Office Endpoint for a Regional Health Authority

A regional health authority equips its district offices with the PeopleLink Impact Pro 12X Endpoint for planning meetings. The built-in MCU handles a point-to-point call or a 1+3 session, so three districts join without booking a bridge. H.239 and BFCP put the report on the second display beside the speakers. An Omni-Directional Microphone with a 3 metre pickup range and built-in Echo Cancellation covers a small meeting table.

Not sure which model fits your Meeting rooms or Conference rooms?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

CapabilityImpact Pro 12X EndpointTypical Alternative
Optical zoom12x optical, 16x digitalA consumer meeting app
Resolution1080p FHD at 60fps1080p30 typical
InteroperabilityH.323 / SIP standardsOne app only
MultipartyBuilt-in MCU, P2P and 1+3Point-to-point only
SecurityAES encryption and built-in VPNNo built-in VPN

Why PeopleLink

Hardware plus Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Endpoints pair with PeopleLink Cameras, Audio and Room Solutions out of the box, and USB, HDMI, DVI and D-MIC connections take the room's existing sources.

Deployed Globally

Used across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

Explore Related Resources

Specifications

Built-in Camera: Yes
Image Sensor: 1/2.7-inch CMOS 2.07M
Image Resolution: 1080p FHD
Frames per second: 60fps
Optical Zoom: 12x optical zoom
Digital Zoom: 16x digital zoom
Field of View: 72.5 degrees
Interoperability: H.323/SIP
Dual Stream: H.239/BFCP
Dual Display Support: Yes
Bandwidth: 64kbps ~ 8Mbps
Built-in MCU: P2P, 1+3
Built-in VPN: Yes
Microphone: 1 Omni-Directional Mic
Mic Pickup Range: 3 meter
3A Algorithm: AEC, AGC & ANS
Built-in Speaker: No
Interface: USB, HDMI, DVI, D-MIC, RJ45, Mic, Line In/Out
Video Codecs: H.263, H.264, H.264HP
Inbuilt Recording: Optional
Presets: 8
Camera Control: Yes
Remote Control: Yes
Application: Meeting Rooms, Conference rooms
Impact Pro 12X Specifications

FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

ProductImpact Pro 12X Endpoint

Impact Pro 12X Endpoint

Impact Pro 20X Endpoint

Impact Pro 20X Endpoint

4K Impact Bar

4K Impact Bar

Built-in CameraYesYesYes
Image Sensor1/2.7-inch CMOS 2.07M1/2.7-inch CMOS 2.07M1/2.5" CMOS, 8.51 MP
Image Resolution1080p FHD1080p FHD4K UHD
Frames per second60fps30fps4K @ 30fps, 1080p @ 60fps
Optical Zoom12x optical zoom20x optical zoom20x optical zoom
Digital Zoom16x digital zoomN/A5x digital zoom
Field of View72.5°60.7°121° DFoV
InteroperabilityH.323 / SIPH.323 / SIPH.323 / SIP
Dual StreamH.239 / BFCPH.239 / BFCPH.239 / BFCP
Dual Display SupportYesYesYes
Bandwidth64kbps ~ 8Mbps64kbps ~ 8Mbps64kbps ~ 8Mbps
Built-in MCUP2P, 1+3P2P, 1+3P2P, 1+3
Built-in VPNYesYesYes
Microphone1 Omni-Directional Mic1 Omni-Directional Mic1 Built-in array microphone
Mic Pickup Range3 meter3 meter6 meter
3A AlgorithmAEC, AGC & ANSAEC, AGC & ANSAEC, AGC & ANS
Built-in SpeakerNoNoBuilt-in speaker
InterfaceUSB, HDMI, DVI, D-MIC, RJ45, Mic, Line In/OutUSB, HDMI, RJ45, Mic, Line In/OutUSB 2.0 / 3.0, HDMI, RJ45, Line In/Out
Video CodecsH.263, H.264, H.264HPH.263, H.264, H.264HP, SVCH.264, H.264 HP, H.264 SVC
Inbuilt RecordingOptionalUSB RecordingUSB Recording
Presets810N/A
Camera ControlYesYesYes
Remote ControlYesYesYes
ApplicationMeeting Rooms, Conference roomsMeeting Rooms, Conference roomsMeeting Rooms, Conference rooms

Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.

In the Room

Endpoints in Chambers and Boardrooms

Council chambers and boardrooms photographed on site.

Dual displays with a PTZ camera above gooseneck delegate microphones
Dual Display EndpointGooseneck Delegate Microphones
Council chamber with curved seating, delegate microphones and a live video call on a monitor
Council ChamberDelegate Microphones, Live Video Call
Boardroom with a large display, camera and speakerphone on the table
Boardroom StackLarge Display, Camera and Speakerphone

Accessories

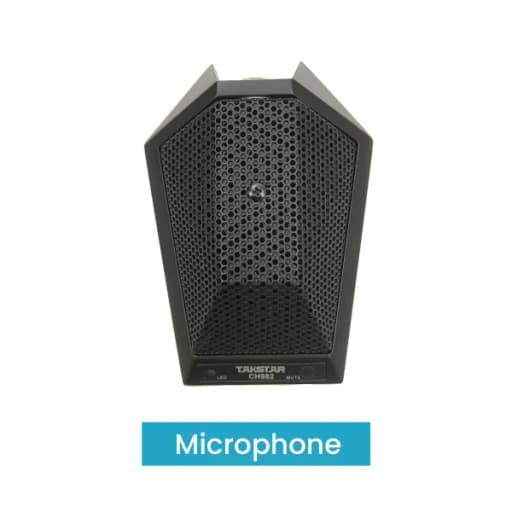

Microphone

Microphone

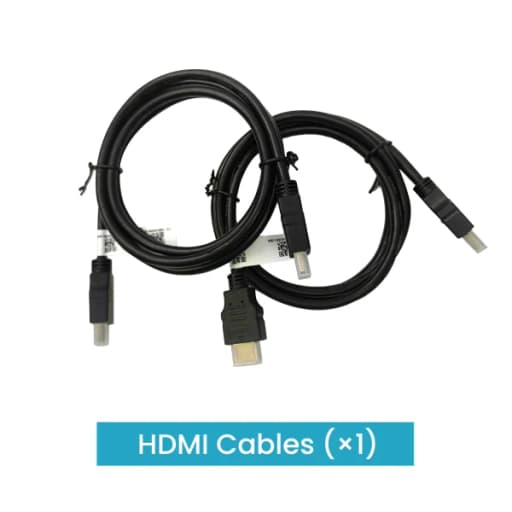

HDMI Cable

HDMI Cable

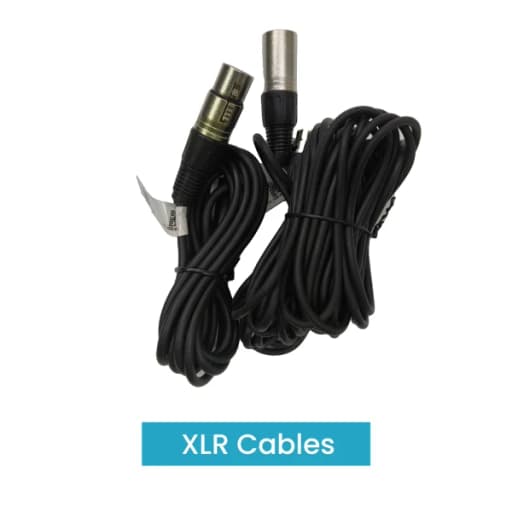

XLR Cable

XLR Cable

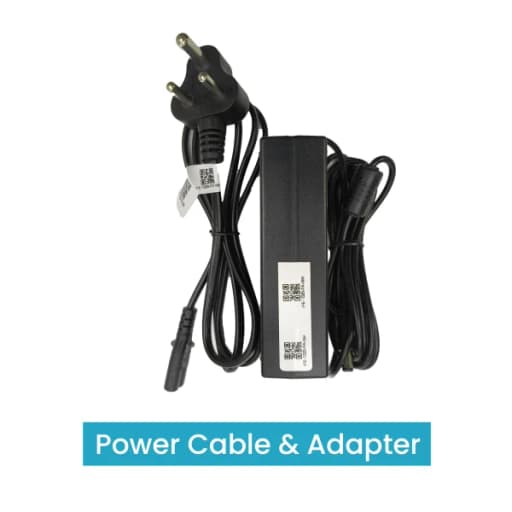

Power Cable & Adapter
