PeopleLink 4K AF Camera-Soundbar PlusCamera and Soundbar

4K UHD camera and soundbar for huddle and small meeting rooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the PeopleLink 4K AF Camera-Soundbar Plus in PDF.
Overview

What is the PeopleLink 4K AF Camera-Soundbar Plus?

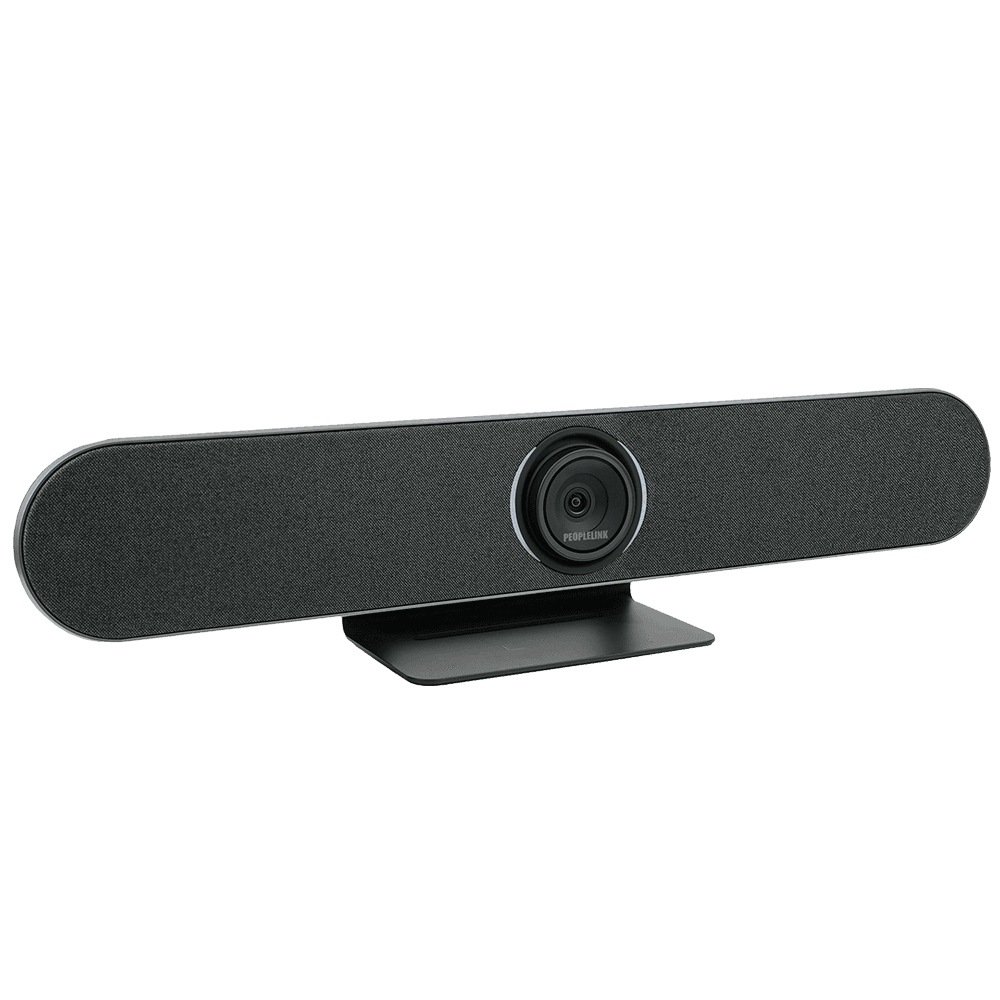

The PeopleLink 4K AF Camera-Soundbar Plus is an all-in-one camera and soundbar built for huddle and small meeting rooms. It captures 4K UHD video so one device covers the camera and room audio in a single unit. It includes AI presenter tracking that keeps the active speaker framed as they move. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

All-in-One

Integrates a 4K Ultra HD camera, beamforming microphone and full range speaker into a three-in-one design for easy setup of video conferences.

4K UHD

Utilizes a 1/2.5-inch, 8.51-megapixel UHD CMOS sensor, delivering 4K@30fps UHD resolution images. It is also backward compatible with various resolutions, including 1080p and 720p.

AI-Assisted Shooting

Incorporates AI algorithms that recognize the positions of meeting participants, automatically adjusting the FoV for optimal framing. It can automatically lock onto the speaker's voice position, providing precise close-ups.

PeopleLink 4K AF Camera-Soundbar Plus
Specifications

PeopleLink 4K AF Camera-Soundbar Plus specifications

Verified from the official datasheet. Download the full PDF for complete details.

Camera Spec
Signal System4KP30, 1080P30, 720P30 etc.
Sensor1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels
Zoom5× Digital zoom
FoV121° (DFOV), 110° (HFOV), 75° (VFOV)
LensHorizontal/pitch ±15°
PTZMechanical PTZ (MPT) + e-PTZ (EPTZ)
Digital Noise Reduction2D & 3D Digital Noise Reduction
Backlight CompensationSupport
SNR≥ 55dB
Audio Spec
Full-frequency Speaker96 dB SPL at 0.5 m
Microphone ArrayBeamforming microphone with 6m pickup distance
Expansion MICSupport (Optional)
I/O
HD Output1 × HDMI, Version 1.4b
EXT Microphone1 × RJ45, connected to the network interface expansion microphone, support POE power supply
USB Interface1 × USB3.0, Type-C; 1 × USB2.0, Type-A
Bluetooth5.0
USB Spec
Type of ConnectionUSB 3.0, downward compatible with USB 2.0
Color System / CompressionYUY2 / MJPEG
USB Audio32K sampling rate, UAC 1.0 support
USB Video Communication ProtocolUVC 1.1 ~ 1.5
UACSupport
UVC PTZ ControlSupport (ePTZ)
Others
Installation MethodSupport desktop placement, wallmounting and TV-mounting etc.
Supplied CablesUSB Cable
Safety
ProtectionAnti-theft lock
Generic Spec
Power SupplyDC 12V, 2A(Max.)
Operating Temperature0° C ~ 40° C
Storage Temperature-40° C ~ 60° C
Dimension601mm (W)× 141mm (D) × 115mm (H) (with bracket)
Net Weight2.5kg

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink 4K AF Camera-Soundbar Plus captures 4K UHD video.

The PeopleLink 4K AF Camera-Soundbar Plus uses a 1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels, with a 121° (DFOV), 110° (HFOV), 75° (VFOV) field of view.

Yes. The PeopleLink 4K AF Camera-Soundbar Plus provides AI tracking and auto framing that keep the active presenter framed as they move.

The PeopleLink 4K AF Camera-Soundbar Plus connects over standard interfaces including 1 × HDMI, Version 1.4b, with PoE support, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.

Use the download button on this page to request the full PeopleLink 4K AF Camera-Soundbar Plus PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
