What video resolution does the PeopleLink 4K AF Camera-Soundbar Plus capture?

It captures 4K UHD video, with 1080P and 720P also available. 2D and 3D Digital Noise Reduction and Backlight Compensation keep the picture usable where a window sits behind the table, and the signal to noise ratio is quoted at 55dB or better. Video reaches the room over HDMI or USB 3.0 at the same time.

What image sensor does the PeopleLink 4K AF Camera-Soundbar Plus use?

It uses a 1/2.5 inch CMOS sensor with 8.51 Megapixels of effective pixels, and a 121° (DFOV), 110° (HFOV), 75° (VFOV) field of view. That width takes in a table seated close to the display without anyone leaning in, and 5x Digital Zoom crops in where a closer view is wanted. Mechanical pan and tilt of ±15 degrees lets an installer square the frame once during setup.

Does the PeopleLink 4K AF Camera-Soundbar Plus support AI Tracking or Auto Framing?

Yes. AI Group Framing adjusts the crop as people join or leave, and Speaker Tracking follows whoever is talking without an operator. Mechanical PTZ and e-PTZ work together, so the bar can hold a set frame or move with the room as the meeting changes shape.

Who installs and supports the soundbar?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. The bar supports desktop placement, wall mounting and TV mounting, and ships with a mounting kit, a USB cable, a power adapter and an IR remote, so most rooms are a single visit.

AI Powered Cameras · Camera Soundbar

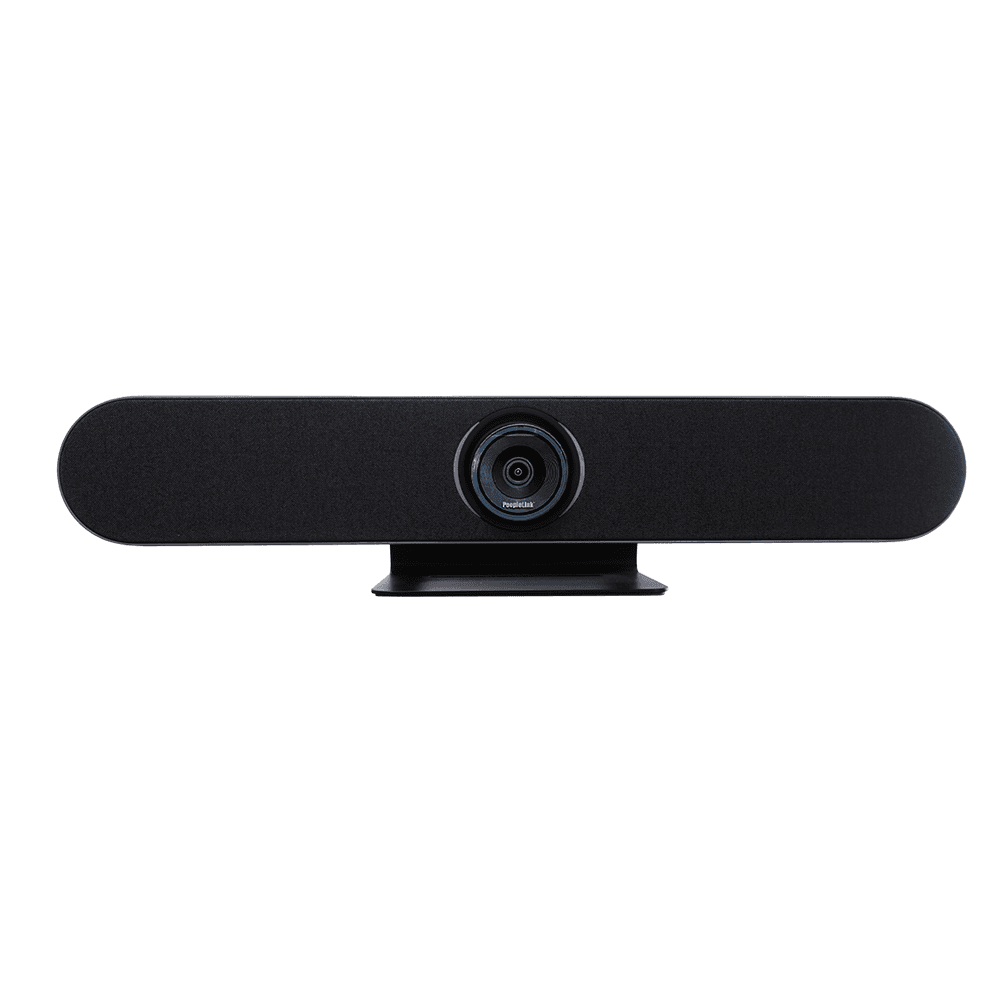

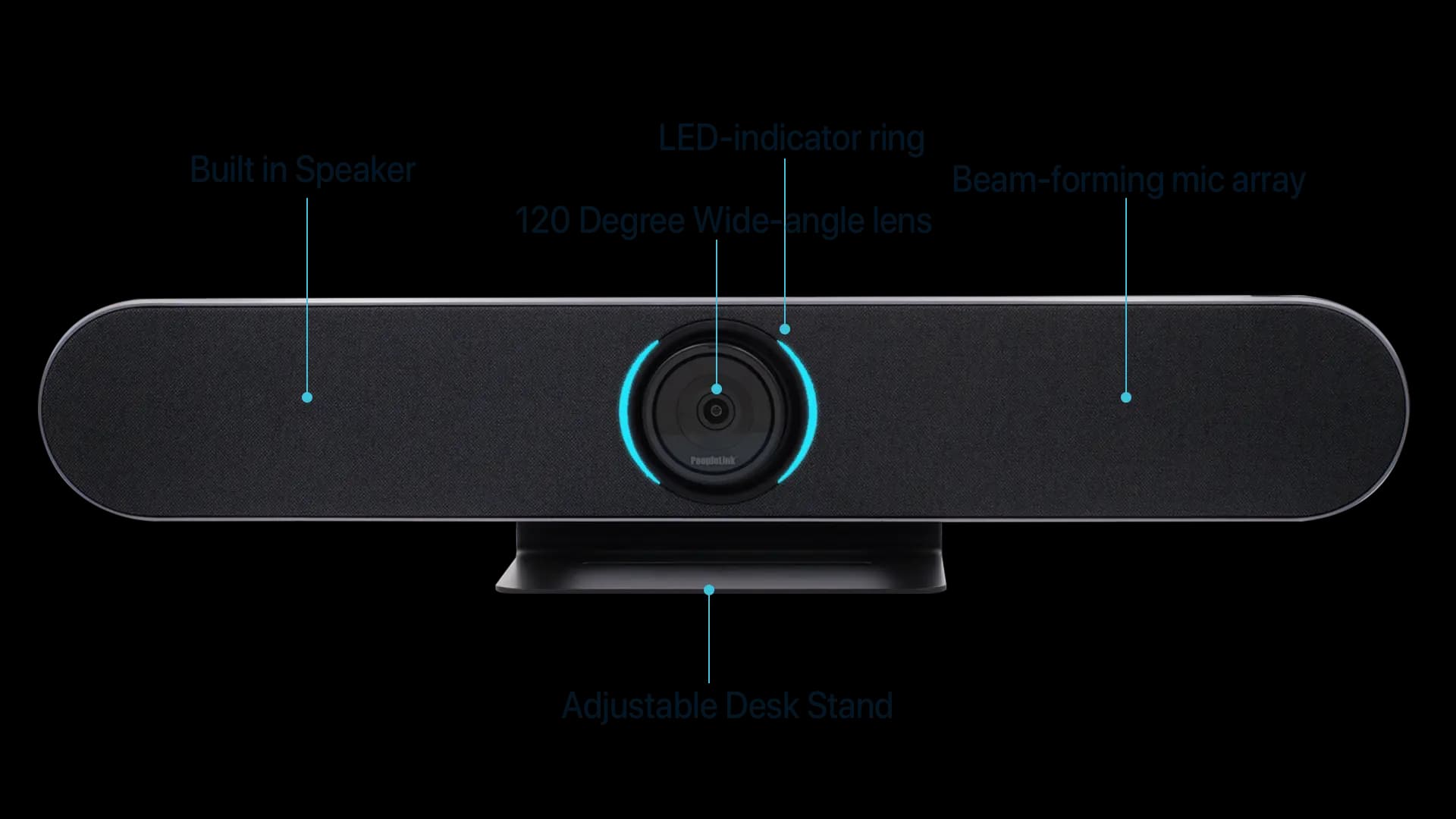

PeopleLink 4K AF Camera-Soundbar Plus4K Video Conferencing Soundbar with Camera and 6m Beamforming Microphones

The PeopleLink 4K AF Camera-Soundbar Plus is a Camera-Soundbar for Huddle Rooms and small Meeting Rooms.

121° (DFOV) Field of view
110° (HFOV) Horizontal FOV
8.51 MP 1/2.5" CMOS sensor

Request a Quote WhatsApp

1 / 4

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a 4K Camera Soundbar does in a Huddle Room or Small Meeting Room

The PeopleLink 4K AF Camera-Soundbar Plus is a Camera-Soundbar for Huddle Rooms and small Meeting Rooms. It pairs a 1/2.5 inch 8.51 Megapixel CMOS sensor with 4K UHD video, a 121° (DFOV) view and 5x Digital Zoom. Four Beamforming Microphones reach 6m, a 96 dB Full Frequency Speaker fills the room, and AI Group Framing and Speaker Tracking hold the shot. HDMI, USB 3.0 Type-C, USB 2.0 Type-A and Bluetooth 5.0 cover connection to common video conferencing platforms, and it pairs with PeopleLink Audio, Control and Room Solutions. Desktop, wall or display mounting lets rooms of different shapes take the same bar, which simplifies a standard room specification.

121° Wide Angle FoV
4K UHD
AI Group Framing/Speaker Tracking
AGC Speaker
360° Voice Pickup Range

Features

Camera Soundbar features for Hybrid Meetings

4K camera, 121 degree field of view and 6m beamforming pickup, explained.

Features

Brilliance of the Stunning World in 4K Ultra High Definition

Immerse yourself in unparalleled video quality with 4K resolution, offering sharp and life like visuals that make your virtual meetings truly immersive.

Features

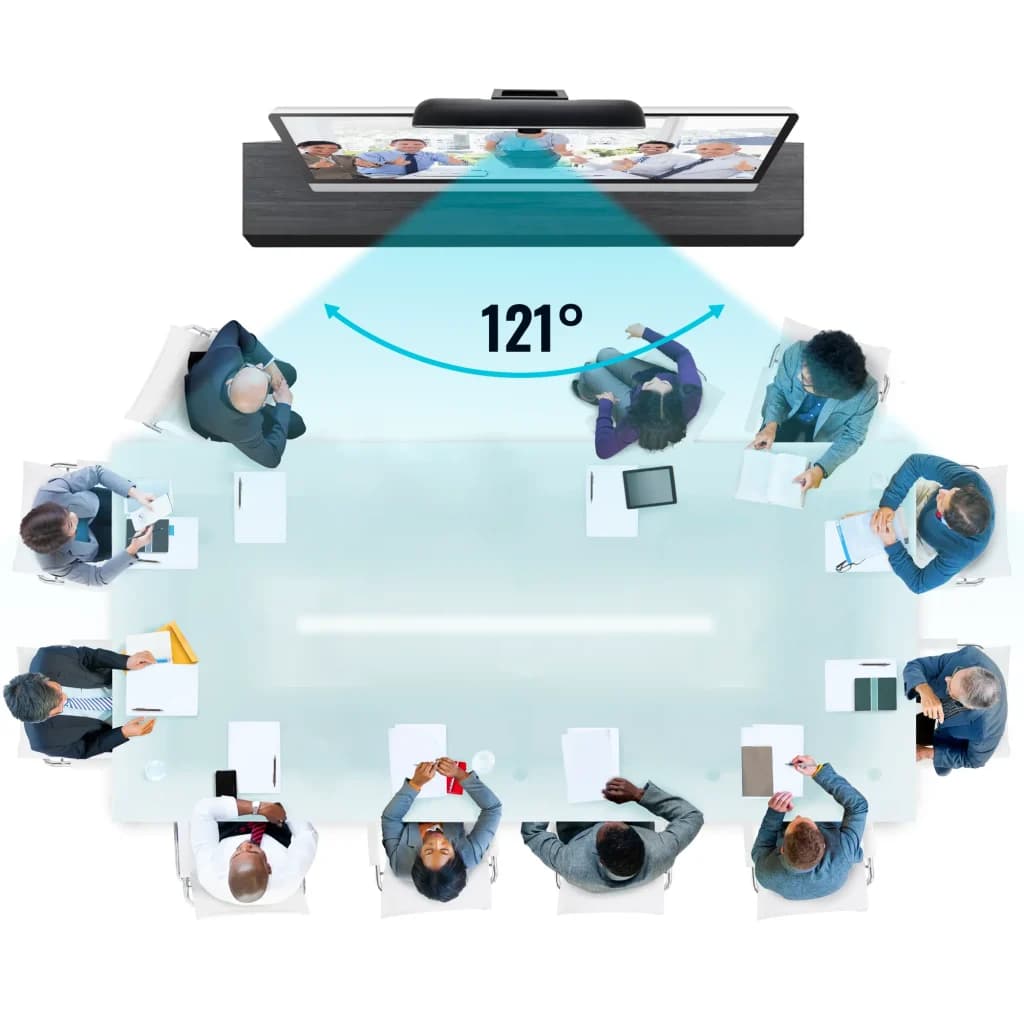

See Every Corner of the Room:

A wide 121° FoV combined with plus or minus 15° pan and tilt lets you see every corner of the meeting room.

Features

Mastering the Art of Clear Audio Excellence

Experience seamless communication with the built-in high-fidelity microphone array, ensuring 360° voice pickup with a range of up to 6 meters. Enjoy wide audio coverage and clear reception for natural and effortless communication.

Features

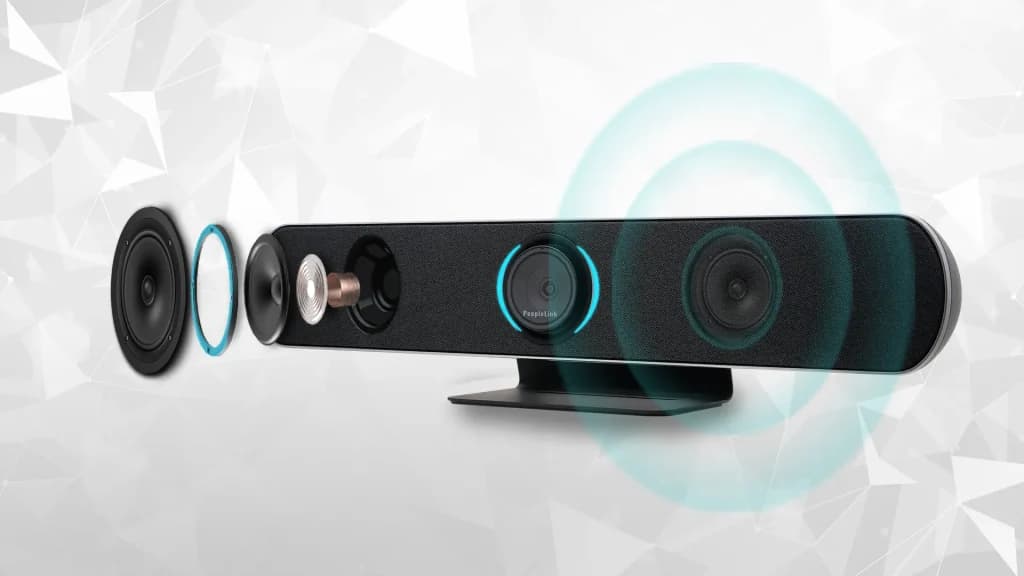

Pinnacle of High-Performance Speaker Technology

Our conferencing bar features a 8W high-power speaker with advanced automatic gain control (AGC), delivering clear and powerful sound. Ensure your message is conveyed with utmost clarity and impact.

Features

Quick Integration with Plug-and-Play Connectivity

Effortlessly compatible with any PC or UC platform, our conferencing bar offers a user-friendly plug-and-play design. Quick and hassle-free setup ensures you focus on productive communication, not technical hurdles.

Features

Power of AI-Enhanced Features for Next-Level Innovation

Benefit from AI-driven auto-framing and face tracking functions, intelligently adjusting framing, and tracking speakers automatically to ensure every participant is clearly visible, making your online meetings more dynamic and engaging.

Features

Unleashing the Versatile Compatibility

Seamlessly integrate with all leading video conferencing applications for a unified and efficient collaboration experience.

Features

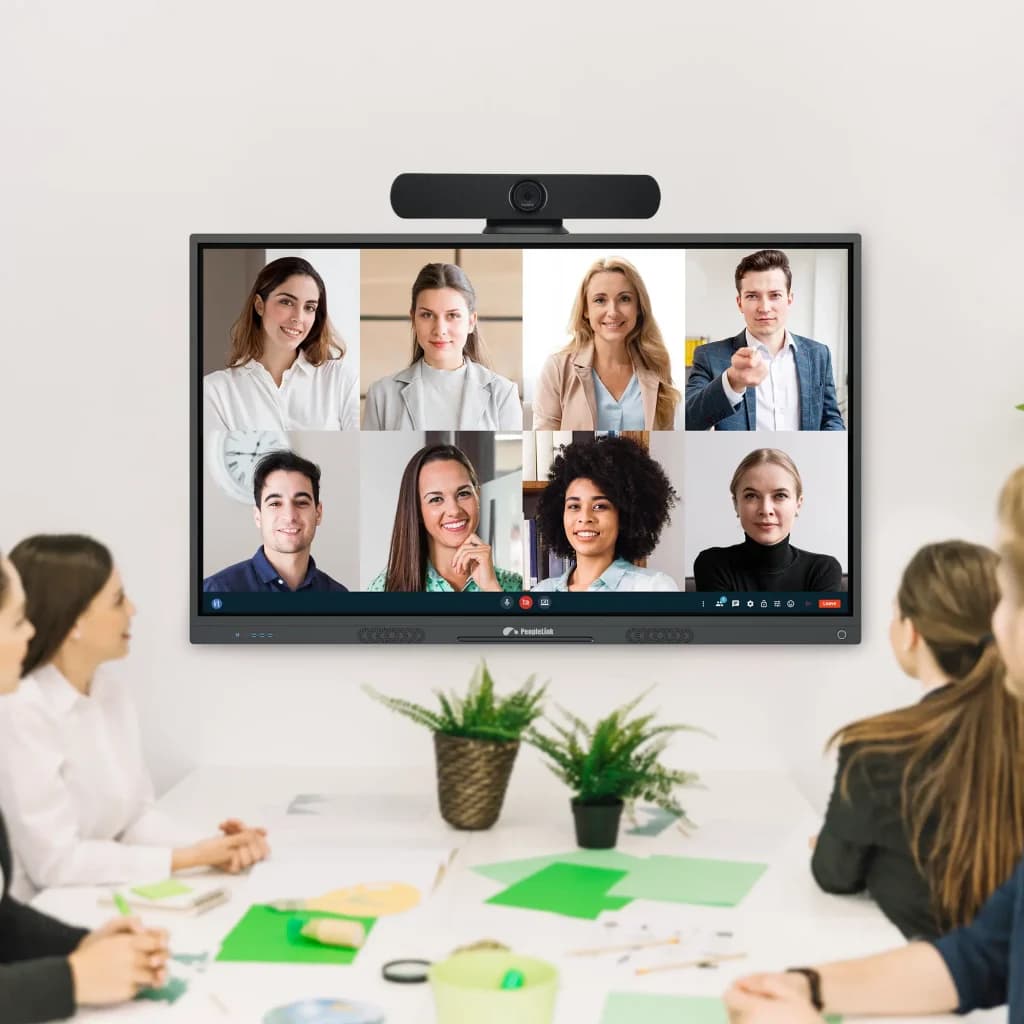

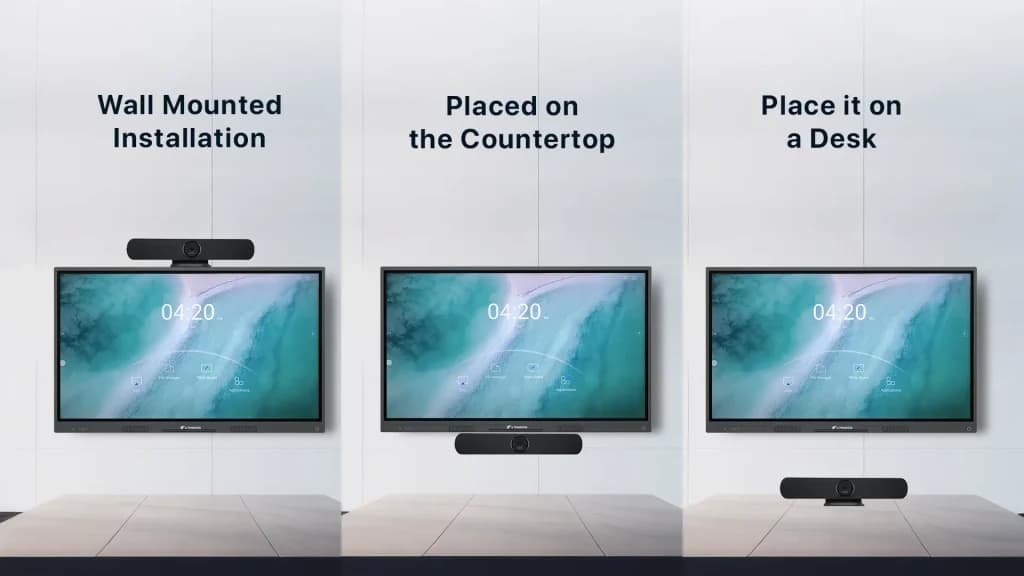

Fits in Any Meeting Room

No matter what kind of room you have, you can find a way to set up the video conference bar. Place it on a desk, mount on the wall, or attach it on top of or under the TV to maximize usable space.

Features

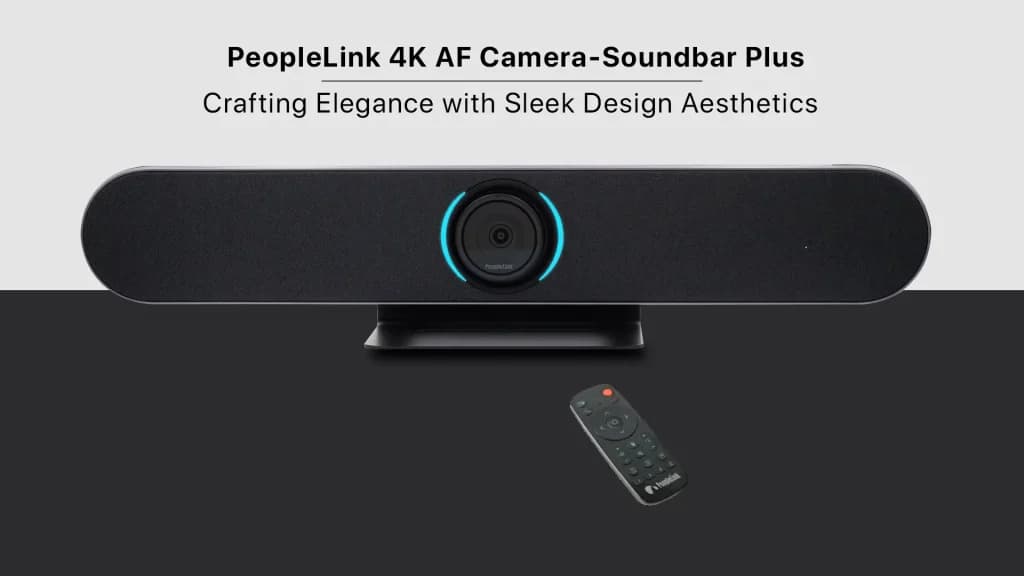

Crafting Elegance with Sleek Design Aesthetics

Aesthetically pleasing and compact, our all-in-one video conferencing bar complements any workspace. Its sleek design adds a touch of sophistication to your virtual setup. Easy to Use in small to mid-sized huddle and conference meeting rooms, Gaming, Streaming, attending Webinars or online training and classrooms, and all other video collaboration platforms.

Features

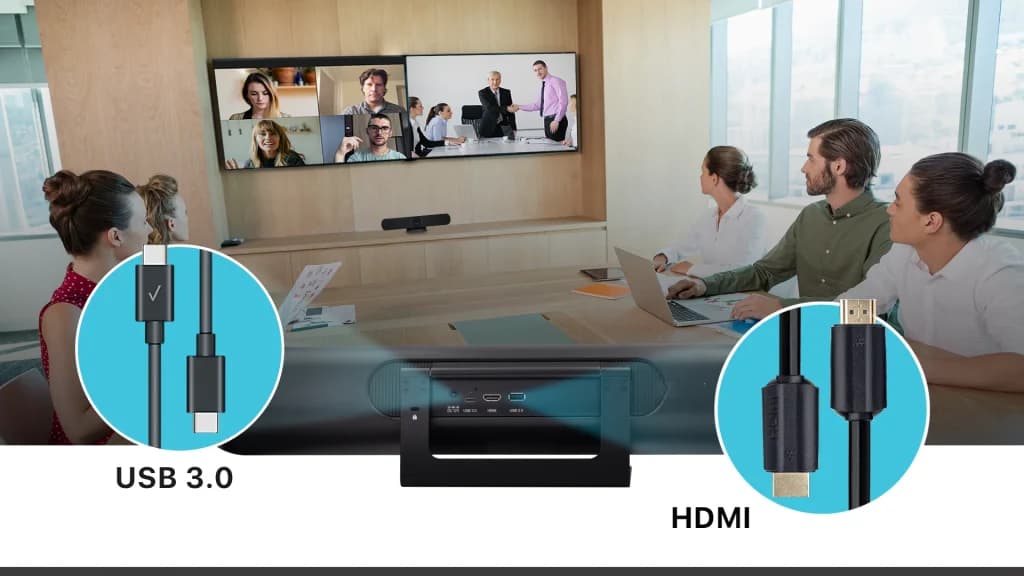

Comprehensive Interface Support

Supports HDMI 2.0 and USB 3.0 audio-video output simultaneously, providing flexible connectivity options for a seamless user experience.

How it Works

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink 4K AF Camera-Soundbar Plus
Field of view	121° (DFOV)
Horizontal FOV	110° (HFOV)
1/2.5" CMOS sensor	8.51 MP
Mic pickup	6m beamforming

Rooms It Serves

Huddle rooms

One device covers the 4K Camera, Microphones and Speaker for fast deployment.

Small meeting rooms

A 121 degree diagonal field of view keeps every participant in frame.

Hybrid meetings

Beamforming Microphones with 6m pickup and a 96 dB Full Frequency Speaker keep every voice clear.

Where a Camera-Soundbar Fits in Your Organisation

How organisations deploy a Camera-Soundbar, and what changes for the teams that use it

Enterprise

Project Rooms for an Engineering Consultancy

An engineering consultancy fits its Project Rooms with the PeopleLink 4K AF Camera-Soundbar Plus, one bar under each display. A 121 degree diagonal field of view takes in a table of six without anyone leaning in, and AI Group Framing adjusts the crop as people join or leave. Four Beamforming Microphones pick up across six metres and the 96 dB Full Frequency Speaker fills the room. The bar connects to the room laptop over USB 3.0 Type-C, ready for PeopleLink InstaVC or another platform.

Retail

Regional Office Calls for a Retail Chain

A Gulf-based retail chain runs weekly stock reviews between its Regional Offices and head office. A 4K AF Camera-Soundbar Plus mounted above the display gives every office the same setup, and mechanical pan and tilt of plus or minus 15 degrees lets the installer square the frame once and leave it. Built-in audio 3A processing keeps voices even when people speak from opposite ends of the table. USB Plug and Play means a new office is on a call as soon as the cable reaches the room PC.

Government

Departmental Meeting Rooms for a Government Agency

A government agency standardised its small Meeting Rooms on one device instead of a separate camera, microphone and speaker. The 4K AF Camera-Soundbar Plus sits on the desk, on the wall or on the display, so rooms of different shapes take identical kit. An RJ45 port carries an expansion microphone with PoE power where a longer table needs extra pickup, and HDMI and USB 3.0 output together let one room feed a display and a PC at the same time.

Not sure which model fits your Huddle rooms or Small meeting rooms?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink 4K AF Camera-Soundbar Plus	Typical Alternative
All-in-one	Camera, mic and speaker in one bar	Separate camera and audio
Resolution	4K UHD	1080P typical
Field of view	121° wide-angle	Narrow fixed FOV
Auto framing	AI presenter tracking	None
Integration	USB 3.0, HDMI, Bluetooth, PoE	USB only typical

Why PeopleLink

Hardware and Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Cameras pair with PeopleLink Audio, Control and Room Solutions out of the box.

Deployed Globally

Used across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

It offers one HDMI output, one USB 3.0 Type-C and one USB 2.0 Type-A port and Bluetooth 5.0, and it is USB Plug and Play with UVC 1.1 to 1.5 and UAC 1.0 support, so it works with common video conferencing platforms and with PeopleLink InstaVC. An RJ45 port connects an expansion microphone and supports PoE power for it. PeopleLink also supplies the matching Audio, Control and Room Solutions for the same room.

It is built for Huddle Rooms and small Meeting Rooms, where a 121 degree diagonal field of view takes in a table seated close to the display and the Beamforming Microphones pick up across about six metres. Where a table runs longer than that, an expansion microphone connects over the RJ45 port with PoE power. Give a PeopleLink specialist your table length and seat count and they will confirm what the room needs.

Explore Related Resources

Specifications

AI Framing	: AI-Powered Framing
Sensor	: 1/2.5 inch, CMOS, 8.51M pixel
Video Resolution	: UHD 4K@30fps, 1080P@30fps, 720P@30fps
Zoom	: 5x Zoom
FoV	: 121° (DFOV), 110° (HFOV), 75° (VFOV),
Focus	: Fixed focal
ePTZ	: MPT (pan/tilt ±15)+ EPTZ
Microphone	: Built-in 4 Beamforming microphones
Audio Pickup	: Distance up to 6 meters
Speaker	: 96 dB Full Frequency Speaker
Interface	: HDMI V.2, USB3.0, Type C, USB2.0, Type A
Audio Algorithm	: Built-in audio 3A algorithm
Digital Noise Reduction	: 2D&3D digital noise reduction
Low Light	: Supports Backlight Compensation
Video Compression	: H.264 / MJPEG /YUY2 /NV12 Compression
Plug & Play	: USB
Remote Control	: IR remote control
Applications	: Huddle Room, Meeting Rooms

FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

Product	i20 Plus Videobar	PeopleLink AIO Alpha	4K AF Camera Soundbar Plus
AI Framing	Auto Framing and face tracking function	AI-Powered Framing/Presenter Tracking/Speaker Tracking	AI-Powered Framing
Sensor	4 Megapixel Sony sensor	1/2.5-Inch SONY Low Illumination 8.5MP Sensor	Sensor: 1/2.5 inch, CMOS, 8.51M pixel
Video Resolution	2K, 2560 x 1440 Pixels @ 30 fps	4k@30fps, 2k@30fps 1080p@30fps	UHD 4K@60fps, 4K@30fps, 1080P@60fps
Zoom	4x Digital Zoom	16x digital zoom	5x Zoom
FoV	94° Field Of View	128°(D/120°（H） /82°（V）	121° (DFOV), 110° (HFOV), 75° (VFOV),
Focus	Fixed focal	Focul Length 2.2mm	Fixed focal
ePTZ	Intelligent ePTZ	e-PTZ (UVC /IR remote control)	MPT (pan/tilt ±15)+ EPTZ
Microphone	Built-in 4 Microphone Arrays	Built in 6PCS microphone array	Built-in 4 Beamforming microphones
Audio Pickup	Range Up to 3 meters	Distance up to 6 meters	Distance up to 6 meters
Speaker	Built-in Speaker with 82dB Speaker Output	2 speaker element sound bar Adopts	96 dB Full Frequency Speaker
Interface	USB 2.0	USB 3.0: Type B, 3.5mm jack	HDMI V.2, USB3.0, Type C, USB2.0, Type A
Audio Algorithm	Audio 3A algorithm for accurate noise reduction	Built-in AGC, AEC, ANS	Built-in audio 3A algorithm
Digital Noise Reduction	2D&3D digital noise reduction	2D&3D digital noise reduction	2D&3D digital noise reduction
Low Light	Automatic Low light correction	Automatic Low light correction	Supports Backlight Compensation
Video Compression	MJPEG Dual Stream Output	YUY2/MJPEG	H.264 / MJPEG /YUY2 /NV12 Compression
Plug & Play	USB	USB	USB
Remote Control	N/A	IR remote control	IR remote control
Applications	Huddle Room, Meeting Rooms	Huddle Room, Meeting Rooms	Huddle Room, Meeting Rooms
Certifications & Approvals	CE, ROHS and FCC	CE, ROHS and FCC	CE, ROHS and FCC

Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.

In the Room

Video Bars in Live Meeting Rooms

Meeting rooms and boardrooms photographed on site.

Interactive display with a 4K video bar mounted on a slatted wood wall in a meeting room — Meeting RoomInteractive Display with Integrated Video Bar

Boardroom with speakerphone in the foreground and an interactive display with video bar — Boardroom StackSpeakerphone, Display and Video Bar

Long boardroom with leather chairs and an interactive display with camera — Retail Group BoardroomInteractive Display with Camera

Accessories

Power Adapter

USB 3.0 Type-C Device

Remote Control

Mounting Kit

User Manual

Videos

See the 4K AF Camera-Soundbar Plus in action

Documents

Product Datasheet

Download

User Manual

Download
