Overview

What is the PeopleLink AILive Board Lite?

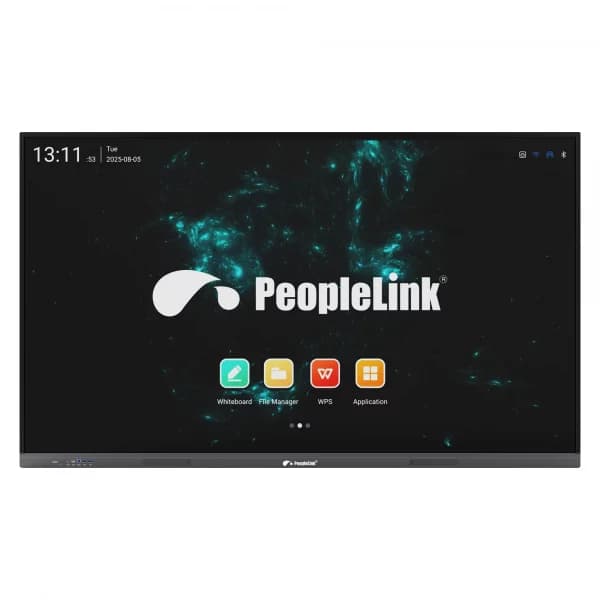

The PeopleLink AILive Board Lite is an interactive flat panel line, available in 2 models (X65, X75), built for classrooms and meeting rooms. Built for interactive teaching and collaboration on a 4K touch display. It works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio and room solutions. The model specifications below are drawn from the official datasheets, and the full PDF for each model is available on request.

Zero bonding technology

Low parallax writing and wider viewing angles.

4mm anti-glare tempered glass.

4K Ultra HD display

Support for all-channel 4K UI display.

Specifications

PeopleLink AILive Board Lite model specifications

Verified from the official datasheets. Download the full PDF for any model below.

Specification	X65	X75
Size	65”	75”
Response Time	8 ms	8ms
Aspect Ratio	16:9	16:9
Display Area	1429 (H) × 804 (V) mm	1651 (H) ×929 (V) mm
Resolution	3840(H) × 2160(V)	3840(H) × 2160(V)
Pixel pitch	0.372 × 0.372mm	0.42975 × 0.42975mm
Refreshing Frequency	60Hz	60Hz
Display color	1.07B (10bit)	1.07B (10bit)
NTSC	72%	72%
Contrast ratio (Typ)	4000:1(Static typ.)	4000:1(Static typ.)
Viewing angle	178°(H/V)	178°(H/V)
Back light Unit	DLED	DLED
Brightness	Up to 350cd/m2	Up to 350cd/m2
Haze	25%	25%
Life span	≥ 50000hrs	≥50000hrs
Soundtrack	2.0	2.0
Audio Power	2 x 20W	2 x 20W
Camera Pixel	48MP	48MP
Camera Quantity	1	1
Camera Location	Upper frame	Upper frame
Camera Viewing Angle	D=119° H=97° V=74°	D=119° H=97° V=74°
Camera Function	Support voice tracking, face tracking, AI gesture control	Support voice tracking, face tracking, AI gesture control
Microphone Distance of a Pickup	0~8m	0~8m
Microphone Quantity	8	8
Pickup Angle	0°~ 180°	0°~180°
Microphone Function	Support echo cancellation, background noise suppression, gain compensation	Support echo cancellation, background noise suppression, gain compensation
Sensing type	IR Touch	IR Touch
Touch points	40 Points Touch	40 points touch
Mi. Object size	2mm	2mm
Touch tool	Finger; passive IR pen	Finger; passive IR pen
Touch Response time	≤5ms	≤5ms
Accuracy	±1mm	±1mm
Writing height	≤3mm	≤3mm
Writing display	Single Stylus pen with two colors	Single Stylus pen with two colors
Interpolation resolution	32767 (W) × 32767(D)	32767 (W) × 32767(D)
System version	Android14.0	Android14.0
Frequency	1.5GHZ	1.5GHZ
CPU	8-core A55	8-core A55
GPU	Quad-core MaliG52	Quad-core MaliG52
RAM	8GB	8GB
ROM	128GB	128GB
Bluetooth version	5.0	5.0
Bluetooth Operation frequency	2.4GHz	2.4GHz
Bluetooth Operation distance	0~10m	0~10m
Wi-Fi Version	802.11ac/b/g/n/a	802.11ac/b/g/n/a
Wi-Fi Operation frequency	2.4GHz/5GHz	2.4GHz/5GHz
Wi-Fi Operation distance	0~10m	0~10m
Power requirements	100-240V～50/60Hz2.8A	100-240V～50/60Hz 4A
Max power	280W	400W
Standby power	≤0.5W	≤0.5W
Dimension (L×W×T)	1484.3 × 903.1 × 116mm	1706.8 × 1027.3 × 116mm
Dimension (package) L×T×H	1630×220× 1050mm	1860 × 220 × 1160mm
Thickness of machine (including bracket)	146mm (XD2163)	152mm (75/86)
VESA	500 × 400mm	600 × 400mm
Wall-hanging screw spec	M8 × 20mm	M8 × 20mm
Net weight	36±1KG	50KG
Gross weight	43±1KG	64KG
Operation temperature	0℃~40℃	0℃~40℃
Operation humidity	10%~90%RH	10%~90%RH
Storage temperature	-20℃~60℃	-20℃~60℃
Storage humidity	10%~90%RH	10%~90%RH
Altitude	< 5000m	< 5000m
