PeopleLink AOE | Ceiling Tile SpeakersCeiling Speaker

Ceiling Speaker for even ceiling audio playback in meeting rooms. View the verified specifications and download the full datasheet.

Audio datasheet
Download the full datasheet
Complete specifications for the PeopleLink AOE | Ceiling Tile Speakers in PDF.
Overview

What is the PeopleLink AOE | Ceiling Tile Speakers?

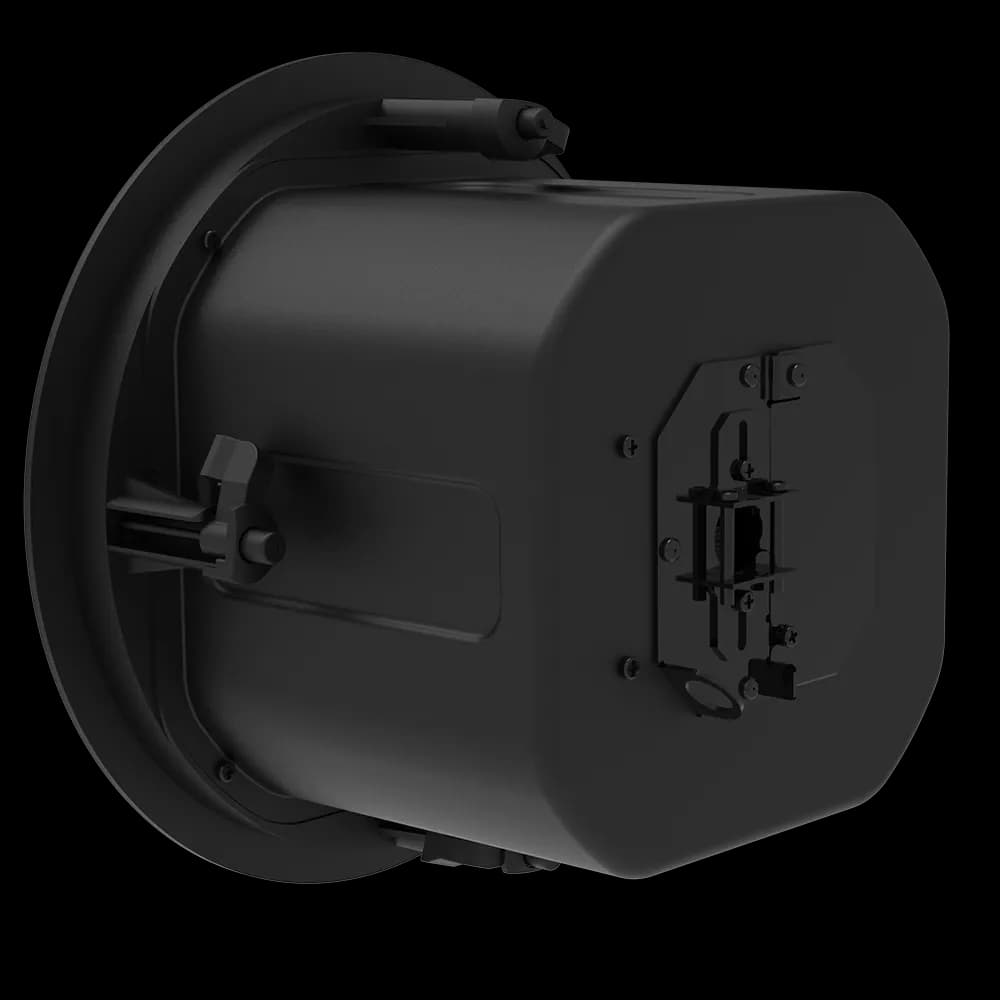

The PeopleLink AOE | Ceiling Tile Speakers is a ceiling speaker built for even ceiling audio playback in meeting rooms. It is designed for clear, even audio playback across the room. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Built-in 2-way design

Built-in 2-way design, POE power transmission

Wide, flat frequency response & low loss

Wide, flat frequency response & low loss

Metal black tube

Metal black tube, meet fire protection requirement

PeopleLink AOE | Ceiling Tile Speakers
Specifications

PeopleLink AOE | Ceiling Tile Speakers specifications

Verified from the official datasheet. Download the full PDF for complete details.

General Specifications
Power30W
Frequency Response (-10dB)65Hz - 20kHz
Output Boost (Peak)111dB
Impedance8 Ohms
Woofer6-Inch Composite Diaphragm Waterproof Unit
Tweeter1-Inch Silk Dome Tweeter, Angle Adjustable
Amplifier Cabinet MaterialEngineering Plastic Metal Fireproof Cavity
InstallationSuspension and Flushing Mount
Opening Installation Dimensions246mm (Round Hole)
AccessoriesMetal Safety Rope
Dimensions279mm x 279mm x 176mm ( W x H x D)
Weight3kg
Coverage Angle-115°(105dB @ 3kHz), 115degrees (-89 dB @ 4kHz )
Sensitivity>89dB (at 1m)
Min/Max Ceiling Thickness0.9mm (0.35") to 40.9mm (1.6")
Transducer (s) Low Frequency164mm (6.5") polypropylene cone, rubber surround
High Frequency25.4mm (1") silk dome tweeter
Operating Temperature-10 - 40°C
Relative Air humidity0 - 95%
Safety CertificationCE, FCC, RoHS

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink AOE | Ceiling Tile Speakers is a ceiling speaker from PeopleLink, designed for clear, even audio playback across the room. It works with common video conferencing platforms.

The PeopleLink AOE | Ceiling Tile Speakers connects over 111dB, and works with common video conferencing platforms.

Yes. As one OEM, PeopleLink supplies the ceiling speaker alongside cameras, audio, control and room solutions, so the room works together.

Use the download button on this page to request the full PeopleLink AOE | Ceiling Tile Speakers PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
