PeopleLink AOE | DSP 16 X 16 Dante with Camera TrackingAudio DSP Processor

Audio DSP Processor for large rooms that need audio processing with camera tracking. View the verified specifications and download the full datasheet.

Audio datasheet
Download the full datasheet
Complete specifications for the PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking in PDF.
Overview

What is the PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking?

The PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking is an audio DSP processor built for large rooms that need audio processing with camera tracking. It is designed to manage, mix and process room audio. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

ATS Automatic Thresholding System Mixing

ATS Automatic Thresholding System Mixing

VAD video tracking

VAD video tracking

AEC + Automatic Noise Suppression

AEC + Automatic Noise Suppression

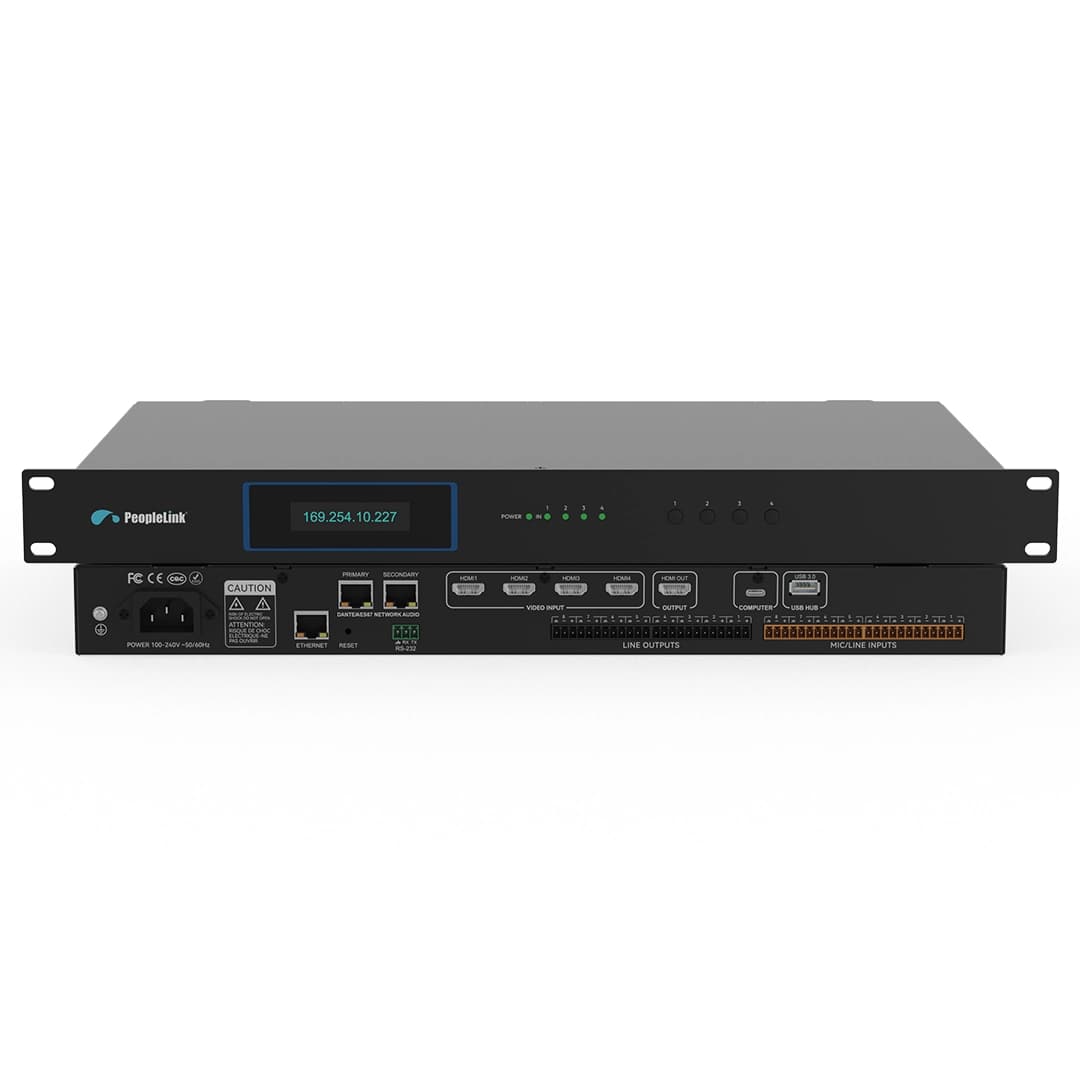

PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking
Specifications

PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking specifications

Verified from the official datasheet. Download the full PDF for complete details.

Audio Processing
ProcessorADI SHARC 21489@450 MHz SIMD
DSP Processing Capacity400 MIPS, 1.6 GFLOPS
Analog I/O8x8
Dante I/O16x16
Frequency Response (20~20kHz)±0.3dB
Phantom+48V/10mA max
Sampling Rate48 kHz, ± 100 ppm
Input Dynamic Range113dB
Output Dynamic Range113dB
THD + N<-95dB @17dBu
Video Processing
HDMI IN4
HDMI OUT1
Type-C1x1Audio+Video capture
Resolution4K60Hz 4: 4: 4
Switch ModeSeamless switching
Equipment Parameters
USB3.0 HUB1
Ambient Temperature0-40°C
Working power supply110V-240V 50/60Hz
Dimensions (W x D x H)482 x 260 x 45mm
Weight4KG

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

The PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking is an audio DSP processor from PeopleLink, designed to manage, mix and process room audio. It works with common video conferencing platforms.

The PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking connects over 8x8, and works with common video conferencing platforms.

Yes. As one OEM, PeopleLink supplies the audio processor alongside cameras, audio, control and room solutions, so the room works together.

Use the download button on this page to request the full PeopleLink AOE | DSP 16 X 16 Dante with Camera Tracking PDF datasheet. Share a few contact details and the complete datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
