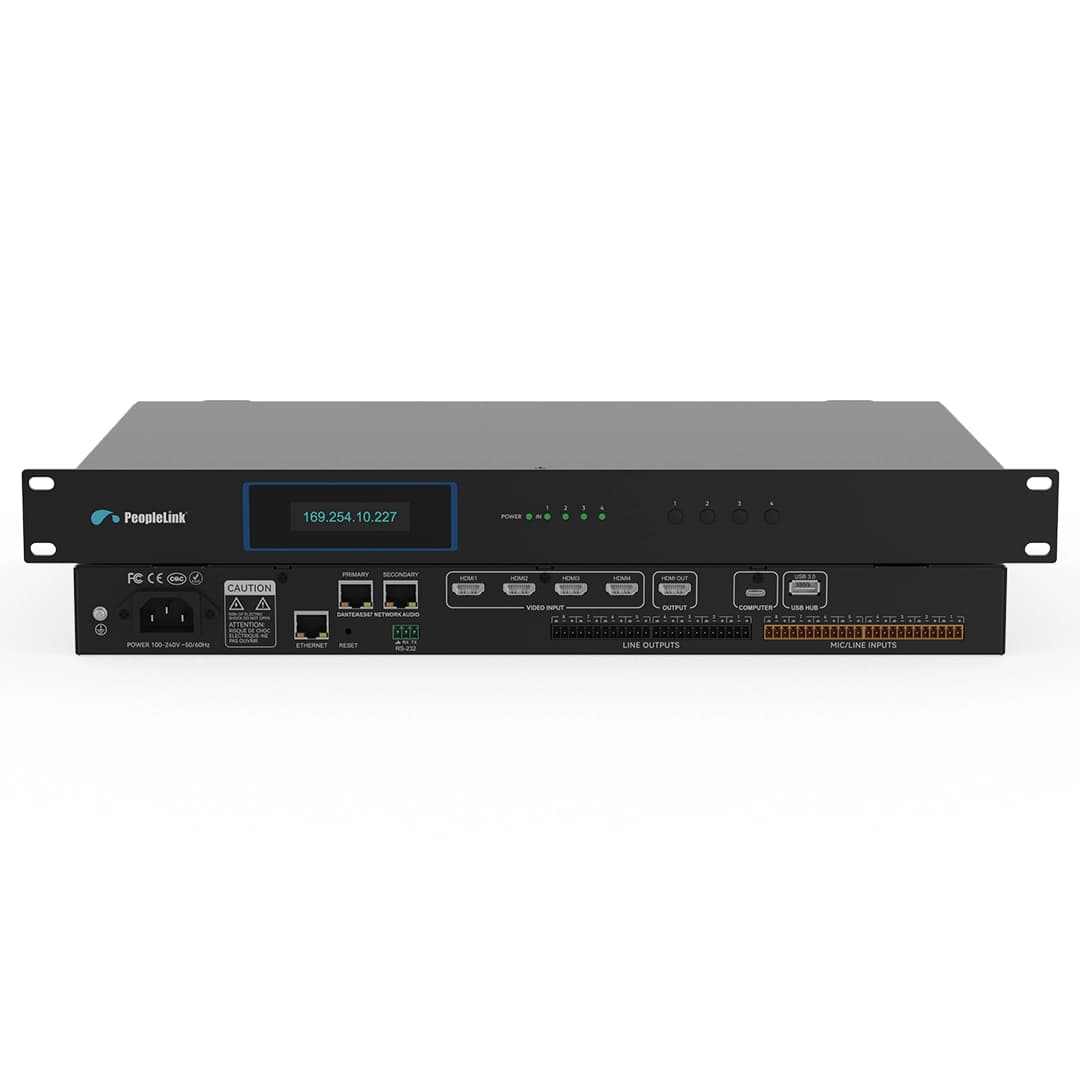

PeopleLink AOE DSP 16x16 with Camera Control16x16 Dante Audio DSP with Voice Activated Camera Tracking for Large Rooms
The PeopleLink AOE DSP 16x16 with Camera Control is a DSP for Large Rooms, Auditoriums and Hybrid Boardrooms that need audio processing with Camera Tracking.
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products
Overview
What a Dante DSP with Camera Control does in an Auditorium or Hybrid Boardroom
The PeopleLink AOE DSP 16x16 with Camera Control is a DSP for Large Rooms, Auditoriums and Hybrid Boardrooms that need audio processing with Camera Tracking. It carries 25 audio channels, 8 analog, 16 Dante and 1 USB, with per-channel EQ, Compressor, Limiter and Delay. ATS Automatic Threshold Mixing works with VAD Video Tracking so the open microphone cues a PeopleLink Camera to the active speaker, while AEC, AFC and Noise Suppression clean the far-end feed. A 4K at 60Hz (4:4:4) HDMI matrix with 4x1+1 seamless switching, USB-C AV Capture and a USB 3.0 hub sit in the same unit. One chassis replaces a rack of separate processors, switchers and capture cards.
A professional-grade AV processing solution delivering 4K@60Hz video and crystal-clear, artifact-free audio for high-quality hybrid collaboration. Featuring seamless source switching and compatibility with major cloud conferencing platforms, it integrates effortlessly into modern meeting environments to ensure smooth, reliable, and impactful communication.
ATS automatic threshold mixing with VAD video tracking
Built-in AEC, AFC, ANS, noise suppression
Integrated audio processor, HDMI switcher, and AV capture card
25-channel audio I/O: 8 analog, 16 Dante, and 1 USB audio
Per-channel processing: High-low pass, EQ, compressor, limiter, and delay
4K@60Hz (4:4:4) HDMI matrix with 4×1+1 seamless video switching
High-quality audio and video transmission for local and remote meetings
Compatible with cloud conferencing platforms and hardware terminals
USB-C AV capture and USB 3.0 hub for expansion and connectivity
Key Specifications
Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.
Item
PeopleLink AOE DSP 16x16 with Camera Control
Dante I/O
16x16
Frequency response
±0.3dB
Power
110V-240V 50/60Hz
Rooms It Serves
Large rooms
16x16 Dante Processing across 25 audio channels.
Auditoriums
VAD Video Tracking follows the active speaker.
Hybrid rooms
AEC, AFC and Noise Suppression for clear remote audio.
Where a DSP Fits in Your Organisation
How organisations deploy a DSP, and what changes for the teams that use it
Public Sector
Courtroom Audio and Camera Tracking for a District Court
A district court fits its Courtroom with the PeopleLink AOE DSP 16x16, racked behind the bench. Dante channels carry microphones from the bench, the witness box and the counsel tables, with per-channel High-Low Pass, EQ, Compressor, Limiter and Delay set once at commissioning. ATS automatic threshold mixing opens only the microphone in use, and VAD Video Tracking cues a PeopleLink Camera to whoever is speaking, so the record shows the right person. Built-in AEC keeps remote hearings clear.
Education
Auditorium AV for a University
A university runs lectures and convocations from one Auditorium, with the PeopleLink AOE DSP 16x16 at the centre of the rack. The processor carries 25 audio channels: 8 analog inputs for lectern and radio microphones, 16 Dante channels across the hall, and 1 USB audio channel to the room PC for streaming. A 4K at 60Hz HDMI matrix with 4x1+1 seamless switching lets the operator cut between slides, document camera and the live feed without a visible break.
Enterprise
Boardroom Processing for a Bank Headquarters
A bank standardises the executive Boardrooms at its headquarters on the PeopleLink AOE DSP 16x16 for Hybrid Meetings with regional offices. USB-C AV capture presents the room cameras and microphones to a visiting laptop, so the room joins cloud conferencing platforms and hardware terminals alike. AFC and noise suppression hold the level steady when several directors speak in turn, and a USB 3.0 hub covers the peripherals on the table. Power runs on 110V to 240V, which suits offices in different markets.
Not sure which model fits your Large rooms or Auditoriums?
Tell us the room size and seating. A PeopleLink specialist will recommend the right model.
It is a DSP that manages, mixes and processes room audio and drives Camera Tracking from the same unit. Per-channel High-Low Pass, EQ, Compressor, Limiter and Delay are set once at commissioning, so a Courtroom, Auditorium or Boardroom keeps a consistent sound. It also carries an HDMI matrix and AV capture, which means one chassis covers audio, video switching and the feed to a room PC.
Audio runs across 25 channels: 8 analog, 16 Dante and 1 USB, which covers lectern, table and radio microphones on one system. Video uses a 4K at 60Hz (4:4:4) HDMI matrix with 4x1+1 seamless switching, plus USB-C AV capture and a USB 3.0 hub for peripherals. It works with common Video Conferencing platforms and with hardware room terminals.
Yes. VAD Video Tracking cues a PeopleLink Camera from the microphone that is open, so the audio and the view stay on the same person without an operator. PeopleLink supplies the Cameras, Audio and Room Solutions alongside the processor, which keeps a complex room a single specification rather than an integration project.
Yes. ATS automatic threshold mixing works with VAD Video Tracking, so the open microphone cues the camera to the active speaker, while the same unit carries 8x8 analog and 16x16 Dante I/O and a 4K at 60Hz HDMI matrix. Share your room layout, microphone count and camera positions with a PeopleLink specialist to confirm the channel plan.
Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. Commissioning matters most on a processor of this size, so the channel plan and per-channel settings are normally agreed with a specialist before the room is built.
It runs on 110V to 240V at 50/60Hz, so the same unit can be specified for rooms in different regions without a separate power variant. Dante carries the audio over the room network, which suits buildings where cable routes are fixed. Regional PeopleLink Partners handle installation and support at each site.
