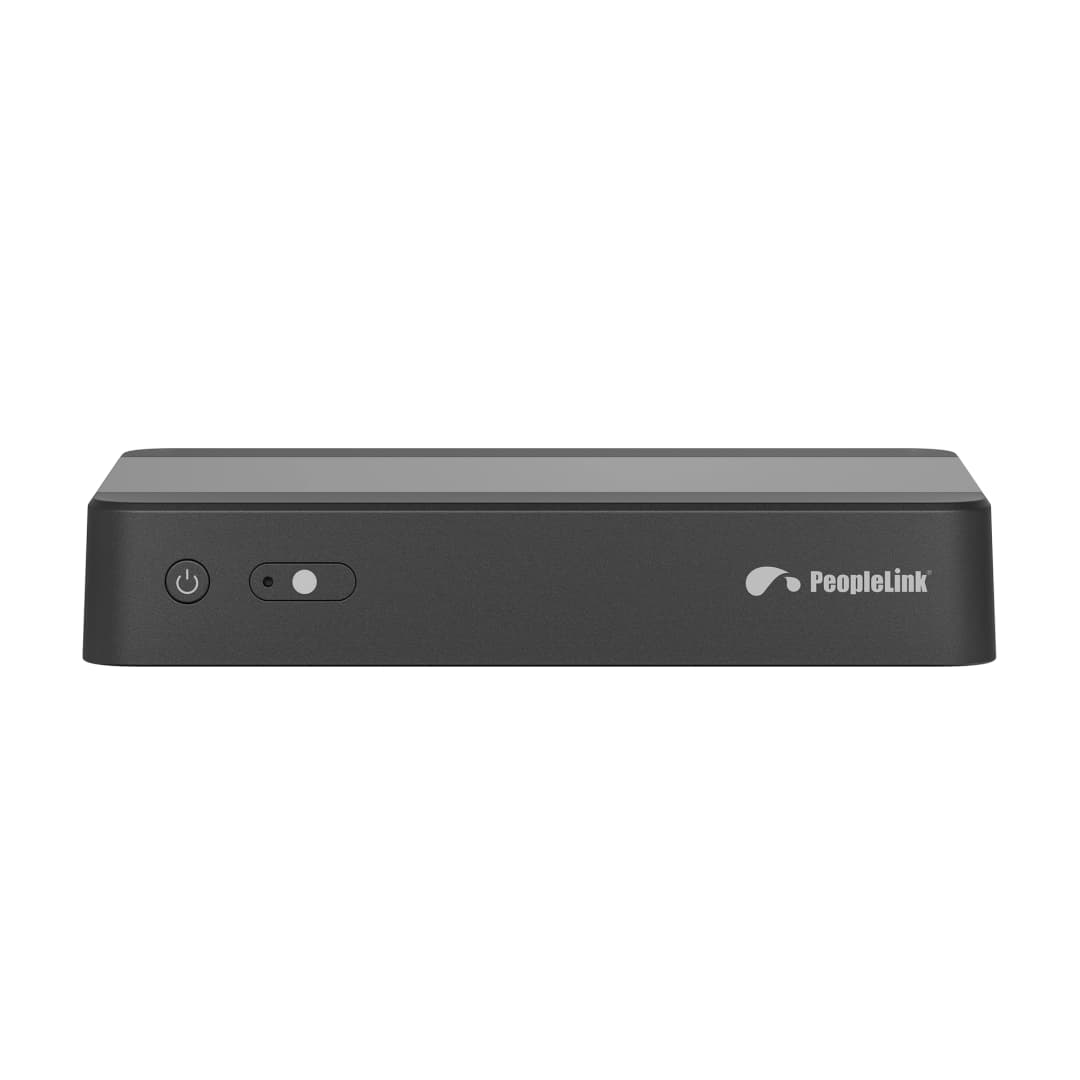

PeopleLink BYOM Wireless Presenter SystemAccessory

A BYOM wireless presenter system that shares the room camera, microphone, speaker and display to any laptop, with dual screen collaboration. View the verified specifications and download the full datasheet.

Product datasheet
Download the full datasheets
Complete specifications for each PeopleLink BYOM Wireless Presenter System model in PDF.
Overview

What is the PeopleLink BYOM Wireless Presenter System?

The PeopleLink BYOM Wireless Presenter System connects the room display so it can be shared with remote meeting participants, and lets people wirelessly bring the room camera, microphone and speaker to their own laptop with reverse audio and video back to the laptop. It supports dual screen collaboration for local and remote meetings and up to 9 split screens for screen casting. BYOM mode works with common video conferencing platforms. Because PeopleLink is one OEM, it pairs cleanly with PeopleLink displays, cameras, audio and room solutions. The specifications below are drawn from the official datasheet, and the full PDF is available on request.

BYOM Passthrough

Wireless shared camera and microphone returned to your laptop for video meetings.

4K Dual Screen

4K pixel-to-pixel display with dual HDMI output and dual screen collaboration.

AirPlay and Miracast

AirPlay, Miracast, DLNA and Chromecast support, including mixed projection and touchback.

Up to 9 Split Screens

Up to 9 split screens for screen casting with up to 128 connections.

PeopleLink BYOM Wireless Presenter System
Specifications

PeopleLink BYOM Wireless Presenter System specifications

Verified from the official datasheet. Download the full PDF for complete details.

Hardware
CPUARM Cortex A55 x 4
Storage Configuration4G DDR + 32G FLASH
Video Ports2x HDMI Output (1x 4K 60Hz, 1x 1080P 60Hz); 1x HDMI Input
Audio Ports3.5mm audio output; 3.5mm mic output
Data Ports2x USB 3.0 Host Type-A; 2x USB 2.0 Host Type-A; 1x USB Touch; 1x Type-C; 2x RS232
Network and Power Ports1x RJ45 LAN port; 1x POE port; 1x 12V/3A DC power jack; power button; standby button
Power ConsumptionDC 12V, maximum 36W
Size225 x 140 x 40mm (L x W x H)
Operating Environment0 to 40 C working temperature; 10% to 90% working humidity
Wireless and Casting
ProtocolsDLNA, Miracast, AirPlay, Chromecast
Dual Wi-Fi5.8G SoftAP + 5.8G Wi-Fi
Number of ConnectionsUp to 128
Transmit Distance50m without obstacle
BYOM CompatibilityWorks with common video conferencing platforms
Mirror BackSupported
Touch, Media and Bridging
Touch ControlUSB HID; mouse mode; IR touch control; capacitive touch panel
Video DecodingH.264, H.265, VP8, RV, WMV, AVS, H.263, MPEG4; 4K decoding
BridgingSupports both wireless and wired bridging
Device ManagementRS232 API for third party integrations; built-in web back-end

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

It is a wireless presenter system that shares the room display with remote participants and lets people wirelessly bring the room camera, microphone and speaker to their laptop, with dual screen collaboration and up to 9 split screens.

BYOM lets a laptop use the room camera and microphone wirelessly through the system, so the in-room devices appear as a USB camera and microphone on the laptop for video meetings on common video conferencing platforms.

It supports up to 128 connections and up to 9 split screens for screen casting, with a transmit distance of 50m without obstacle.

It supports DLNA, Miracast, AirPlay and Chromecast, including AirPlay and Miracast mixed projection and USB or Miracast touchback.
