PeopleLink Delegate Mic Flush Mount BaseConference Discussion Microphone

Conference Discussion Microphone for boardrooms and council chambers. View the verified specifications and download the full datasheet.

Audio datasheet
Download the full datasheet
Complete specifications for the PeopleLink Delegate Mic Flush Mount Base in PDF.
Overview

What is the PeopleLink Delegate Mic Flush Mount Base?

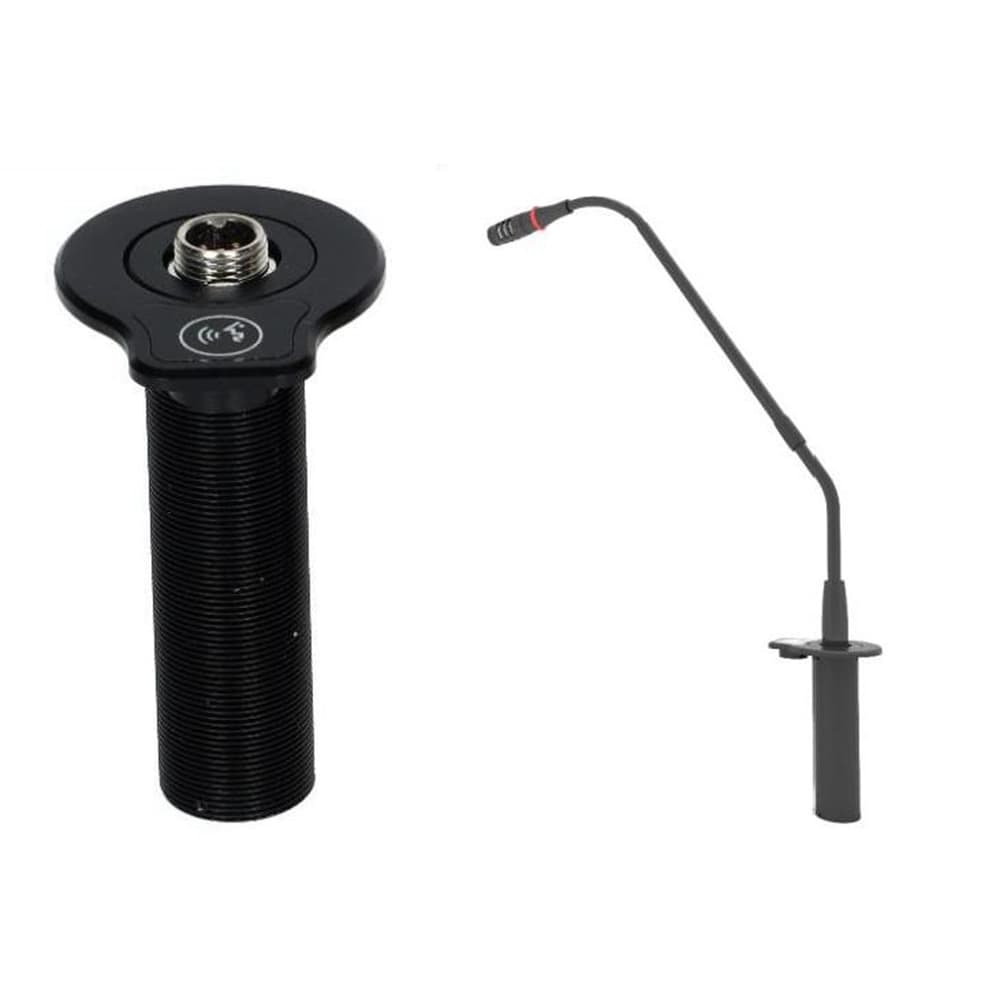

The PeopleLink Delegate Mic Flush Mount Base is a discussion microphone built for boardrooms and council chambers. It is designed for structured discussion in conference and council rooms. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink cameras, audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Built-in microphone socket

Built-in microphone socket, suitable for PeopleLink 6-pin gooseneck microphone

Inconspicuous installation

It is used for inconspicuous installation on the desktop with compact design.

Capacitive touch switch button

Capacitive touch switch button can be optionally installed to easily set the microphone off or on for sound pickup. The built-in switch can be used for control from remote equipment.

PeopleLink Delegate Mic Flush Mount Base
Specifications

PeopleLink Delegate Mic Flush Mount Base specifications

Verified from the official datasheet. Download the full PDF for complete details.

General Specifications
Output impedance360 Ω
Power Consumption4 mA typical
High level when in down position(DC + 5V)
Low level when in up position(DC 0V)
LED indicator High electric level (DC + 5V)Red
LED indicator Low electric level (DC 0V)White
Phantom power DC24-48V
SwitchTouch control
Weight65 g
Dimensionslength 128.2 mm, maximum width 55.3 mm
AccessoriesOne set of metal fixing ring for standard installation, one pair of shockproof isolators
Diameter of the microphone body22mm
Touch button diameter15mm
The distance between the main body and the button center21.75mm
Analog interface Box - General Specifications
Voltage supply48V DC
Static power consumption1W
Frequency Response20Hz ~ 20KHz
Noise ratio (S / N)> 80dB
Total harmonic distortion<0.05%
Channel Crosstalk> 80dB
Dimensions (mm)120L x 100W x30H with two ears for screw fix
ColorBlack
Weight0.5KG
Headphone Output independence16 Ω
Speaker output independence8Ω
Frequency response20~15000hz
LED Power+5 V, max. 40 mA
