What is the PeopleLink Delegate Mic Flush Mount Base?

It is the delegate position base in a Conference Microphone system, mounted flush into the desktop with a removable gooseneck above it. Touch on and off control and a bi-color LED make it clear which position is live during a structured discussion. Rubber isolators keep the knocks of papers and laptops out of the audio.

How does the base connect to a conference system?

A 360 Ω output drives a PeopleLink conference system, and the same base runs in a standard analog setup through a 3-pin XLR or a 3.5 Phoenix connector. The built-in socket takes a 6-pin gooseneck, so the stem and the base are specified separately. Phantom power arrives on DC 24-48V at around 4 mA per position.

Does it work with PeopleLink room solutions?

Yes. PeopleLink supplies the Conference Microphone alongside Cameras, Control and Room Solutions, so a Chamber or Boardroom is specified as one system. Remote control of each position means the chair or an operator can manage the floor from the control desk rather than seat by seat.

Who installs and supports the microphone?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. The base is small and mounts flush, so the desk cut-outs are agreed with the specialist before the furniture is made.

Can a room be cleared between meetings?

Yes. The gooseneck is removable, so the microphones can be taken out and stored, leaving only the flush base in the desktop and a clear working surface. That suits Senate Rooms and committee tables used for other work between sittings. Resetting the room is a matter of plugging the stems back in.

Pro Audio · Delegate Microphone Base

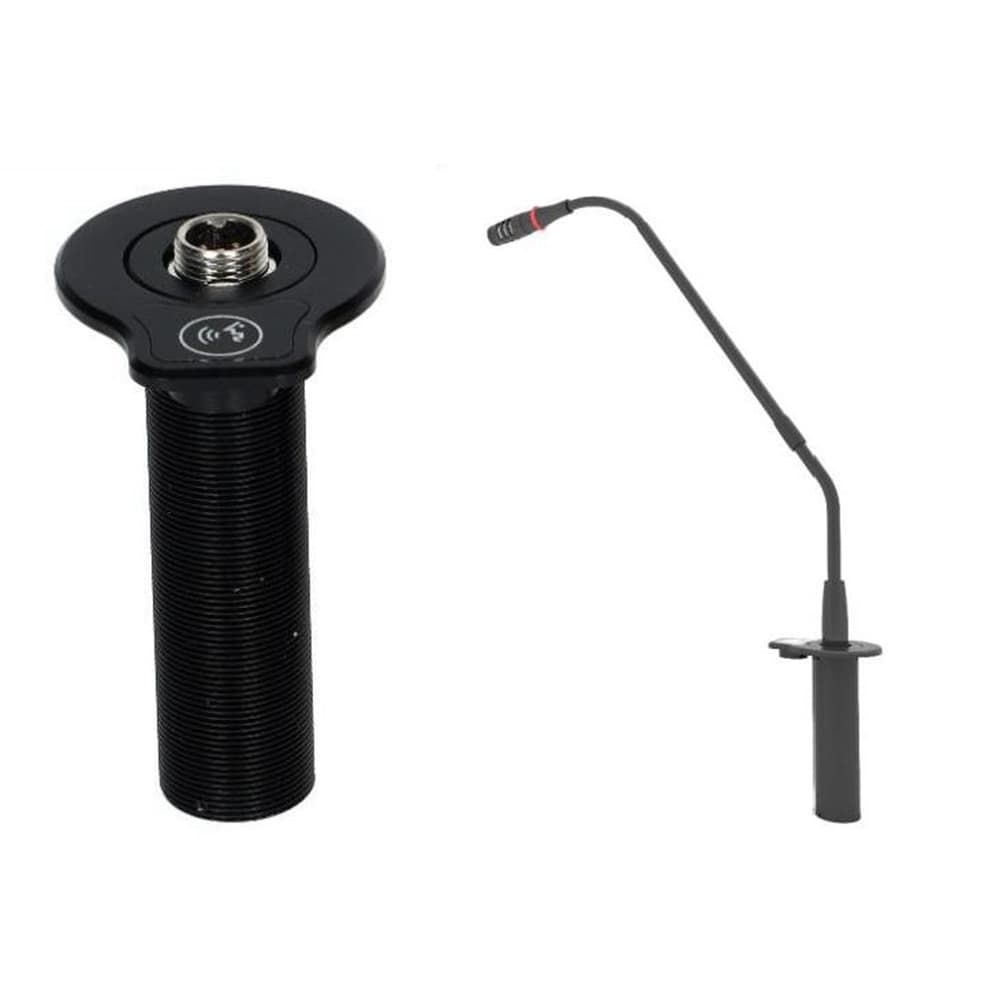

PeopleLink Delegate Mic Flush Mount BaseFlush Mount Delegate Microphone Base for Boardrooms and Council Chambers

The PeopleLink Delegate Mic Flush Mount Base is a Conference Microphone base for delegate positions in Boardrooms, Council Chambers and Senate Rooms.

20Hz ~ 20KHz Frequency response
DC 24-48V Phantom power
4 mA typical Power consumption

Request a Quote WhatsApp

PeopleLink Delegate Mic Flush Mount Base

1 / 2

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a Delegate Microphone Base does at each Seat

The PeopleLink Delegate Mic Flush Mount Base is a Conference Microphone base for delegate positions in Boardrooms, Council Chambers and Senate Rooms. It sets flush into the desktop so only the gooseneck stands above the surface, and its built-in socket takes a pluggable 6-pin gooseneck compatible with all PeopleLink series microphones. Frequency response runs 20Hz to 20KHz on DC 24-48V phantom power, with a built-in RF filter and rubber isolators. Touch on and off control with a bi-color LED shows who holds the floor, and every position is remote-controllable from a chair's desk. A removable microphone means the goosenecks can be stored and the table cleared between sittings.

A compact, flush-mount gooseneck microphone base compatible with all PeopleLink series microphones. Featuring a removable mic and touch on/off control, it supports both PeopleLink conference systems and standard analog audio setups for flexible deployment.

Small and exquisite base
Built-in microphone socket
Built-in RF filter
Equipped with rubber isolators
Output with 3-pin XLR
Output with 3.5 Phoenix connector

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink Delegate Mic Flush Mount Base
Frequency response	20Hz ~ 20KHz
Phantom power	DC 24-48V
Power consumption	4 mA typical

Rooms It Serves

Boardrooms

A compact Delegate Base accepts a pluggable 6-pin Gooseneck Microphone.

Council chambers

Inconspicuous Flush Mount install with Touch Control.

Conference rooms

A Remote-controllable Switch supports Structured Discussion.

Where a Conference Microphone Fits in Your Organisation

How organisations deploy a Conference Microphone, and what changes for the teams that use it

Enterprise

Delegate Positions for a Bank's Boardroom

Each seat at a bank's Boardroom table carries a PeopleLink Delegate Mic Flush Mount Base, set into the desktop so only the gooseneck stands above the surface. The base is small, and its built-in socket accepts any microphone in the PeopleLink series, so a stem can be swapped without lifting the table. Touch on and off control with a bi-color LED tells the room who holds the floor. Rubber isolators absorb the knocks that come with papers and laptops.

Government

Chamber Floor Control for a City Council

A city council runs structured debate from bases installed flush along the Chamber floor. Every position is remote-controllable, so the Chair opens and closes microphones from the control desk instead of relying on each delegate. A 360 Ω output feeds the PeopleLink conference system, and where a room still runs analog the same base drives a 3-pin XLR or a 3.5 Phoenix connector. Phantom power arrives on DC 24-48V at around 4 mA.

Education

Senate Room Audio for a University

A university keeps the base in its Senate Room, where committee meetings run long and the table doubles as a working surface between sessions. A frequency response of 20Hz to 20KHz carries the range of the voices around it, and the built-in RF filter keeps handsets in the room out of the signal. Because the microphone is removable, the AV team can store the goosenecks, leave a clear table and set the room again in minutes.

Not sure which model fits your Boardrooms or Council chambers?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink Delegate Mic Flush Mount Base	Typical Alternative
Mic mount	Pluggable 6-pin gooseneck	A single fixed mic
Install	Inconspicuous flush base	Surface device
Control	Touch switch, remote control	Basic on/off
Indication	Bi-color LED status	No indicator

Why PeopleLink

Hardware and Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Audio Devices pair with PeopleLink Cameras, Control and Room Solutions out of the box.

Deployed Globally

Trusted across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

The base has a built-in microphone socket for a 6-pin gooseneck and is compatible with all PeopleLink series microphones, so a stem can be changed without changing the base. It drives a PeopleLink conference system from a 360 Ω output, and it also runs in a standard analog setup through the 3-pin XLR or the 3.5 Phoenix connector. Tell a PeopleLink specialist which system your room runs and they will confirm the fit.
