PeopleLink iCam FHD 1080p 10X (H.264)Professional PTZ Camera

Full HD 1080p PTZ camera with 10X optical zoom for meeting rooms and classrooms. View the verified specifications and download the full datasheet.

Camera datasheet
Download the full datasheet
Complete specifications for the PeopleLink iCam FHD 1080p 10X (H.264) in PDF.
Overview

What is the PeopleLink iCam FHD 1080p 10X (H.264)?

The PeopleLink iCam FHD 1080p 10X (H.264) is a professional PTZ camera built for meeting rooms and classrooms. It captures Full HD 1080p video and offers 10X optical zoom, so a single camera can frame the whole room and reach detail at distance. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

1080P Full HD

Utilizing an HD CMOS sensor with 2.07 million pixels, achieving a maximum resolution of 1920x1080.

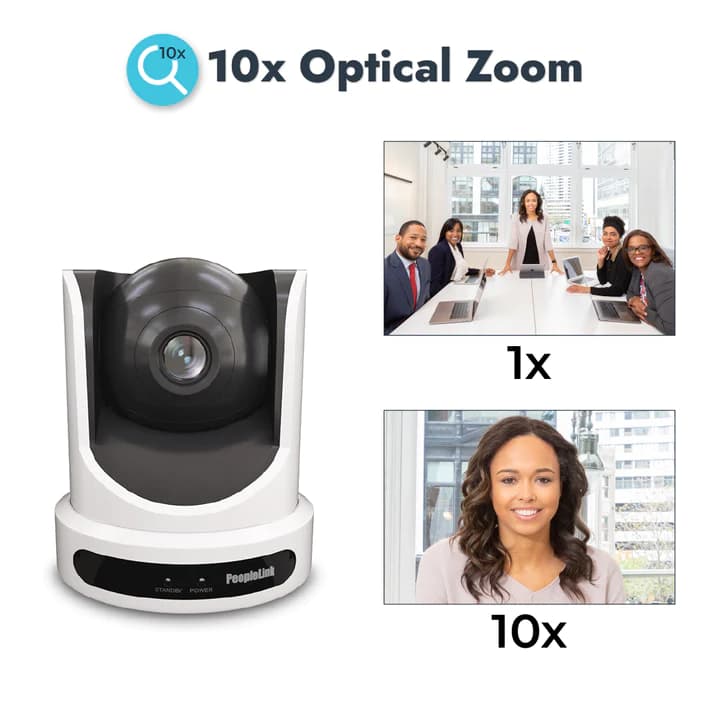

10X Optical Zoom

The lens supports 10X optical zoom with a focal length of f=4.7mm to 46.3mm, delivering clear close-up shots of the meeting venue.

PTZ

The built-in self-developed PTZ achieves a ±170 ° horizontal rotation and rotation speed range from 2.7° to 47° /s. The vertical rotation range is from -30 ° to 90° , with a rotation speed range from 3.4° to 30° /s.

PeopleLink iCam FHD 1080p 10X (H.264)
Specifications

PeopleLink iCam FHD 1080p 10X (H.264) specifications

Verified from the official datasheet. Download the full PDF for complete details.

Camera Spec
Signal System1080P, 720P, 540P, 480P, 360P, 240P
Sensor1/2.8 inches, CMOS, Effective Pixels: 2.07 Megapixe
Scanning ModeProgressive
Focal Lengthf4.7mm~46.3mm, F1.8~F2.8
Lens10x Optical Zoom
Minimum Illumination0.5Lux @ (F1.8, AGC ON)
Shutter1/30s ~ 1/10000s
White BalanceAuto, Indoor, Outdoor, One Push, Manual, VAR
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
SNR≥ 55dB
Horizontal FOV58.5° ~ 6.5°
Vertical FOV35.1° ~ 3.6°
Pan Angle±170°
Tilt Angle-30° ~ +90°
Pan Speed2.7° ~ 47° /s
Tilt Speed3.4° ~ 30° /s
Image FlipSupport
Image FreezeSupport
Preset Position255
Preset Accuracy0.1°
USB Spec
Operating System SupportedWindows 7 (only supports UVC1.1 features), Windows 8 and above version, MacOS 10.5 and above version, Linux 2.4.6 and above version, Android needs to include the version of UVC- related drivers
Color System / CompressionYUY2 / H.264 / MJPEG
Video FormatH.264 AVC: Max. 1080P30；MJPEG: Max. 1080P30
USB Video Communication ProtocolUVC 1.1~1.5
UVC PTZ ControlSupport
Generic Spec
Input VoltageDC 12V
Input Current1A (Max)
Operating Temperature-10° C ~ 40° C
Storage Temperature-40° C ~ 60° C
Power Consumption12W (Max.)
No Failure Time>30000 hours
Dimension141.3mm (W) × 153mm (D) × 163.6mm (H)
Net Weight1.153kg
ContentsCamera, Power Adapter, IR remote, USB Cable, User Manual
