What zoom and resolution does the PeopleLink iCam FHD 1080p 10X (H.264) support?

It captures Full HD 1080P at 30fps and offers 10X Optical Zoom with 16x Digital Zoom. From the back of a Classroom that reach brings a demonstration bench close enough to follow, while the wide end covers the front of the room. Pan runs to ±170 degrees and tilt from -30 to +90 degrees, so one camera covers both the trainer and the seated group.

What image sensor does the PeopleLink iCam FHD 1080p 10X (H.264) use?

It uses a 1/2.8 inch CMOS sensor with 2.07 Megapixels of effective pixels, and a horizontal field of view from 58.5° to 6.5°. Minimum illumination of 0.5 Lux with 2D and 3D Digital Noise Reduction keeps the picture usable when blinds are drawn for a projected drawing. A signal to noise ratio of 55dB or better and Backlight Compensation handle rooms lit only by ceiling panels.

How does the PTZ Camera connect and is it compatible with video platforms?

It connects over a single USB 2.0 Type B cable and presents as a UVC 1.1 to 1.5 device, so common video conferencing platforms pick it up as the room camera with no driver work. RS232 gives an AV team control from a room panel using VISCA, Pelco-D or Pelco-P, and an IR Remote Controller is supplied. PeopleLink also supplies the matching Audio, Control and Room Solutions for the same room.

Who installs and supports the camera?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. The box holds the camera, a power adapter, an IR remote, a USB cable and a user manual, and Image Flip supports a ceiling bracket where a shelf position is not available.

How does the PTZ Camera fit a Multi-room or Campus Rollout?

Each room takes the same camera on one USB run to the room PC, with no rack, no encoder and no change to the existing platform, so the specification repeats from room to room. Preset Positions can be set the same way in every room, which keeps the experience consistent for whoever walks in. Send your room list and the platform you run to a PeopleLink specialist for a rollout plan.

PTZ Cameras · 1080p PTZ Camera

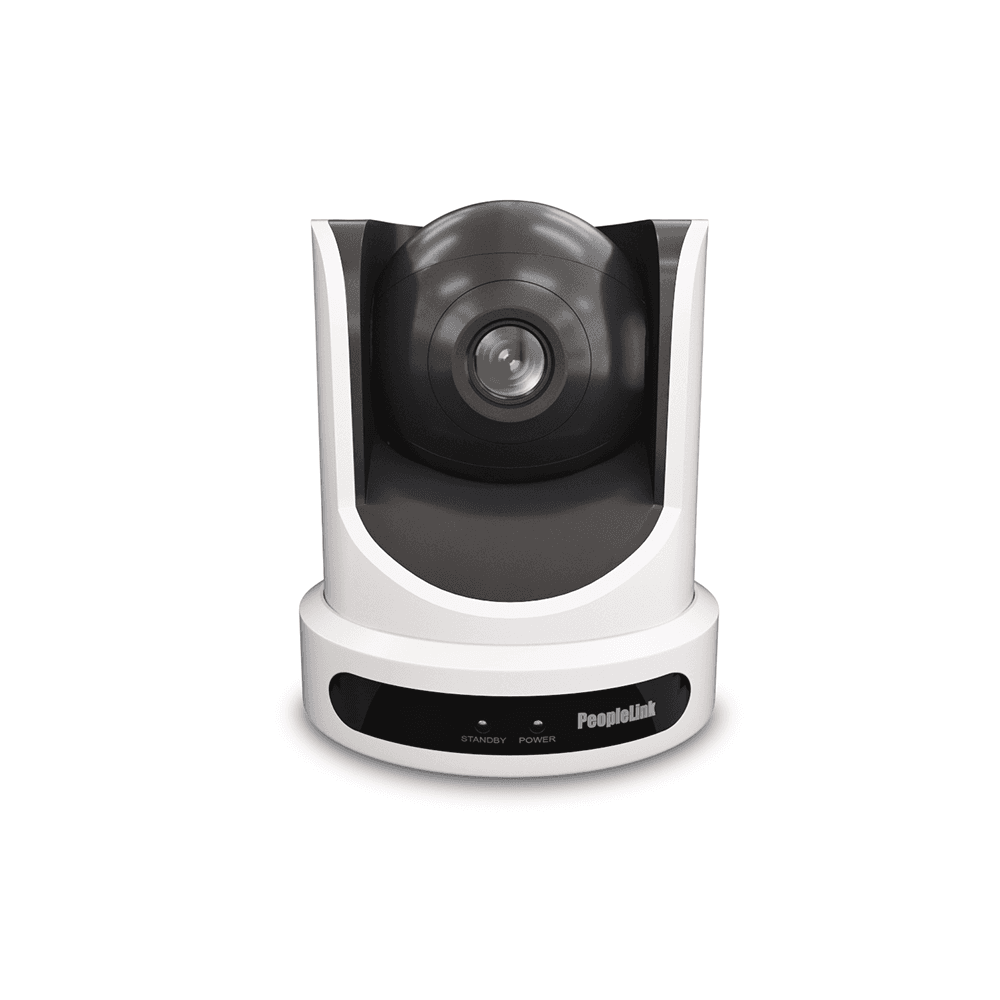

PeopleLink iCam FHD 1080p 10X (H.264)1080p PTZ Conference Room Camera with 10x Optical Zoom and H.264

The PeopleLink iCam FHD 1080p 10X (H.264) is a PTZ Camera for Huddle Rooms, Meeting Rooms and Classrooms.

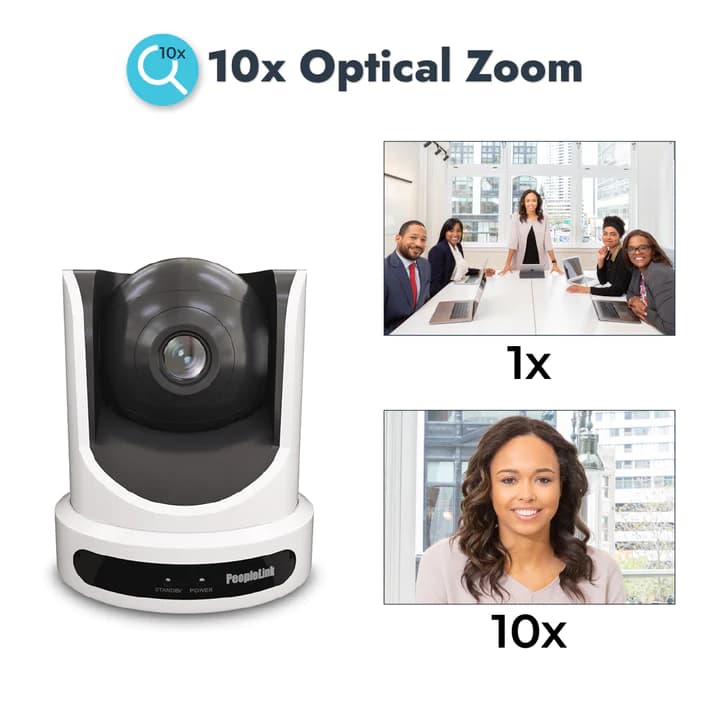

10x Optical zoom
58.5° ~ 6.5° Field of view
2.07 MP 1/2.8" CMOS sensor

Request a Quote WhatsApp

1 / 4

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a 10x 1080p PTZ Camera does in a Meeting Room or Classroom

The PeopleLink iCam FHD 1080p 10X (H.264) is a PTZ Camera for Huddle Rooms, Meeting Rooms and Classrooms. A 1/2.8 inch 2.07 Megapixel CMOS sensor delivers FHD 1080P at 30fps, with 10X Optical Zoom, 16x Digital Zoom and a field of view from 58.5 to 6.5 degrees. H.264 Slice and SVC encoding keeps the load light on the room PC, and Digital Noise Reduction holds the image at 0.5 Lux. A single USB 2.0 connection carries it as a UVC 1.1 to 1.5 device on Windows, MacOS and Linux, with RS232 control. 255 Preset Positions, accurate to 0.1 degrees, bring the same shots back every session.

FHD 1080p @30FPS
10x Optical Zoom
16x Digital Zoom
68° Degree FOV
YUV 4:2:2 / H.264 / MJPEG
USB 2.0, RS232

Features

1080p PTZ Camera features for Meeting Rooms

10x Optical Zoom, H.264 streaming and connectivity, explained.

Features

See The World in High Definition With 1080P Full HD

View the world in crisp detail through iCam's unparalleled sensor that captures 2.07 million pixels and delivers photos and videos up to a maximum resolution of 1920 x 1080. Immerse in remarkable visuals with sharpness and accuracy.

Features

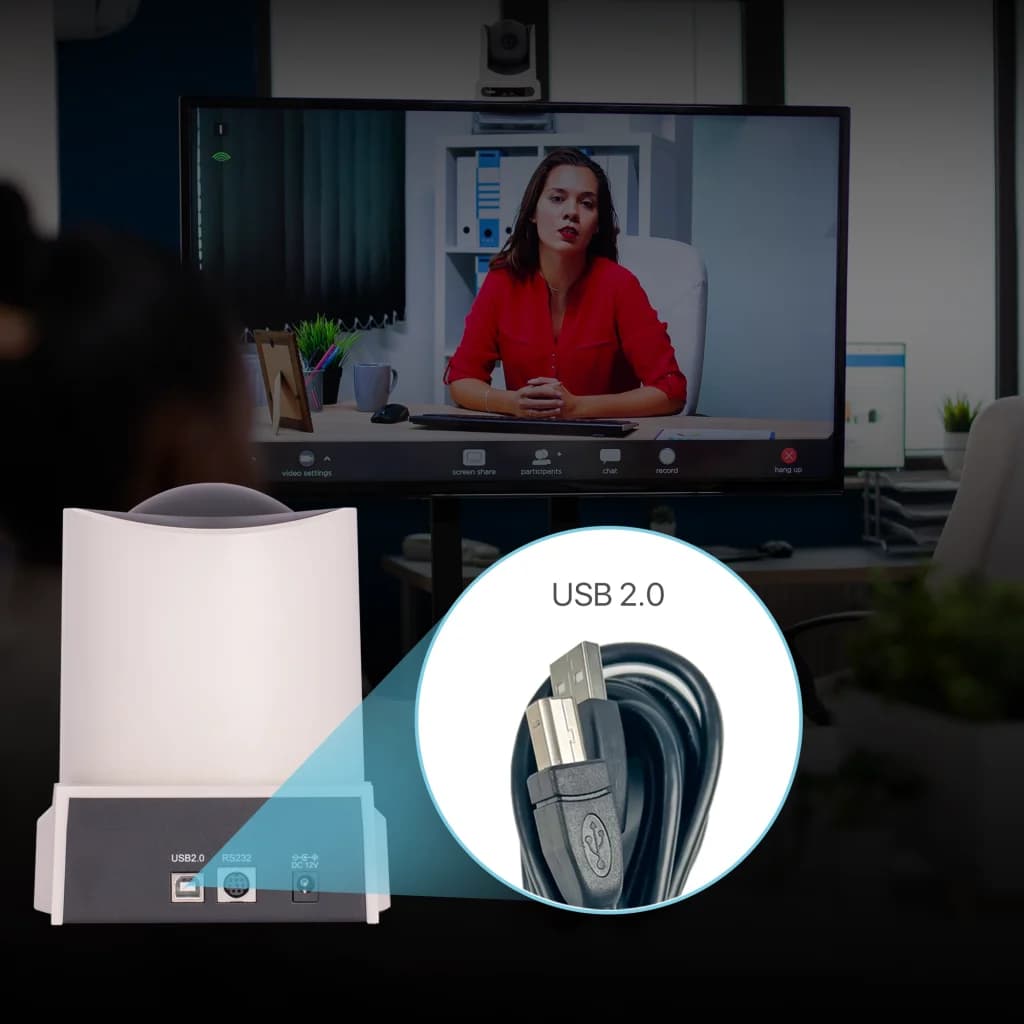

Full Function USB Interface, Connect, Control and Conquer

Effortlessly link and manage iCam using its USB connection, thereby effectively displaying the high definition images that do not compromise on fidelity. Enjoy convenience and efficiency in every conversation.

Features

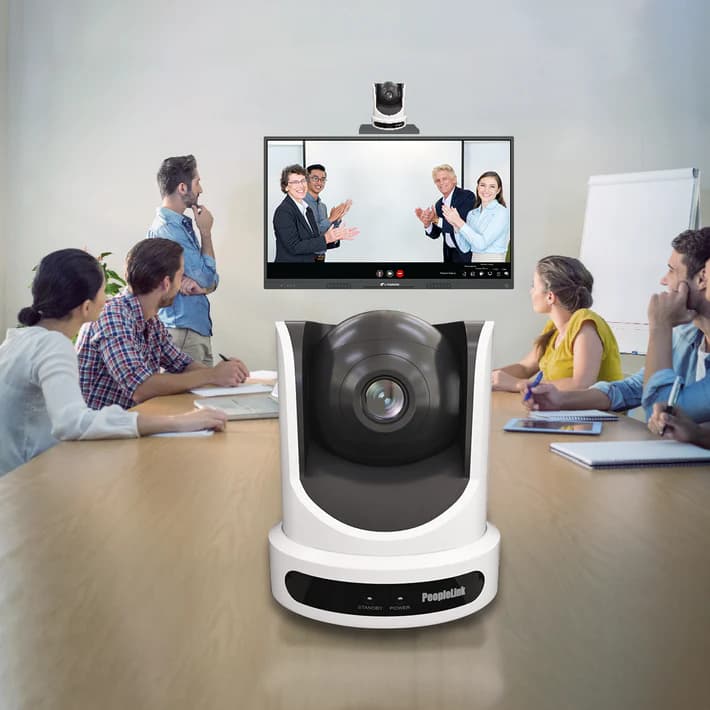

Ultra-High Frame Rate: Bringing Life to Motion

Enjoy real-life movements using iCam's fantastic ability to show up to 30 clear pictures per second, consequently bringing forth a tremendous FHD resolution of 1080P. Cherish and relive moments with unsurpassed fluidity.

Features

Break free from the darkness with Low-Light Imaging

Escape into the light with iCam and its CMOS sensor with low-light solid imaging. New and modern technologies lessen evident 2D & 3D fuzz, providing clear and bright pictures under bad light conditions.

Features

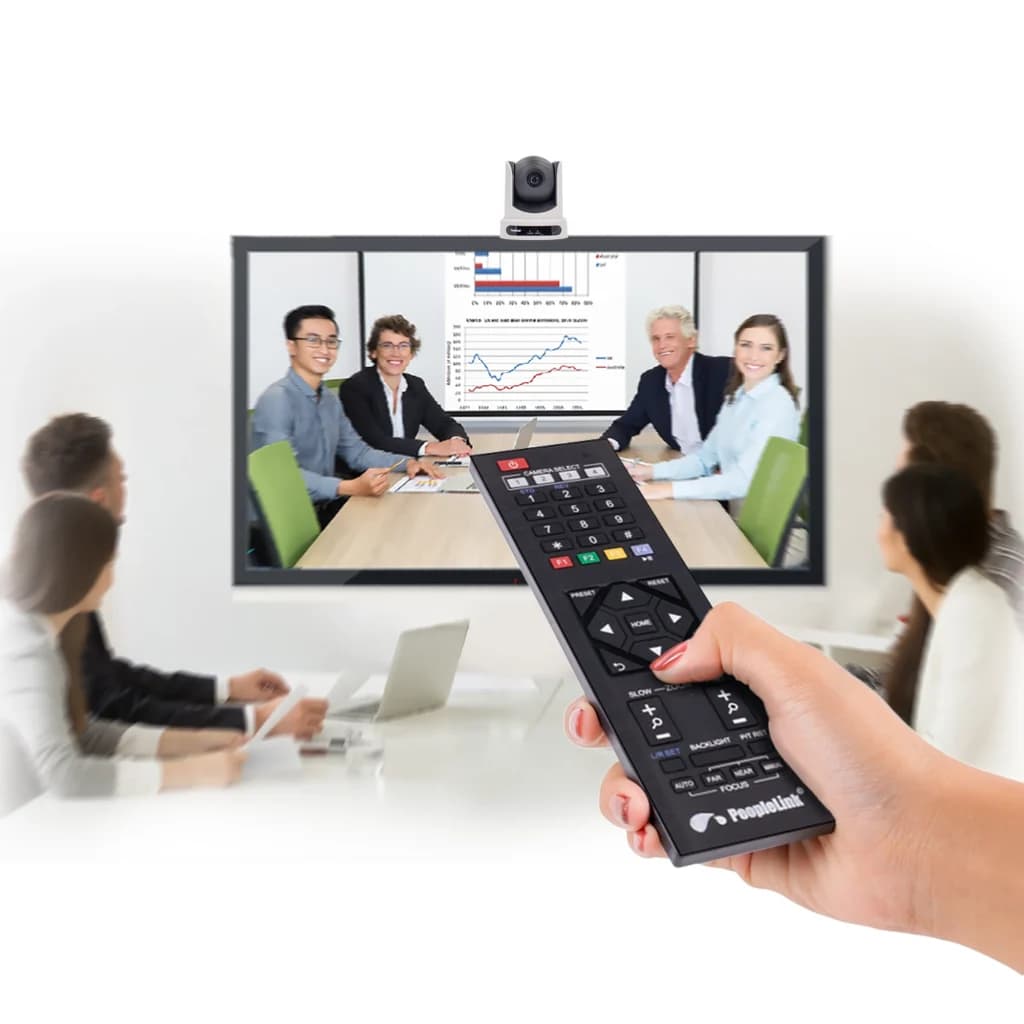

Control the Camera With Ease

Command easily through RS 232, allowing for remote camera setting control via fast communication. With ease, navigate environments with comfort in any case.

Features

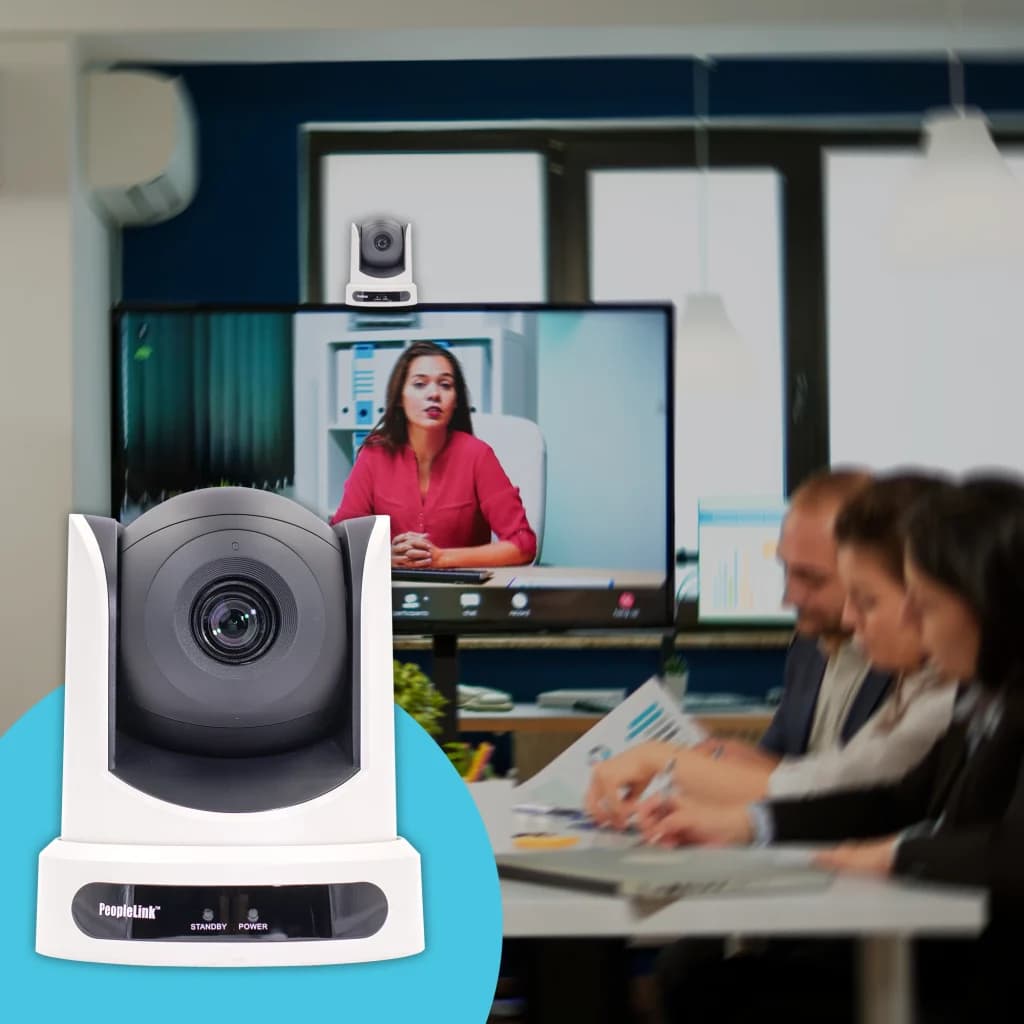

H.264 Slice/ H.264 SVC Support

The iCam implements H.264 Slice and H.264 SVC encoding modes, which adapt to the latest USB applications in video conferencing. Enjoy effective and flexible video encoding for a higher level of collaboration.

How it Works

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink iCam FHD 1080p 10X (H.264)
Optical zoom	10x
Field of view	58.5° ~ 6.5°
1/2.8" CMOS sensor	2.07 MP
Preset positions	255

Rooms It Serves

Meeting rooms

Connect over USB 2.0 for large-room meetings with clear Full HD video.

Classrooms

10X Optical Zoom reaches detail across the Teaching Space.

Conference rooms

Full HD 1080P capture with Pan, Tilt and Zoom for Hybrid Sessions.

Where a PTZ Camera Fits in Your Organisation

How organisations deploy a PTZ Camera, and what changes for the teams that use it

Education

Classroom Sessions for a Technical Institute

A technical institute in Africa links its Classrooms to a central recording PC for scheduled sessions. A PeopleLink iCam FHD 1080p 10X (H.264) connects to that PC over USB 2.0 and works to the UVC 1.1 to 1.5 standard on Windows, MacOS and Linux, so one camera model suits whatever each department already runs. 10X Optical Zoom brings the demonstration bench close from the back of the room, and 255 Preset Positions store the bench, board and wide shots for the IR Remote Controller.

Enterprise

Meeting Room Refresh for an Insurance Company

An insurance company replaced the cameras in its Meeting Rooms without changing anything else in the room. The iCam FHD 1080p 10X (H.264) runs on a single USB 2.0 connection to the room PC, and H.264 Slice and SVC encoding keeps the load light on that PC through long calls. Full HD 1080p at 30fps holds a steady picture, while 2D and 3D Digital Noise Reduction clears the image in rooms lit only by ceiling panels. RS232 gives the AV team control from the room panel.

Manufacturing

Training Room Briefings for a Manufacturing Group

A manufacturing group briefs supervisors in a Training Room beside the shop floor. An iCam FHD 1080p 10X (H.264) above the screen pans 170 degrees to either side and tilts from -30 to +90 degrees, so one camera covers the trainer at the front and the seated group. Minimum illumination of 0.5 Lux keeps the picture usable when the blinds are drawn for a projected drawing, and the IR Remote Controller recalls a preset without anyone leaving their seat.

Not sure which model fits your Meeting rooms or Classrooms?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink iCam FHD 1080p 10X (H.264)	Typical Alternative
Optical zoom	10x optical	Digital crop only
Room coverage	Pan, tilt and zoom	Fixed frame
Resolution	Full HD 1080p	720p typical
Compression	H.264 / MJPEG	MJPEG only typical
Presets	255 preset positions	None typical

Why PeopleLink

Hardware and Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PTZ Cameras pair with PeopleLink Audio, Control and Room Solutions out of the box.

Deployed Globally

Used across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

It presents as a standard UVC 1.1 to 1.5 device over USB 2.0 and is supported on Windows, MacOS, Linux and Android builds that include UVC drivers, so common Video Conferencing platforms pick it up as the room camera. UVC PTZ Control means pan, tilt and zoom can be driven from the platform as well as from the IR Remote Controller. Tell a PeopleLink specialist which platform and room PC you use and they will confirm the setup.

Explore Related Resources

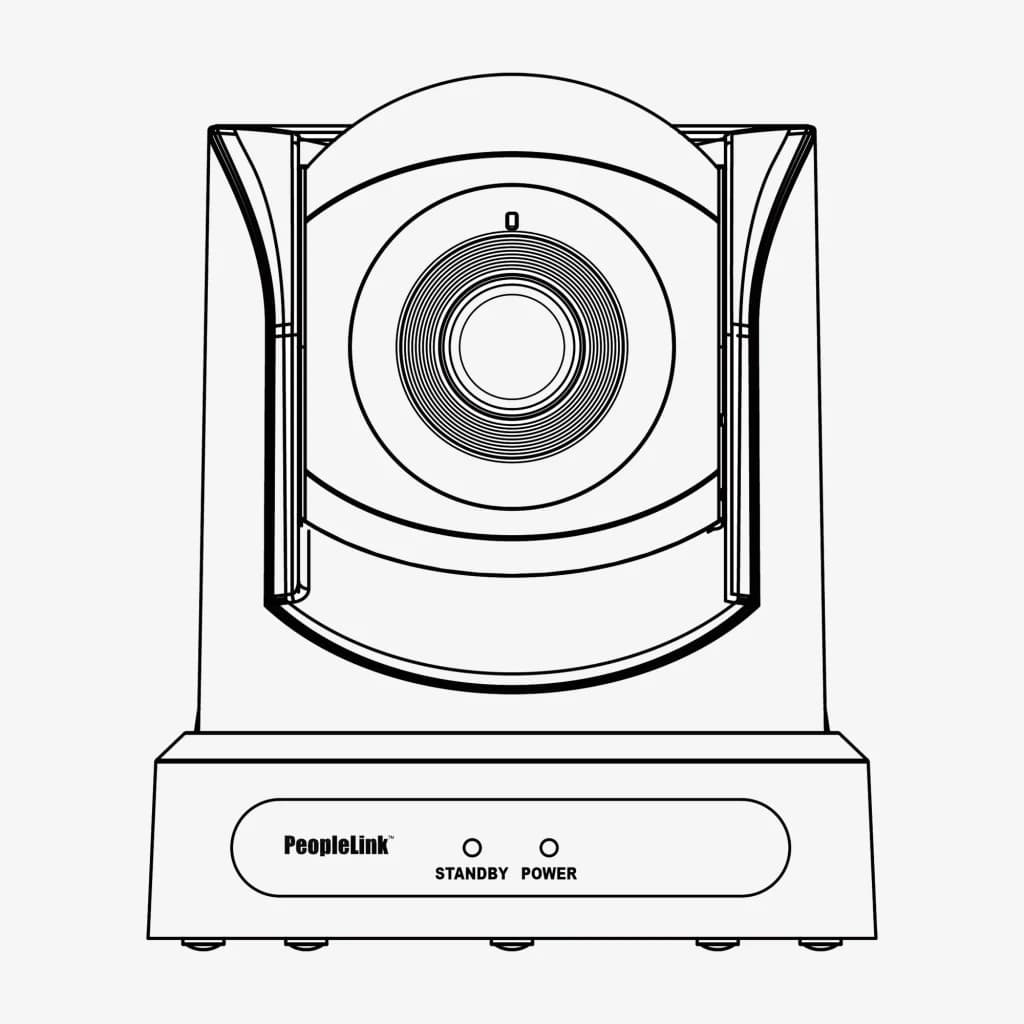

Specifications

Image Sensor	: 1/2.7'', CMOS Sensor , Effective Pixel: 2.07M
Image Resolution	: FHD 1080P @30fps
Optical Zoom	: 10X Optical Zoom
Digital Zoom	: 16x Digital Zoom
Field of View	: 68° Degree FOV
Focal Length	: Lens: f4.7mm ~ 46.3mm, F1.8 ~ F2.8
Shutter Speed	: 1/30s ~ 1/10000s
Minimal Illumination	: 0.5 Lux @ (F1.8, AGC ON)
Digital Noise Reduction	: 2D&3D Digital Noise Reduction
Video Compression	: YUV 4:2:2 / H.264 / MJPEG Compression
PAN	: Horizontal Rotation ±170°
Tilt	: Vertical Rotation -30° ~ 90°
Presets	: Number of Preset 255
Video Outputs	: USB2.0: Type B female jack
Remote	: IR Remote Controller
Application	: Huddle Rooms, Meeting Rooms, Classrooms, Place of worship

FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

Product	iCam FHD 10x H.264	iCam whd 12X USB	Elite XL Series 12X
Image Sensor	1/2.7", CMOS, Effective Pixel: 2.07M	1/2.7", CMOS, Effective Pixel: 2.07M	1/2.8", CMOS, Effective Pixel: 2.07 Megapixels
Image Resolution	FHD 1080P@30fps	FHD 1080p/60fps	FHD 1080p/60fps
Optical Zoom	10X Optical Zoom	12x Optical Zoom	12x Optical Zoom
Digital Zoom	16x Digital Zoom	16x Digital Zoom	16x Digital Zoom
Field of View	58.5° Field of View	72.5° Field of View	72.5° Field of View
Focal Length	Lens: f4.7mm-46.3mm, F1.8-F2.8	Lens: f3.5mm~42.3mm, F1.8-F2.8	Focus Length: f4.42mm 88.5mm, F1.8-F2.8
Shutter Speed	1/30s-1/10000s	1/30s-1/10000s	1/30s-1/10000s
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)	0.5 Lux @ (F1.8, AGC ON)	0.5 Lux @ (F2.0,, AGC ON)
Digital Noise Reduction	2D&3D Digital Noise Reduction	2D&3D Digital Noise Reduction	2D&3D Digital Noise Reduction
Video Compression	YUV 4:2:2/H.264/MJPEG Compression.	YUV 4:2:2/H.264/MJPEG Compression	YUY2, H.264/MJPEG Compression
PAN	Horizontal Rotation ±170"	Horizontal Rotation +170"	Horizontal Rotation ±170°
Tilt	Vertical Rotation -30°-90°	Vertical Rotation -30°~+30°	Vertical Rotation -30°~ 90°
Presets	Number of Preset 255	Number of Preset 255	Number of Preset 255
Video Outputs	USB2.0: Type B female jack	USB 3.0 Type-B, RS232 in/out, 3.5mm Audio Interface	USB 3.0 Type-A, HDMI, 3G-SDI, RJ45, RS232, Line In/Out
Control Protocol	VISCA/Pelco D/ Pelco P	VISCA/Pelco D/ Pelco P	VISCA/Pelco D/ Pelco P
Remote	IR Remote Controller	IR Remote Controller	IR Remote Controller
Application	Huddle Rooms, Meeting Rooms, Classrooms, Place of worship	Huddle Rooms, Meeting Rooms, Classrooms, Place of worship	Meeting Rooms, Conference Rooms, Classrooms, Auditoriums, Place of worship
Certifications & Approvals	CE, ROHS and FCC	CE, ROHS and FCC	CE, ROHS and FCC

Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.

In the Room

PTZ Cameras in Boardrooms and Meeting Rooms

PeopleLink PTZ camera installations photographed on site.

Close view of a PeopleLink PTZ camera mounted above a display — PTZ Camera Close ViewMounted above the Display

Boardroom with interactive display, PTZ camera and speakerphone, plants on the credenza — Boardroom Stack with PTZ CameraDisplay, Camera and Speakerphone

Meeting table with speakerphone, PTZ camera and interactive display — Meeting RoomDisplay with PTZ Camera and Speakerphone

Accessories

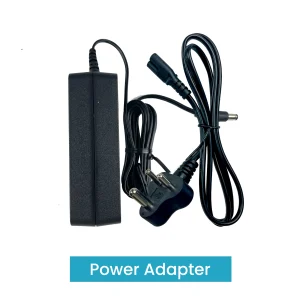

Power Adapter

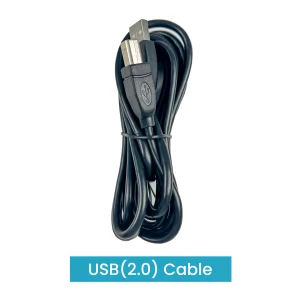

USB Cable

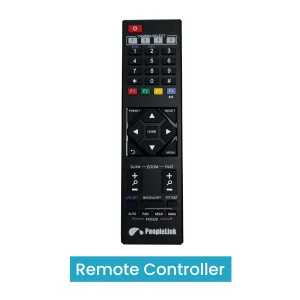

Remote Controller

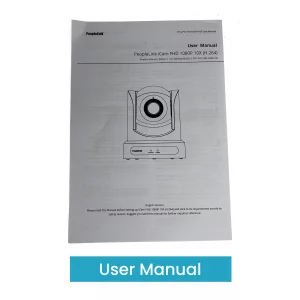

User Manual

Videos

See the iCam FHD 1080p 10x in action

Documents

Datasheet

Download

Manual

Download
