PeopleLink
Datasheet

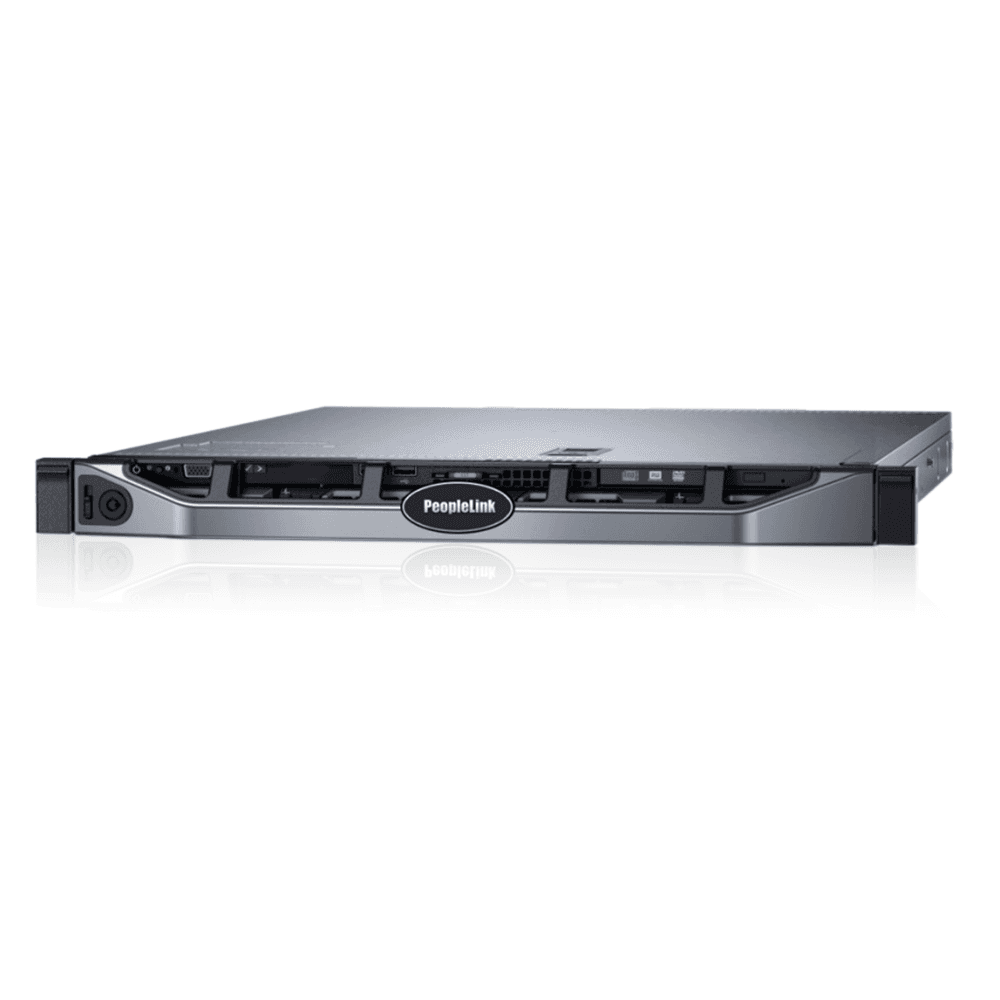

PeopleLink InstaVC Pro MCUVideo Conferencing MCU

A multipoint control unit that bridges WebRTC, H.323 and SIP endpoints into one Full HD conference. View the verified specifications and download the full datasheet.

Product datasheet
Download the full datasheet
Complete specifications for the PeopleLink InstaVC Pro MCU in PDF.
Overview

What is the PeopleLink InstaVC Pro MCU?

The PeopleLink InstaVC Pro MCU is a multipoint control unit (MCU) that connects WebRTC, H.323 and SIP endpoints into a single Full HD video conference. It supports browser dial-in, advanced continuous presence layouts, an embedded gatekeeper and conference management, so meeting rooms, desktops and mobile terminals can join the same call. Because PeopleLink is one OEM, the MCU pairs cleanly with PeopleLink endpoints, cameras, audio and room solutions. The specifications below are drawn from the official datasheet, and the full PDF is available on request.

WebRTC, H.323 and SIP

Browser dial-in plus standards-based H.323 and SIP connectivity in one conference.

Advanced Continuous Presence

Automatic best-layout selection with over 10 custom layouts and active speaker selection.

Embedded Gatekeeper

Built-in registration mechanism supporting up to 200 registered points.

Scalable Capacity

10 to 50 ports per MCU, with higher port counts and clustering for larger deployments.

PeopleLink InstaVC Pro MCU
Specifications

PeopleLink InstaVC Pro MCU specifications

Verified from the official datasheet. Download the full PDF for complete details.

Protocols
CommunicationsH.323, SIP, WebRTC, H.239/BFCP, H.235/TLS/SRTP
Video CodingH.264, H.264HP, H.263, H.261, VP8
Audio EncodingG.711, G.722.1C, G.728, OPUS
Dual VideoH.239, Dual Video, BFCP (H.264); maximum dual 1080P60 video
Video
Video Resolutions4CIF, VGA, 720P, 1080P
Frame Rate1080P 30FPS
Multi Split ScreenMaximum 25 split screen; supports 1, 2, 3, 4+1, 5+1, 7+1, 9, 12+1, 16, 20, 25
Capacity
Meeting Capability10 / 16 / 20 / 24 / 30 / 50 points 1080P HD conference
Audio Terminal AccessMaximum 50 points
Conference Bandwidth64Kbps to 8Mbps
Embedded GatekeeperRegister up to 200 points at the same time
Port Options10, 16, 20, 24, 30, 50, 100, 150, 250 ports
MCU Cluster Service (Optional)300+ 1080P calls across one or multiple conferences
Security and Management
EncryptionAES 128-bit; supports terminal encryption initiation mode
QoSDiffserv, TOS and IP priority QoS functions
IPv6IPv6 ready
Management AccessWeb control; Telnet / USB / RJ45 / SSH
Ethernet Ports2
RedundancyPower redundancy; load balance; failover recovery; auto cascade
Collaboration
Data CollaborationScreen sharing, Whiteboard (WebRTC), Chatting (WebRTC)
Conference ModesLecture Mode, Broadcasting Mode, In-turn mode
RecordingAutomatic and manual recording at the server end
FECCFar-end camera control; can control H.323 endpoints from SIP and vice versa

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

It is a multipoint control unit that bridges WebRTC, H.323 and SIP endpoints into a single Full HD video conference, with continuous presence layouts, an embedded gatekeeper and conference management.

Each MCU supports 10 to 50 ports for 1080P HD conferences, with higher port options (up to 250) and an optional clustering service that supports 300+ 1080P calls for larger deployments.

It supports H.323, SIP and WebRTC communications, with H.264, H.264HP, H.263, H.261 and VP8 video coding and G.711, G.722.1C, G.728 and OPUS audio encoding.

Yes. WebRTC browser dial-in is supported, alongside H.323 and SIP dial-in or dial-out from the web server.

Use the download button on this page to request the full PDF datasheet. Share a few contact details and the datasheet opens immediately, and a PeopleLink specialist can follow up with pricing and configuration.
