PeopleLink
Datasheet

PeopleLink Interactive PodiumInteractive Podium

Interactive Podium for classrooms and conference halls. View the verified specifications and download the full datasheet.

Product datasheet
Download the full datasheet
Complete specifications for the PeopleLink Interactive Podium in PDF.
Overview

What is the PeopleLink Interactive Podium?

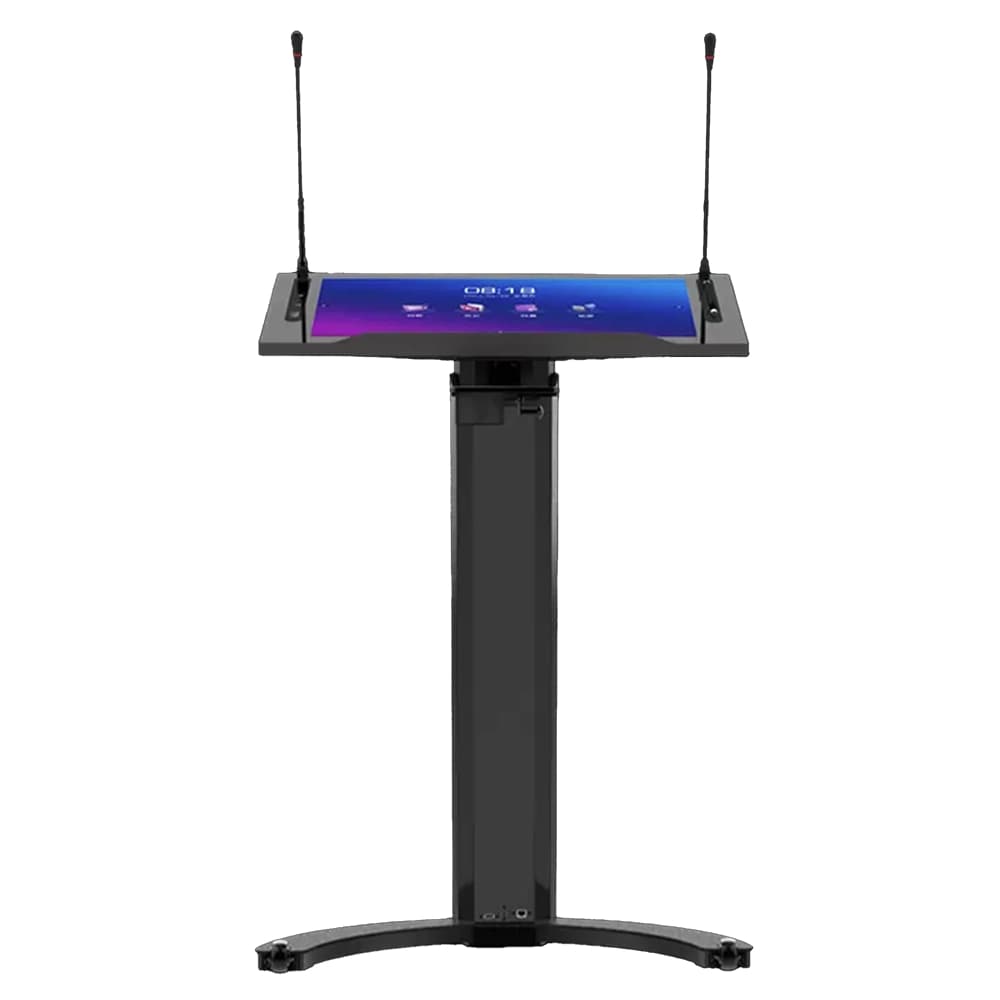

The PeopleLink Interactive Podium is an interactive podium from PeopleLink built for classrooms and conference halls. Built for presentations, lecturing and interactive teaching. Because PeopleLink is one OEM, it pairs cleanly with PeopleLink displays, audio and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.

Android 12.0 System

High performance 8-core processing chip, equipped with the latest generation of Android 12.0 system, various softwares respond quickly and run perfectly, helping to achieve smooth work experience

Operating Speed

8GB RAM+64GB ROM provide faster operating speed larger storage

4K UHD Display

27" large screen display with high-definition 4K image quality for clearer viewing

PeopleLink Interactive Podium
Specifications

PeopleLink Interactive Podium specifications

Verified from the official datasheet. Download the full PDF for complete details.

Display
LCD Size27"
Backlight Type (Backlight Type)E-LED
Resolution3840x2160(pixels)
Brightness350 - 400 cd/m² (Typ)
Contrast Ratio1000:1
Response Time14ms
Pixel Pitch (mm)0.1554mm(H)×0.1554mm(V)
Viewing Angle178°(H) / 178°(V)
Life Time30,000 hrs (min.)
Color Gamut (X% NTSC)72% (typ.)
View Area (mm)596.736mm×335.664mm
Display Colors1.07B colors (8-bits+FRC)
Electrical
System version (OS)Android 12
Internal cache capacity (RAM)8GB DDR4
Internal storage capacity (ROM)64GB (Standard 64GB)
Voltage(Power Requirements)DC 20V/5A
Maximum power (Power Consumption )≤100W
Standby power (Standby Consumption)≤0.5W
Wifi (Standard)
Main ChipsetRTL8852
Bluetooth2.1+EDR / 4.2 / 5.2
Wi-Fi StandardIEEE 802.11a/b/g/n/ac
Frequency (Operating Frequency)2.4GHz/5GHz
Interface
HDMI IN x1Version: HDMI2.1 Up to 3840×2160@60Hz
Type-C OUT x 1Max Resolution: 3840x2160@60Hz Version DP1.2 Support images, music, video file playback. Upgrade are not supported
USB-A x 2Interface: USB3.0 Type-A
HDMI OUT x 1All signal can be looped-out Max Resolution : 3840x2160 @ 60Hz Version HDMI2.1 (TMDS)
RJ45 x 110M/100M/1000M Base-T self-adaptive ×1
Ethernet InterfaceRJ45
TYPE-C IN x 1(Adapter) DC 20V/5A
Product Size (W×D×H)775.6mm x 526mm x 1118mm
Package Size (W×D×H)887mm × 495mm × 1195mm
Base Elevation AdjustmentNo Support
Base Lifting / Rotation AdjustmentSupport
Environment
Storage humidity10% ~ 90% non-condensing
Working humidity20% ~ 85% non-condensing
Storage temperature-10 ~ +60
Working temperature0 ~ +40
Operating altitude≤5000m
Usage time18 hours x 7 days
Accesories
Stylus1
Adapter1
Gooseneck microphone2
5m HDMI Cable1
1.8m Type-C Cable1
Screen sharing dongle1 (Optional)
Qualified Certificate Label1
Instructions1
Warranty Card1
