PeopleLink OPS i5 SystemAccessory

An Open Pluggable Specification slot-in PC that turns any OPS-compatible display into an all-in-one Windows PC. View the verified specifications and download the full datasheet.

Product datasheet
Download the full datasheet
Complete specifications for the PeopleLink OPS i5 System in PDF.
Overview

What is the PeopleLink OPS i5 System?

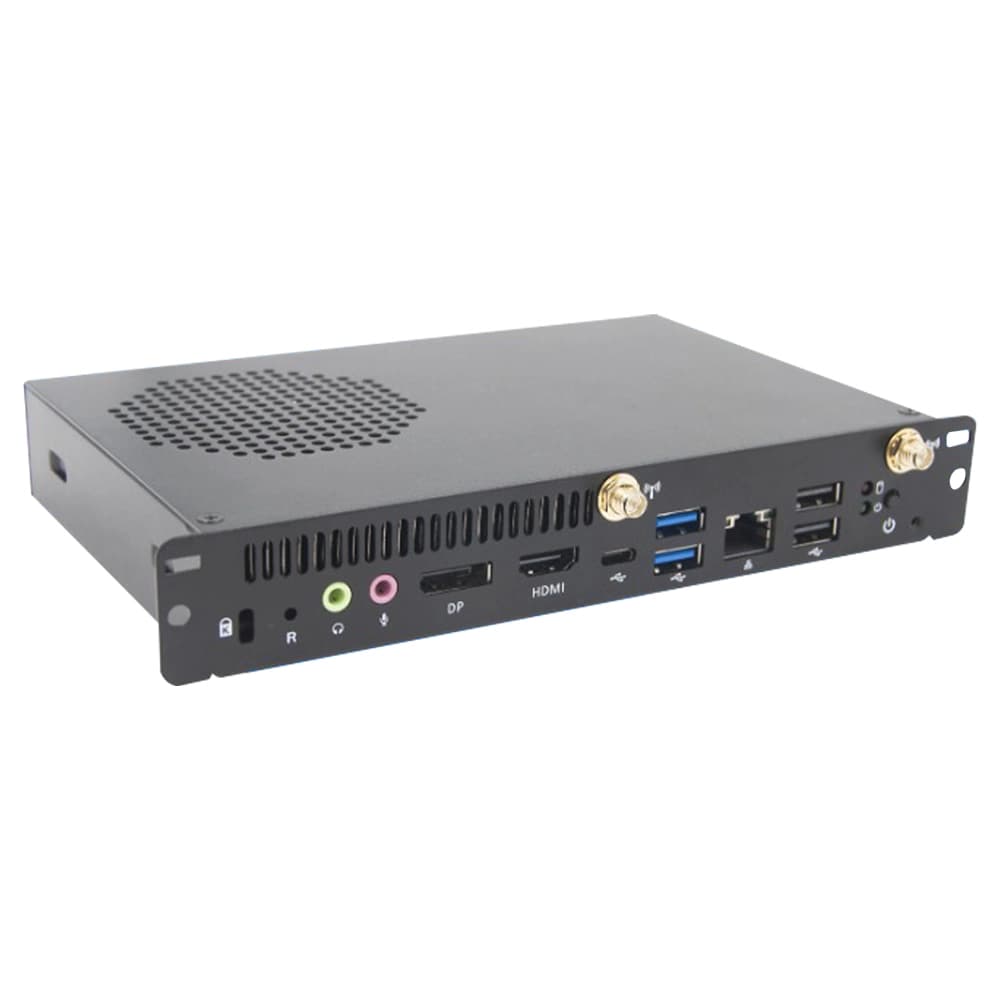

The PeopleLink OPS i5 System is an Open Pluggable Specification (OPS) module that plugs into a single slot in the back of any OPS-compatible display, both touch and non-touch, turning the big screen into an all-in-one Windows PC with no external cables. It is powered by an Intel 12th Gen Core i5 with integrated Intel Iris Xe Graphics, DDR4 memory and M.2 NVMe storage. Because PeopleLink is one OEM, it pairs cleanly with PeopleLink interactive displays and room solutions. The specifications below are drawn from the official datasheet, and the full PDF is available on request.

Single-Slot Install

Plugs into the OPS slot of compatible touch and non-touch displays with no external cables.

Intel 12th Gen Core i5

Core i5 12600HE with integrated Intel Iris Xe Graphics.

Flexible Display

DP 1.4, HDMI 1.4 and an 80-pin JAE connector carrying HDMI 2.0 and DP 1.4.

Wireless and Wired Network

Gigabit Ethernet plus M.2 Wi-Fi 802.11ac with Bluetooth.

PeopleLink OPS i5 System
Specifications

PeopleLink OPS i5 System specifications

Verified from the official datasheet. Download the full PDF for complete details.

Core
ProcessorIntel 12th Gen Core i5 12600HE
ChipsetIntel SOC design
GraphicsIntel Iris Xe Graphics
Memory8GB or 16GB DDR4 (upgradeable to 32GB)
Storage256GB or 512GB M.2 NVMe SSD
Operating SystemWindows 11, Windows 10
Connectivity
Display1x DP 1.4, 1x HDMI 1.4, 1x 80-pin JAE connector (1x HDMI 2.0, 1x DP 1.4)
Ethernet10/100/1000 Mbps Gigabit Ethernet
Wireless1x M.2 2230 slot for Wi-Fi and Bluetooth module; Wi-Fi 802.11ac
Front I/O1x DP 1.4, 1x HDMI 1.4, 2x USB 2.0, 2x USB 3.0, 1x Type-C (USB 3.1), 1x RJ45, Line-out and Mic-in combo, 2x Wi-Fi/BT antenna
OPS I/O1x 2.5/5.5 DC IN jack, 1x HDMI 2.0, 1x DP 1.4, 2x USB 2.0, 1x USB 3.0, 1x TTL
Power and Environment
Power Input12 to 19V DC IN, 2.5/5.5 DC jack JAE; 80-pin DC IN
Dimensions119 (L) x 180 (W) x 30 (H) mm
Operating Temperature-5 to 40 C
Operating Humidity10% to 90% non-condensing

Need help choosing the right product for your room or budget? We will recommend the right model.

Talk to Sales
FAQs

Questions, answered.

It is an Open Pluggable Specification module that plugs into the OPS slot of a compatible display, turning the screen into an all-in-one Windows PC with no external cables.

It plugs into any OPS-compatible display, both touch and non-touch, through a single internal slot.

It uses an Intel 12th Gen Core i5 12600HE with Intel Iris Xe Graphics, 8GB or 16GB DDR4 upgradeable to 32GB, and 256GB or 512GB M.2 NVMe storage.

Available configurations include an 8GB/256GB model and a 16GB/512GB model, both on 12th Gen Intel processors.

Use the download button on this page to request the full PDF datasheet. Share a few contact details and the datasheet opens immediately, and a PeopleLink specialist can follow up with pricing.
