PeopleLink Signage PodiumDigital Podium

Digital Podium line, available in 5 models (Delta, Delta Plus, Ultra, Ultra Plus, Elite). View the verified model specifications and download the full datasheet.

Product datasheet
Download the full datasheets
Complete specifications for each PeopleLink Signage Podium model in PDF.
Overview

What is the PeopleLink Signage Podium?

The PeopleLink Signage Podium is a digital podium line, available in 5 models (Delta, Delta Plus, Ultra, Ultra Plus, Elite), built for classrooms, lobbies and conference halls. Built for presentations, lecturing and interactive teaching. Because PeopleLink is one OEM, it pairs cleanly with PeopleLink displays, audio and room solutions. The model specifications below are drawn from the official datasheets, and the full PDF for each model is available on request.

Digital Signage

32" Signage Display.

Metallic Body

Durable metallic body construction.

Touch Monitor

21.5” diagonal touch monitor with finger and stylus capacitive touch.

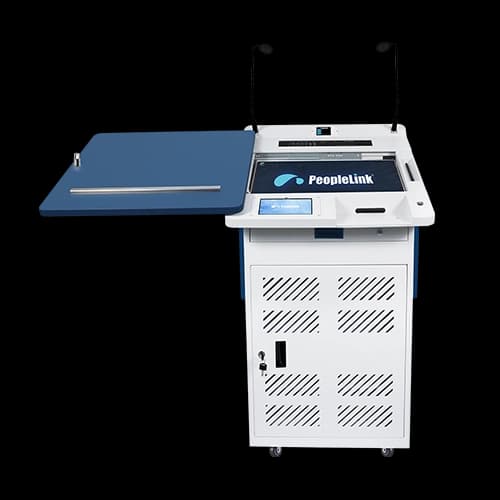

PeopleLink Signage Podium
Specifications

PeopleLink Signage Podium model specifications

Verified from the official datasheets. Download the full PDF for any model below.

SpecificationDeltaDelta PlusUltraUltra PlusElite
BodyMetallicMetallicMetallicMetallicMetallic
Keyboard SliderAvailableAvailableAvailableAvailableAvailable
Document Camera TrayAvailableAvailableAvailableAvailableAvailable
Top SlidingAvailableAvailableAvailableAvailableAvailable
Monitor SizeSurface Plate----
Multimedia ControllerSurface PlateAvailableAvailableAvailableAvailable
HDMI Splitter - BottomSurface PlateBottom AvailableBottom : AvailableAvailableBottom : Available
Digital Signage32" Signage Display32" Signage Display32" Signage Display32" Signage Display32" Signage Display
Electronic Monitor Lift-AvailableAvailableAvailableAvailable
Digital Clock-AvailableAvailableAvailableAvailable
Touch Monitor-AvailableAvailableAvailableAvailable
Cooling Fans-AvailableAvailableAvailableAvailable
Built-in DSP--100W DSP100W DSP100W DSP
Built-in DSP--200W (Optional)200W (Optional)200W (Optional)
InstaController---RSI-552ARS-31074
Screen Size-21.5” Diagonal21.5” Diagonal21.5” Diagonal21.5” Diagonal
Resolution-1080p1080p1920 × 10801920 × 1080
PC Connection-USB PortUSB PortUSB PortUSB Port
Brightness-350 cd/m²350 cd/m²350 cd/m²350 cd/m²
Input-DVI, HDMIHDMIHDMIDVI, HDMI
Touch-Finger and Stylus with capacitive TouchFinger and Stylus with capacitive TouchFinger and Stylus with capacitive TouchFinger and Stylus with capacitive Touch
Stylus Type-Battery PenBattery PenBattery PenBattery Pen
Display Colors-16.7M16.7M16.7M16.7M
Response Time-5 ms5ms5ms5ms
Contrast Ratio-1000:11000/11000/11000/1
Operating System-Windows, Linux, MacWindows, Linux, Mac.Windows, Linux, Mac.Windows, Linux, Mac.
Frequency Range--30Hz - 15,000 Hz30Hz - 15,000 Hz30 Hz - 15,000 Hz
Automatic Echo Cancellation--AvailableAvailableAvailable
Automatic Gain Control--AvailableAvailableAvailable
Dynamic Noise Reduction--AvailableAvailableAvailable
Full Duplex--AvailableAvailableAvailable
Connectivity--1 × Line Input, 1 × Line Output, 1 × USB Port1 × Line Input, 1 × Line Output, 1 × USB Port1 × Line Input, 1 × Line Output, 1 × USB Port
Microphone Options--1 × Lapel + Headworn--
Wireless Microphone---1 × Lapel / Headworn, 1 × Handheld1 × Lapel / Headworn, 1 × Handheld
Frequency Response--50 Hz - 18,000 Hz50 Hz - 18,000 Hz50 Hz - 18,000 Hz
Antennas--2 × 3 dBi2 × 3dBi2 × 3dBi
Output--Balanced Out ×2, Mixed Out ×1Balanced Out × 2, Mixed Out × 1Balanced Out × 2, Mixed Out × 1
Volume Control--AvailableAvailableAvailable
Amplifier--Available-Available
Line Input--1× Balanced, 2× Unbalanced1 × Balanced, 2× Unbalanced1 × Balanced, 2 × Unbalanced
Phantom--Available (15 V for Balanced Input)Available (15 V for Balanced Input)Available (15 V for Balanced Input)
Power Output @ 8 Ohms--50 Watts × 250 Watts ×250 Watts × 2
Minimum Impedance--8 Ohms8 Ohms8 Ohms
Frequency Response (System)--20 Hz - 20,000 Hz20 Hz - 20,000 Hz20 Hz - 20,000 Hz
Speakers (1 Pair)--50 W Speaker (1″ Titanium Dome Tweeter, 5.25″ Polypropylene Woofer, 90 Hz - 20 kHz Frequency Response)50 W Speaker (1″ Titanium Dome Tweeter, 5.25″ Polypropylene Woofer, 90 Hz - 20 kHz Frequency Response)50 W Speaker (1″ Titanium Dome Tweeter, 5.25″ Polypropylene Woofer, 90-20 kHz Frequency Response)
Ethernet---10/100 Mbps, Full / Half Duplex, IPv410/100 Mbps, Full / Half Duplex, IPv4
RS-232 Ports---Total 3 dedicated RS-232C ports (3-pin 3.81 mm detachable terminal; bidirectional TTL/RS-232 (0-5 V), up to 115200 baud rate)Total 3 dedicated RS-232C ports (3-pin 3.81 mm detachable terminal; bidirectional TTL/RS-232 (0-5 V) port with up to 115200 baud rate)
Power---One 3.5mm DC power jack connector with an associated Power Switch on the rear panel. 12V DC power input with a 1.5 Amp maximum current ratingOne 3.5mm DC power jack connector with an associated Power Switch on the rear panel. 12V DC power input with a 1.5 Amp maximum current rating
RS-232 / IR Hybrid Ports---Total 2 RS-232C / IR Ports (3-pin 3.81 mm detachable terminal; Comprises IR/Serial out put ports; Bidirectional TTL/RS-232 (0-5 Volts) port with up to 115200 baud rate when configured as serial; One-way IR output when configured as IR EmitterTotal 4 RS-232C/IR Ports (3-pin 3.81 mm detachable terminal), Comprises IR / Serial output ports; Bidirectional TTL/RS-232 (0-5 Volts) port with upto115200 baud rate when configured as serial; One-way IR output when configured as IR Emitter.
Relay Switch Ports---Total 5 blocks (each 2-pin 3.81 mm detachable terminal; Comprises normally open, Non-Isolated relays; Rated 6 Amp, 230 Volts AC or 110 Volts DC max)Total 10 blocks (each 2-pin 3.81 mm detachable terminal), Comprises normally open, Non-Isolated relays; Rated 6 Amp, 230 Volts AC or 110 Volts DC max.
Analog Signal---N/ATotal 9 blocks (operated from 3 channels Ch-1 to Ch-3) on rear panel with each 2-pin 3.81 mm detachable terminal; Rated for 0-10 Volts DC, protected to 10 Volts DC maximum, input impedance 10k Ohms with pull-up resistor
Operating Temperature---50° to 113° F (10° to 45° C)50° to 113° F (10° to 45° C)
Humidity---RH non-condensing, 15% to 85%RH Non-Condensing 15% to 85%.
Heat Dissipation---45 BTU/hr45 BTU/ hrs.
Cartridge-20 mm Condenser20mm Condenser20 mm Condenser20mm Condenser
Frequency Response-40 ~ 20,000 Hz40 Hz ~ 20,000 Hz40 Hz ~ 20,000 Hz40~20000 Hz.
Polar Pattern & Microphone Type-Cardioid, Polarized Condenser---
Polar Pattern--CardioidCardioidCardioids
Connectors-3-Pin XLR with 48 V Phantom Power, 200 Ohms Impedance3-Pin XLR3-Pin XLR3-Pin XLR
Sound Pressure Level (SPL)-138 dB SPL @ 1% Threshold---
Control Pad---7 Inches Touch Screen7 Inches Touch Screen
Control Pad Resolution---800 × 480800 × 480
Control Pad Interface---Wi-FiWi-Fi
Control Pad Power---12 V / 1 A12 V / 1 A
Control Pad Size---7 Inches7 Inches
Control Pad Type---Touch ScreenTouch Screen
Control Pad Internal Memory---2 GB2 GB
Laptop Interface - USB Type C--111
Laptop Interface - USB 2.0 Type A--333
Laptop Interface - USB 3.0 Type A--111
Laptop Interface - Aux--111
Laptop Interface - LAN--111
Laptop Interface - HDMI-In--444
Laptop Interface - HDMI-Out--111
Laptop Interface - RS232--111
Power Socket - HDMI-Out--222
Power Socket - USB 3.0 Type A--111
Power Socket - POE LAN--111
Power Socket - Aux--111
Power Socket - Speaker-Out--111
Power Socket - XLE Balanced Mic -IN--111
Power Socket - AC In 220volts--111
Power Socket - MCB Switch--111
Power (Electrical)-100-250V AC100-250V AC100-250V AC100-250V AC
ProcessorIntel i3 / i5Intel i3 / i5Intel i3 / i5Intel i3 / i5Intel i3 / i5
RAM4 GB / 8 GB / 16 GB4 GB / 8 GB / 16 GB4 GB / 8 GB / 16 GB4 GB / 8 GB / 16 GB4 GB / 8 GB / 16 GB
Storage (HDD)256 GB / 512 GB / 1 TB256 GB / 512 GB / 1 TB256 GB / 512 GB / 1 TB256 GB/ 512 GB / 1 TB256/ 512 GB / 1 TB
Operating System (CPU)Windows 10 / 11Windows 10 / 11Windows 10/11Windows 10/11Windows 10/11
Keyboard & MouseAvailableAvailableAvailableAvailableAvailable
Accessories-1.5 Meters HDMI Cable × 1, 3.5mm Male to Male × 1, USB 2.0 M to M × 4.---
Signage Screen Size32"32"32"32"32"
Top Sliding Limit SwitchAvailableAvailableAvailableAvailableAvailable
Laptop InterfaceAvailableAvailableAvailableAvailableAvailable
Podium Wheel LocksAvailableAvailableAvailableAvailableAvailable
Rack Space12U12U12U12U12U
TFT TimerAvailableAvailableAvailableAvailableAvailable
Visualizer TrayAvailableAvailableAvailableAvailableAvailable
Signage ScreenSignage Display 32” (Samsung/Philips *Signage License if any Shall be Extra)Signage Display 32” (Samsung/Philips *Signage License if any Shall be Extra)Signage Display 32” (Samsung/Philips *Signage License if any Shall be Extra)Signage Display 32” (Samsung/Philips *Signage License if any Shall be Extra)Signage Display 32” (Samsung/Philips *Signage License if any Shall be Extra)
