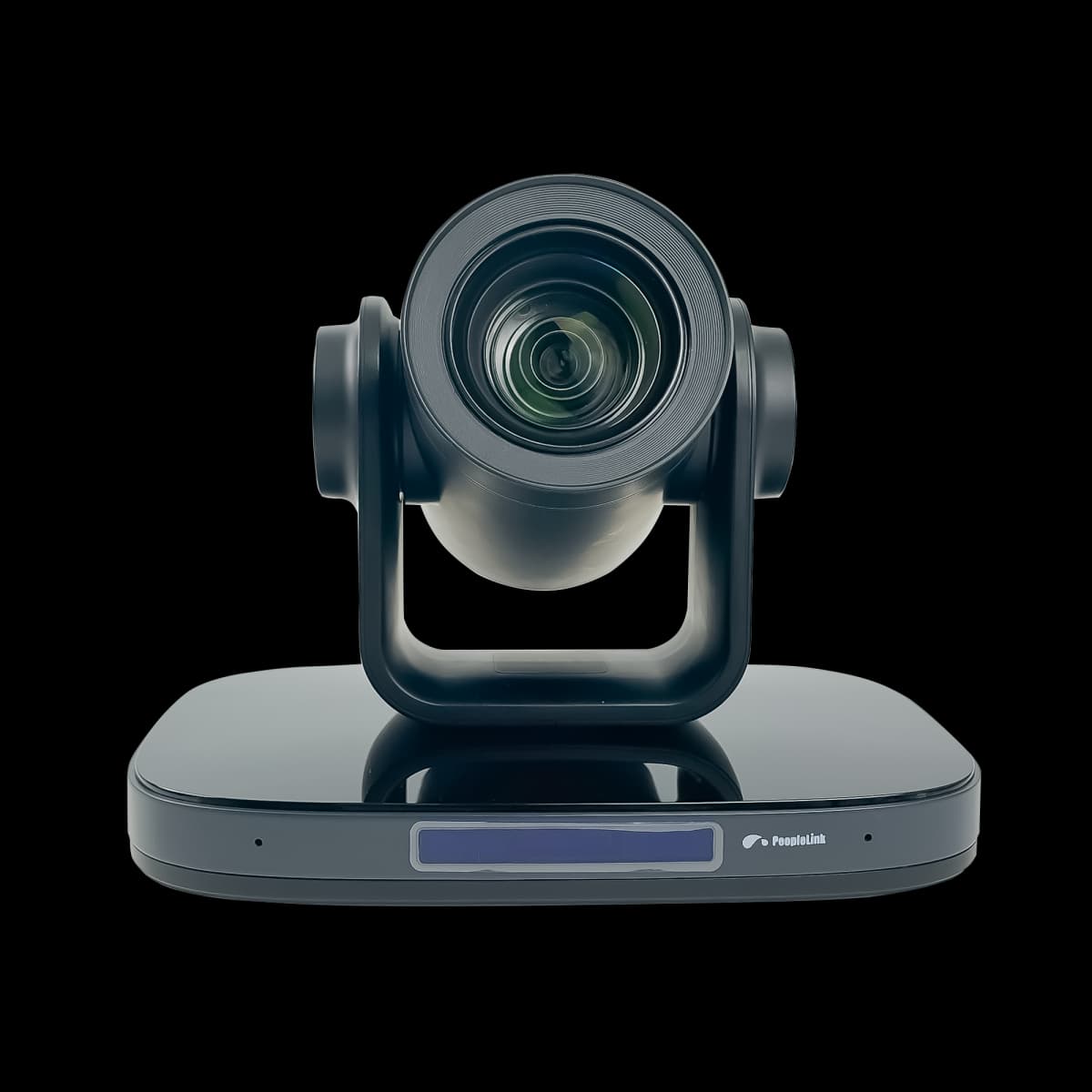

PeopleLink Elite 4K 12x Camera4K PTZ Conference Room Camera with 12x Optical Zoom and AI Tracking

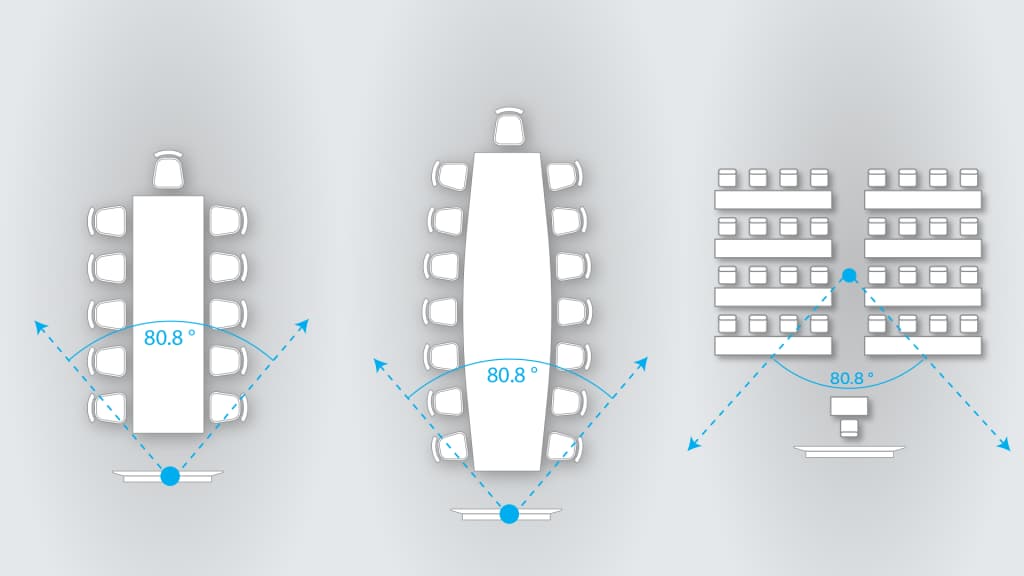

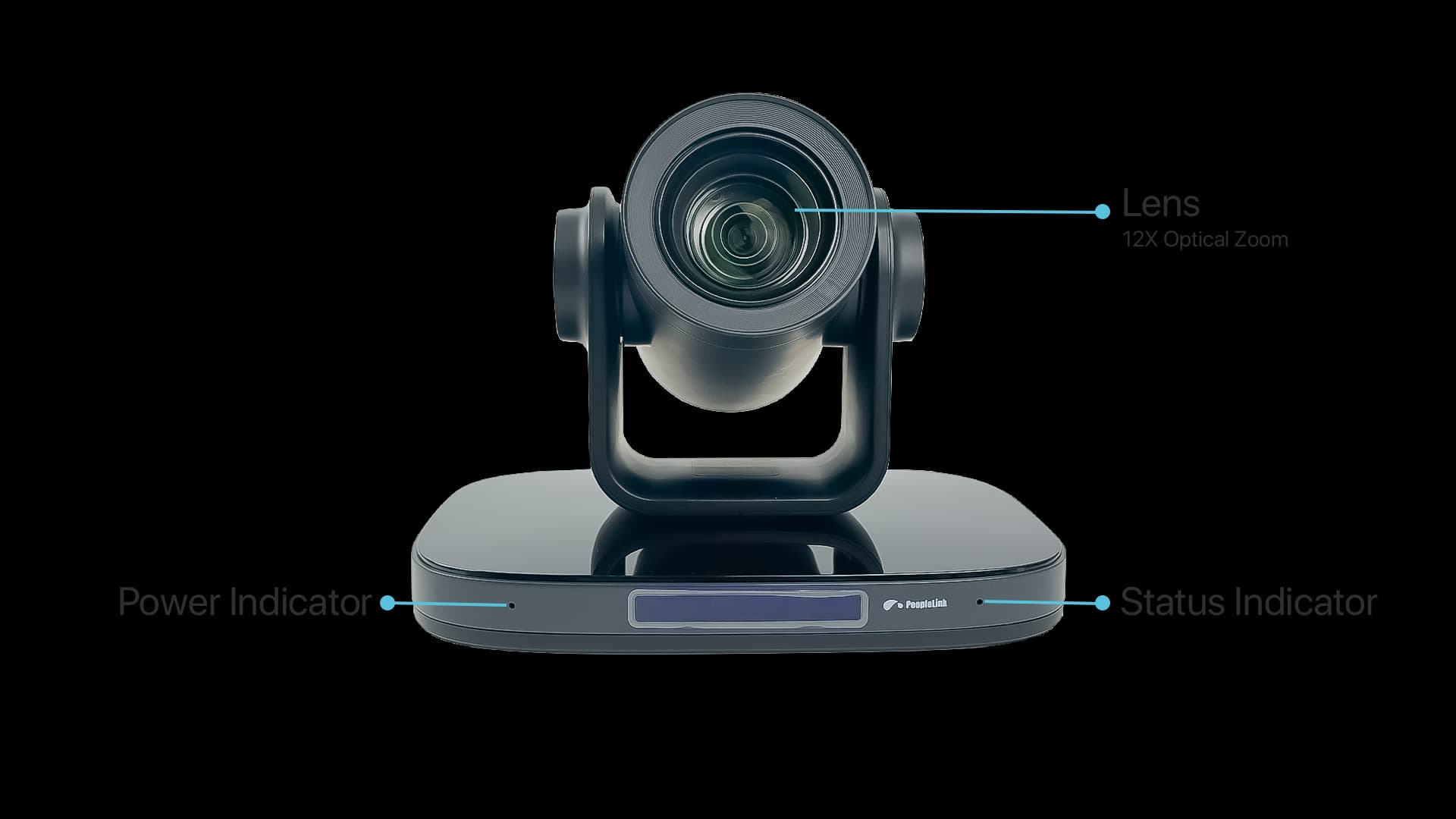

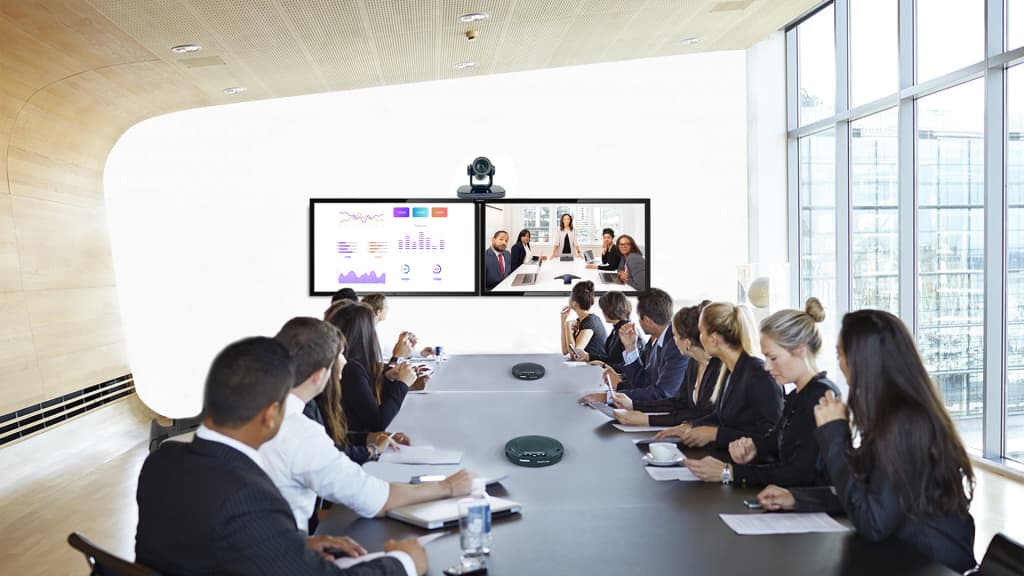

It captures 4K at 3840x2160 and up to 60fps, and offers 12X Optical Zoom with 16X Digital Zoom. In a Boardroom the 80.8 degree wide setting holds every seat, and the optical range closes on a director at the far end without giving up detail. Output steps down to 1080P and 720P where a platform or a network calls for it.

It uses a 1/2.5 inch CMOS sensor with 8.51 Megapixels of effective pixels, and a horizontal field of view from 80.8° to 7.5°. Minimum illumination of 0.5 Lux with 3D Digital Noise Reduction keeps the picture clean once the lights drop for slides, at a signal to noise ratio of 55dB or better. Backlight Compensation handles a room with windows behind the table.

A built-in AI processor detects a human subject from clothing, physical build and facial features, so tracking continues even when the person is not facing the camera. That suits lectures and teaching, where a presenter turns to a board or a screen mid-sentence. Pan runs to ±162.5 degrees and tilt from -30 to +90 degrees, with preset accuracy of 0.1 degrees when a stored shot is recalled instead.

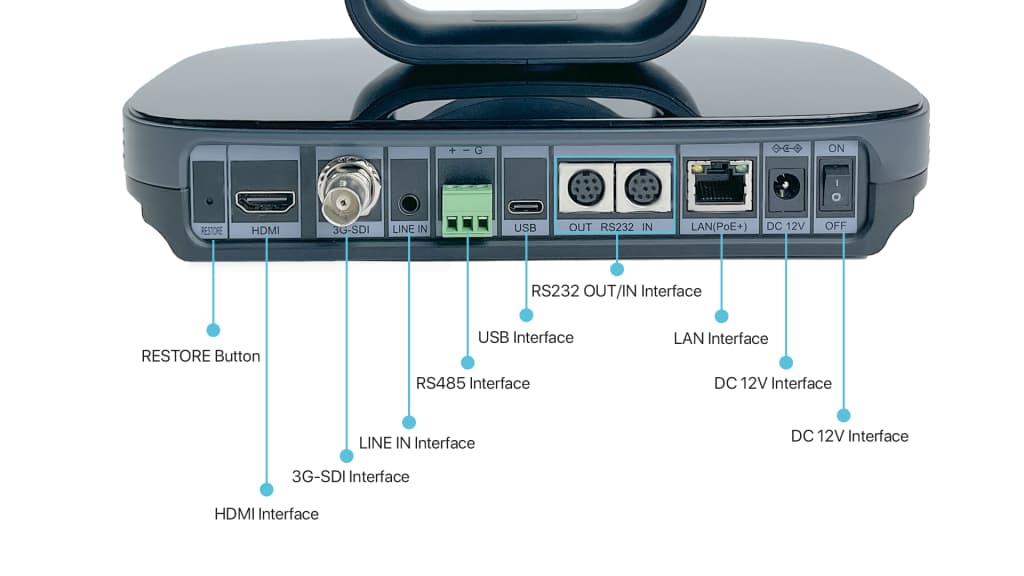

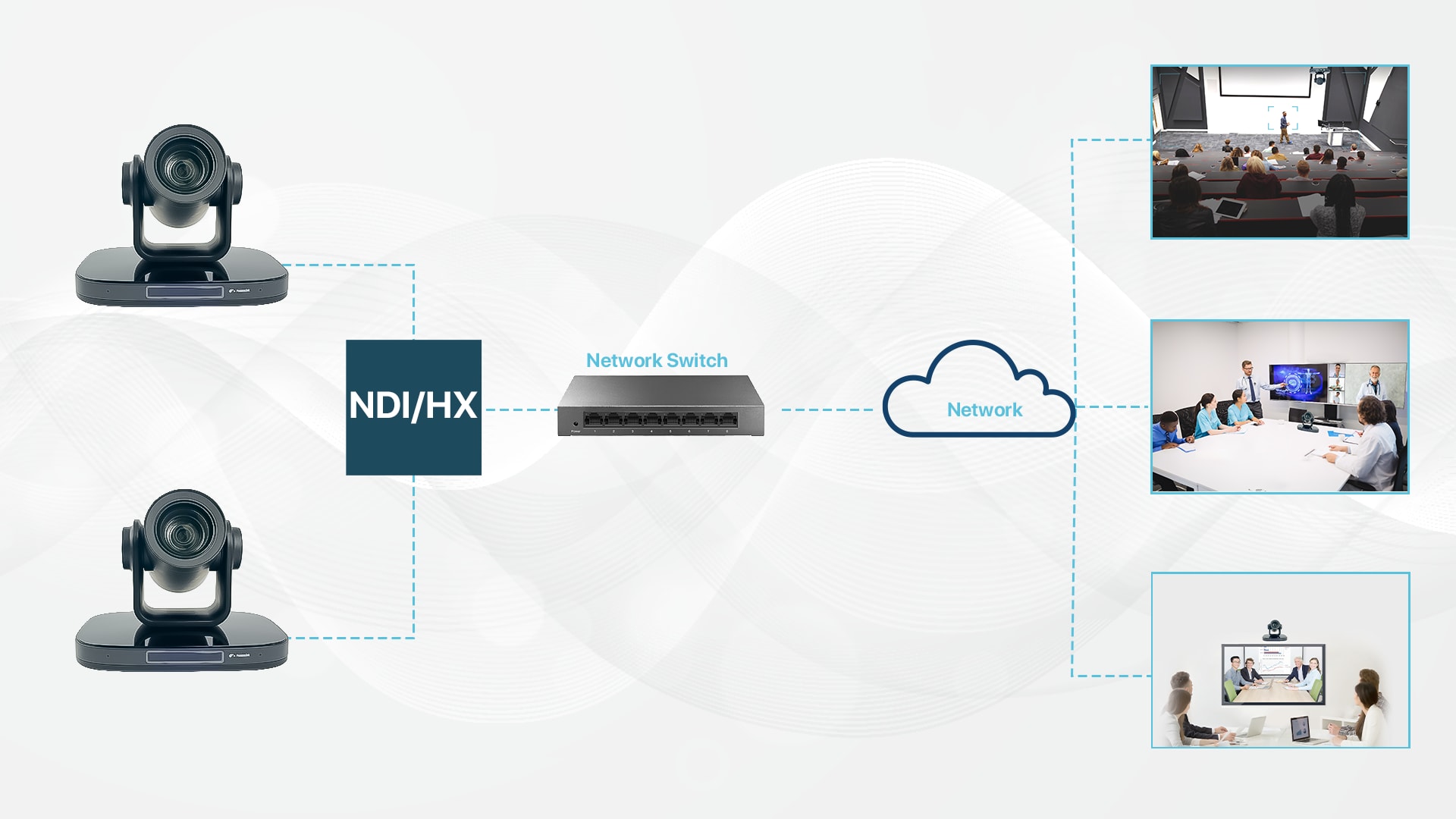

It provides HDMI 2.0 for uncompressed 4K at 60fps, 3G-SDI to SMPTE424M reaching 150 metres at 1080p30, USB Type-C and a gigabit RJ45, with three HD digital signals able to run at once. UVC 1.1 to 1.5 makes it Plug and Play with no driver on Windows, macOS, Linux and Android, and the network side covers NDI|HX3, SRT, RTSP, RTMP(s), Onvif and Dante AV-H. PeopleLink also supplies the matching Audio, Control and Room Solutions for the same room.

The 3G-SDI output carries video up to 150 metres at 1080p30, RS485 control reaches a maximum of 1200 metres and RS232 up to 30 metres, so the camera can be mounted well away from the rack. A single RJ45 run can carry both the network stream and PoE+ power. Share your cable runs and mounting points with a PeopleLink specialist for a layout check.

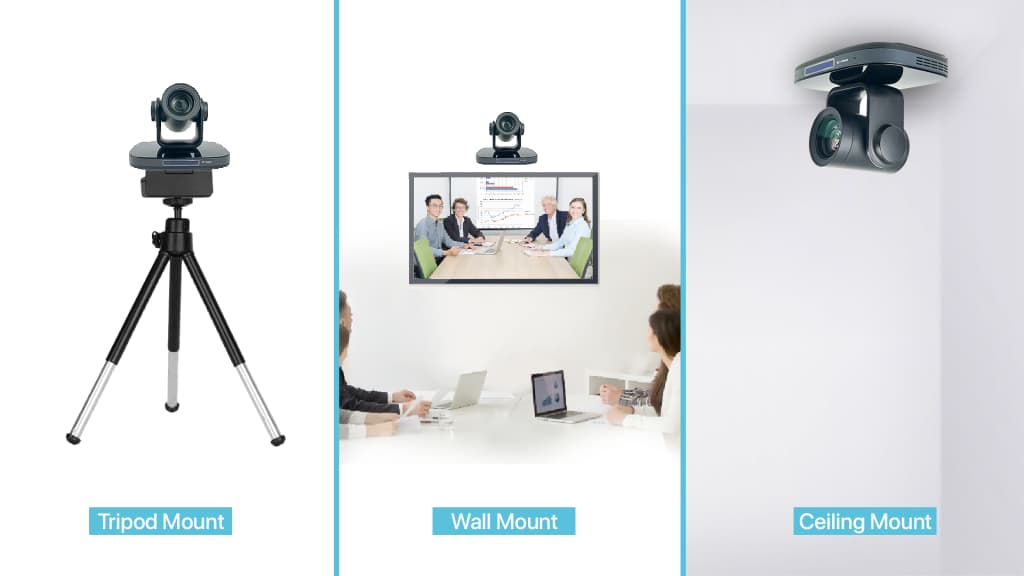

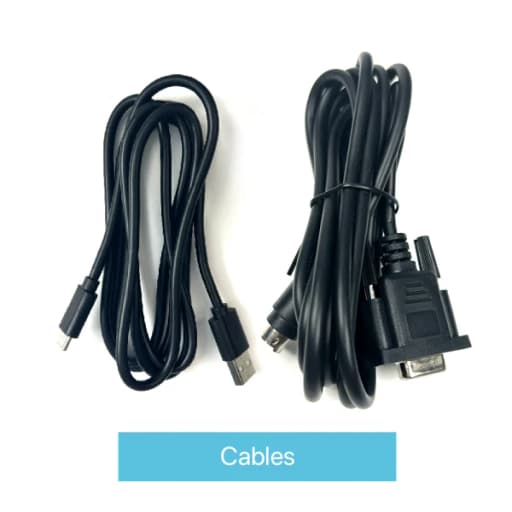

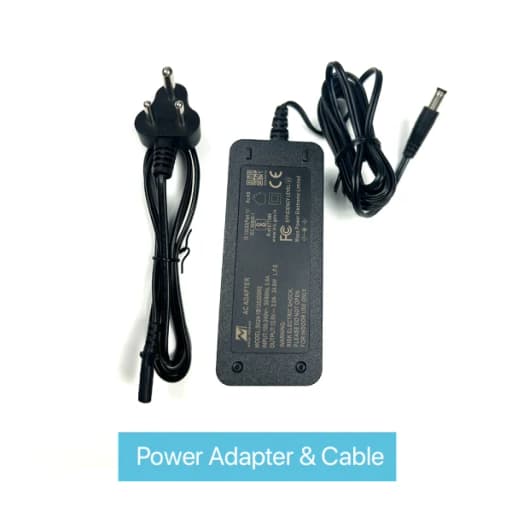

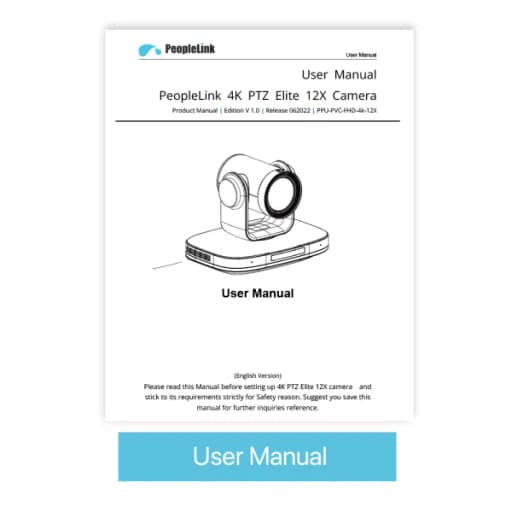

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. A gravity sensor flips the image automatically for a ceiling or wall mount, and the camera ships with a power adapter, a USB Type-C cable, an IR remote and a user manual.
