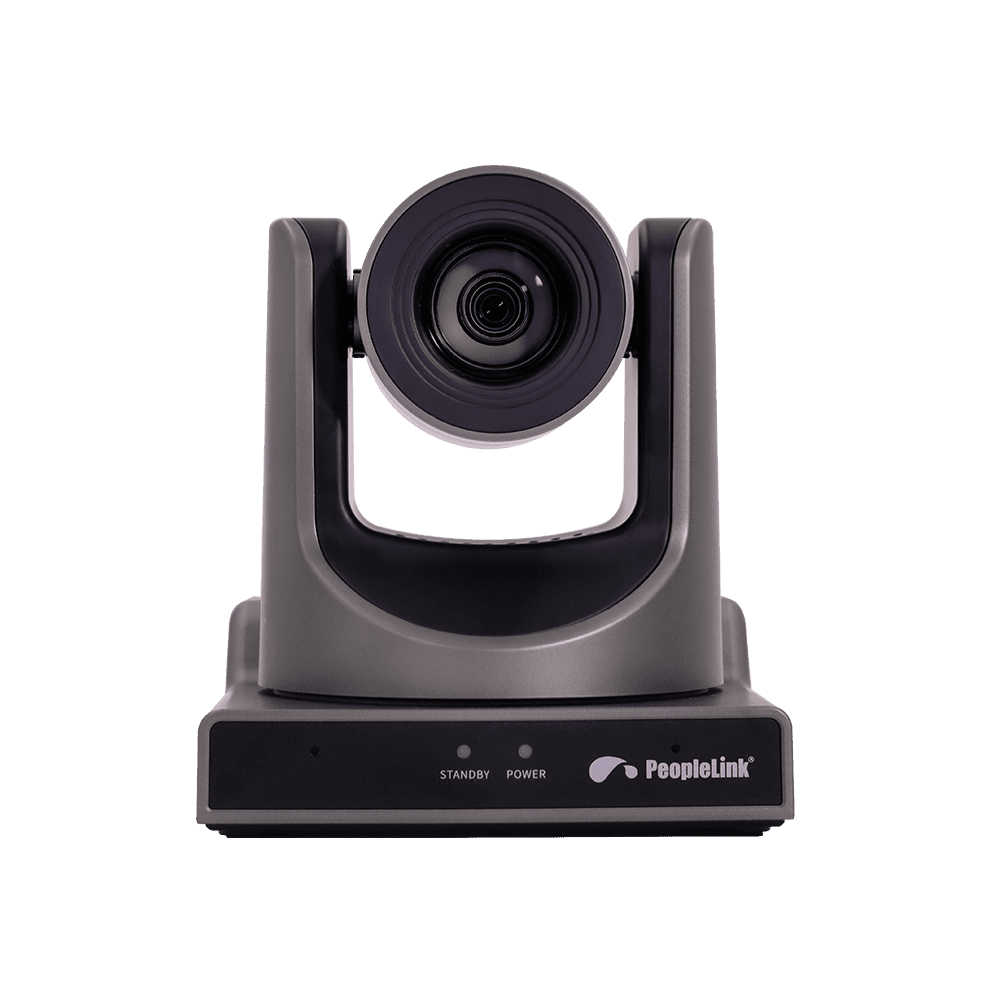

The PeopleLink Elite XL Series 30X Camera is a professional PTZ camera built for large halls and auditoriums. It captures Full HD 1080p video and offers 30X optical zoom and 8X digital zoom, so a single camera can frame the whole room and reach detail at distance. It includes AI presenter tracking that keeps the active speaker framed as they move. It connects over standard interfaces and works with common video conferencing platforms, and because PeopleLink is one OEM it pairs cleanly with PeopleLink audio, control and room solutions. The summary specifications below are drawn from the official datasheet, and the full PDF is available on request.
Product Overview
Transport yourself into a world of vivid imagery and stunning videos with the PeopleLink Elite XL 30x Camera. This camera delivers crystal-clear pictures with an impressive resolution of up to 1080p@60fps. With its dynamic 60.7° wide-angle lens and powerful 30x optical zoom, you can control your visuals completely. Effortlessly adjust the horizontal and vertical angles with the IR feature and various interfaces. Forget about the hassle of repeatedly adjusting your settings, the camera's 255 preset memories allow you to access your preferred configurations conveniently. Connect effortlessly using IP, HDMI, 3G SDI, or USB 3.0 type A and explore various image output possibilities. With customizable white balance and image flip capabilities, you can easily customize your experience to match your preferences.
Key Features:
- FHD 1080p @60FPS
- 30x Optical Zoom
- 8x Digital Zoom
- YUV / H.264 / MJPEG
- 60.7° Field of View
- USB, 3G SDI, HDMI, RJ45, RS232

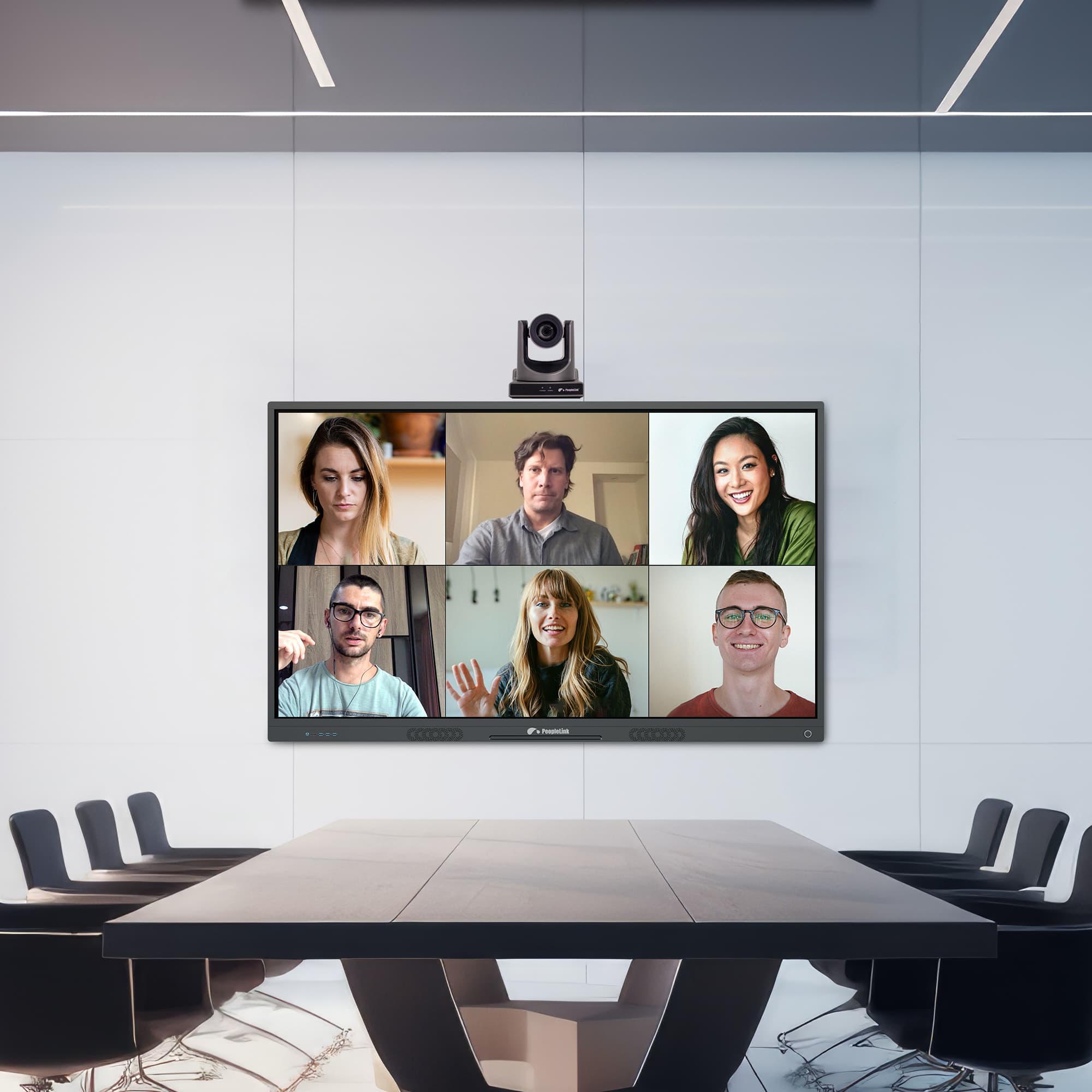

Immersive Video Excellence
Powered by a 1/2.8-inch CMOS sensor with 2.07 million effective pixels, our Elite 30X PTZ Camera achieves a maximum 1920 x 1080 high resolution. Immerse yourself in superior image quality for a truly immersive video conferencing experience. Stay ahead with an impressive output frame rate of up to 60fps in 1080P. Enjoy smooth, high-quality video playback, ensuring every detail is captured precisely.

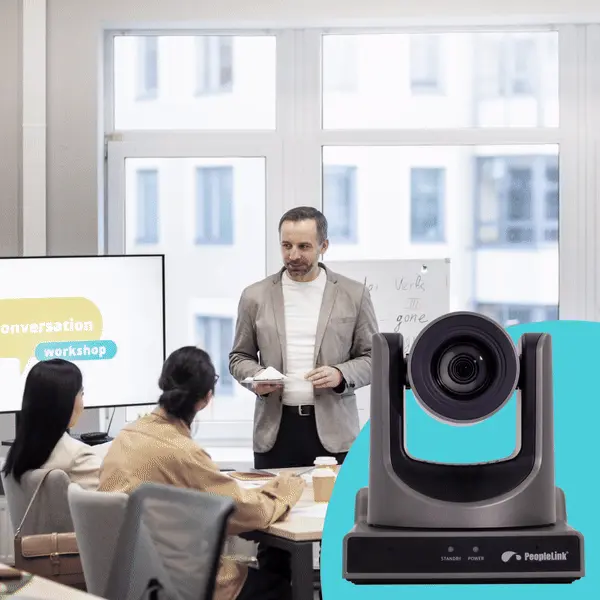

Crystal Clear Pixel Precision
Featuring a high-quality super-telephoto lens, our 30X PTZ Camera offers an impressive 30x optical zoom and an additional 8x digital zoom. Zoom in with precision to capture every detail of your video meetings.
AI-Powered Tracking for Effortless Capturing
Smooth Capturing via AI-Based Tracking. Transform your filming with AI technology driven by clothes, shape, hair, and facial characteristics that allow you clothing person tracking based on the self-clever subject monitoring by perfectly framing them.
Enhanced Audio Experience with AAC Encoding
It is the world's leading H.265 encoding-supported conference video camera, revolutionizing video streaming with full HD 1080p quality at ultra-low bandwidth. Experience cutting-edge technology for seamless video meetings. Take your sound quality higher with AAC audio encoding, featuring an external mic adds and to line-in input for better performance and greater bandwidth throughout.
Low-light brilliance with Advanced Sensor Technology
Benefit from the high SNR of the CMOS sensor and advanced 2D and 3D noise reduction algorithms. Overcome the challenge posed by low-light environments with aplomb as the high signal-to-noise ratio (SNR) achieved combined with 2D and 3D noise reduction algorithms results in pristine images even when filming under dim lighting conditions.

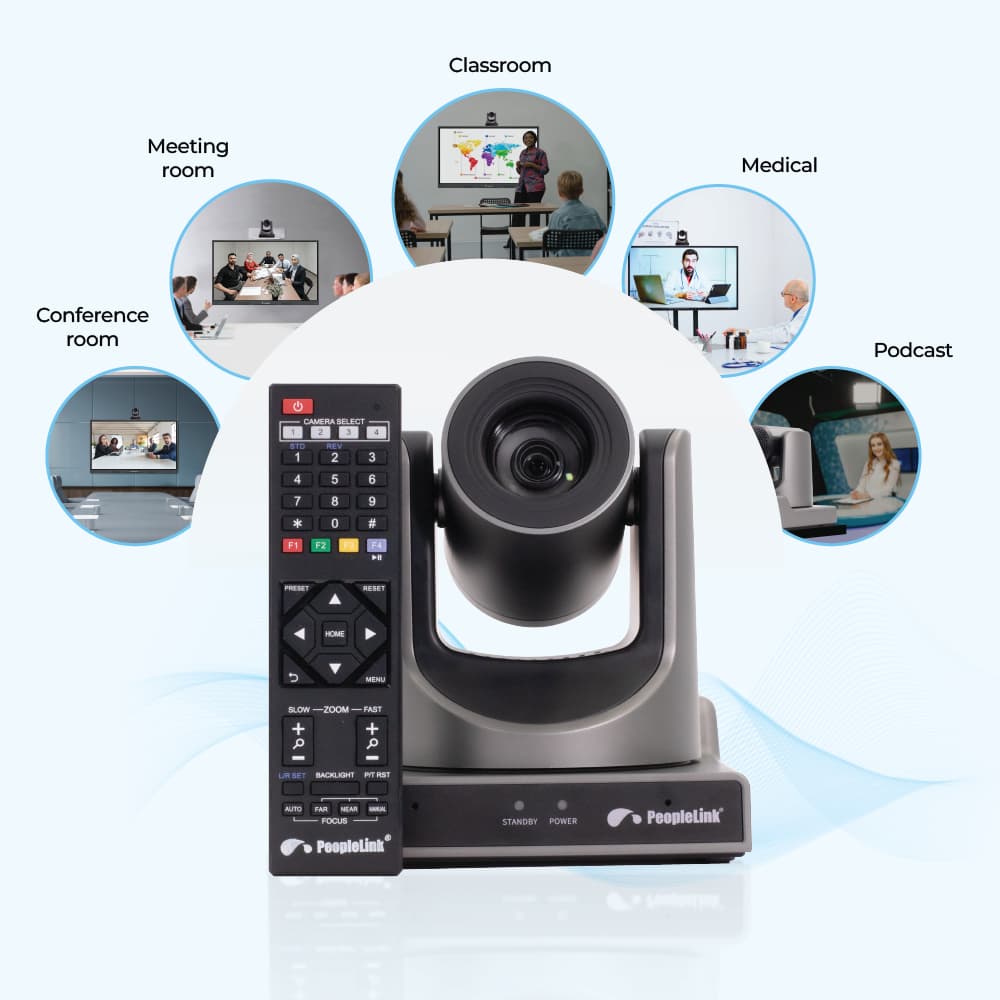

Abundant & Perfect Interface Connectivity
Enjoy versatile connectivity options with HDMI & USB output, 3G-SDI interface, and simultaneous output through HDMI, SDI, and Network interfaces. Transmit effectively up to 150 meters (under 1080p@30), providing flexibility in your video setup.

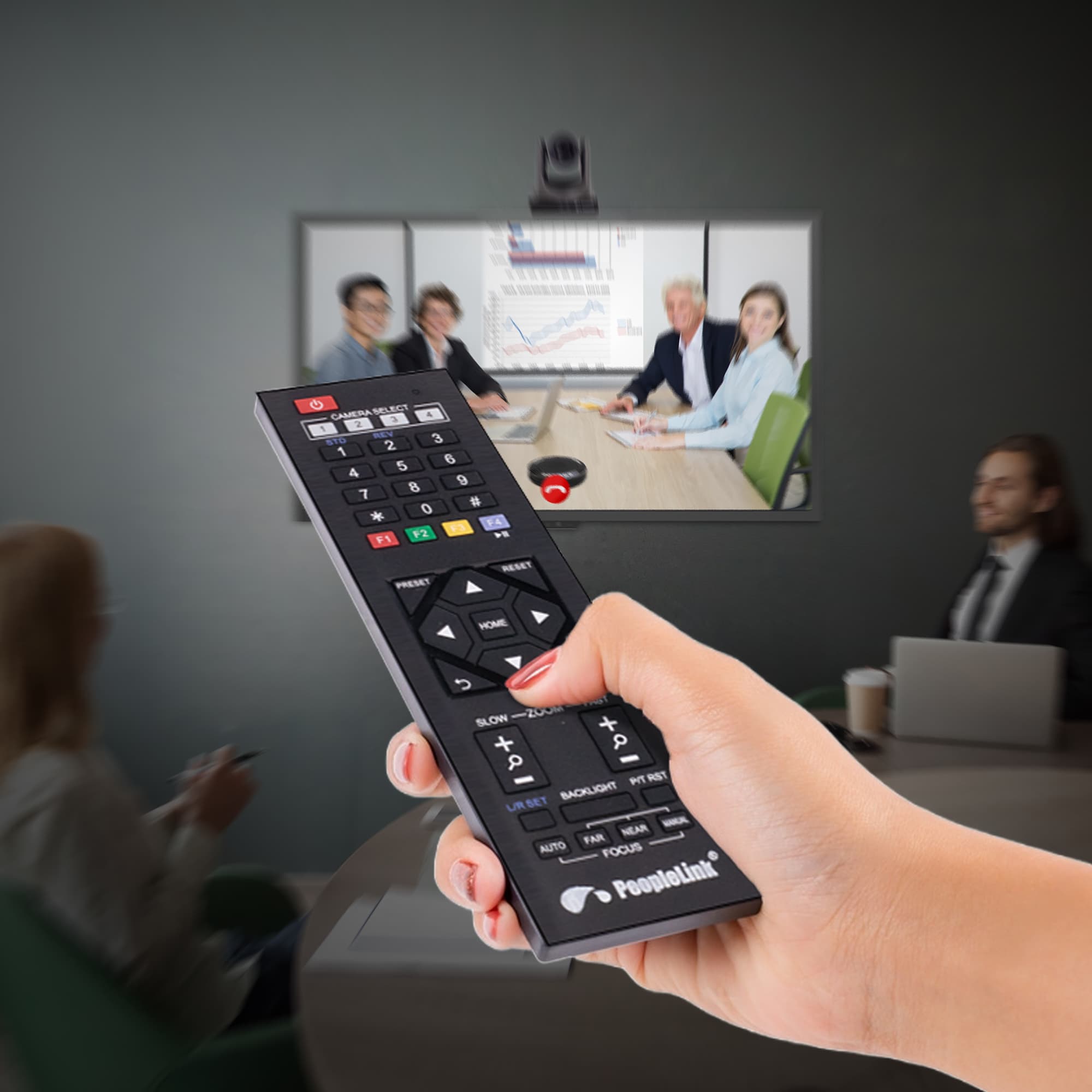

Effortless Remote Control
Enjoy the convenience of managing your video setup effortlessly from a distance. Complex Remote Precision Control with Several Ports. From your desk, control it by RS 232/485 and USB ports, giving the commands to the remote control with a precision that you can have directing-like orders.
How it Works
Accessories

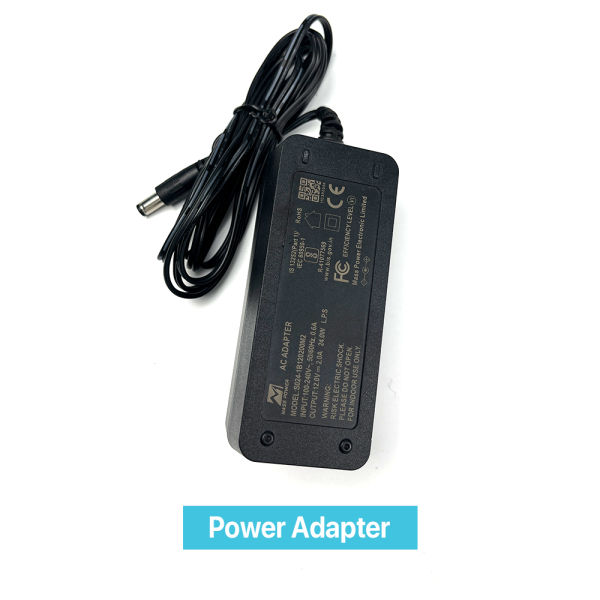

Power Adapter

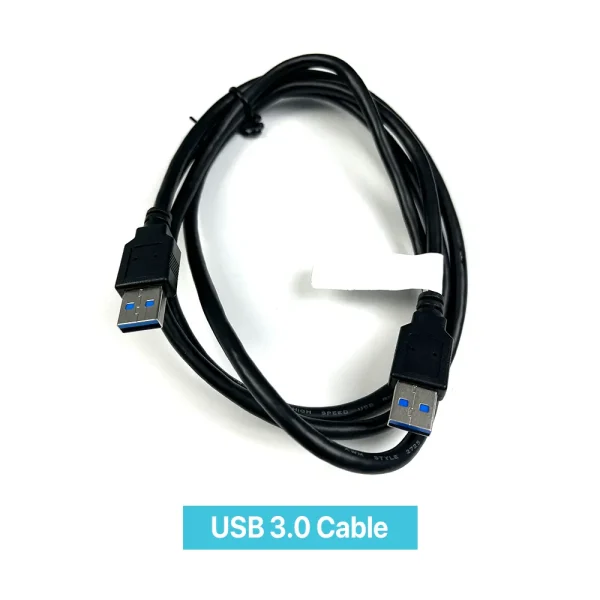

Power Cable

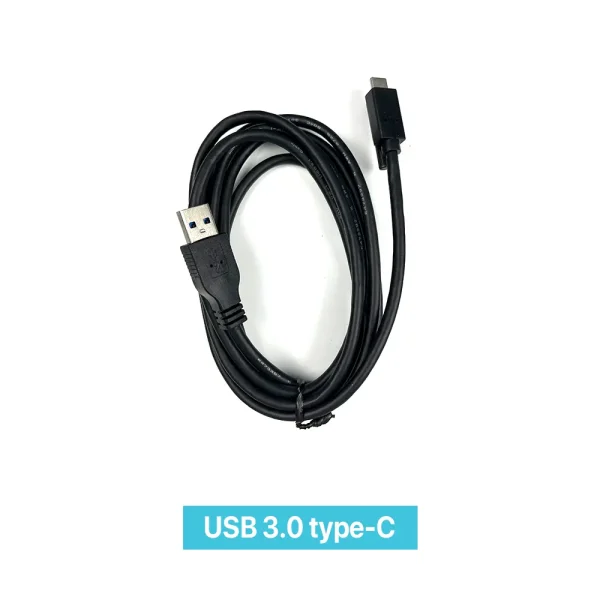

USB Type-C Cable

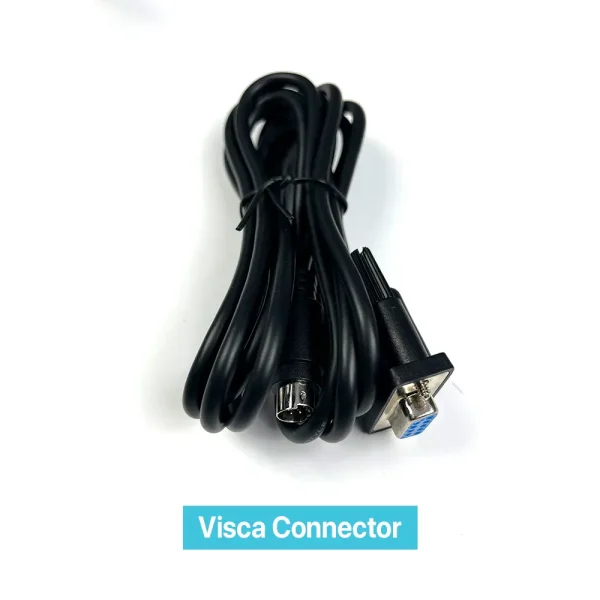

VISCA Connector

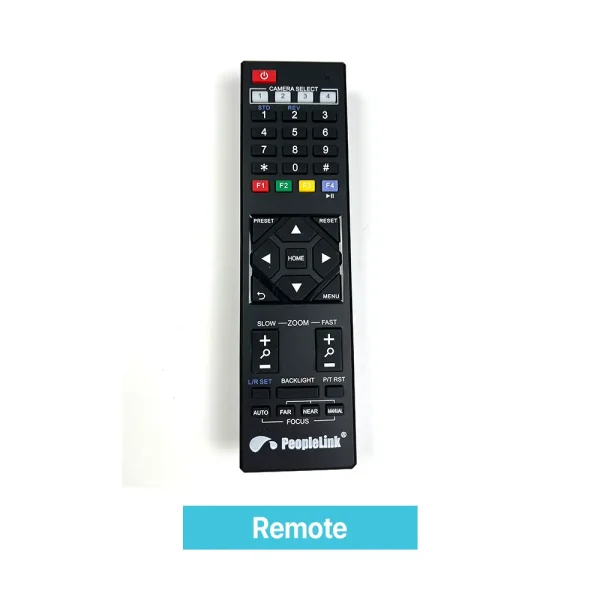

Remote Controller

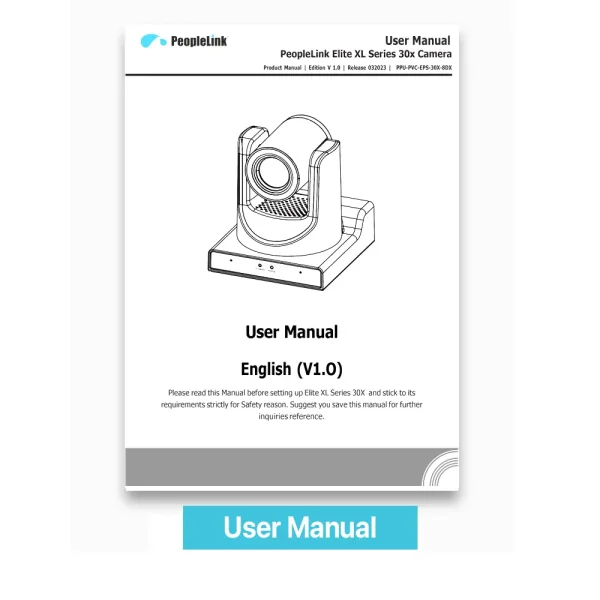

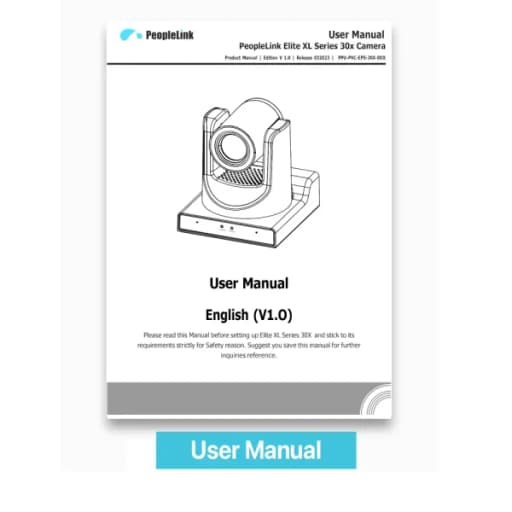

Accessories Kit
Specifications
| Image Sensor | : 1/2.8", CMOS Sensor, 2.07MP |
| Image Resolution | : 1080p @60fps |
| Optical Zoom | : 30x |
| Digital Zoom | : 8x |
| Field of View | : 72.5° |
| Focal Length | : f4.42mm ~ 88.5mm |
| Shutter Speed | : 1/30s ~ 1/10000s |
| Minimal Illumination | : 0.5 Lux |
| Digital Noise Reduction | : 2D/3D DNR |
| Video Compression | : H.264 / MJPEG |
| PAN | : ±170° |
| Tilt | : -30° ~ 90° |
| Presets | : 255 |
| Video Outputs | : USB 3.0, HDMI, 3G-SDI, RJ45, RS232 |
| Remote | : IR Remote |
| Application | : Meeting Rooms, Classrooms, Auditoriums |
| Certifications & Approvals | : CE, ROHS, FCC |
FIND THE PRODUCTS THAT ARE RIGHT FOR YOU
| Product | Elite 4K Premium Series 12X | Elite 4K Premium Series 20X | Elite XL Series 30X |
| Image Sensor | 1/2.5 inches'', CMOS, 8.51MP | 1/2.8 inches'', CMOS, 8.42MP | 1/2.8'', CMOS, 2.07MP |
| Image Resolution | 4k@30fps,1080p@30fps | 4k@30fps,1080p@30fps | FHD 1080p/60fps |
| Optical Zoom | 12x Optical Zoom | 20x Optical Zoom | 30x Optical Zoom |
| Digital Zoom | 16x Digital Zoom | 16X Digital Zoom | 8X Digital Zoom |
| Field of View | 78° Diagonal FOV | 66.6° Diagonal FOV | 60.7° |
| Focal Length | f4.4mm ~ 52.8mm | f3.47mm ~ 41.65mm | f4.42mm ~ 132.6mm |
| Shutter Speed | 1/30s ~ 1/10000s | 1/30s ~ 1/10000s | 1/30s ~ 1/10000s |
| Minimal Illumination | 0.5 Lux | 0.5 Lux | 0.5 Lux |
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | 2D/3D DNR |
| Video Compression | YUY2, H.264 | YUY2, H.264 | YUY2, H.264 |
| PAN | ±170° | ±170° | ±170° |
| Tilt | -30° ~ 90° | -30° ~ 90° | -30° ~ 90° |
| Presets | 255 | 255 | 255 |
| Video Outputs | USB 3.0 Type-C, HDMI, RJ45, RS485, RS232 | USB 3.0 Type-C, HDMI, RJ45, RS485, RS232 | USB 3.0 Type-A, HDMI, 3G-SDI, RJ45, RS232 |
| Control Protocol | VISCA/Pelco | VISCA/Pelco | VISCA/Pelco |
| Remote | IR Remote | IR Remote | IR Remote |
| Application | Meeting Rooms | Meeting Rooms | Meeting Rooms |
| Certifications & Approvals | CE, ROHS, FCC | CE, ROHS, FCC | CE, ROHS, FCC |
Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.
Videos
Documents
Where It Fits
Large halls
Reach detail at distance with 30X optical zoom for clear coverage.

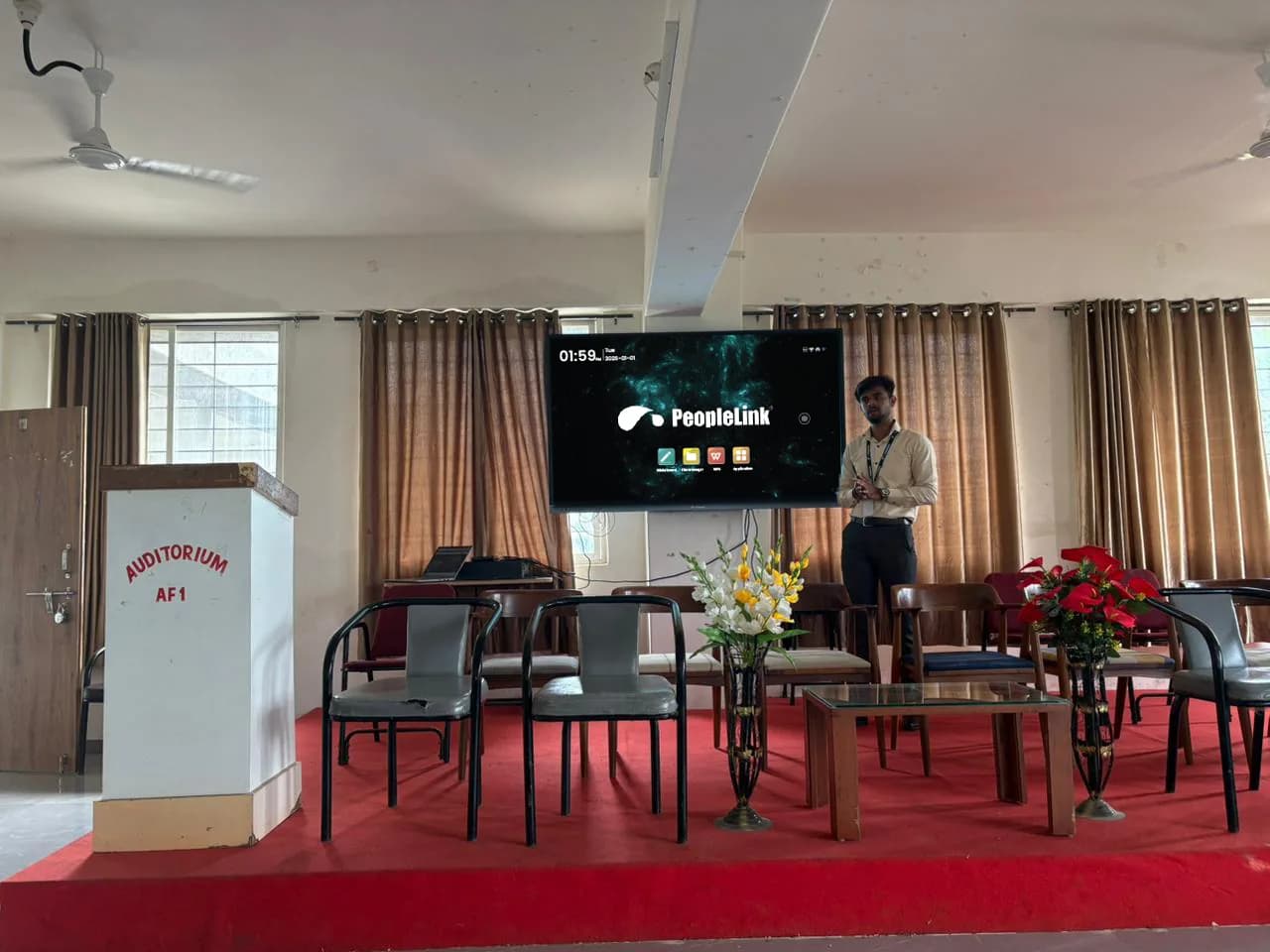

Auditoriums
Frame a stage or audience from the back of a large room.
Live streaming
Full HD 1080p60 capture for events, education recording and broadcasts.
How It Compares
| Capability | PeopleLink Elite XL Series 30X | Typical Alternative |
|---|---|---|
| Optical zoom | 30x optical | Digital crop only |
| Room coverage | Pan, tilt and zoom | Fixed frame |
| Resolution | Full HD 1080p60 | 1080p30 typical |
| Integration | HDMI, 3G-SDI, NDI, RTSP, ONVIF, USB | USB only typical |
| Large-room reach | Yes | Limited |
Why PeopleLink
Hardware + software
Cameras, audio, control and collaboration platforms, built by one OEM.
Integrates cleanly
PTZ cameras pair with PeopleLink audio, control and room solutions out of the box.
Deployed globally
Trusted across enterprise, government, education and healthcare environments.
Specialist support
Talk to PeopleLink AV specialists for sizing, integration and rollout.
Frequently Asked Questions
What zoom and resolution does the PeopleLink Elite XL Series 30X Camera support?
The PeopleLink Elite XL Series 30X Camera captures Full HD 1080p video and offers 30X optical zoom and 8X digital zoom.
What image sensor does the PeopleLink Elite XL Series 30X Camera use?
The PeopleLink Elite XL Series 30X Camera uses a 1/2.8 inches, CMOS, Effective Pixels: 2.07 Megapixels, with a 60.7° ~ 2.28° field of view.
Does the PeopleLink Elite XL Series 30X Camera support AI tracking or auto framing?
Yes. The PeopleLink Elite XL Series 30X Camera provides AI tracking and auto framing that keep the active presenter framed as they move.
How does the PeopleLink Elite XL Series 30X Camera connect and is it compatible with video platforms?
The PeopleLink Elite XL Series 30X Camera connects over standard interfaces including 1 x HDMI: Version 1.3; 1 x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard, and works with common video conferencing platforms. As one OEM, PeopleLink also supplies matching audio, control and room solutions.
