What is the PeopleLink HDMI 2.0 AOC Cable?

It is a 4K UHD Active Optical HDMI Cable that uses optical fibre between the connectors while accepting the same electrical inputs as a standard HDMI cable. It supports 4K at 60Hz 4:4:4 with 18Gbps bandwidth, HDCP 1.4 and HDCP 2.2, and HEC, CEC, EDID, HDR, ARC and 3D. It is built for Long AV Runs where a passive copper cable would lose signal.

How long can the HDMI AOC Cable run for a Large Room?

The maximum length is up to 100m, and custom lengths are available. Because the cable is Active Optical, 4K at 60Hz 4:4:4 and 18Gbps bandwidth hold across the full run rather than dropping off with distance. Measure the real path through walls and ceiling voids, not the straight line across the room.

Does it need external power?

No. The cable requires no external power supply, so there is no injector or adapter to hide at either end of the run. It is Plenum and CPR certified, which matters where cable passes through air handling spaces in an office or campus building.

What length should I order for my room, and will it carry 4K to my display?

The cable runs up to 100m, with custom lengths available, and carries 4K at 60Hz 4:4:4 with 18Gbps bandwidth, HDCP 1.4 and 2.2, and HEC, CEC, EDID, HDR, ARC and 3D over the full length. Measure the actual cable path through walls and ceilings rather than the straight-line distance. Share your run lengths and source and display models with a PeopleLink specialist for a cable recommendation.

Who installs and supports the cable?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. A partner can pull and terminate the run during the room build so the cable is in place before the display is hung.

HDMI AOC Cable for a Campus or Multi-Building Rollout: how should it be specified?

Order one custom length per run rather than joining shorter cables, since a single Active Optical run up to 100m keeps 4K at 60Hz 4:4:4 intact end to end. Plenum and CPR certification lets the same part be used in air handling spaces across buildings, which keeps the specification consistent for the estates team. Send a schedule of rooms and run lengths to get a per-room cable list.

Accessories · HDMI Active Optical Cable

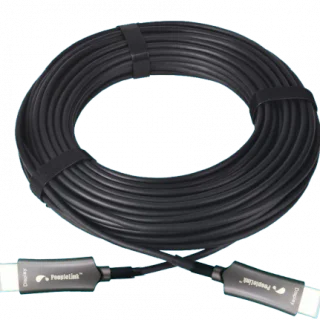

PeopleLink HDMI 2.0 AOC Cable4K 60Hz HDMI 2.0 Active Optical Cable for Long AV Runs in Boardrooms and Auditoriums

The PeopleLink HDMI 2.0 AOC Cable is a 4K UHD Active Optical Cable for Long AV Runs in Boardrooms, Auditoriums and Control Rooms.

4K at 60Hz 4:4:4 Resolution
18Gbps Bandwidth
Up to 100m Max Length

Request a Quote WhatsApp

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What an HDMI AOC Cable does on a Long AV Run

The PeopleLink HDMI 2.0 AOC Cable is a 4K UHD Active Optical Cable for Long AV Runs in Boardrooms, Auditoriums and Control Rooms. It carries 4K at 60Hz 4:4:4 with 18Gbps bandwidth over lengths up to 100m, and custom lengths are available. HDCP 1.4 and HDCP 2.2 are supported along with HEC, CEC, EDID, HDR, ARC and 3D, and the cable is highly resistant to EMI and RFI. It needs no external power supply and is Plenum and CPR certified, so it can be pulled through ceiling voids on the way to a PeopleLink Display. Specifying the cable with the room equipment removes the guesswork about what a display will accept.

PeopleLink active optical cables use optical fiber between the connectors while accepting the same electrical inputs as a conventional HDMI extender. Electrical-to-optical conversion at the cable ends boosts speed and range without compromising compatibility with standard electrical connectors, making the cable well suited to data center and high-performance AV applications.

Up to 100m Max Length (Custom Length Available)
Support 4K@60Hz 4:4:4
Support 18Gbps bandwidth
Support HDCP1.4 & HDCP 2.2
Support HEC, CEC, EDID, HDR, ARC, 3D
Highly resistant to EMI and RFI
No external power supply
Plenum and CPR certified

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink HDMI 2.0 AOC Cable
Resolution	4K at 60Hz 4:4:4
Bandwidth	18Gbps
Max Length	Up to 100m

Technical Specifications

Specifications

Maximum Length	Up to 100m (custom length available)
Resolution	4K at 60Hz 4:4:4
Bandwidth	18Gbps
HDCP	HDCP 1.4 and HDCP 2.2
Supported Features	HEC, CEC, EDID, HDR, ARC, 3D
Interference	Highly resistant to EMI and RFI
Power	No external power supply required
Certification	Plenum and CPR certified

Rooms It Serves

Long AV runs

Carry 4K at 60Hz 4:4:4 HDMI signals up to 100m on Active Optical fibre.

Boardrooms and auditoriums

Concealed cabling for Ultra-Thin Displays in Large Rooms, with no external power supply at either end.

Long-run AV installations

Consistent transmission for Digital Signage and Control Rooms, with high resistance to EMI and RFI.

Where an AOC Cable Fits in Your Organisation

How organisations deploy an AOC Cable, and what changes for the teams that use it

Education

Auditorium Feed for a University

A university's auditorium keeps its AV rack in a control booth at the back of the hall, a long way from the PeopleLink display at the front. A single HDMI 2.0 AOC Cable, cut to a custom length within the 100m maximum, carries the 4K at 60Hz 4:4:4 signal over optical fibre with 18Gbps bandwidth. It needs no external power at either end, and its resistance to EMI and RFI keeps the picture stable alongside lighting and power runs. Lectures get a clean 4K feed from booth to stage.

Enterprise

Boardroom Cabling for a Bank

A bank's boardroom has a PeopleLink display on an ultra-thin wall mount and its sources in a credenza across the room. The installer routes the HDMI 2.0 AOC Cable through the ceiling void and wall, where its slim optical construction is easier to conceal than thick copper. HDCP 2.2 support means protected content from the room PC plays without handshake issues, and CEC and ARC pass through for control and audio return. Directors see a sharp 4K picture with no visible cabling.

Public Sector

Control Room Runs for a Public Utility

A public utility's control room drives several always-on PeopleLink displays from a server room on another floor. Each display gets its own HDMI 2.0 AOC Cable run, pulled through plenum spaces, delivering 4K at 60Hz with the EDID and HDR support that the monitoring software expects. Because the cable is active optical, the operators see consistent transmission on long runs where passive copper would fall short. The utility standardises on one cable type for every long display run on the site.

Not sure which model fits your Long AV runs or Boardrooms and auditoriums?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink HDMI 2.0 AOC Cable	Typical Alternative
Resolution	4K at 60Hz 4:4:4	1080p passive cable
Length	Up to 100m active optical	Short copper runs
Bandwidth	18Gbps	Lower bandwidth
Interference	EMI and RFI resistant	Prone to interference

Why PeopleLink

Hardware plus Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Accessories pair with PeopleLink Cameras, Audio and Room Solutions out of the box, and the cable accepts the same electrical inputs as a standard HDMI connection.

Deployed Globally

Used across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

Explore Related Resources

All Accessories

In the Room

Installed Rooms, Photographed on Site

Boardrooms where PeopleLink displays, cameras and cabling are installed.

Large PeopleLink interactive display in a boardroom — Large-Format Interactive DisplayBoardroom

Premium enterprise boardroom with a PeopleLink display and camera — Premium Enterprise BoardroomDisplay and Camera

Boardroom with a large display, camera and speakerphone on the table — Boardroom StackLarge Display, Camera and Speakerphone

Talk to a PeopleLink AV Specialist about HDMI AOC Cables

Room, run length and devices in one message. We reply with the right Cable, Mount or PC for the install.
