What is the Pixel Pitch of the PeopleLink Active LED 2.5?

It has a 2.5mm Pixel Pitch with a Pixel Density of 160,000 dots per square metre. That suits Conference Halls, Lecture Theatres and Event Spaces where the front row is several metres from the wall. In a small Boardroom where people sit close, a finer pitch such as 1.5mm or 1.8mm reads better.

Is it bright enough for a well lit Conference Hall?

Yes. Brightness of at least 600 nits keeps content clear without dimming the room or closing blinds. The 3840 Hz Refresh Rate keeps motion fluid during video playback and camera work. Together that means meetings run with normal lighting rather than in the dark.

How durable is the LED Video Wall over time?

It uses Single Lamp Maintenance and a lightweight modular design, so faults are addressed at lamp level rather than by replacing a cabinet. Average power consumption of 130 W per square metre or less keeps the electrical and cooling load predictable. Both help hold running costs down across the life of a large wall.

Does it work with PeopleLink room systems?

Yes. PeopleLink builds Displays, Cameras, Audio and Room Solutions as one AV OEM, so the wall is specified as part of a room rather than bought on its own. That keeps sizing, commissioning and later support with one vendor.

Is the Active LED 2.5 right for a Boardroom or a larger hall?

The 2.5mm Pixel Pitch suits medium and large rooms where viewers sit a few metres back, such as Town Halls, Lecture Theatres and Event Spaces. For close-viewing Boardrooms, the Active LED 1.5 or 1.8 may fit better. A PeopleLink specialist can advise.

Who installs and supports the display?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration.

Active LED · Indoor LED Video Wall

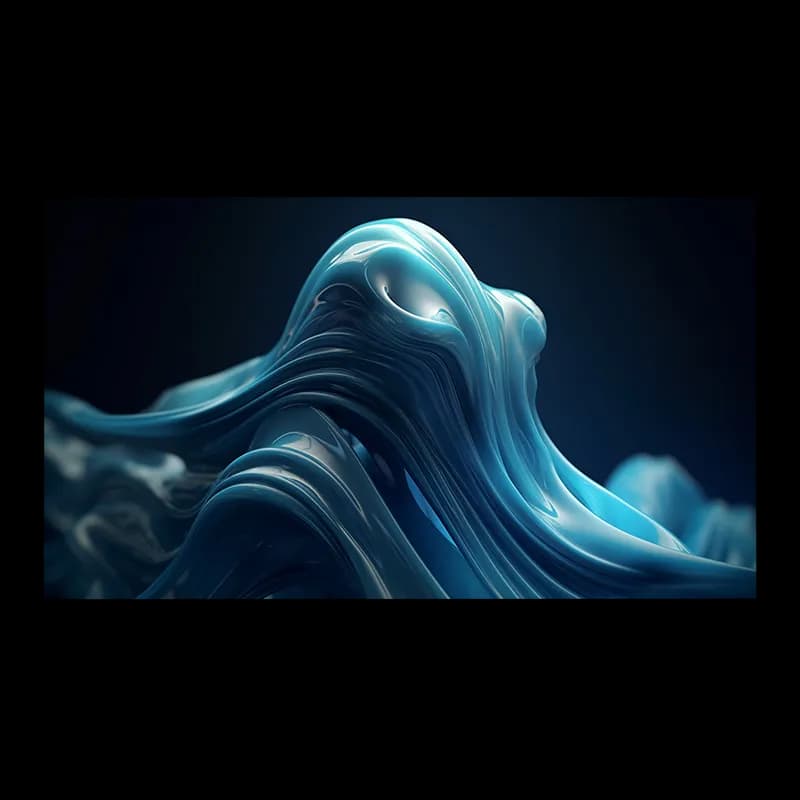

PeopleLink Active LED 2.5P2.5 Indoor LED Video Wall for Conference Halls and Meeting Rooms

An indoor LED Video Wall with 2.5mm Pixel Pitch, 160,000 dots per square metre and 3840Hz refresh rate, for Conference Halls, Meeting Rooms and Event Spaces.

2.5mm Pixel pitch
160,000 dots/m2 Pixel density
>=600 nits Brightness

Request a Quote WhatsApp

1 / 3

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a P2.5 Indoor LED Video Wall does in a Conference Hall

The PeopleLink Active LED 2.5 is an indoor LED Video Wall for Conference Halls, Meeting Rooms and Event Spaces. SMD2020 LED technology gives a 2.5mm Pixel Pitch and 160,000 dots per square metre, with brightness of at least 600 nits and a 3840 Hz Refresh Rate. Viewing angles of at least 150 degrees horizontal and 130 degrees vertical keep the picture even for seats along the sides of a hall. Enterprise, Education and Government rooms run it with PeopleLink Cameras and Audio so remote participants share the same surface as the content. Lightweight cabinets assemble and dismantle quickly, which suits rooms that are refitted between terms or projects.

The PeopleLink Active LED 2.5 is a premium commercial-grade indoor display designed to transform conference halls, meeting rooms, and event spaces. Utilizing high-quality SMD2020 LED technology, it delivers high contrast and brightness for clear, direct-view visuals.

The lightweight, modular design ensures easy assembly and disassembly, while its ability to perform single-lamp maintenance significantly reduces long-term operational costs. It is engineered as a durable solution for professional environments.

Fine Pixel Pitch Technology
High Brightness and Contrast
Seamless Cabinet Integration
Wide Viewing Angles
Smooth High Refresh Rate Performance
Energy Efficient Design
Easy Maintenance Structure
Suitable for Enterprise and Commercial Spaces

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink Active LED 2.5
Pixel pitch	2.5mm
Pixel density	160,000 dots/m2
Brightness	>=600 nits
Refresh rate	3840 Hz

Technical Specifications

Display

Pixel Pitch	2.5 mm
Pixel Density	160,000 dots/m2
LED Technology	SMD2020
Brightness	>=600 nits
Refresh Rate	3840 Hz
Viewing Angle	>=150 degrees H / >=130 degrees V
Power Consumption	<=130 W/m2 (average)
Maintenance	Single lamp maintenance

Rooms It Serves

Conference Halls

Brightness of at least 600 nits for presentations and large format content.

Meeting Rooms

Direct View detail on SMD2020 lamps for collaboration in well lit rooms.

Event Spaces

Seamless modular LED Video Wall for stages and venues, quick to assemble.

Where a LED Video Wall Fits in Your Organisation

How organisations deploy a LED Video Wall, and what changes for the teams that use it

Enterprise

Town Hall Wall for a Technology Company

A technology company installs an Active LED 2.5 wall in its Town Hall space for all-hands meetings and Event Spaces. The 2.5mm Pixel Pitch and 160,000 dots per square metre suit the room's viewing distance, and brightness of at least 600 nits keeps the picture clear in a well-lit room. PeopleLink Cameras and Audio bring remote offices into the same meeting.

Education

Lecture Theatre Screen for a Medical College

A medical college fits its main Lecture Theatre with an Active LED 2.5 wall for lectures and recorded teaching. SMD2020 LED technology gives the high contrast that imaging, diagrams and fine annotation need in front of a full cohort. The lightweight modular design allowed assembly during a term break without heavy rigging in an occupied building. Viewing angles of at least 150 degrees horizontal keep the back corners of a raked theatre on the same picture, and the wall pairs with PeopleLink Cameras for lecture capture.

Government

Briefing Room Display for a National Agency

A national agency replaces projection in its Briefing Room with an Active LED 2.5 wall. Brightness of at least 600 nits means briefings run with the lights up, so officers can take notes while maps and live feeds are on screen. Single Lamp Maintenance keeps servicing simple for the in house technical team, with no need to pull a whole module for one fault. Daily briefings, mapping and camera feeds all run through one seamless surface rather than a set of separate screens.

Not sure which model fits your Conference Halls or Meeting Rooms?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink Active LED 2.5	Typical Alternative
Pixel pitch	2.5mm direct-view	Coarser pitch typical
Image format	Seamless LED wall	Visible bezels on tiled LCD
Brightness	>=600 nits	Lower in well-lit rooms
Maintenance	Single lamp maintenance	Whole-module swap

Why PeopleLink

Hardware and Software

Displays, Cameras, Audio and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Displays pair with PeopleLink Cameras, Audio and Room Solutions out of the box.

Deployed Globally

Trusted across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

Explore Related Resources

In the Room

LED Video Walls in Lecture Halls and Training Rooms

Video wall installations photographed on site.

Lecture hall with a wall of student displays and a video wall — Lecture Hall Video WallMulti-Display Teaching Space

University lecture theatre with tiered seating, an Active LED wall and a presenter at a PeopleLink digital podium — University Lecture TheatreActive LED Wall with Digital Podium

Presenter at a digital podium addressing an audience in front of a video wall — Corporate Training SessionDigital Podium with Multi-Screen Wall

Talk to a PeopleLink LED Specialist about Indoor LED Video Walls

Wall size, viewing distance and content in one message. We reply with the right Pixel Pitch and Cabinet layout.
