What is the Pixel Pitch of the PeopleLink Active LED P 1.5mm COB?

It has a 1.56mm Pixel Pitch using Chip on Board technology, which bonds the lamps under a shared surface for shadow free rendering. A wide colour gamut and a Cabinet Resolution of 384 by 216 pixels suit rooms where people read fine detail close up. That makes it a fit for Conference Rooms, Studios and Command Centres rather than long distance signage.

How bright is the LED Video Wall and can it be tuned?

Brightness is customisable from 600 to 1000 nits, so the same product suits a dim Studio and a brightly lit Command Centre. A 5000:1 Contrast Ratio holds depth in the image at whichever level is chosen. A Refresh Rate up to 3840 Hz keeps the surface stable when cameras are pointed at it.

How is it serviced once installed?

It uses a modular Diecast Aluminium body with Front Maintenance, so panels are reached from the visible face. That allows the wall to be built tight against a structure without a service corridor behind it. An IP65 front rating and a protective coating help it stand up to a working environment over time.

Does it work with PeopleLink room systems?

Yes. PeopleLink builds Displays, Cameras, Audio and Room Solutions as one AV OEM, so a critical room is specified as a whole rather than assembled from parts. For a Command Centre that means the monitoring wall and the coordination calls share one design and one support route.

Can the brightness be tuned to the room?

Yes. The P 1.5mm COB brightness is customisable from 600 to 1000 nits, so it can be matched to a dim Broadcast Studio or a bright Command Centre. A PeopleLink specialist can advise on the right setting.

Who installs and supports the display?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration.

Active LED · COB LED Video Wall

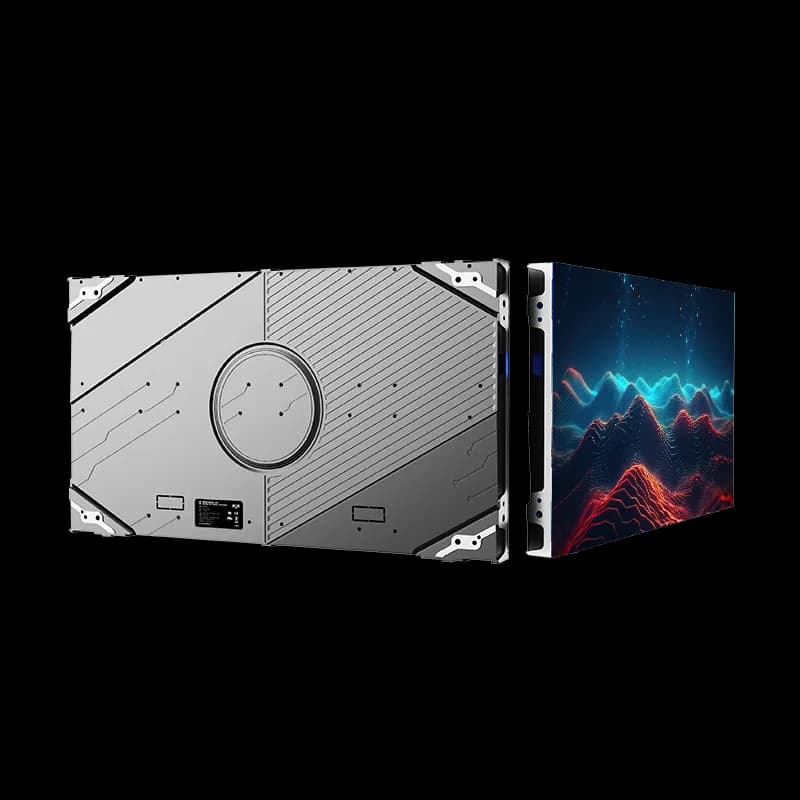

PeopleLink Active LED 1.5MM COBP1.5 COB Fine Pitch LED Video Wall for Conference Rooms, Broadcast Studios and Command Centres

The PeopleLink Active LED P 1.5mm COB is a Fine Pitch Chip on Board LED Video Wall for Conference Rooms, Broadcast Studios and Command Centres.

1.56mm Pixel pitch
600-1000 nits Brightness
5000:1 Contrast ratio

Request a Quote WhatsApp

1 / 5

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a P1.5 COB LED Wall does in a Command Centre

The PeopleLink Active LED P 1.5mm COB is a Fine Pitch Chip on Board LED Video Wall for Conference Rooms, Broadcast Studios and Command Centres. A 1.56mm Pixel Pitch gives shadow free visuals with a wide colour gamut, a 5000:1 Contrast Ratio and a Refresh Rate up to 3840 Hz. Brightness is customisable from 600 to 1000 nits and the Viewing Angle is 160 degrees horizontally and vertically. It is chosen for mission critical indoor rooms, and it works alongside PeopleLink Cameras, Audio and Room Solutions where conferencing is part of the brief. A modular Diecast Aluminium body with Front Maintenance and IP65 front protection keeps a permanent wall serviceable in place.

The PeopleLink Indoor 1.56MM COB Active LED display is engineered to provide exceptional visual clarity and reliability for high-performance indoor settings. Leveraging advanced Chip-on-Board (COB) technology, it delivers immersive, shadow-free visuals with a wide color gamut and customizable brightness levels.

This display is designed for versatility, making it an excellent choice for conference rooms, broadcast studios, and command centers. With a modular die-cast aluminum body, patented coating technology, and convenient front maintenance, it ensures a durable and efficient solution for long-term professional use.

Fine Pixel Pitch: 1.5mm COB Technology for high-definition clarity.
MicroLED Technology for seamless image rendering.
High Brightness and Deep Contrast Performance.
Wide Viewing Angles for collaborative environments.
Front-Service Maintenance Design.
Energy Efficient and Low Heat Generation.
Robust Protective Coating for long-term durability.
Suitable for Mission-Critical Indoor Applications.

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink Active LED 1.5MM COB
Pixel pitch	1.56mm
Brightness	600-1000 nits
Contrast ratio	5000:1
Cabinet resolution	384 x 216

Technical Specifications

Display

Pixel Pitch	1.56 mm
LED Technology	COB (Chip on Board)
Brightness	600 to 1000 nits (customizable)
Refresh Rate	Up to 3840 Hz
Viewing Angle	160 degrees H / V
Contrast Ratio	5000:1
Cabinet Resolution	384 x 216 pixels
Cabinet	Diecast aluminum body
Maintenance	Front maintenance
Ingress Protection	IP65 (front)

Rooms It Serves

Conference Rooms

Shadow free COB detail at 1.56mm Pixel Pitch with a wide colour gamut.

Broadcast Studios

On camera backdrops with a 5000:1 Contrast Ratio and a Refresh Rate up to 3840 Hz.

Command Centres

A 160 degree Viewing Angle and IP65 front protection for monitoring walls in constant use.

Where a LED Video Wall Fits in Your Organisation

How organisations deploy a LED Video Wall, and what changes for the teams that use it

Banking

Trading Floor Wall for a National Bank

A national bank installs an Active LED P 1.5mm COB wall along its trading floor. The 1.56mm Pixel Pitch shows market data and news feeds without shadowing between lamps, which matters when dealers read small figures at speed. Brightness is customisable from 600 to 1000 nits, so the wall is set to a floor that is bright by day and dimmer in the evening. The modular Diecast Aluminium body keeps a long, seamless installation light enough for the building structure to carry.

Education

Broadcast Studio Wall for a University Media School

A university media school fits its teaching Broadcast Studio with a P 1.5mm COB wall. Students learn on a surface with a wide colour gamut and a 5000:1 Contrast Ratio that reads correctly through a camera rather than only to the eye. A Refresh Rate up to 3840 Hz keeps the wall stable on recorded material, which is a lesson in itself for trainee operators. Front Maintenance keeps the studio usable during upkeep, so a teaching timetable is not built around service visits.

Government

Command Centre for a Port Authority

A port authority builds its Command Centre around a P 1.5mm COB wall. The 160 degree Viewing Angle keeps vessel tracking and camera feeds visible from every desk in a wide room, including the positions closest to the wall. IP65 front protection and a robust protective coating suit a facility where dust and movement are constant. The wall pairs with PeopleLink Room Solutions for coordination calls with berths, pilots and partner agencies, so the room handles monitoring and conferencing on one system.

Not sure which model fits your Conference Rooms or Broadcast Studios?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink Active LED 1.5MM COB	Typical Alternative
Pixel pitch	1.56mm COB	Coarser SMD pitch typical
Surface	Shadow-free COB, IP65 front	Exposed SMD lamps
Contrast	5000:1	Lower contrast typical
Maintenance	Front maintenance	Rear access required
Cabinet	Diecast aluminum	Heavier iron cabinet typical

Why PeopleLink

Hardware and Software

Displays, Cameras, Audio and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Displays pair with PeopleLink Cameras, Audio and Room Solutions out of the box.

Deployed Globally

Trusted across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

Explore Related Resources

In the Room

LED Video Walls in Lecture Halls and Training Rooms

Video wall installations photographed on site.

Lecture hall with a wall of student displays and a video wall — Lecture Hall Video WallMulti-Display Teaching Space

University lecture theatre with tiered seating, an Active LED wall and a presenter at a PeopleLink digital podium — University Lecture TheatreActive LED Wall with Digital Podium

Presenter at a digital podium addressing an audience in front of a video wall — Corporate Training SessionDigital Podium with Multi-Screen Wall

Talk to a PeopleLink LED Specialist about COB LED Walls

Wall size, viewing distance and content in one message. We reply with the right Pixel Pitch and Cabinet layout.
