What is GOB technology on the PeopleLink Active LED P 1.53mm?

GOB, or Glue on Board, coats the LED surface so it resists impact, dust and moisture better than exposed lamps. It is paired here with a 1.538mm Pixel Pitch, so the wall keeps fine detail while staying robust. That is the trade a Control Room or a public Lobby usually needs.

What is the Cabinet Resolution and how does it size a wall?

Each cabinet carries 416 by 312 pixels, built from modules of 208 by 104 pixels. Total wall resolution is the cabinet count multiplied out, so the layout is planned from these figures rather than from a screen size. The 160 by 160 degree Viewing Angle then determines how far off axis people can sit and still see the full picture.

What Viewing Distance does the LED Video Wall suit?

It works across a Viewing Distance of 1.5 to 60 metres, which covers a desk directly in front of the wall and an observer at the far end of a large room. Brightness is customisable between 600 and 800 nits so the setting matches the room's lighting. Share the room depth and seating with a PeopleLink specialist to confirm the wall size.

Does it work with PeopleLink room systems?

Yes. PeopleLink builds Displays, Cameras, Audio and Room Solutions as one AV OEM, so a monitoring wall and the conferencing around it are specified together. In an operations or situation room that means incoming feeds and live calls share one design.

What does GOB protection mean in daily use?

Glue-on-Board covers the LEDs with a protective layer, so the surface resists knocks, dust and moisture better than exposed lamps. It suits Control Rooms, Meeting Spaces and Lobbies where people work or walk close to the wall.

Who installs and supports the display?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration.

Active LED · GOB LED Video Wall

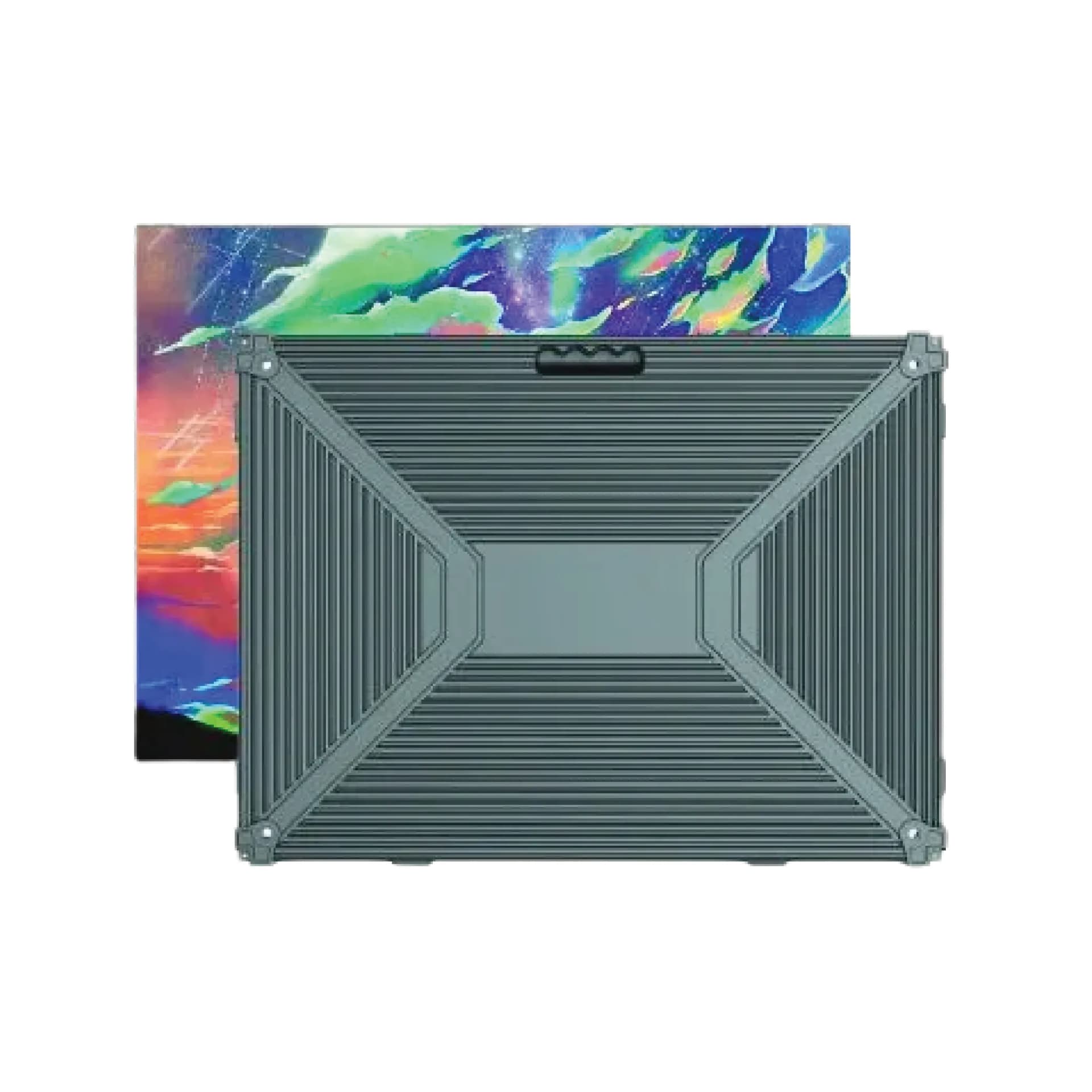

PeopleLink Active LED 1.53MM GOBP1.53 GOB Fine Pitch LED Video Wall for Control Rooms, Meeting Spaces and Corporate Displays

The PeopleLink Active LED P 1.53mm GOB is a Fine Pitch LED Video Wall for Control Rooms, Meeting Spaces and Corporate Displays.

1.538mm Pixel pitch
600-800 nits Brightness
160 degrees Viewing angle

Request a Quote WhatsApp

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a P1.53 GOB LED Wall does in a Control Room

The PeopleLink Active LED P 1.53mm GOB is a Fine Pitch LED Video Wall for Control Rooms, Meeting Spaces and Corporate Displays. Glue on Board technology seals the lamp surface behind a 1.538mm Pixel Pitch, with a Cabinet Resolution of 416 by 312 pixels and a Module Resolution of 208 by 104. Brightness is customisable between 600 and 800 nits, the Viewing Angle is 160 by 160 degrees, and the wall works across a Viewing Distance of 1.5 to 60 metres. Operations teams, boardrooms and visitor centres use it, and it runs with PeopleLink Cameras, Audio and Room Solutions. The sealed GOB face is what lets it sit in spaces where people work or walk within arm's reach.

Reliable protection and crystal-clear performance. This PeopleLink Active LED series combines advanced Glue-on-Board (GOB) technology with precision pixel pitch to deliver durable, high-quality indoor LED visuals.

Designed for commercial environments such as control rooms, meeting spaces, and corporate displays, it ensures long-lasting clarity and seamless viewing.

Pixel Pitch: 1.538mm GOB Technology
High Brightness: 600-800 Nits (Customizable).
Module Resolution: 208 X 104.
Wide Viewing Angle: 160°/160°
Cabinet Resolution: 416 x 312 pixels.
Viewing Distance: 1.5-60m

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink Active LED 1.53MM GOB
Pixel pitch	1.538mm
Brightness	600-800 nits
Viewing angle	160 degrees
Cabinet resolution	416 x 312

Technical Specifications

Display

Pixel Pitch	1.538 mm
LED Technology	GOB (Glue on Board)
Brightness	600 to 800 nits (customizable)
Module Resolution	208 x 104
Cabinet Resolution	416 x 312 pixels
Viewing Angle	160 degrees / 160 degrees
Viewing Distance	1.5 to 60 m

Rooms It Serves

Control Rooms

A sealed GOB surface for monitoring walls in continuous use.

Meeting Spaces

Fine Pitch clarity at 1.538mm for collaboration and shared content.

Corporate Displays

A 160 by 160 degree Viewing Angle for Lobbies and visitor showcases.

Where a LED Video Wall Fits in Your Organisation

How organisations deploy a LED Video Wall, and what changes for the teams that use it

Enterprise

Network Operations Centre for a Telecom Operator

A telecom operator fits its Network Operations Centre with an Active LED P 1.53mm GOB wall. The Glue on Board surface stands up to heavy use and accidental contact from engineers moving between desks and the wall. A 1.538mm Pixel Pitch shows dense dashboards and alarm tables clearly at close range, and the 160 by 160 degree Viewing Angle covers every operator position along the arc of desks. Because the Viewing Distance runs from 1.5 to 60 metres, the same wall serves the desks and the managers watching from the back.

Government

Situation Room for a National Disaster Authority

A national disaster authority builds a Situation Room around the P 1.53mm GOB. The Viewing Distance range of 1.5 to 60 metres suits both the front desks and observers standing at the back during an incident. Brightness customisable between 600 and 800 nits keeps maps and live feeds readable under full room lighting, since a situation room is not dimmed for comfort. PeopleLink Cameras and Audio connect field teams into the same room, so the wall carries both incoming feeds and the call itself.

Manufacturing

Corporate Showcase Wall for a Listed Manufacturer

A listed manufacturer installs a P 1.53mm GOB wall in its visitor centre Lobby for product showcases and investor visits. The 416 by 312 Cabinet Resolution tiles across the wall so the finished surface reads as one picture rather than a grid. The sealed GOB face suits a space with daily visitor traffic, where a wall within reach of the public would otherwise collect damage. Wide viewing angles cover visitors approaching from the entrance as well as those seated for a briefing.

Not sure which model fits your Control Rooms or Meeting Spaces?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink Active LED 1.53MM GOB	Typical Alternative
Surface	GOB protected surface	Exposed SMD lamps
Pixel pitch	1.538mm fine pitch	Coarser pitch typical
Viewing angle	160 / 160 degrees	Narrower typical
Durability	Impact-resistant GOB	Easily damaged lamps
Image format	Seamless direct-view LED	Visible bezels on tiled LCD

Why PeopleLink

Hardware and Software

Displays, Cameras, Audio and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Displays pair with PeopleLink Cameras, Audio and Room Solutions out of the box.

Deployed Globally

Trusted across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

Explore Related Resources

In the Room

LED Video Walls in Lecture Halls and Training Rooms

Video wall installations photographed on site.

Lecture hall with a wall of student displays and a video wall — Lecture Hall Video WallMulti-Display Teaching Space

University lecture theatre with tiered seating, an Active LED wall and a presenter at a PeopleLink digital podium — University Lecture TheatreActive LED Wall with Digital Podium

Presenter at a digital podium addressing an audience in front of a video wall — Corporate Training SessionDigital Podium with Multi-Screen Wall

Talk to a PeopleLink LED Specialist about GOB LED Walls

Wall size, viewing distance and content in one message. We reply with the right Pixel Pitch and Cabinet layout.
