What is the Pixel Pitch of the PeopleLink Active LED 1.53 Flexible?

It has a 1.53mm Pixel Pitch built on SMD1010GOB technology, with a Pixel Density of 422,753 dots per square metre. The GOB surface encapsulates the lamps, which matters on a curved wall people walk past and touch. Colour is processed at 14 to 16 bit, so gradients on brand and exhibition content stay smooth.

How does the flexible, magnetic design work on a Curved Wall?

Modules mount magnetically without tools and bend to a 500mm radius, supporting curved, cylindrical, wave shaped and custom configurations. Each module is 320mm by 160mm and only 10mm thick, so the wall follows the architecture rather than sitting proud of it. The modular architecture is upgradable, so a shaped installation can be extended later.

How bright is the display and what is the Viewing Angle?

Brightness is 600 to 800 nits with a 10000:1 Contrast Ratio and a 160 by 160 degree Viewing Angle. Colour Temperature is adjustable from 5000K to 10000K, so the wall can be matched to retail, gallery or stage lighting. The wide angle keeps colour consistent for viewers standing off to the side of a curve.

How is the LED Video Wall serviced?

It operates from minus 20C to 60C and uses Front Service Maintenance, so technicians work from the visible face without rear access. That matters where a curved wall is built into a column, a lobby feature or a stage set. Modules are upgradable, so the installation can be refreshed rather than rebuilt.

Does it work with PeopleLink room systems?

Yes. PeopleLink builds Displays, Cameras, Audio and Room Solutions as one AV OEM, so a shaped wall can be driven as part of a PeopleLink room or stage setup. One vendor covers the display, the capture and the sound, which simplifies commissioning on a creative install.

Can the 1.53 Flexible be reshaped after installation?

Yes. The magnetic modules mount without tools and can be re-formed on a new substructure, within the 500mm Bending Radius. Ask a PeopleLink specialist about the substructure for your shape.

Who installs and supports the display?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration.

Active LED · Flexible LED Display

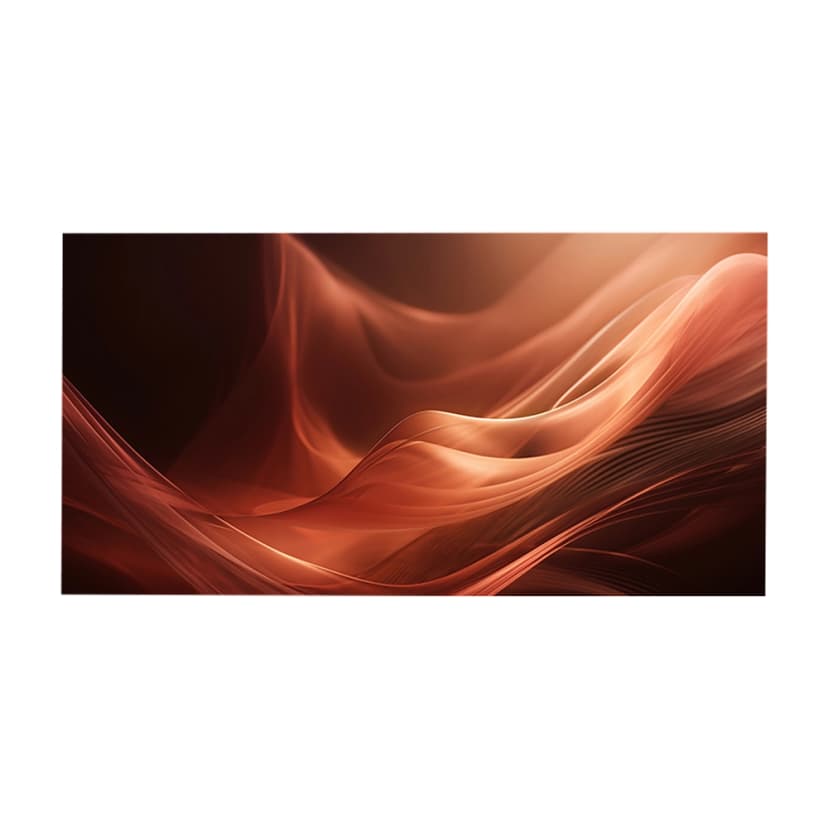

PeopleLink Active LED 1.53 FlexibleP1.53 Flexible Curved LED Wall for Lobbies, Retail and Stage Sets

The PeopleLink Active LED 1.53 Flexible is a bendable LED Video Wall for curved, cylindrical and wave shaped indoor installations.

1.53mm Pixel pitch
600-800 nits Brightness
160 degrees Viewing angle

Request a Quote WhatsApp

1 / 5

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a Flexible Bendable LED Display does on a Curved Wall

The PeopleLink Active LED 1.53 Flexible is a bendable LED Video Wall for curved, cylindrical and wave shaped indoor installations. Magnetic, tool free modules bend to a 500mm radius and carry a GOB protected surface with a Pixel Density of 422,753 dots per square metre. Brightness of 600 to 800 nits, a 10000:1 Contrast Ratio and a 160 by 160 degree Viewing Angle keep the image consistent right across a curve. Retail Stores, Corporate Lobbies, Museums, Exhibitions and Theatrical Stage Sets are its usual homes, and PeopleLink Cameras and Audio pair with it for live stage work. Front Service Maintenance means a wall built into architecture stays reachable for upkeep.

The PeopleLink P1.53 Indoor Flexible LED Display is a premium fine-pitch LED solution designed for creative indoor installations. Its 1.53 mm pixel pitch delivers sharp visuals, vibrant colors, and outstanding image clarity. The flexible module design supports curved, cylindrical, wave-shaped, and custom display configurations. Its lightweight and bendable construction enables easy installation on convex and concave surfaces.

High brightness and wide viewing angles ensure a clear and immersive viewing experience. Superior color consistency delivers seamless visuals across the entire display. It is ideal for retail stores, corporate lobbies, museums, exhibitions, and entertainment venues. The P1.53 Flexible LED Display combines innovative design, reliability, and exceptional visual performance.

Magnetic Installation: Quick, secure, tool-free mounting
Extreme Bending Radius: Seamless curvature to fit complex and creative surfaces
Ultra Thin Design: Sleek, lightweight, space-saving profile
Color Depth: Advanced 14-16 bit color depth for enhanced detail
High Color Uniformity: Consistent, vibrant, true-to-life colors across the display
It Comes with Complete Front Maintenance
Upgradable Module Design: Modular architecture extends performance
Super Wide View: Consistent image quality from ultra-wide viewing angles
Ultra High Refresh Rate: >=3840Hz for flicker-free, smooth motion
Reliability: Single-lamp maintenance and modular design for long-term service

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink Active LED 1.53 Flexible
Pixel pitch	1.53mm
Brightness	600-800 nits
Viewing angle	160 degrees

Rooms It Serves

Curved and Shaped Walls

Magnetic, bendable modules with a 500mm Bending Radius wrap columns, pillars and wave shaped surfaces.

Retail and Corporate Lobbies

Brightness of 600 to 800 nits and a 10000:1 Contrast Ratio for branded, immersive spaces.

Theatrical and Stage Sets

Curved, seamless Direct View surfaces for immersive theatrical and stage backdrops.

Where a LED Video Wall Fits in Your Organisation

How organisations deploy a LED Video Wall, and what changes for the teams that use it

Enterprise

Curved Lobby Wall for a Corporate Headquarters

A corporate headquarters wraps a curved reception wall in the Active LED 1.53 Flexible. The magnetic, bendable modules with a 500mm Bending Radius follow the architect's curve, and the GOB-protected surface stands up to daily foot traffic in the Lobby. Brand films and live company updates play at 600 to 800 nits, visible across the 160-degree Viewing Angle from the entrance to the lifts.

Government

Immersive Gallery Display for a National Museum

A national museum builds a cylindrical exhibit column with the 1.53 Flexible. Tool free magnetic mounting lets the exhibition team reshape the display between shows without a rigid cabinet frame, and the 500mm Bending Radius allows a tight column rather than a flat panel. Front Service Maintenance keeps the column accessible while galleries stay open to visitors. A 10000:1 Contrast Ratio holds artwork detail under the low gallery lighting curators prefer, and the adjustable 5000K to 10000K Colour Temperature is set to match the room.

Venues

Wave-Shaped Stage Backdrop for a Convention Centre

A convention centre installs a wave-shaped backdrop for keynotes and awards nights. The bendable modules form the wave without visible joins, and the fine 1.53mm Pixel Pitch keeps speaker video and sponsor content sharp for front rows and cameras alike. PeopleLink Cameras and Audio pair with the wall, so the same stage supports live streaming.

Not sure which model fits your Curved and Shaped Walls or Retail and Corporate Lobbies?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink Active LED 1.53 Flexible	Typical Alternative
Form factor	Magnetic, bendable module, R500mm bending radius	Rigid flat cabinets only
LED protection	GOB (Glue on Board) protected surface	Exposed SMD lamps
Installation	Tool-free magnetic mounting	Bolted / screwed cabinets
Maintenance	Front service, upgradable modules	Whole-module swap

Why PeopleLink

Hardware and Software

Displays, Cameras, Audio and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Displays pair with PeopleLink Cameras, Audio and Room Solutions out of the box.

Deployed Globally

Trusted across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

Explore Related Resources

In the Room

Video Walls at Events and in Large Venues

Auditoriums, stages and multi-site rooms photographed on site.

University lecture theatre with tiered seating, an Active LED wall and a presenter at a PeopleLink digital podium — University Lecture TheatreActive LED Wall with Digital Podium

Presenter on stage beside an interactive display at an auditorium event — Auditorium EventInteractive Display on Stage

Training room with a multi-screen wall showing participants from several sites on a live call — Multi-Site SessionScreen Wall with Live Participants

Talk to a PeopleLink LED Specialist about Flexible LED Walls

Wall size, viewing distance and content in one message. We reply with the right Pixel Pitch and Cabinet layout.
