Overview
What a P2.5 Flexible LED Display does on a Large Curved Wall

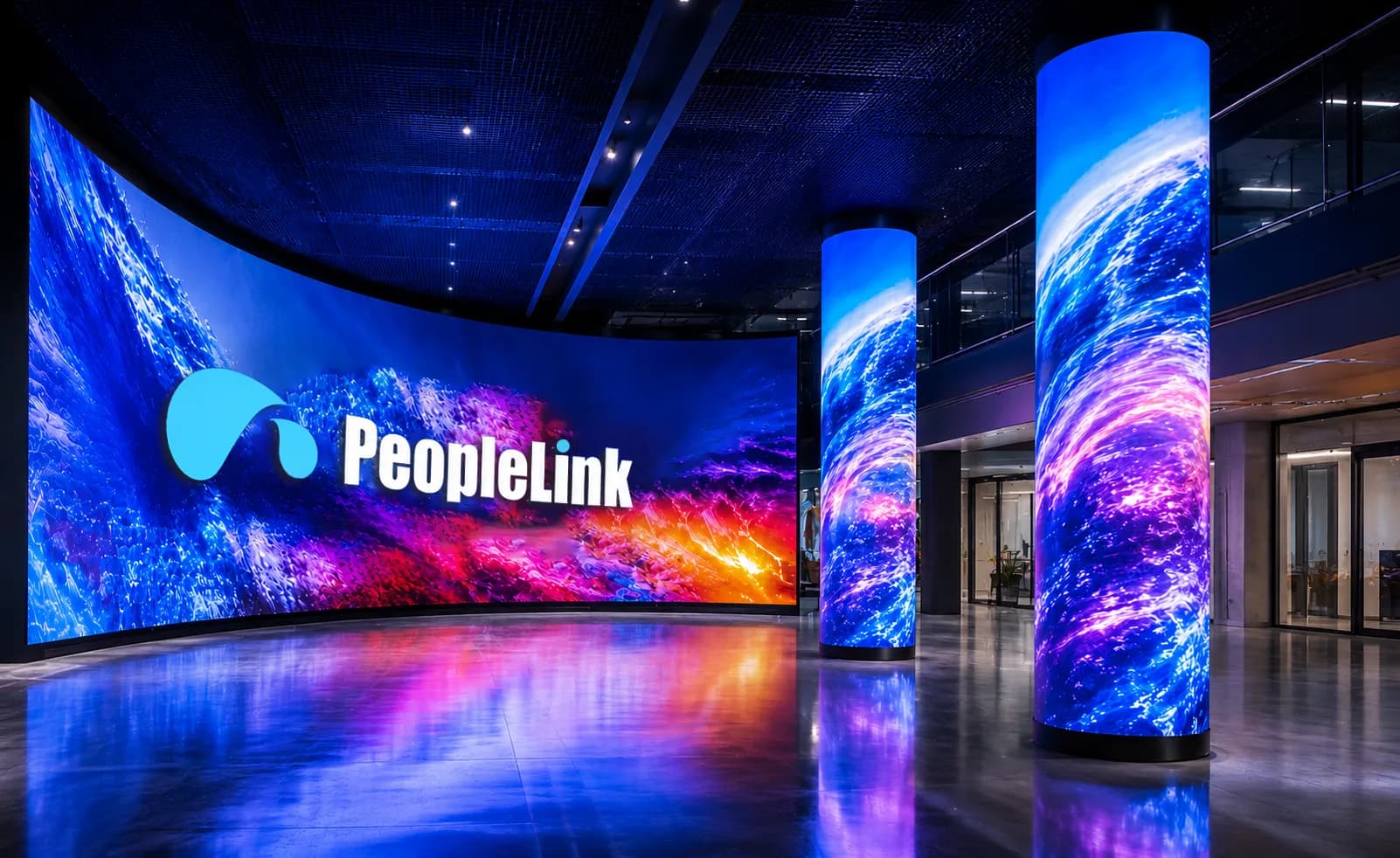

The PeopleLink Active LED 2.5 Flexible is a bendable LED Video Wall for large curved, cylindrical and wave shaped indoor installations. A 2.5mm Pixel Pitch on SMD2020GOB lamps gives 160,000 dots per square metre, which suits viewing across a lobby, an operations room or an exhibition aisle. Brightness of 600 to 800 nits, a 10000:1 Contrast Ratio and a 160 by 160 degree Viewing Angle hold the picture together around the curve. Retail, Healthcare, Government and Exhibition teams build with it, and PeopleLink Cameras and Audio pair with it for presentations. Modules pack down and reassemble magnetically, which makes it practical for a wall that travels or changes shape.
The PeopleLink P2.5 Indoor Flexible LED Display is a premium fine-pitch LED solution designed for creative indoor installations. Its 2.5 mm pixel pitch delivers sharp visuals, vibrant colors, and outstanding image clarity. The flexible module design supports curved, cylindrical, wave-shaped, and custom display configurations. Its lightweight and bendable construction enables easy installation on convex and concave surfaces.
High brightness and wide viewing angles ensure a clear and immersive viewing experience. Superior color consistency delivers seamless visuals across the entire display. It is ideal for retail stores, corporate lobbies, museums, exhibitions, and entertainment venues. The P2.5 Flexible LED Display combines innovative design, reliability, and exceptional visual performance.
Magnetic Installation: Quick, secure, tool-free mounting
Extreme Bending Radius: Seamless curvature to fit complex and creative surfaces
Super Wide View: Consistent image quality from ultra-wide viewing angles
Ultra High Refresh Rate: >=3840Hz for flicker-free, smooth motion
Reliability: Single-lamp maintenance and modular design for long-term service
Key Specifications
Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.
Item
PeopleLink Active LED 2.5 Flexible
Pixel pitch
2.5mm
Brightness
600-800 nits
Viewing angle
160 degrees
Rooms It Serves
Curved and Shaped Walls
Magnetic, bendable modules with a 500mm Bending Radius wrap columns, pillars and wave shaped surfaces.
Retail and Corporate Lobbies
A 2.5mm Pixel Pitch at 600 to 800 nits for large branded surfaces seen across a room.
Theatrical and Stage Sets
Curved, seamless backdrops that assemble and pack down without rigid cabinet frames.
Where a LED Video Wall Fits in Your Organisation
How organisations deploy a LED Video Wall, and what changes for the teams that use it
Government
Curved Command Wall for a Transport Operator
A transport operator's Operations Centre installs a gently curved Active LED 2.5 Flexible wall so every desk sees the whole picture at once. The 160 by 160 degree Viewing Angle keeps map overlays and camera feeds readable from the side desks rather than only from the middle row. The GOB protected surface suits a room staffed continuously by rotating shift teams, and Front Service Maintenance means a module is changed without taking the wall out of service. A 10000:1 Contrast Ratio keeps alarm colours distinct on dark map backgrounds.
Healthcare
Wrap Around Lobby Display for a District Hospital
A district hospital wraps a reception pillar with the 2.5 Flexible for patient information, wayfinding and health awareness content. The 500mm Bending Radius follows the pillar closely, and brightness of 600 to 800 nits reads clearly under bright lobby lighting near the entrance doors. Tool free magnetic mounting allowed a short fit out in a reception that stayed open to patients throughout. Adjustable Colour Temperature from 5000K to 10000K lets the facilities team soften the display for overnight hours.
Manufacturing
Exhibition Booth Backdrop for a Listed Manufacturer
A listed manufacturer builds a curved exhibition booth backdrop that travels between trade shows in Europe and North America. The magnetic modules assemble and pack down quickly, which keeps stand build time and freight volume down across a season of shows. A 2.5mm Pixel Pitch and 160,000 dots per square metre suit aisle distance viewing, where visitors stand several metres back. The same wall pairs with PeopleLink Cameras and Audio for booth presentations and live product demos streamed to buyers who could not attend.
Not sure which model fits your Curved and Shaped Walls or Retail and Corporate Lobbies?
Tell us the room size and seating. A PeopleLink specialist will recommend the right model.
It has a 2.5mm Pixel Pitch built on SMD2020GOB technology, with a Pixel Density of 160,000 dots per square metre. That pitch is intended for larger surfaces viewed from several metres, such as Lobbies, Exhibition Halls and Operations Rooms. The GOB surface encapsulates the lamps, which suits a wall people pass close to every day.
Modules mount magnetically without tools and bend to a 500mm radius, covering curved, cylindrical, wave shaped and custom configurations. At 320mm by 160mm and 10mm thick, each module is light enough for a small team to handle on a ladder or scaffold. The same property makes the wall practical to dismantle and rebuild elsewhere.
Brightness is 600 to 800 nits with a 10000:1 Contrast Ratio and a 160 by 160 degree Viewing Angle. Colour Temperature is adjustable from 5000K to 10000K, which helps in a lobby that is daylit by day and artificially lit at night. The wide angle means side viewers see the same colours as those directly in front.
It works from minus 20C to 60C and uses Front Service Maintenance, so modules are reached from the visible face. Rear access is often impossible once a curved wall is wrapped around a pillar or built into a stand. Upgradable modules mean the installation can be improved in place instead of replaced.
Yes. PeopleLink builds Displays, Cameras, Audio and Room Solutions as one AV OEM, so the wall can be driven as part of a room, booth or control centre design. One vendor across display, capture and sound keeps responsibility clear when several trades work on the same space.
The 2.5 Flexible, with 160,000 dots per square metre, suits longer viewing distances such as lobbies, exhibition halls and large operations rooms. For closer viewing, consider the 1.53 or 1.86 Flexible. A PeopleLink specialist can size it for your space.
Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration.
