Multichannel AIO DSPMulti-Channel All-in-One DSP with 100W Amplifier for Classrooms and Training Rooms

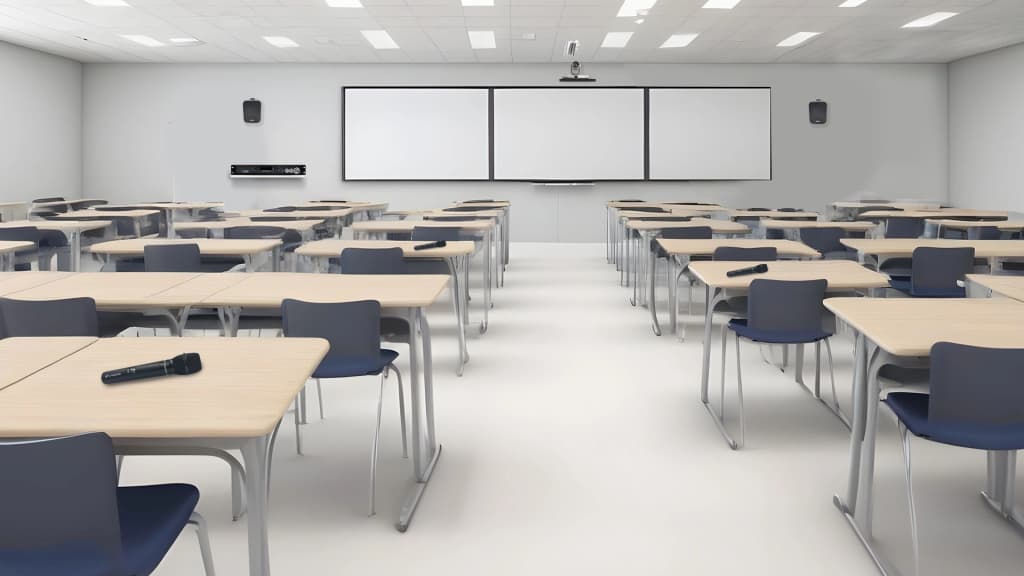

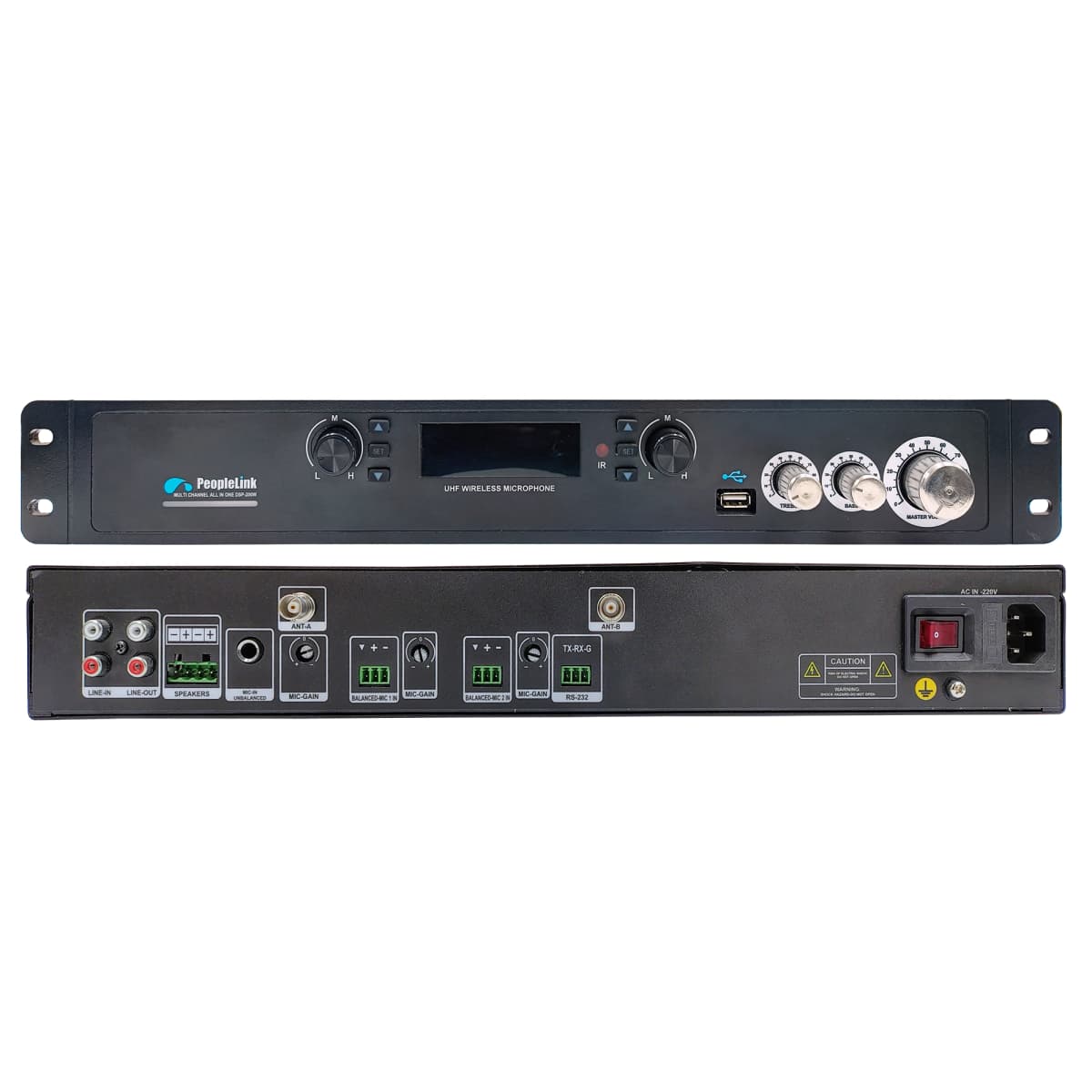

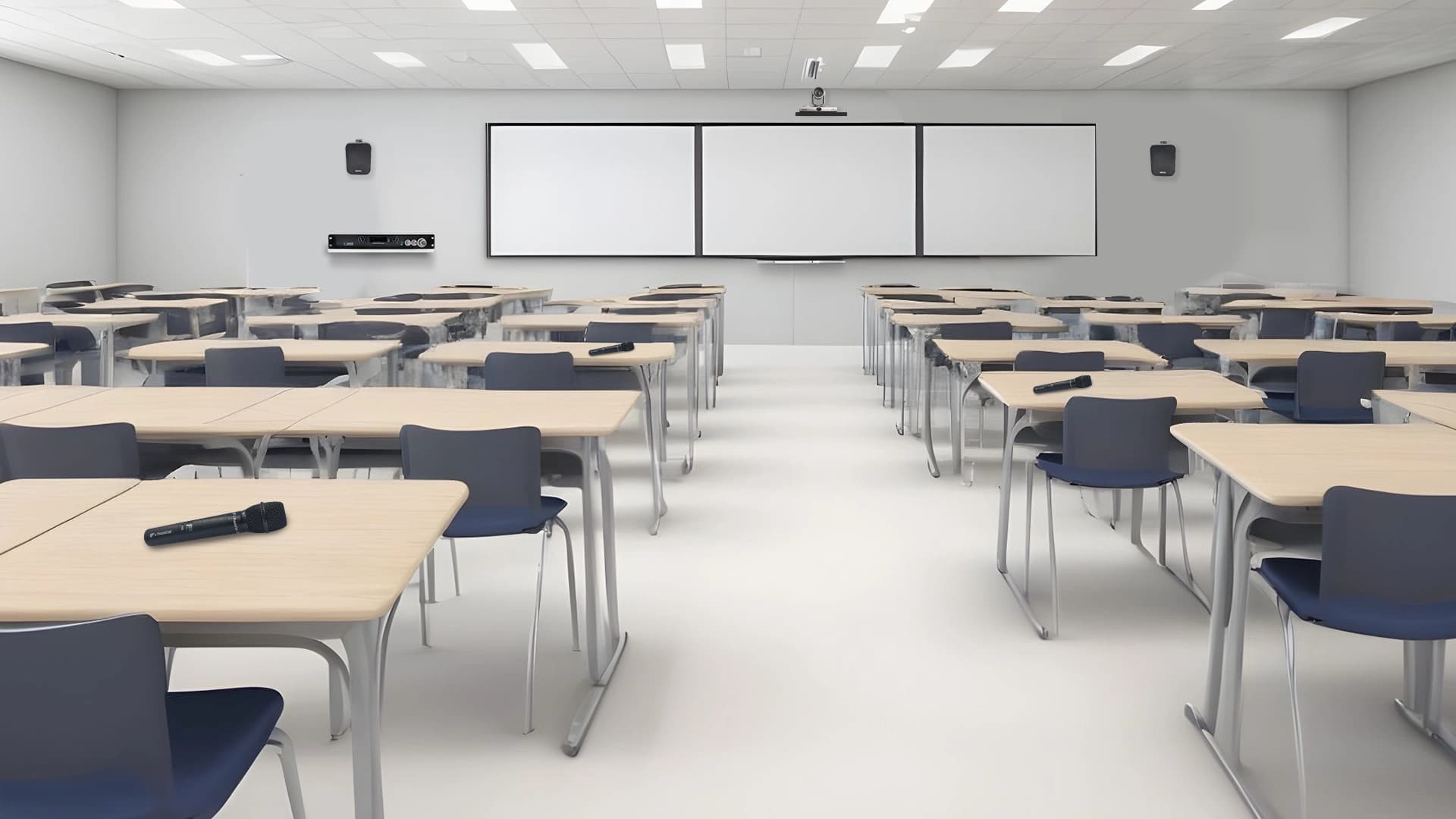

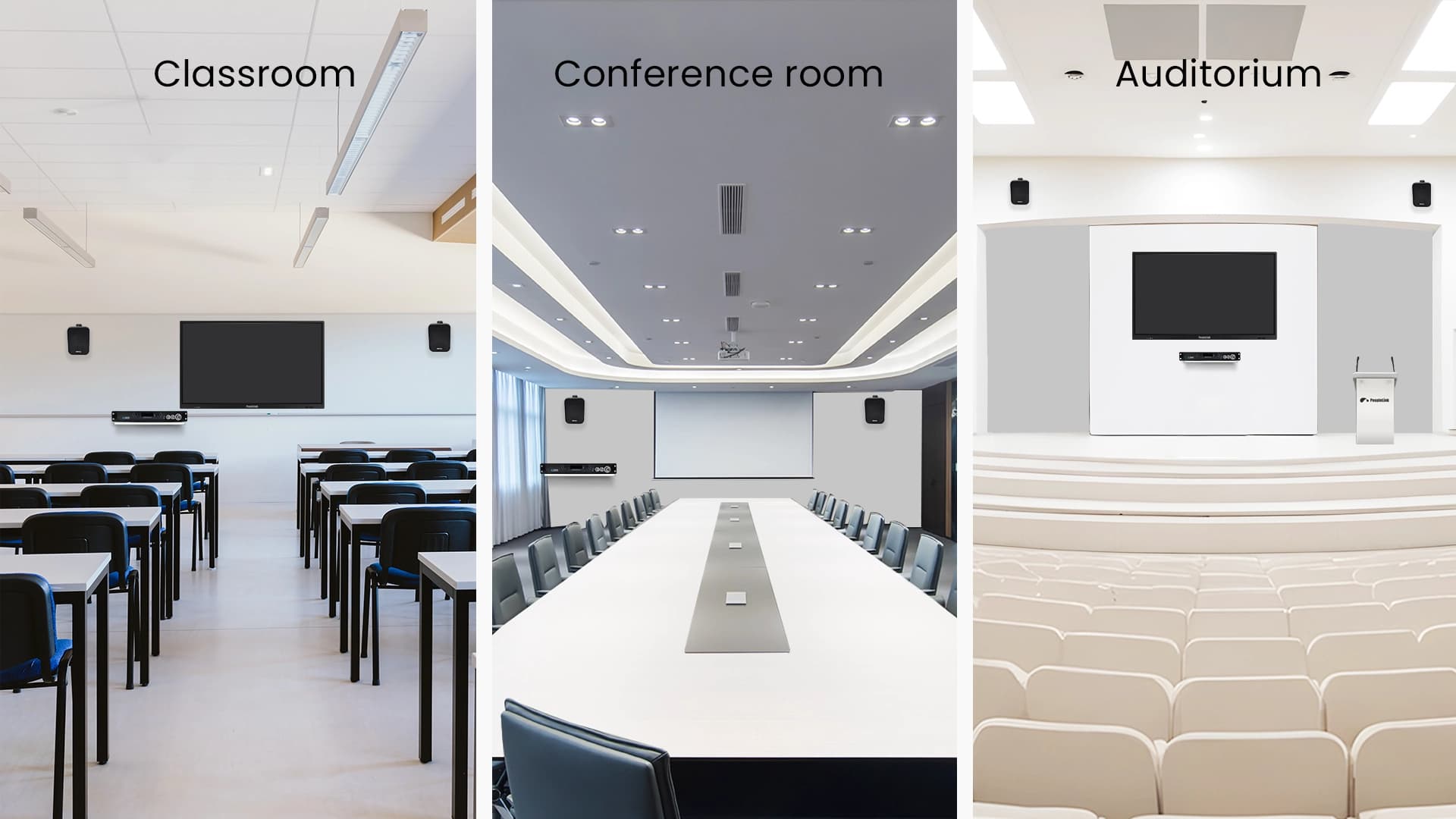

It is an all-in-one Audio Processor that puts a DSP, a Mixer, a Class D Amplifier and a UHF Wireless Microphone System into one 1.5U rack unit. A room that would otherwise need four separate boxes is served by a single chassis, which shortens both the rack and the commissioning. It suits Classrooms, Training Rooms and Multipurpose Halls of 40 to 60 seats.

It delivers 100 watts RMS, 2 x 50 watts into 8 ohms, through Class D digital amplification with two 50W speakers. A frequency range of 80 Hz to 18KHz with the built-in Equalizer covers speech and programme playback alike. That is sized for a medium hall or classroom rather than a large auditorium.

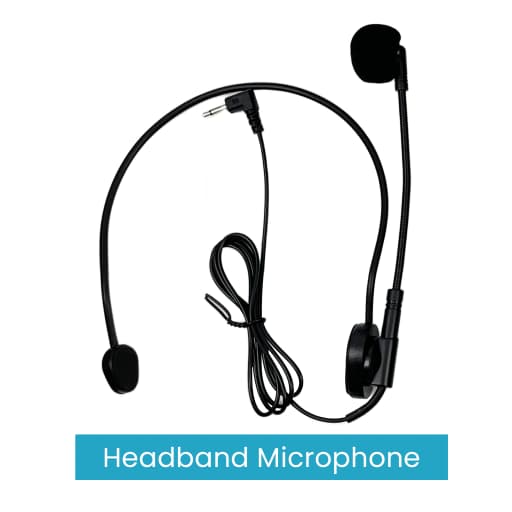

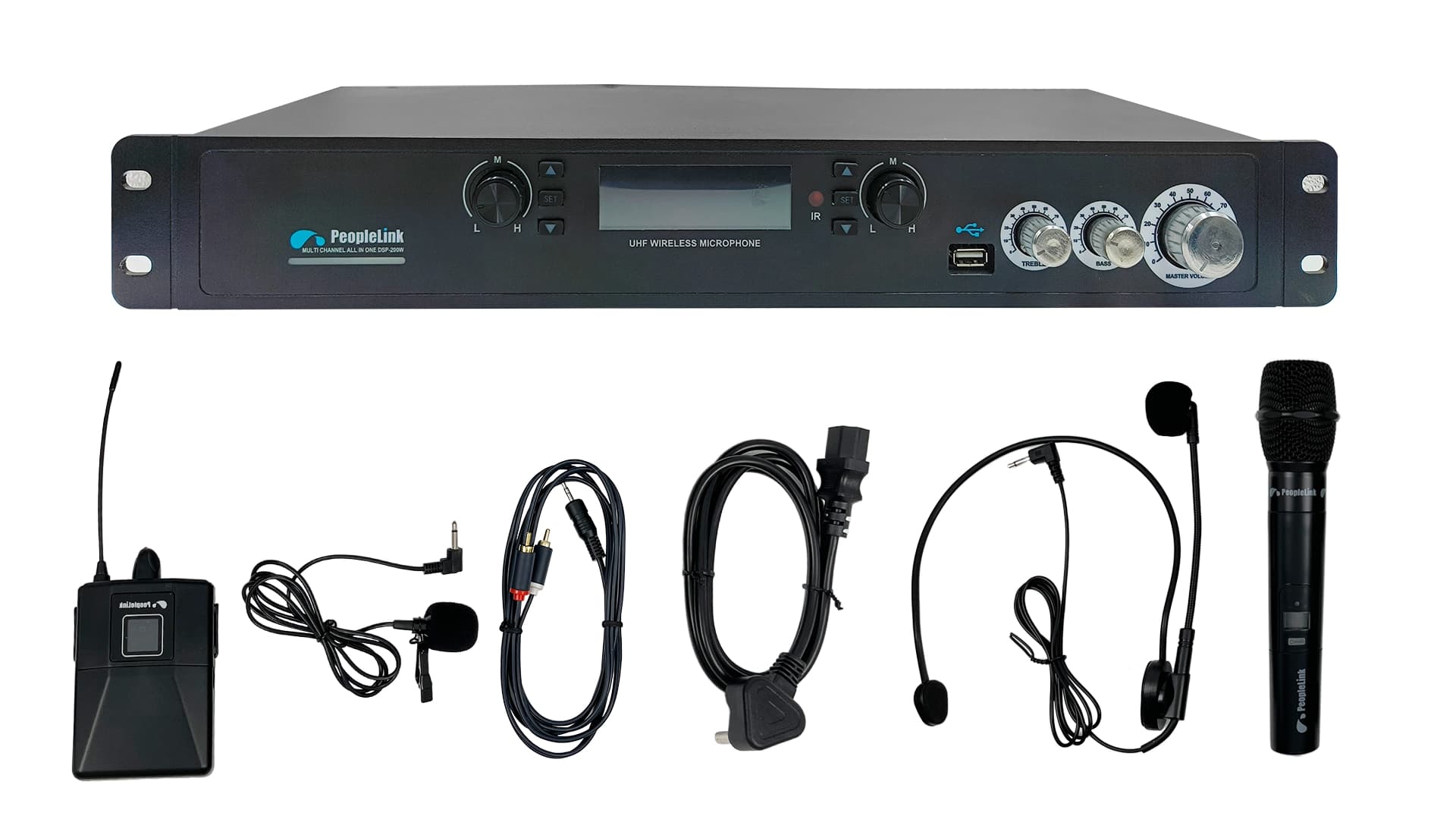

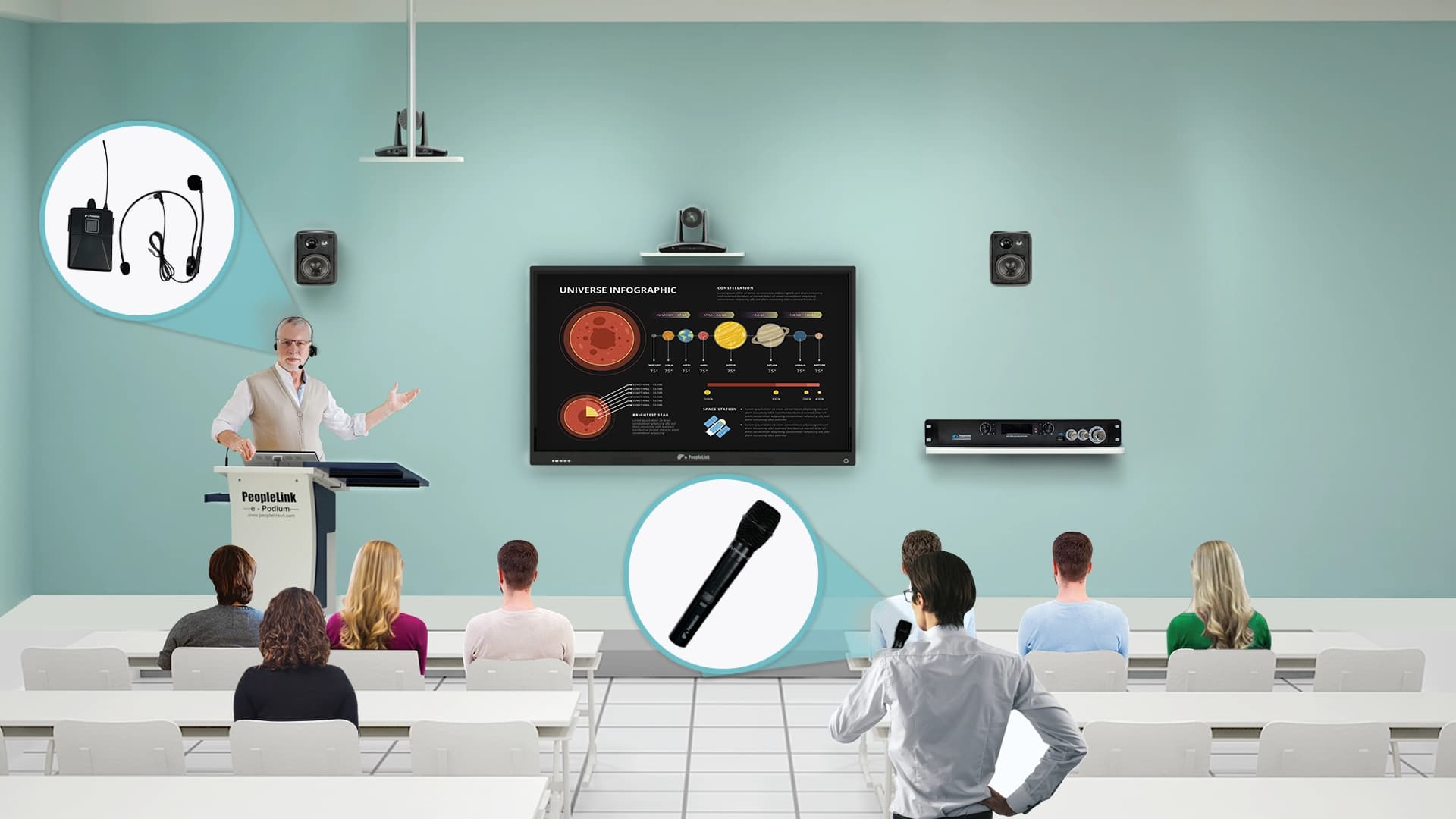

A UHF wireless microphone system is built in, with handheld or headband options and soft flexible antennas, and a wireless operating range of up to 100 feet. A headband microphone suits a lecturer who moves across the front of a room, while handhelds pass between speakers on the floor. Wired sources connect over USB 2.0, RCA, 6.5mm or Phoenix at the same time.

One unit is built for medium-sized rooms of 40 to 60 seats, with a wireless operating range of up to 100 feet and 100 watts RMS driving 2 x 50 watt speakers. The UHF wireless microphone system ships with handheld or headband options and soft flexible antennas, and wired sources connect over USB 2.0, RCA, 6.5mm or Phoenix. Send your room dimensions and seat count to a PeopleLink specialist and they will match a configuration to the space.

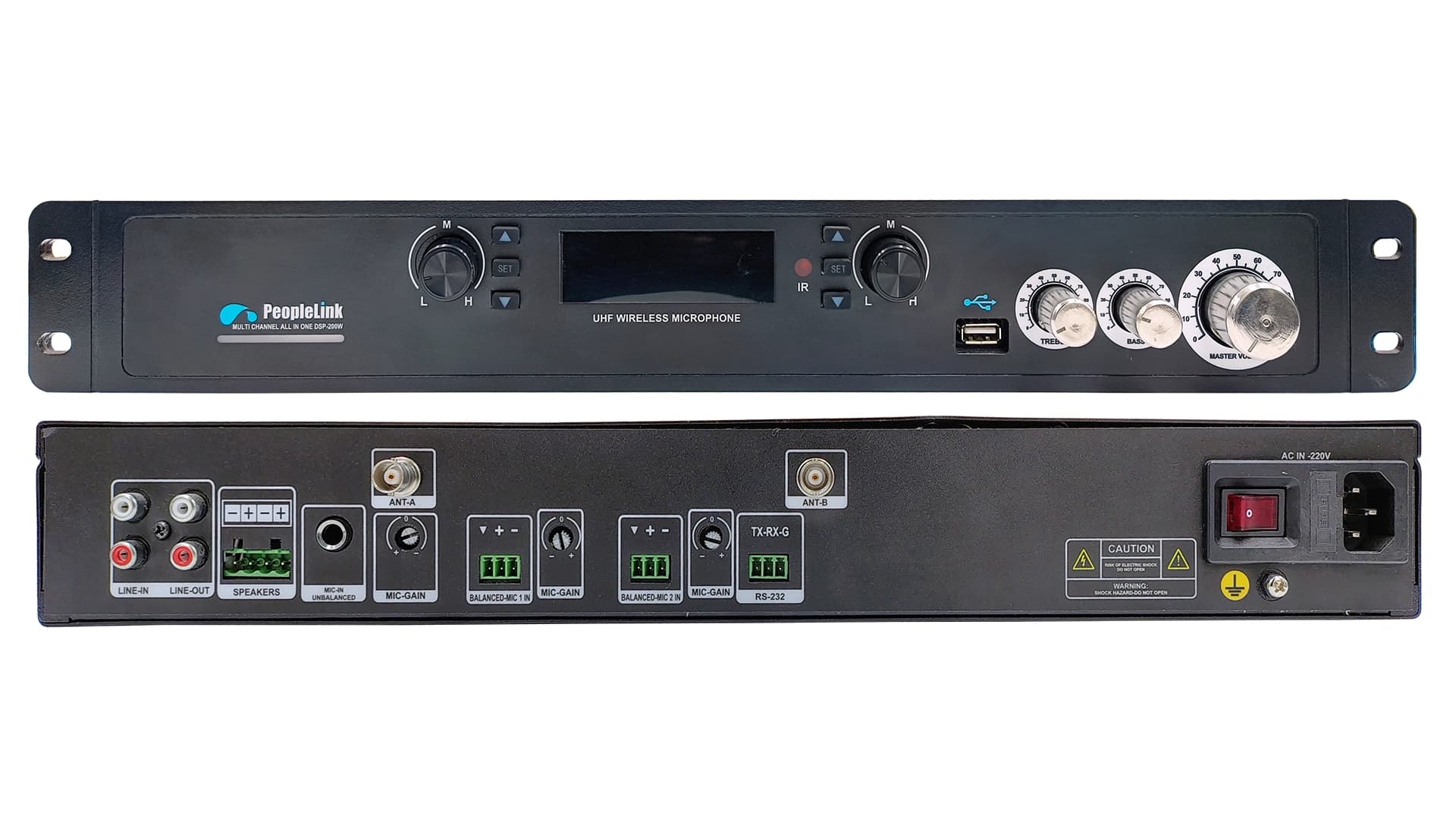

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. The 19-inch 1.5U chassis fits an existing equipment rack, so a room can be upgraded without new furniture.

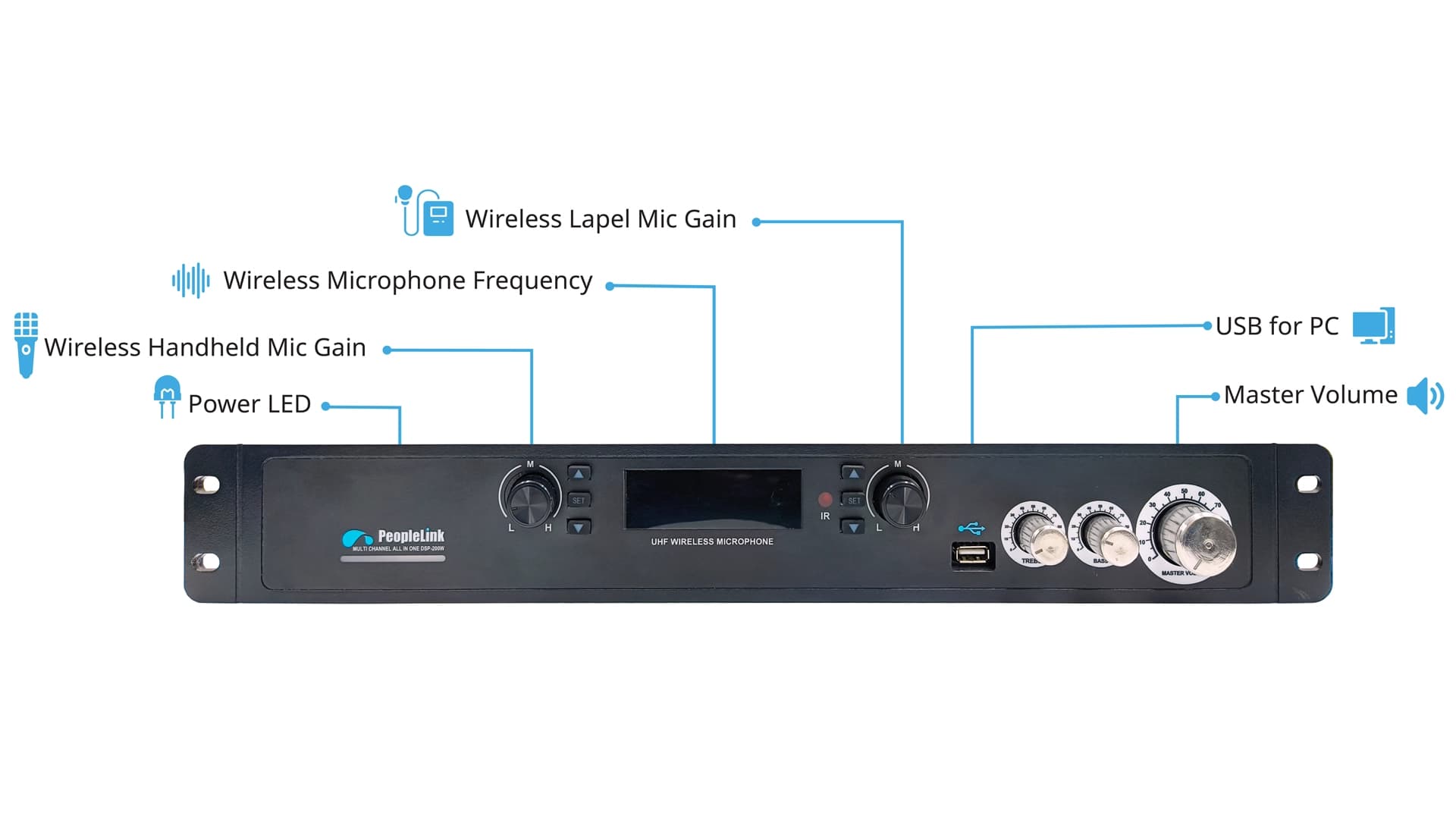

Automatic mixing, Automatic Gain Control and the De-reverb Filter are applied on board, so a stand-in trainer or teacher does not have to open settings between sessions. The LCD Display shows the state of the unit at a glance. RS-232 hands control to a Room Control system where one button should start the room.
