PeopleLink 4K Impact Bar

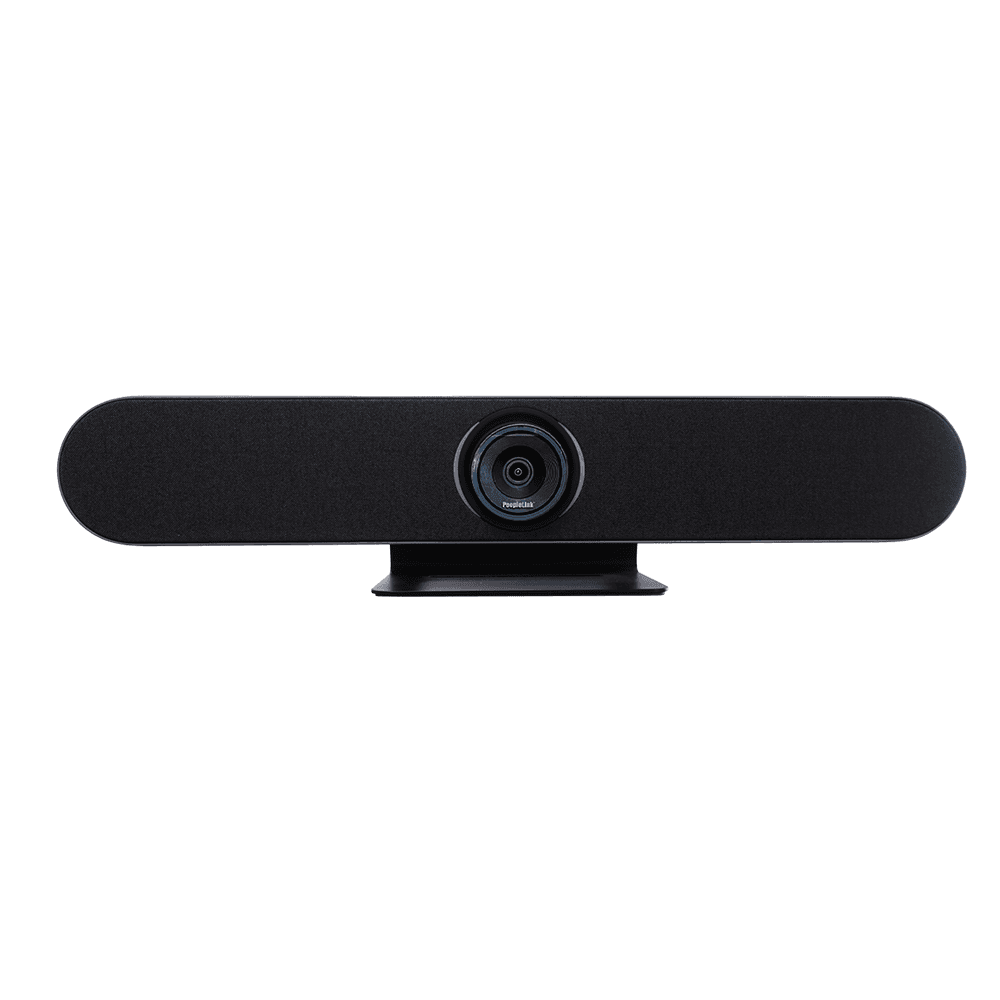

The PeopleLink 4K Impact Bar is an all-in-one video collaboration appliance that integrates a 4K UHD camera, array microphone, high-fidelity speaker and a high-performance Android chip into a single device. One unit connects to the network and to a display to hold a meeting, or acts as a USB audio and video peripheral for a PC. It supports AI auto-framing and sound source tracking, dual HDMI output and self-developed H.323/SIP terminal software. As one OEM, PeopleLink builds it to pair cleanly with PeopleLink cameras, audio and room solutions.
- Camera4K UHD integrated
- OutputsDual HDMI
- ProtocolsH.323 / SIP
One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products
Product Overview
Key Features
- Integration Design: Integrated 4K UHD camera, array microphone, high-fidelity speaker, high-performance android chip, single device connected to the network and connect with display device to hold meeting
- One Device Two Uses: It can be used as an android video conferencing terminal, or as an integrated audio and video USB camera connected to a PC as a peripheral
- Built-in AI: Support automatic box selection and sound source tracking
- Dual Screen Different Display: 2 x HDMI output supported, displays the main and secondary streams in full screen, respectively
- Super Decoding: 1 x 4K@60fps, 8 x 1080P@30fps, 16 x 720P@30fps, 32 x 480P@30fps, 64 x 360P@15fps
- Multi-Protocol Convergence: Self-developed H.323/SIP terminal software with super interoperability, support install Tencent conference and other third-party cloud video conference client, and realizes the integration of the two
Key Specifications
Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.
| Item | PeopleLink 4K Impact Bar |
|---|---|
| Camera | 4K UHD integrated |
| Outputs | Dual HDMI |
| Protocols | H.323 / SIP |
Rooms It Serves
Meeting rooms
All-in-one camera, mic and speaker for fast room deployment.
BYOD and PC
Doubles as a USB audio and video peripheral for a PC.
Dual display
Dual HDMI output shows main and secondary streams full screen.
Not sure which model fits your Meeting rooms or BYOD and PC?
Tell us the room size and seating. A PeopleLink specialist will recommend the right model.
How It Compares
| Capability | PeopleLink 4K Impact Bar | Typical Alternative |
|---|---|---|
| All-in-one | 4K camera, array mic and speaker in one bar | A consumer meeting app |
| Framing | AI auto box selection and sound tracking | Fixed frame |
| Outputs | Dual HDMI for two displays | Single output only |
| Interoperability | H.323 / SIP plus cloud clients | One app only |
Why PeopleLink
Hardware + software
Cameras, audio, control and collaboration platforms, built by one OEM.
Integrates cleanly
PeopleLink endpoints pair with PeopleLink cameras, audio and room solutions out of the box.
Deployed globally
Trusted across enterprise, government, education and healthcare environments.
Specialist support
Talk to PeopleLink AV specialists for sizing, integration and rollout.
Planning a multi-room or campus rollout?
Get one consolidated quote covering Hardware, Software and Installation from One OEM.
Frequently Asked Questions
What is the PeopleLink 4K Impact Bar?
It is an all-in-one video collaboration appliance integrating a 4K UHD camera, array microphone, high-fidelity speaker and an Android chip into a single device.
Can the 4K Impact Bar work with a PC?
Yes. It can be used as an Android video conferencing terminal, or as an integrated audio and video USB camera connected to a PC as a peripheral.
Which protocols does it support?
It runs self-developed H.323/SIP terminal software with interoperability, and supports installing third-party cloud video conference clients.
