PeopleLink InstaController For Optimal Enterprise Control

Professional Control System

The PeopleLink InstaController is a control system that integrates IP devices into a larger control network for any personal or commercial setup. It offers secured, reliable connectivity with a wide range of IP devices such as touchscreens, computers, mobile devices, cameras, speakers, lights, AC and displays, whether on-premises or remote. An Android app controls systems on LAN, WAN or internet from any location, and a 7 inch touch controller drives external devices. It mounts in 1U of rack space, uses comprehensive user management for access control, and is suited to boardrooms, conference rooms and training rooms. Because PeopleLink is one OEM, it pairs cleanly with PeopleLink cameras, audio and room solutions.

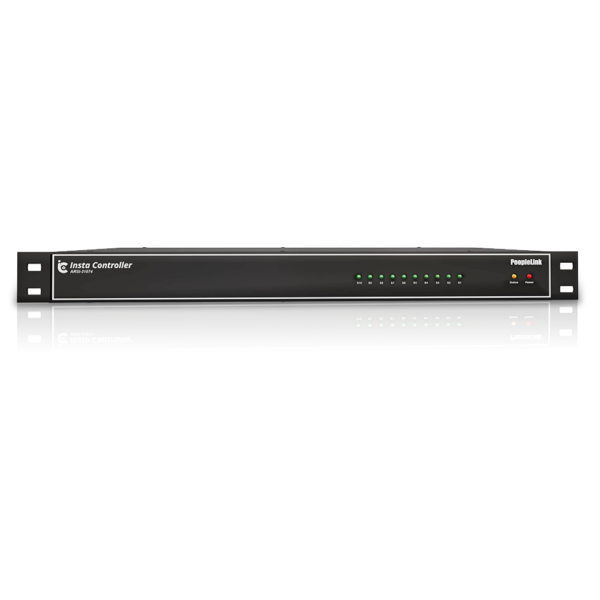

PeopleLink InstaController Front View
1 / 3

PeopleLink InstaController

PeopleLink InstaController is a control system that integrates IP devices into a larger control network. This system can be integrated with any network, personal or commercial. The device offers secured and reliable connectivity with a wide range of IP devices, such as touchscreens, computers and mobile devices, whether on-premises or at remote locations. The InstaController Android app helps control systems on LAN, WAN or internet from any location across the globe.

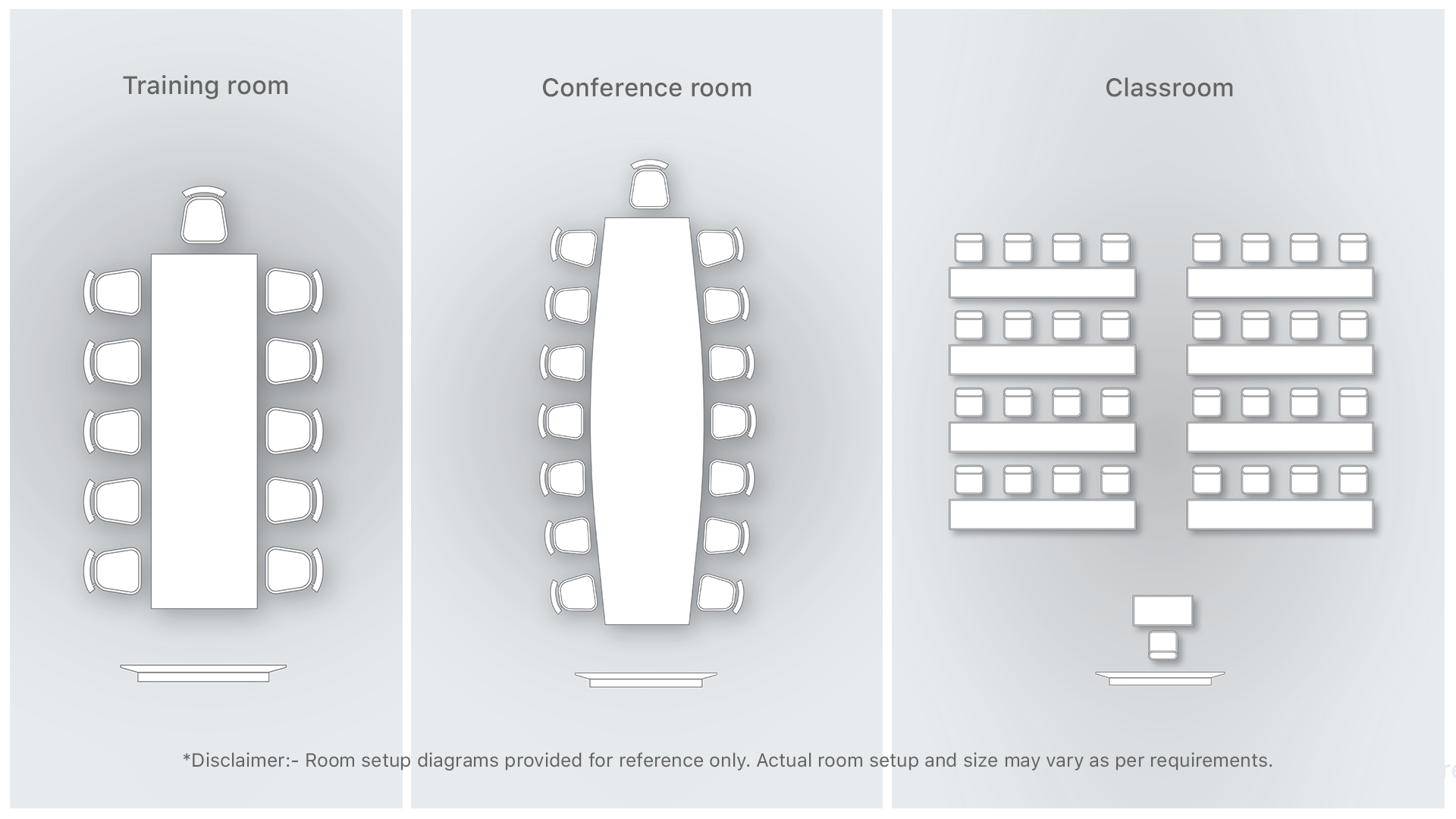

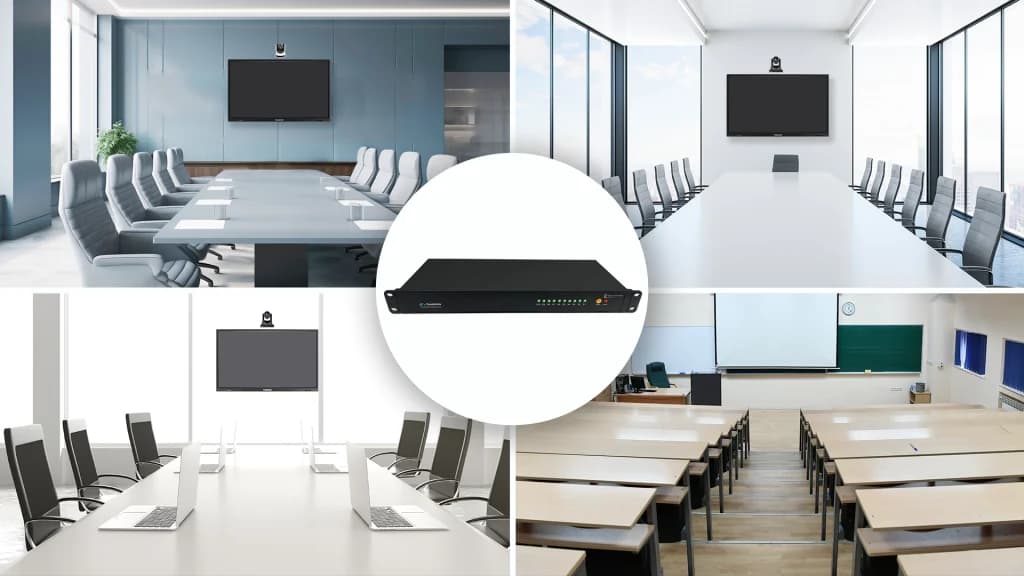

InstaController suitable for every space

Suitable for Every Space

PeopleLink Instacontroller is perfect in many professional settings, including boardrooms, conference rooms, and training rooms. The system's secured and reliable connectivity guarantees seamless operations during important meetings, presentations, and training.

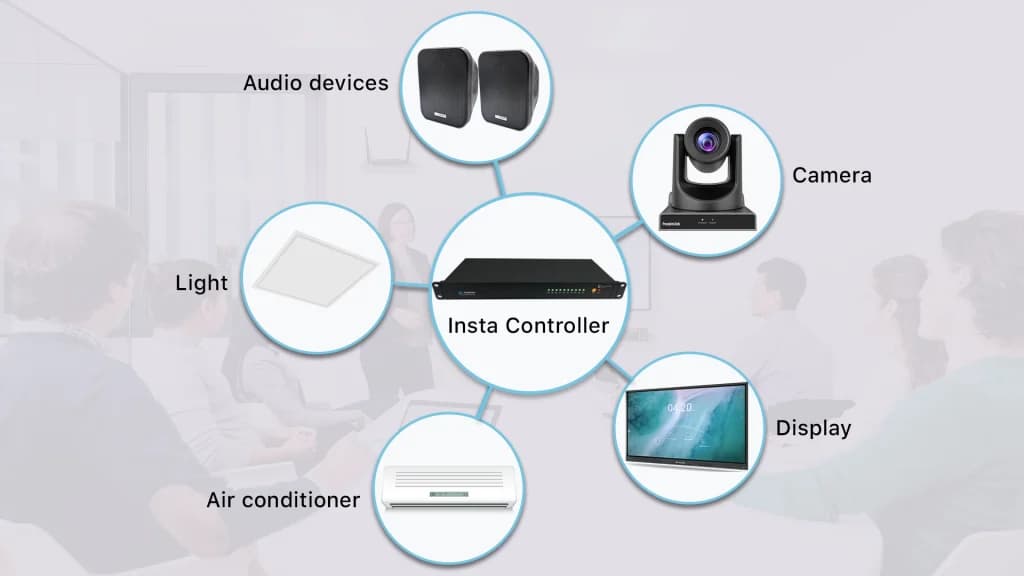

InstaController diverse device compatibility

Diverse Device Compatibility

The IP system provides a smooth way of controlling and managing diverse equipment, such as cameras, speakers, Lights, AC, Displays etc. It has become a versatile, intelligent solution that boosts collaboration and productivity.

InstaController safety management

Safety Management

The security environment is provided through comprehensive user management, which is implemented by the Instacontroller feature that gives access control. This feature gives users fine-tuned permission control, thus preventing the leakage of confidential data.

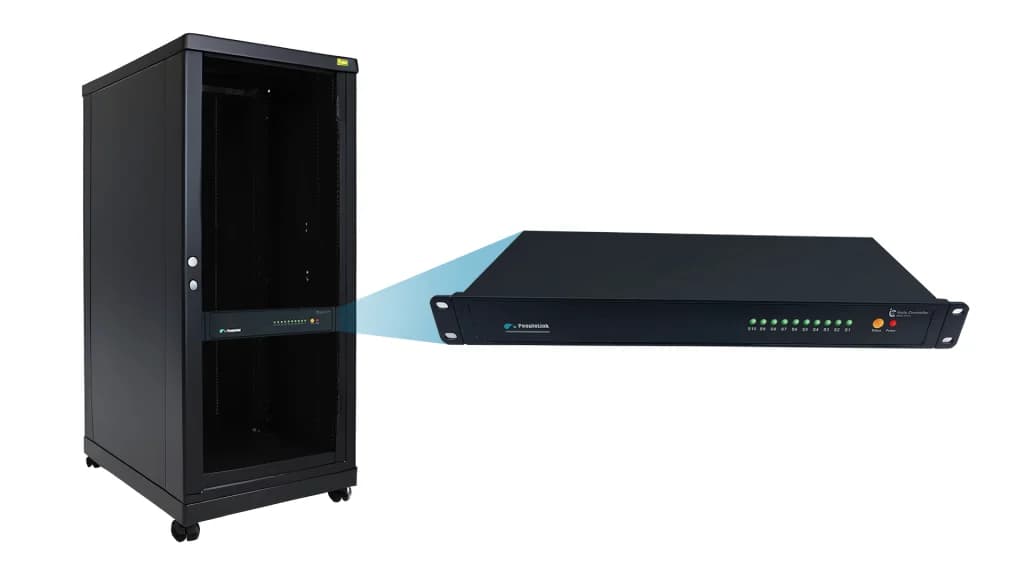

InstaController easily mountable system

Easily Mountable System

Instacontroller is a compact device with a design that allows it to fit into a standard/regular rack space. This 1U Space Rack mounting feature increases its convenience, making it friendly for workplaces that are intent on using space as fundamentally as they can.

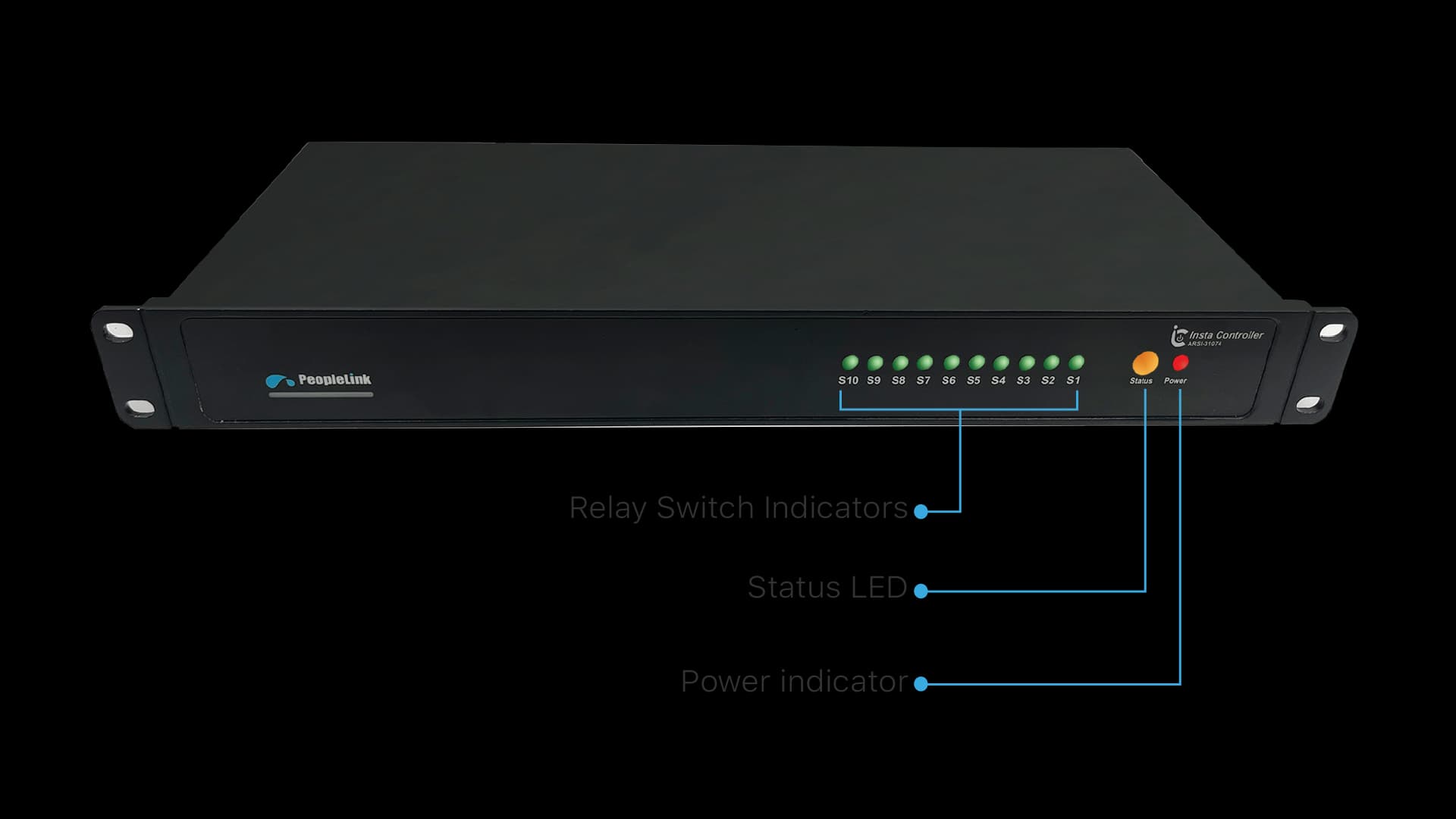

InstaController indicators

Collaborative Device Indicators

The system makes it easy to monitor performance and efficiency. A solitary red LED on the front panel acts as a power indicator when an available power source is connected to the adaptor. An LED within the front panel switches to red after the power is switched on and switches to green when the controller is ready. The light-emitter-diodes on the front panel are used to confirm the status of the Relay Switch. Besides LEDs on the rear panel, it also offers a green indicator, letting users quickly check out its power, readiness, and network connectivity.

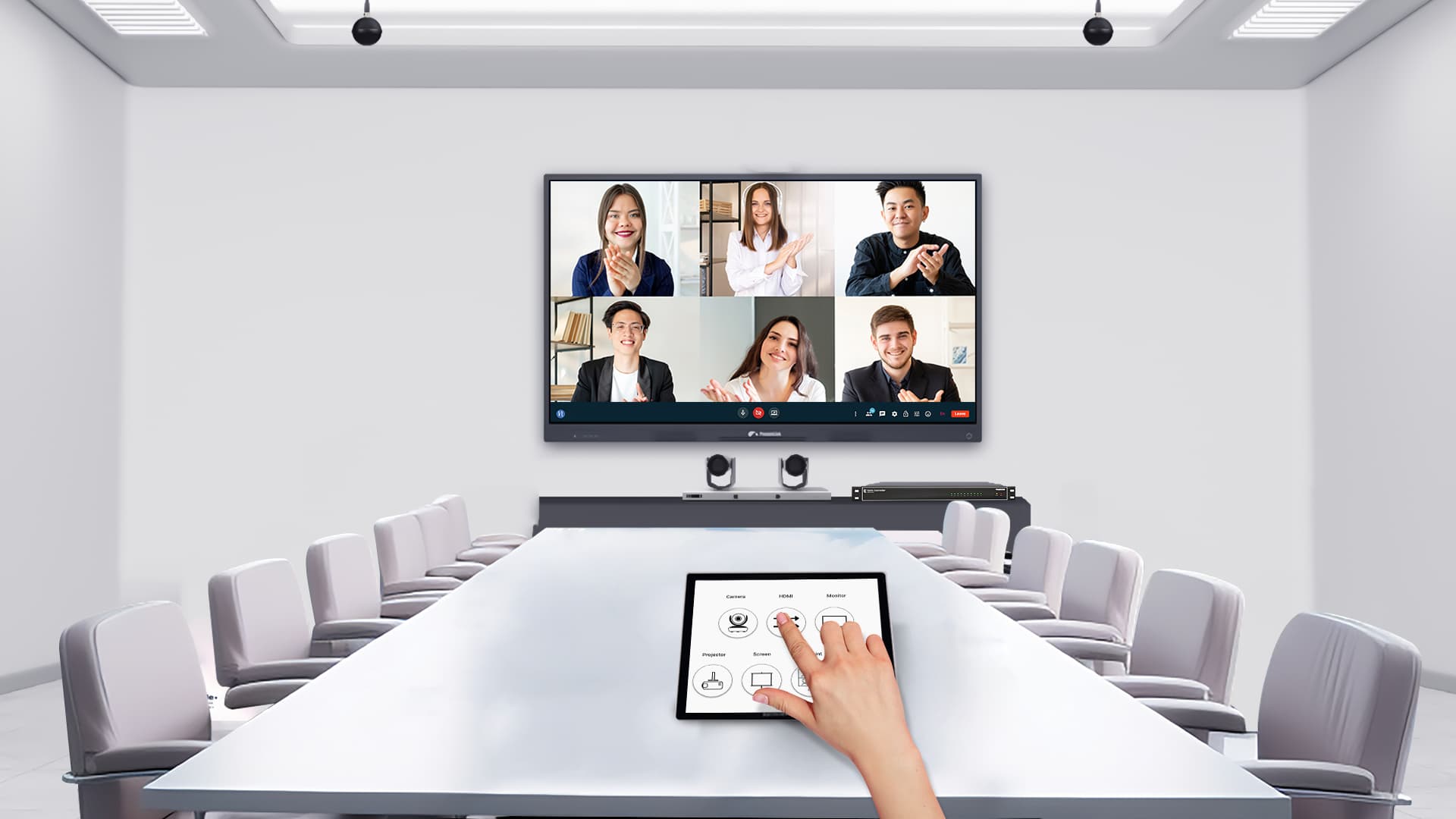

Touch controller

Integrated Touch Controller

It has a 7″inch touchscreen controller, which helps control external devices. The screen is connected to every other device available in the room. The Instacontroller brings all the devices, whether the projectors, cameras, or lights, under your control within a single click.

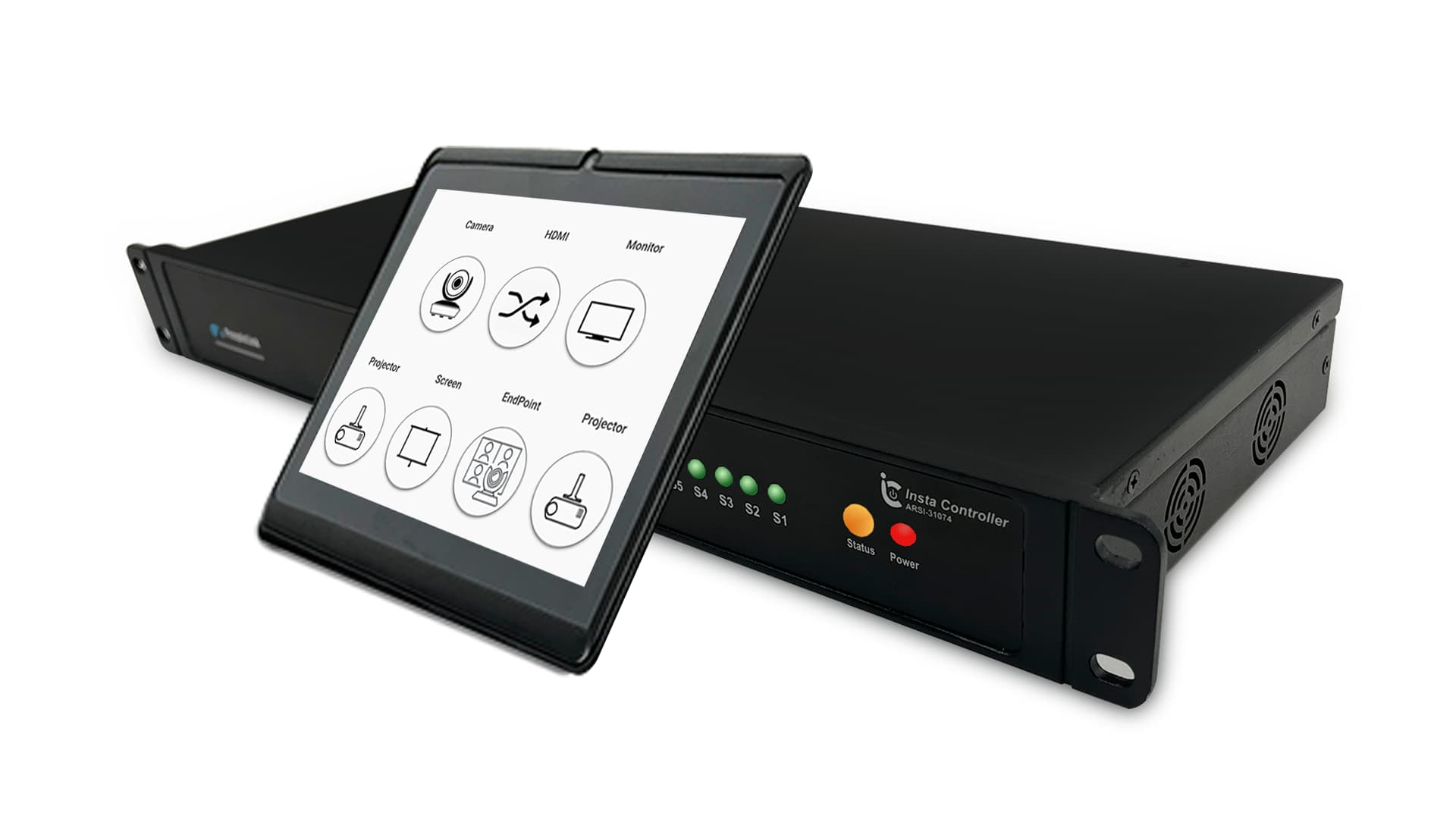

UI

Intuitive User Interface

The device runs on the Android platform to provide more accessible interactions to users. Its automation compliance architecture makes it even more adaptable while remaining compatible with other automated processes. It ensures users have pleasant and gentle handling. They can use the product simply and at the desired automation level.

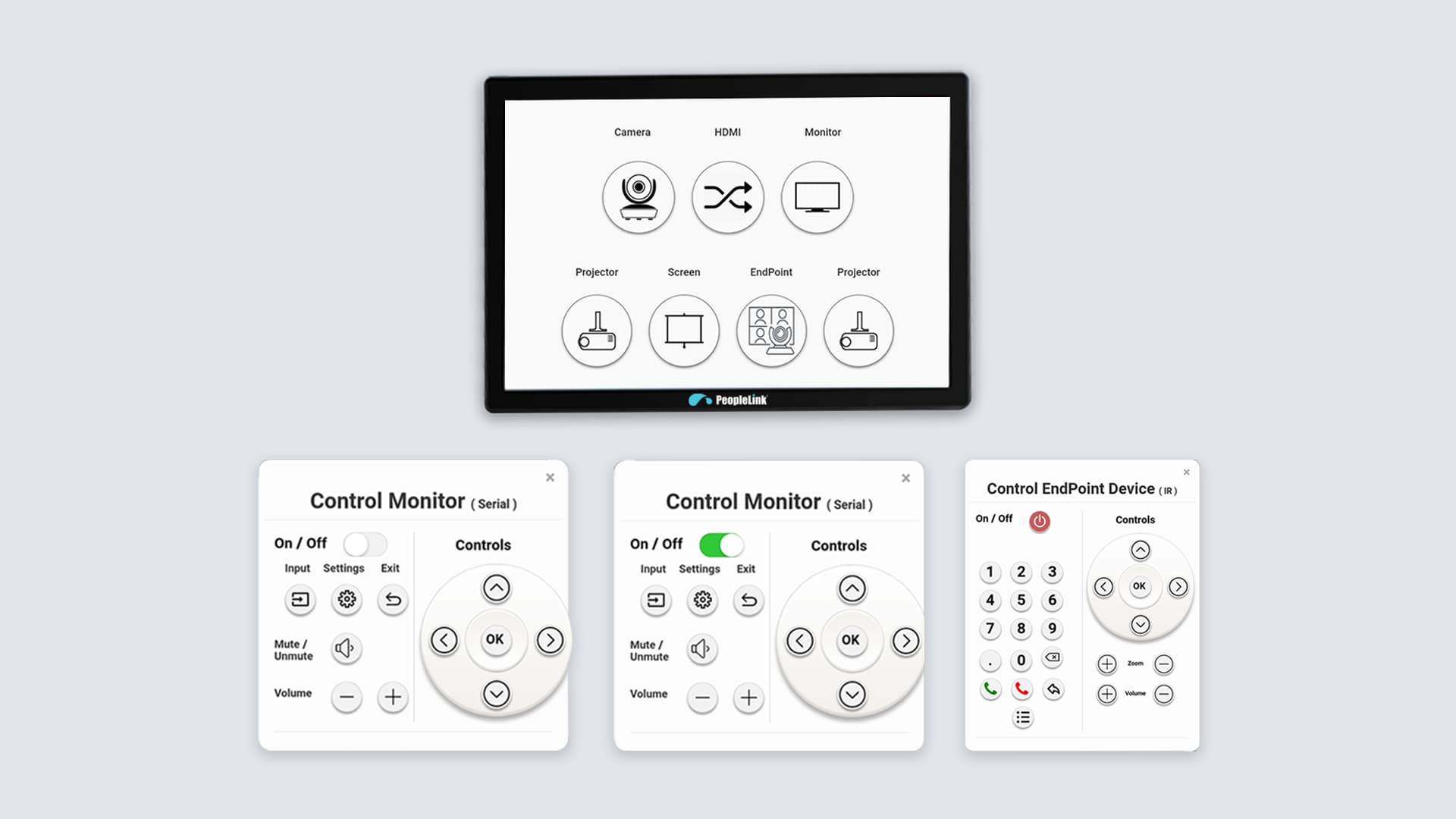

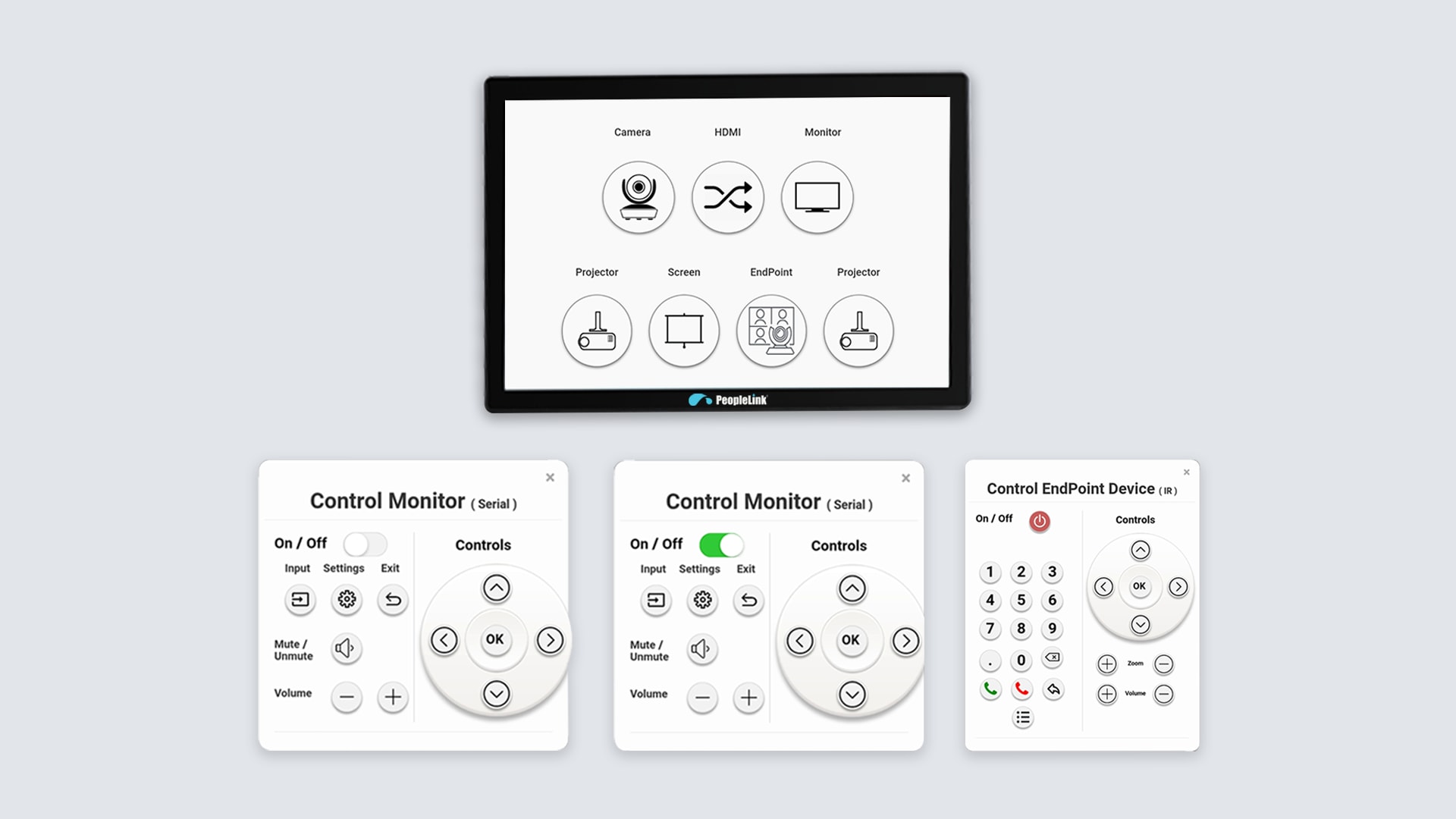

Custom app

Our Customized Application

PeopleLink offers customized applications that are compatible with your Instacontroller. This gives you the flexibility of tailoring an application according to your requirements.

How it Works

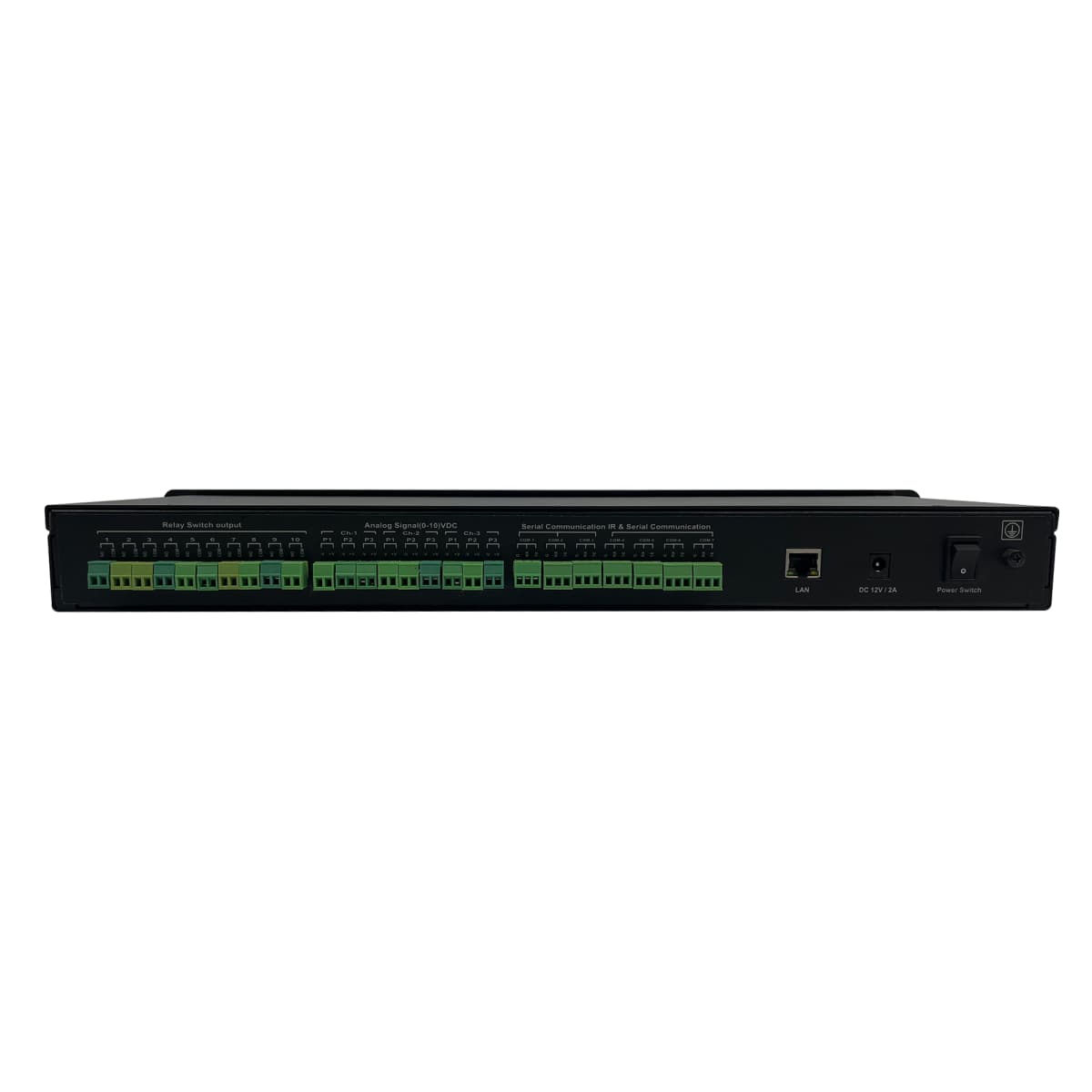

InstaController Front View

Accessories

InstaController Touch Controller

Touch Controller

InstaController Router

Router

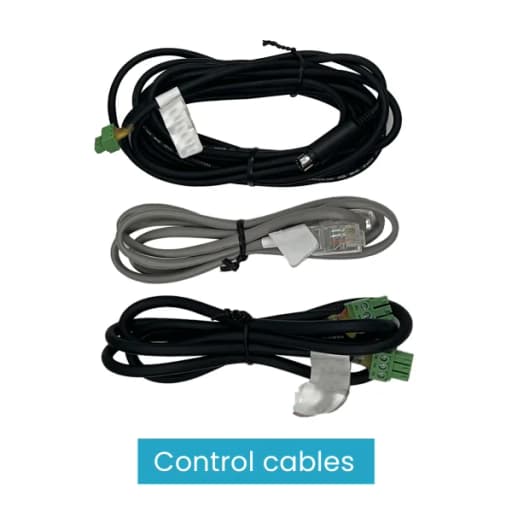

InstaController Control Cables

Control Cables

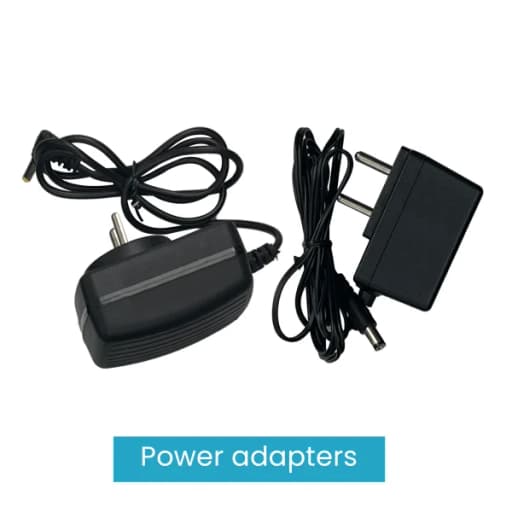

InstaController Power Adapters

Power Adapters

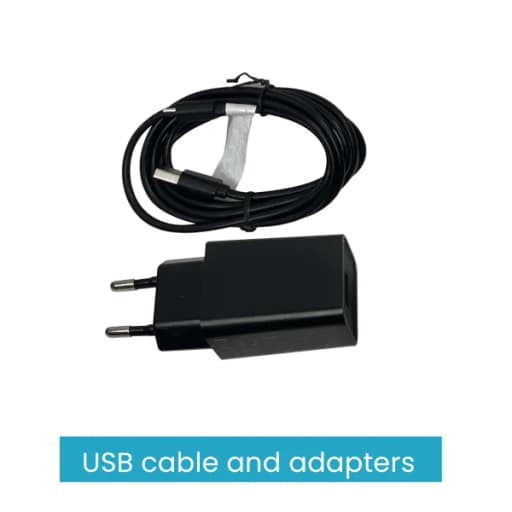

InstaController USB Cable and Adapters

USB Cable & Adapters

FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

Product

Insta Controller ARSI 31074

Control SystemCentral Control System
Serial PortsTwo-way Device Control
AnalogOne-way Device Control
IR & SerialTwo-way Device Control
ProtocolREST Protocol
InterfaceRelay, Analog, Serial, IR & Serial, LAN, TMP-R
Serial Output3 Nos Bi-directional RS-232 Ports
IR & Serial Output4 Nos Hybrid RS-232/IR Ports
LAN1 Nos RJ-45 Port
Relay Switch Output10 Nos High Voltage Relay Controls
Power IndicatorLED Front Panel
Status IndicatorLED Front Panel
Relay Switch Indicator10 LED's Front Panel
Control PadYes
Control Pad Type7" Inches Touch Screen
ResolutionFHD 1920x1080
Internal Memory2 GB
InterfaceWiFi
Mounting1U Rack-mounting
Chassis TypeMetal
ApplicationBoard room, Conference room, Seminar halls, Classroom

Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.

Videos

Documents & Downloads

InstaController Datasheet
Download
7 inch FHD touch screen
Control Pad
3x bi-directional RS-232
Serial Output
1U rack-mounting
Mounting

Technical Specifications

Control and Interfaces
Control SystemCentral Control System
Serial PortsTwo-way device control
AnalogOne-way device control
IR and SerialTwo-way device control
ProtocolREST protocol
InterfaceRelay, Analog, Serial, IR and Serial, LAN, TMP-R
Serial Output3 bi-directional RS-232 ports
IR and Serial Output4 hybrid RS-232 / IR ports
LAN1 RJ-45 port
Relay Switch Output10 high voltage relay controls
Indicators and Control Pad
Power IndicatorLED on front panel
Status IndicatorLED on front panel
Relay Switch Indicator10 LEDs on front panel
Control PadYes
Control Pad Type7 inch touch screen
ResolutionFHD 1920x1080
Internal Memory2GB
Control Pad InterfaceWiFi
Mechanical
Mounting1U rack-mounting
Chassis TypeMetal
ApplicationBoardroom, conference room, seminar halls, classroom

Where It Fits

Boardrooms

Single-touch control of cameras, displays and lighting in meetings.

Conference rooms

Secured, reliable IP device control during presentations.

Training rooms

Android app and touch controller for room automation.

How It Compares

CapabilityPeopleLink InstaController For Optimal Enterprise ControlTypical Alternative
ControlCentral IP control systemPer-device remotes
Control Pad7 inch FHD touch screenNo touch panel
ConnectivityLAN, WAN and internet via Android appLocal control only
Mounting1U rack-mountingBulky standalone unit

Why PeopleLink

Hardware + software

Cameras, audio, control and collaboration platforms, built by one OEM.

Integrates cleanly

PeopleLink accessories pair with PeopleLink cameras, audio and room solutions out of the box.

Deployed globally

Trusted across enterprise, government, education and healthcare environments.

Specialist support

Talk to PeopleLink AV specialists for sizing, integration and rollout.

Frequently Asked Questions

1

What is the PeopleLink InstaController?

It is an IP control system that integrates devices such as touchscreens, cameras, speakers, lights, AC and displays into a single control network for personal or commercial setups.

2

How do you control it?

An Android app controls systems on LAN, WAN or internet from any location, and an integrated 7 inch FHD touch controller drives external devices.

3

How is access secured?

It uses comprehensive user management with fine-tuned permission control to prevent leakage of confidential data.

4

How does it mount?

It is a compact device designed for 1U rack space, with a metal chassis suited to boardrooms, conference rooms, seminar halls and classrooms.
