What zoom and resolution does the Impact Pro 20X Endpoint support?

It supports 1080p FHD at 30fps with 20x Optical Zoom and a 60.7 degree horizontal field of view. That zoom reach is what lets a remote participant see a face, or an object held up, at the far end of a long table. Auto-focus and automatic backlight correction hold the detail in dim or bright rooms.

Which protocols does the Endpoint support?

It supports H.323 and SIP for calls and H.239 and BFCP for content sharing, with a built-in MCU for P2P and 1+3 conferences. Standards-based connectivity means it joins hardware endpoints already deployed elsewhere in an organisation. The built-in MCU covers small multiparty sessions without hiring a separate bridge.

Can the Endpoint record meetings locally?

Yes. It offers one-touch USB Recording, storing the entire conference and the shared content directly on a USB device. That keeps a record for colleagues who could not attend, without routing the session through an external service. It suits review meetings and committee sessions where the discussion has to be kept.

How are meetings secured?

It includes a built-in VPN and AES encryption to safeguard virtual meetings. The VPN matters where a district office or a plant joins headquarters over a public link rather than a private network. Access to the endpoint and its PTZ controls runs through a web management interface, so administration stays in one place.

Who installs and supports the endpoint?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. A partner can set the 10 camera Presets around the room's seating during commissioning so the views are right from the first call.

H.323/SIP Endpoints · Video Conferencing Endpoint

PeopleLink Impact Pro 20x Endpoint For Video ConferencingH.323 and SIP Video Conferencing Endpoint with 20x Optical Zoom PTZ Camera

Q: Which room size suits the Impact Pro 20X Endpoint?

The 20x Optical Zoom and 60.7 degree field of view suit longer Meeting Rooms and Conference Rooms where people sit well back from the camera. The Omni-Directional Microphone covers a 3 metre pickup range, and Mic and Line In connections take additional microphones for a bigger table. Share your room dimensions and seating plan with a PeopleLink specialist.

A standards-based H.323 and SIP Video Conferencing Endpoint with a built-in 20x Optical Zoom PTZ Camera and 1080p FHD video, for Meeting Rooms and Conference Rooms.

20x Optical zoom
1080p FHD @30fps Resolution
60.7° Field of view

Request a Quote WhatsApp

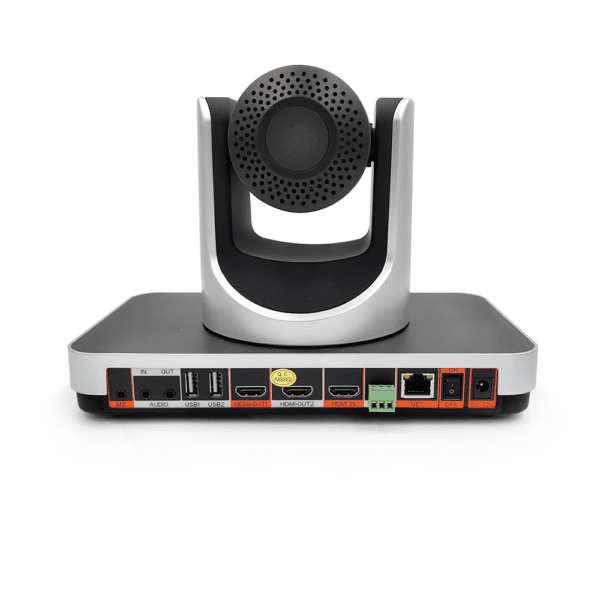

Impact Pro 20X Endpoint - Main Product Image

1 / 4

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What an H.323/SIP Video Conferencing Endpoint does for your Meeting Room

The PeopleLink Impact Pro 20X Endpoint is an Endpoint for Video Conferencing with a built-in PTZ Camera, for Meeting Rooms and Conference Rooms. It carries 1080p FHD at 30fps with 20x Optical Zoom and a 60.7 degree field of view, plus auto-focus and automatic backlight correction. H.323 and SIP handle the call, H.239 and BFCP the content stream, and a built-in MCU covers P2P and 1+3 sessions across a 64kbps to 8Mbps bandwidth range. A built-in VPN, AES encryption, one-touch USB Recording and 10 camera Presets complete the feature set. Mic and Line In connections let PeopleLink Audio extend coverage on a longer table.

High-definition video conferencing experience
Multiple Connectivity Ports
USB recording in Full HD
Supports H.323 / SIP, H.239/BFCP Protocols

Features

Endpoint features for standards-based Video Conferencing

20x Optical Zoom, H.323 and SIP interoperability, connectivity and control, explained.

Features

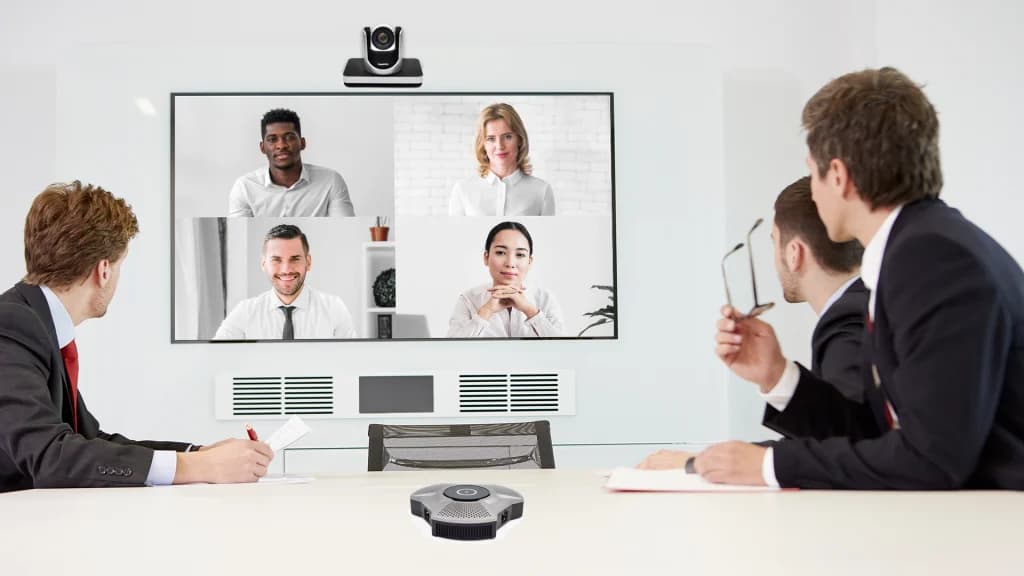

Immersive Visual Experience with 1080p @30fps True HD Resolution

Enjoy vivid clarity with a true high-definition experience at 1080p resolution and a smooth 30 frames per second, ensuring crystal-clear video quality for your communication needs.

Features

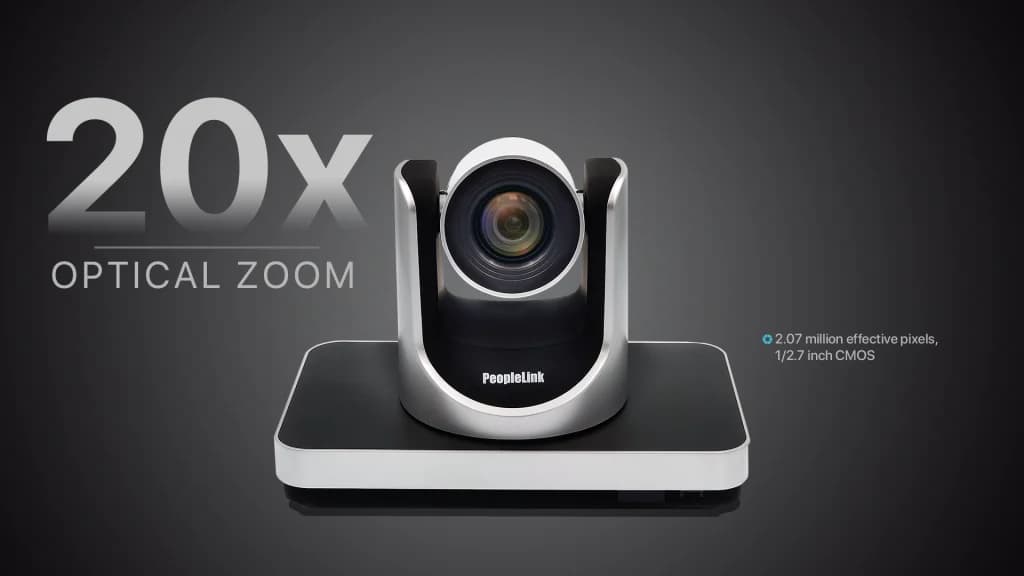

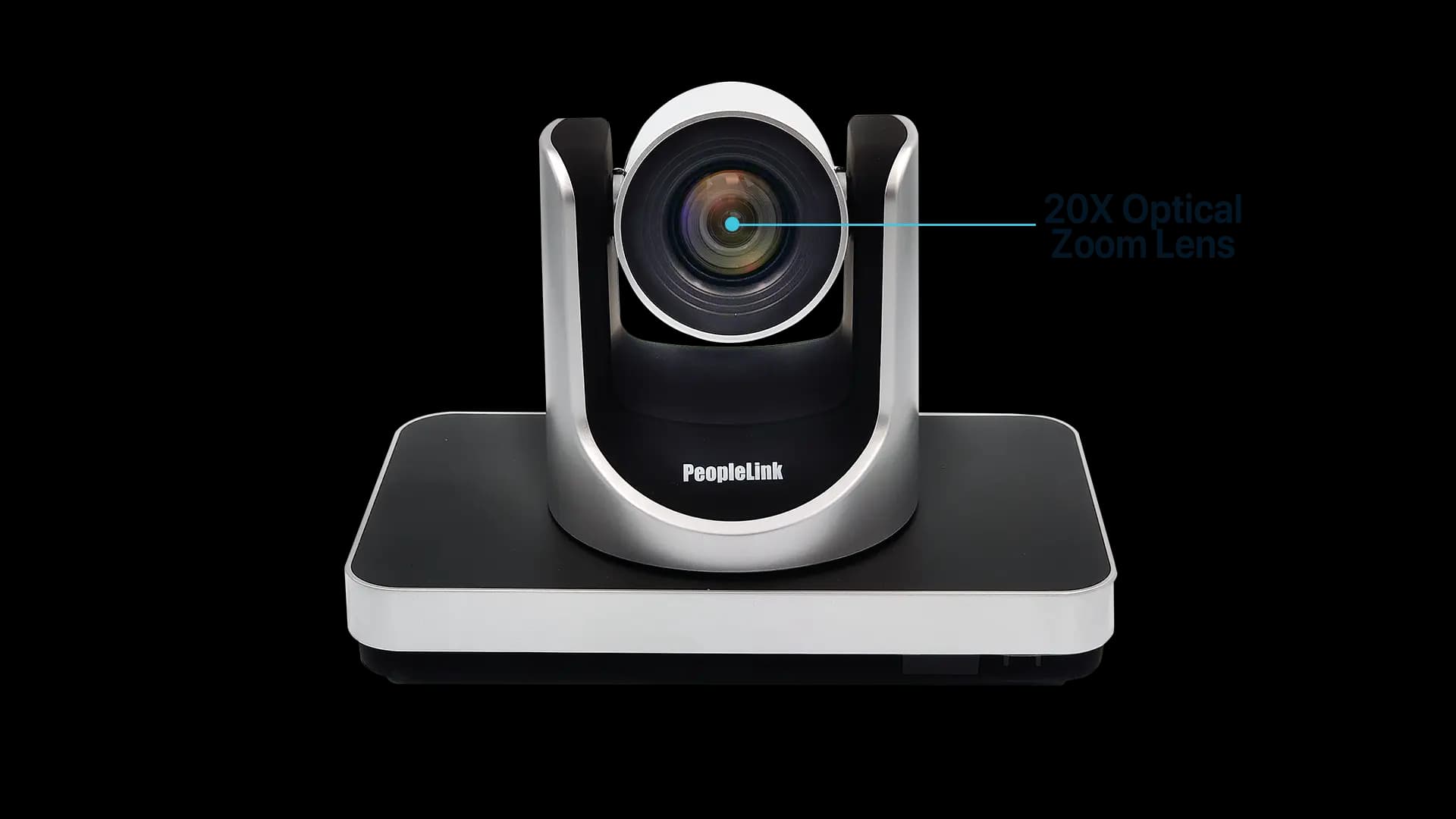

Precision Zoom Technology with Advanced Image Sharpening

Capture details precisely using the Full HD PTZ camera's 20x optical zoom enhanced by cutting-edge image sharpening technology for exceptional clarity even at a distance.

Features

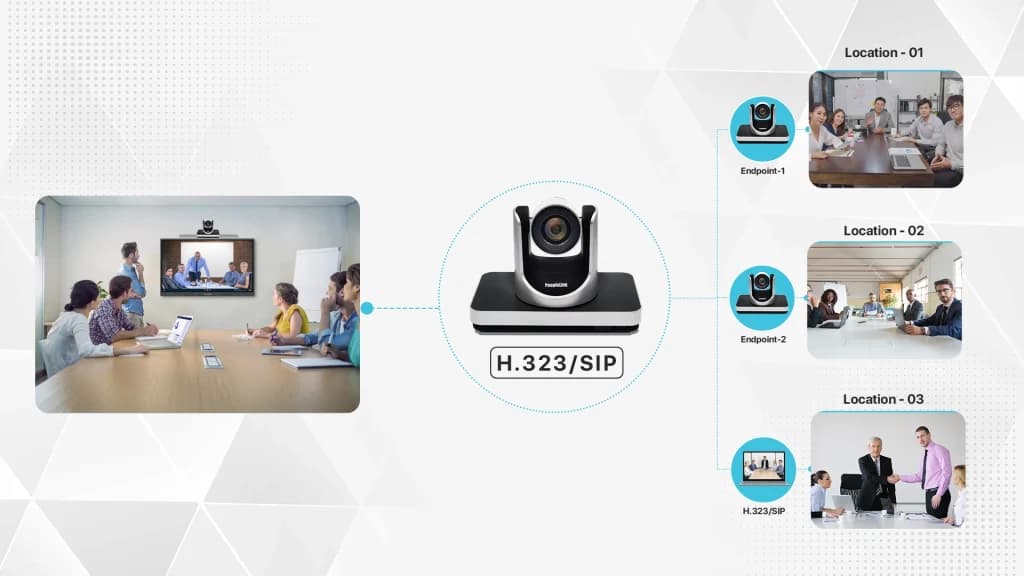

Flexible Communication Protocols, Effortless Content Sharing

Embrace real-time multimedia communication over IP with support for H.323 and SIP protocols, providing flexibility and interoperability for diverse communication environments. Utilize industry-standard protocols like H.239 and BFCP for efficient and seamless content sharing, ensuring compatibility and smooth multimedia communication over various networks. PeopleLink ensures a seamless integration with the other hardware-based endpoints to conduct conferencing & Endpoint sharing to ensure effective visual collaboration for your organization with necessary licenses.

Features

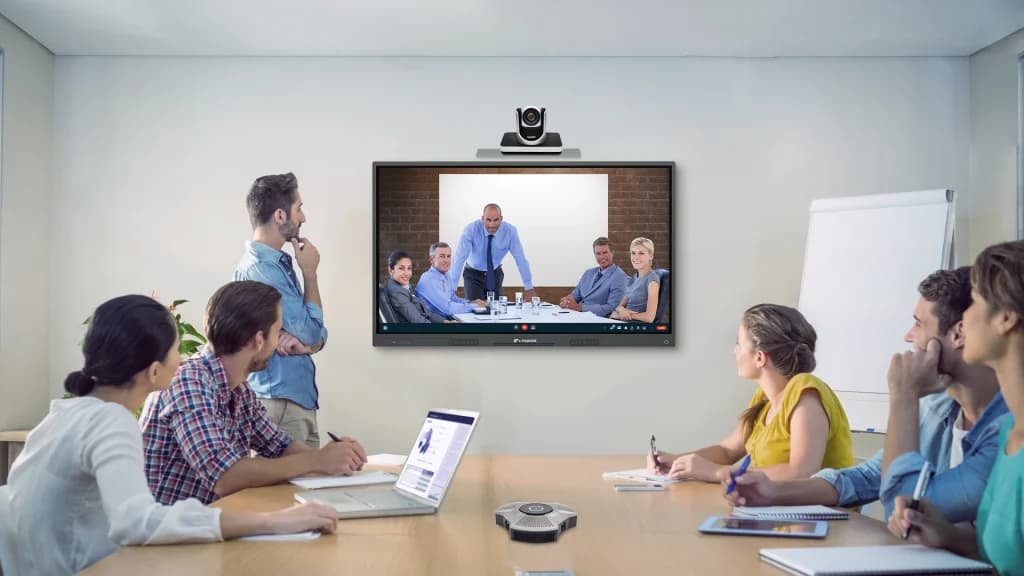

Exceptional Audio Quality

Advanced Microphone Technology benefits from clear and crisp audio with a built-in omnidirectional microphone featuring echo cancellation and noise suppression, ensuring optimal sound quality during meetings and conferences.

Features

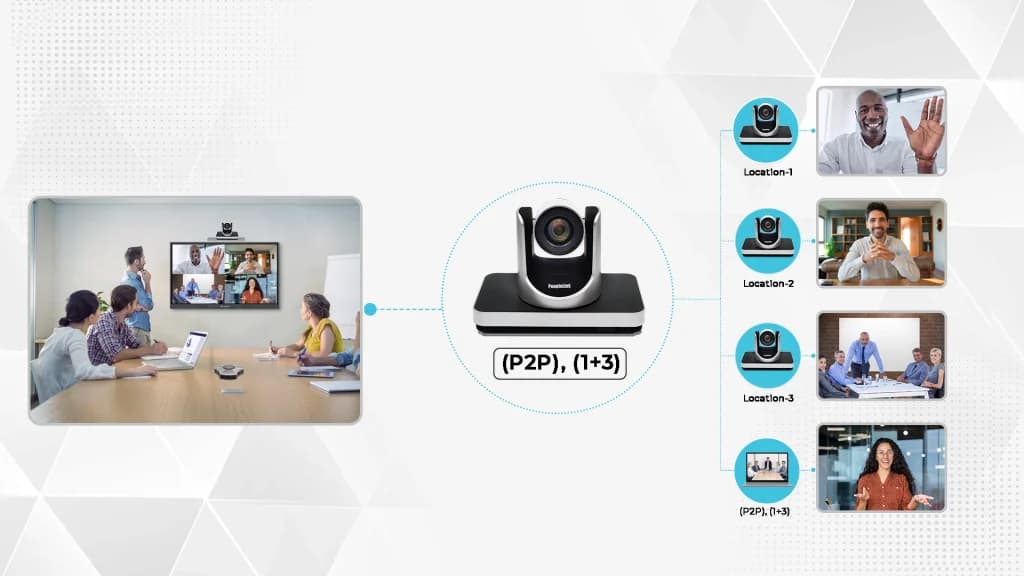

Versatile Multiparty Functionality

Experience Full HD endpoint capabilities at 1080p@30fps and easily transition to multiparty communication (P2P) (1+3) with the option to upgrade using a simple soft key, providing versatility for different meeting scenarios.

Features

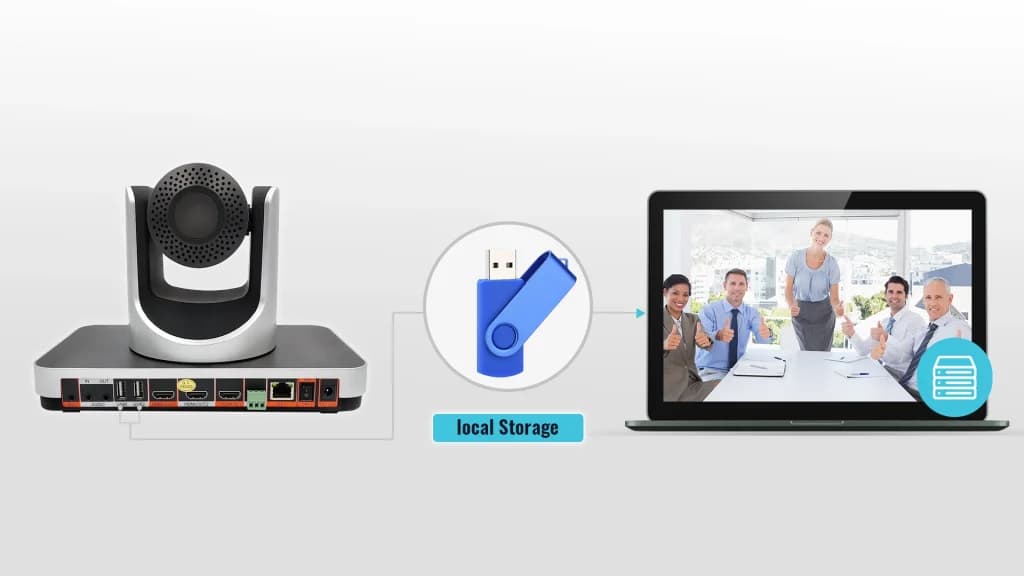

Record Your Meetings on a USB Device in Full HD

This unique feature of Impact Pro 20X Endpoint facilitates one-touch USB recording, transforming a USB drive into an elaborate video archive. The entire conference and shared content are stored directly on a USB device to avoid loss of post-meeting information.

Features

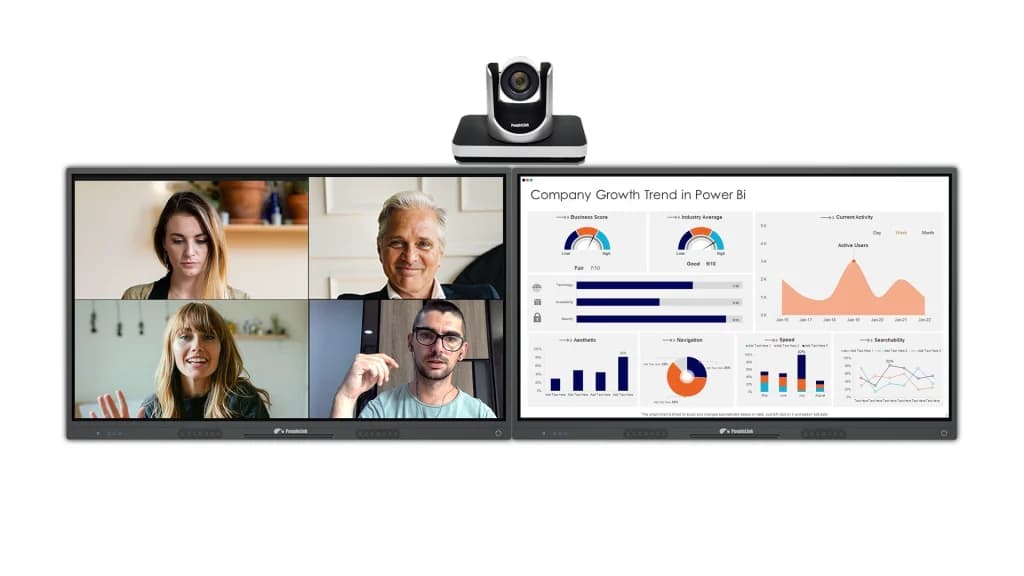

Dual Display Capability, Feasible Connectivity

PeopleLink Video Conferencing Endpoint is equipped with input HDMI ports for content sharing to allow users to connect multiple input devices, including a video conferencing camera, laptop, and PC. With the help of HDMI output ports, users can enjoy video output on multiple displays simultaneously.

Features

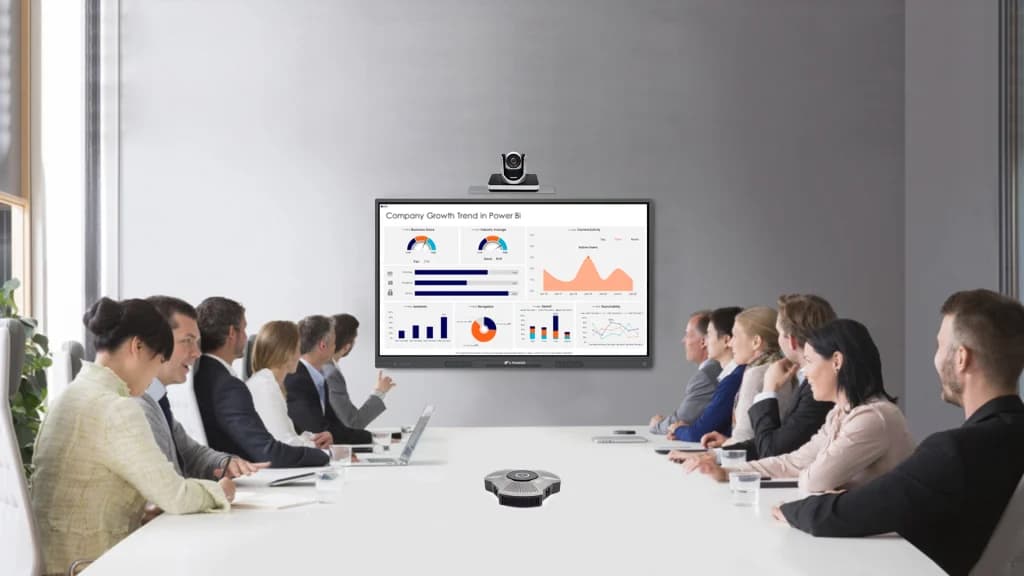

Collaborate & Share Ideas

Experience natural, real-time collaborations and communications with Content Sharing, allowing presenters to share presentations, files, animations, images, and more to create a smooth and interactive video conferencing environment.

Features

Manage Your Conference From Anywhere

With an easy-to-use and intuitive web conference management interface, users can access their Video Conferencing Endpoint remotely and even conduct or Endpoint a call. Also, the PTZ controls of Endpoints can be accessed via the user endpoints web interface for greater application flexibility.

Features

Safe & Secure Conferencing

Data security and privacy cannot be overlooked when holding an important video conference. Therefore, PeopleLink Impact Video Conferencing Endpoints are equipped with industry-leading AES encryption to safeguard your virtual meetings.

How it Works

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink Impact Pro 20x Endpoint For Video Conferencing
Optical zoom	20x
Resolution	1080p FHD @30fps
Field of view	60.7°
Protocols	H.323 / SIP

Rooms It Serves

Meeting rooms

20x Optical Zoom frames the room and reaches detail at the far end of a long table.

Conference rooms

H.323 and SIP interoperability with a built-in MCU for P2P and 1+3 calls.

Recorded sessions

One-touch USB Recording stores the conference and the shared content.

Where an Endpoint For Video Conferencing Fits in Your Organisation

How organisations deploy an Endpoint For Video Conferencing, and what changes for the teams that use it

Enterprise

Conference Room Endpoint for a Pharmaceutical Group

A pharmaceutical group runs its Conference Room reviews on the PeopleLink Impact Pro 20X Endpoint. The built-in PTZ Camera holds 1080p at 30fps, and 20x Optical Zoom brings a speaker at the far end of a long table into a usable frame, while auto-focus and backlight correction cope with a room full of windows. H.239 and BFCP carry the content stream alongside the people. One-touch USB Recording keeps the session and the shared material for colleagues who could not attend.

Government

Committee Room Endpoint for a State Assembly Secretariat

A state assembly secretariat fits its committee rooms with the PeopleLink Impact Pro 20X Endpoint. Standards-based H.323 and SIP interoperability lets each room join systems already installed across departments, and the built-in MCU handles a point-to-point call or a 1+3 session without a separate bridge. A built-in VPN and AES encryption cover sessions that carry sensitive papers. Dual Display support keeps the speaker and the documents on separate screens.

Manufacturing

Review Room Endpoint for a Manufacturing Group

A manufacturing group uses the PeopleLink Impact Pro 20X Endpoint in the review room beside the line. 20x Optical Zoom lets a remote engineer look closely at a component held up at the table, and 10 camera Presets return the view to fixed positions around the room. The Omni-Directional Microphone covers a 3 metre pickup range with built-in Echo Cancellation, Gain Control and Noise Suppression. A bandwidth range of 64kbps to 8Mbps keeps the link workable on a plant network.

Not sure which model fits your Meeting rooms or Conference rooms?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink Impact Pro 20x Endpoint For Video Conferencing	Typical Alternative
Optical zoom	20x optical	A consumer meeting app
Interoperability	H.323 / SIP standards	One app only
Multiparty	Built-in MCU, P2P and 1+3	Point-to-point only
Recording	One-touch USB recording	No local recording
Security	AES encryption and built-in VPN	No built-in VPN

Why PeopleLink

Hardware plus Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Endpoints pair with PeopleLink Cameras, Audio and Room Solutions out of the box, and Mic and Line In connections take extra microphones for a bigger table.

Deployed Globally

Used across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

Explore Related Resources

Specifications

Built-in Camera	: Yes
Image Sensor	: 1/2.7-inch CMOS 2.07M
Image Resolution	: 1080p FHD
Frames per second	: 30fps
Optical Zoom	: 20x optical zoom
Digital Zoom	: N/A
Field of View	: 60.7 degrees
Interoperability	: H.323/SIP
Dual Stream	: H.239/BFCP
Dual Display Support	: Yes
Bandwidth	: 64kbps ~ 8Mbps
Built-in MCU	: P2P, 1+3
Built-in VPN	: Yes
Microphone	: 1 Omni-Directional Mic
Mic Pickup Range	: 3 meter
3A Algorithm	: Built in AEC, AGC & ANS
Built-in Speaker	: No
Interface	: USB, HDMI, RJ45, Mic, Line In/Out
Video Codecs	: H.263, H.264, H.264HP, SVC
Inbuilt Recording	: USB Recording
Presets	: 10
Camera Control	: Yes
Remote Control	: Remote Control
Application	: Meeting Rooms, Conference rooms

FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

Product	Impact Pro 12X Endpoint	Impact Pro 20X Endpoint	4K Impact Bar
Built-in Camera	Yes	Yes	Yes
Image Sensor	1/2.7-inch CMOS 2.07M	1/2.7-inch CMOS 2.07M	1/2.5" CMOS, 8.51 MP
Image Resolution	1080p FHD	1080p FHD	4K UHD
Frames per second	60fps	30fps	4K @ 30fps, 1080p @ 60fps
Optical Zoom	12x optical zoom	20x optical zoom	20x optical zoom
Digital Zoom	16x digital zoom	N/A	5x digital zoom
Field of View	72.5 degrees	60.7 degrees	DFoV 121 degrees
Interoperability	H.323/SIP	H.323/SIP	H.323/SIP
Dual Stream	H.239/BFCP	H.239/BFCP	H.239/BFCP
Dual Display Support	Yes	Yes	Yes
Bandwidth	64kbps ~ 8Mbps	64kbps ~ 8Mbps	64kbps ~ 8Mbps
Built-in MCU	P2P, 1+3	P2P, 1+3	P2P, 1+3
Built-in VPN	Yes	Yes	Yes
Microphone	1 Omni-Directional Mic	1 Omni-Directional Mic	1 Built-in array microphone
Mic Pickup Range	3 meter	3 meter	6 meter
3A Algorithm	Built in AEC, AGC & ANS	Built in AEC, AGC & ANS	Built in AEC, AGC & ANS
Built-in Speaker	No	No	Built-in speaker
Interface	USB, HDMI, DVI, D-MIC, RJ45, Mic, Line In/Out	USB, HDMI, RJ45, Mic, Line In/Out	USB 2.0, USB 3.0, USB 3.0 Type-C, HDMI, RJ45, Line In/Out
Video Codecs	H.263, H.264, H.264HP	H.263, H.264, H.264HP, SVC	H.264, H.264 HP, H.264 SVC
Inbuilt Recording	Optional	USB Recording	USB Recording
Presets	8	10	N/A
Camera Control	Yes	Yes	Yes
Remote Control	Remote Control	Remote Control	Remote Control
Application	Meeting Rooms, Conference rooms	Meeting Rooms, Conference rooms	Meeting Rooms, Conference rooms

Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.

In the Room

Endpoints in Chambers and Boardrooms

Council chambers and boardrooms photographed on site.

Dual displays with a PTZ camera above gooseneck delegate microphones — Dual Display EndpointGooseneck Delegate Microphones

Council chamber with curved seating, delegate microphones and a live video call on a monitor — Council ChamberDelegate Microphones, Live Video Call

Boardroom with a large display, camera and speakerphone on the table — Boardroom StackLarge Display, Camera and Speakerphone

Accessories

HDMI Cable

XLR to 3.5mm Cable

Omni-array Microphone

Power Adapter

Remote Control

User Manual

Videos

See the Impact Pro 20x Endpoint in action

Documents

Product Datasheet

Download

Quick Start Guide

Download
