What is the PeopleLink Quadro?

The PeopleLink Quadro is a USB Speakerphone with 4 bi-directional noise-isolating microphones giving 360 degree pickup around the table. Built-in AEC, AGC and ANS handle echo, level and background noise, so a room with equipment humming in it still reads clearly at the far end. A keypad with green and red status LEDs makes it plain whether the room microphone is open or muted.

How does the USB Speakerphone connect to a room PC?

It connects over USB 2.0 Type B with no driver to install, and it is supported on Windows, iOS and Android. That makes it straightforward to plug into a podium PC or a laptop for a single session. A frequency range of 100 Hz to 22KHz carries detail in quieter voices as well as the main speaker.

Who installs and supports the speakerphone?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. Since it is a single USB device on the table, most of the work is choosing the right room and deciding whether extension microphones are needed.

Is it clear to people in the room when the microphone is live?

Yes. The keypad carries a Mute Button with an indicator light, and green and red status LEDs show which microphone is live and which is muted. That matters in a Case Conference or a Boardroom where confidential material is discussed. It also keeps a busy Training Room session orderly without an operator.

Wired Audio Devices · USB Speakerphone

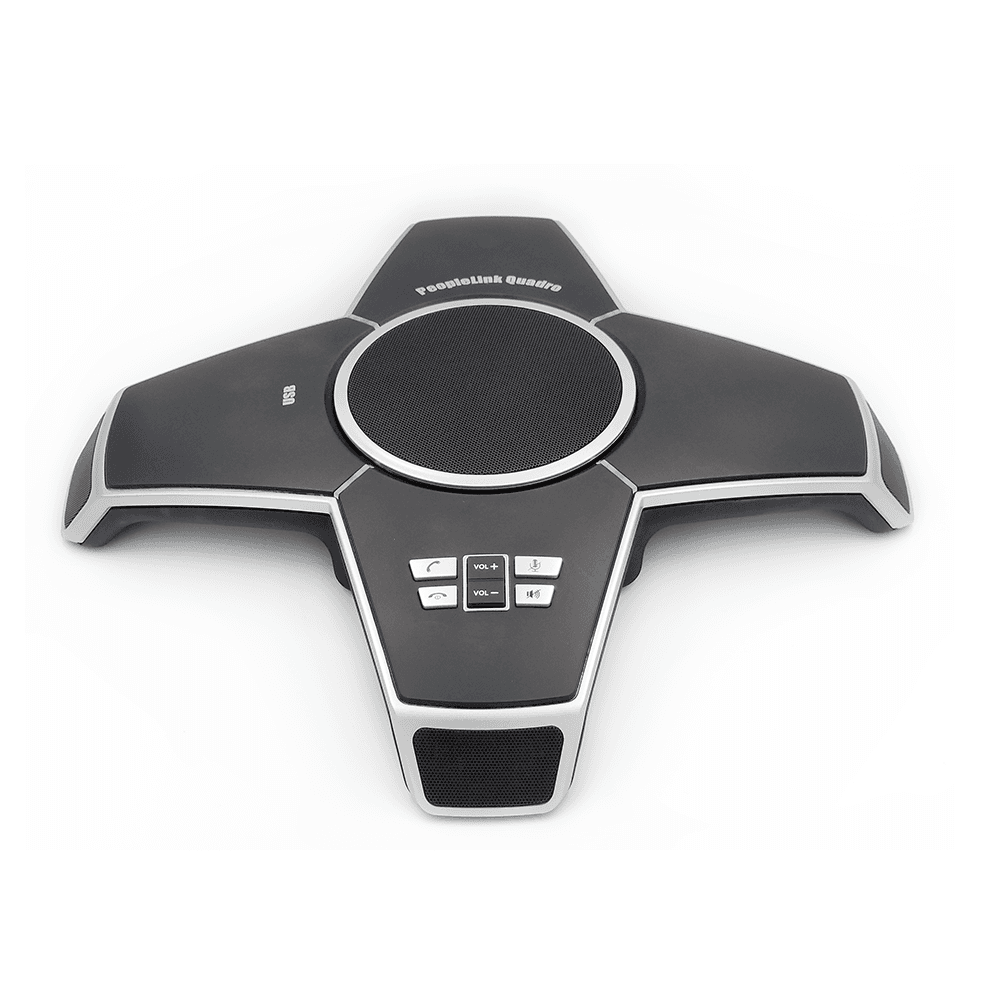

PeopleLink QuadroUSB Conference Speakerphone with 360 degree Pickup for Boardrooms of 15 to 20 Seats

Q: What room size does the USB Speakerphone cover?

It is sized for a space of about 30ft by 20ft seating 15 to 20 people, with a voice pickup range of 3 metres from the unit. Two extension microphones on the EXT1 and EXT2 jacks add 2 metres of pickup each for a longer table. Ask a PeopleLink AV Specialist to check the table length against that range before ordering.

The PeopleLink Quadro is a USB Speakerphone for Boardrooms, Conference Rooms and Training Rooms of 15 to 20 seats in a space of about 30ft by 20ft.

4 bi-directional Microphones
360° Voice pickup Voice pickup
92 dB Speaker Out Speaker

Request a Quote WhatsApp

1 / 3

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a Boardroom USB Speakerphone does at a Larger Table

The PeopleLink Quadro is a USB Speakerphone for Boardrooms, Conference Rooms and Training Rooms of 15 to 20 seats in a space of about 30ft by 20ft. Four bi-directional microphones give 360 degree pickup to 3 metres, with a 92dB Speaker Out and a 100 Hz to 22KHz frequency range. Built-in AEC, AGC and ANS hold the level steady whether a speaker leans in or sits back. One USB 2.0 Type B cable connects a room PC beside a PeopleLink Camera. Two extension microphones on the EXT1 and EXT2 jacks add 2 metres each, so a longer table is covered without a second speakerphone.

4 Bi-directional Microphone
360° Degree Audio Pickup
Built-in AEC, AGC, ANS
92dB Output Volume
USB Speaker Phone
Extension Microphones (Optional)

Features

Quadro features for Boardrooms and Training Rooms

Four bi-directional microphones, 360 degree pickup and built-in DSP, explained.

Features

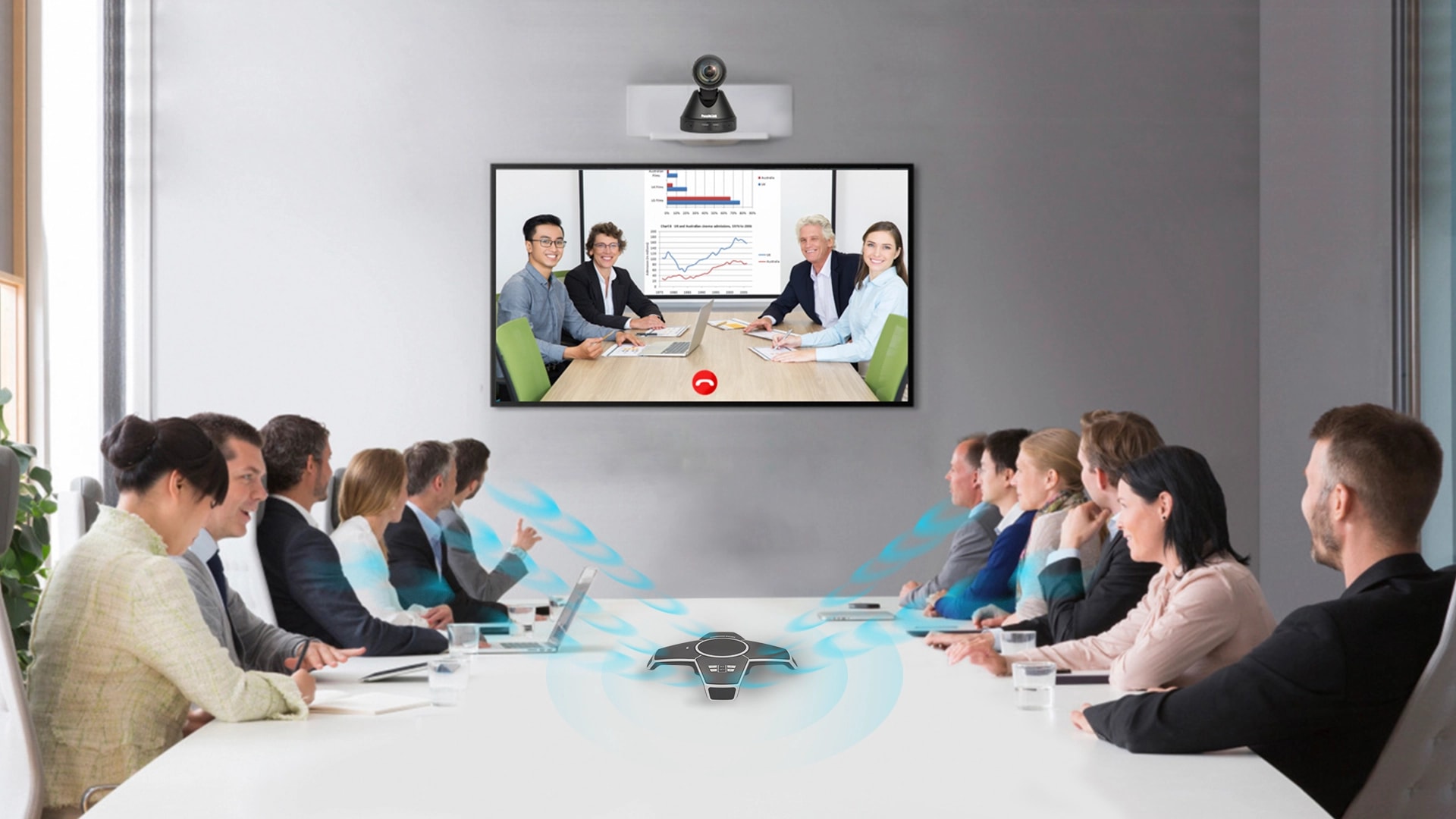

Professional Grade Audio for Meetings

A professional conference microphone with a high-quality speaker supports 15-20 people business conferences, HD voice, and clear audio pickup from 3 meters. The Quadro speakerphone comes with a 4 bi-directional microphone and HD voice, which helps your voice stay clear on the listener's end.

Features

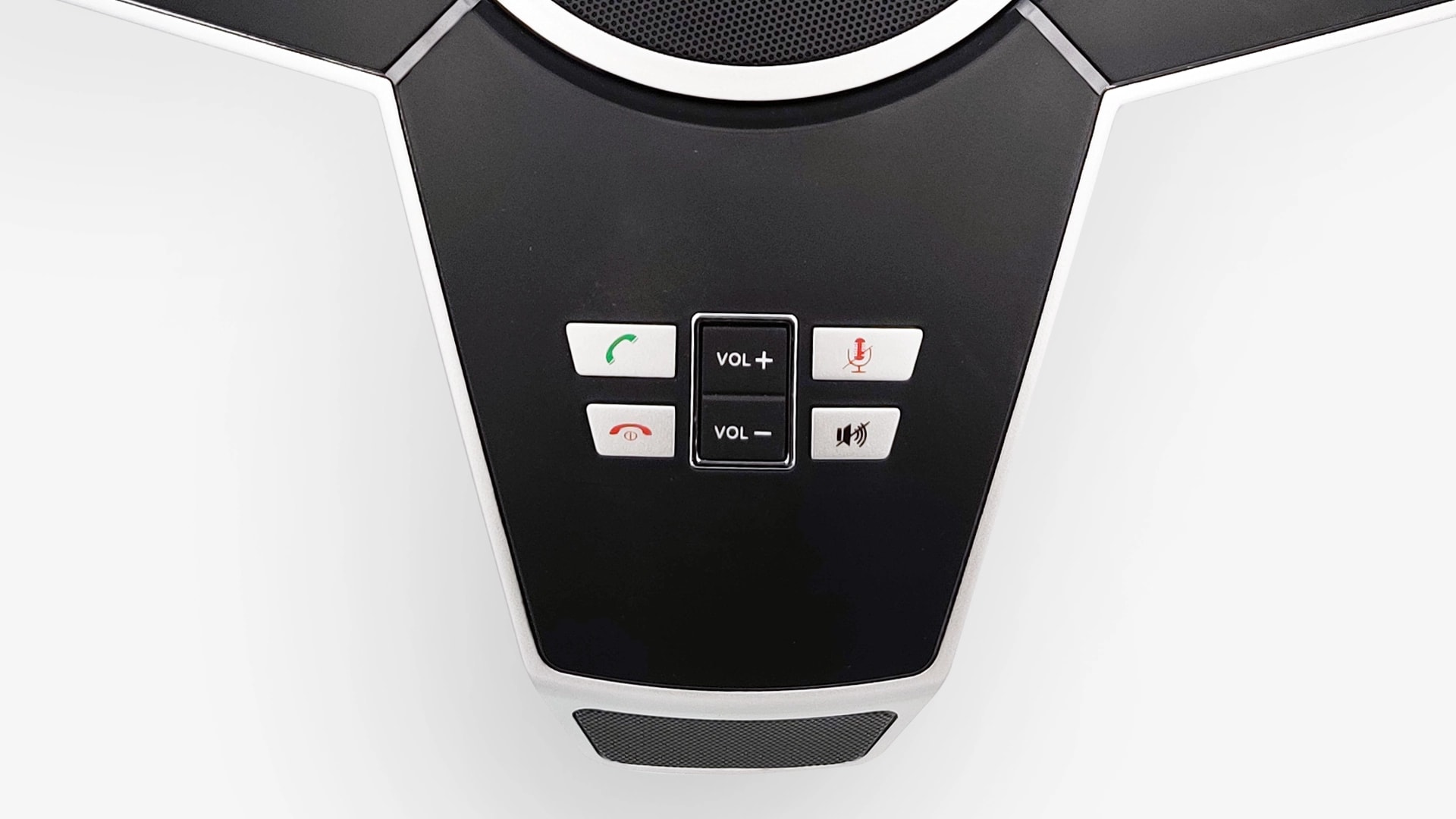

Ease of Use

Mic speaker support allows us to connect more devices to our computer system. Convenient Mute Button, Quickly mute/unmute your microphone. The built-in indicator light is used to check whether the USB microphone is working.

Features

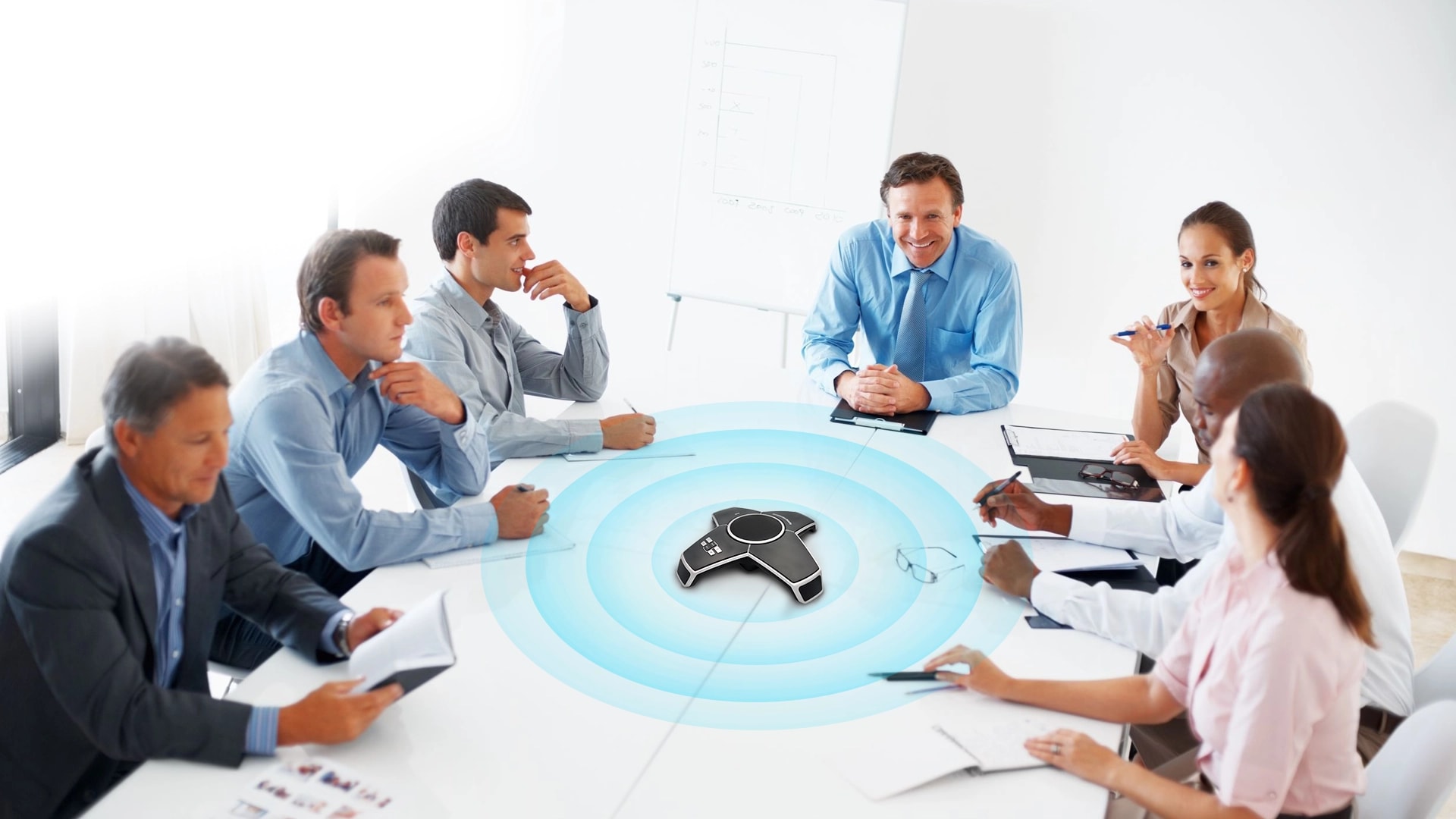

Built-in DSP Technology

Digital Signal Processing(DSP) provides automatic gain control(AGC), acoustic echo cancellation(AEC), and automatic noise suppression(ANS). The Acoustic Echo Canceler eliminates the echo, and the noise-isolating microphone supports a high-quality conference experience even in noisy outdoor areas.

Features

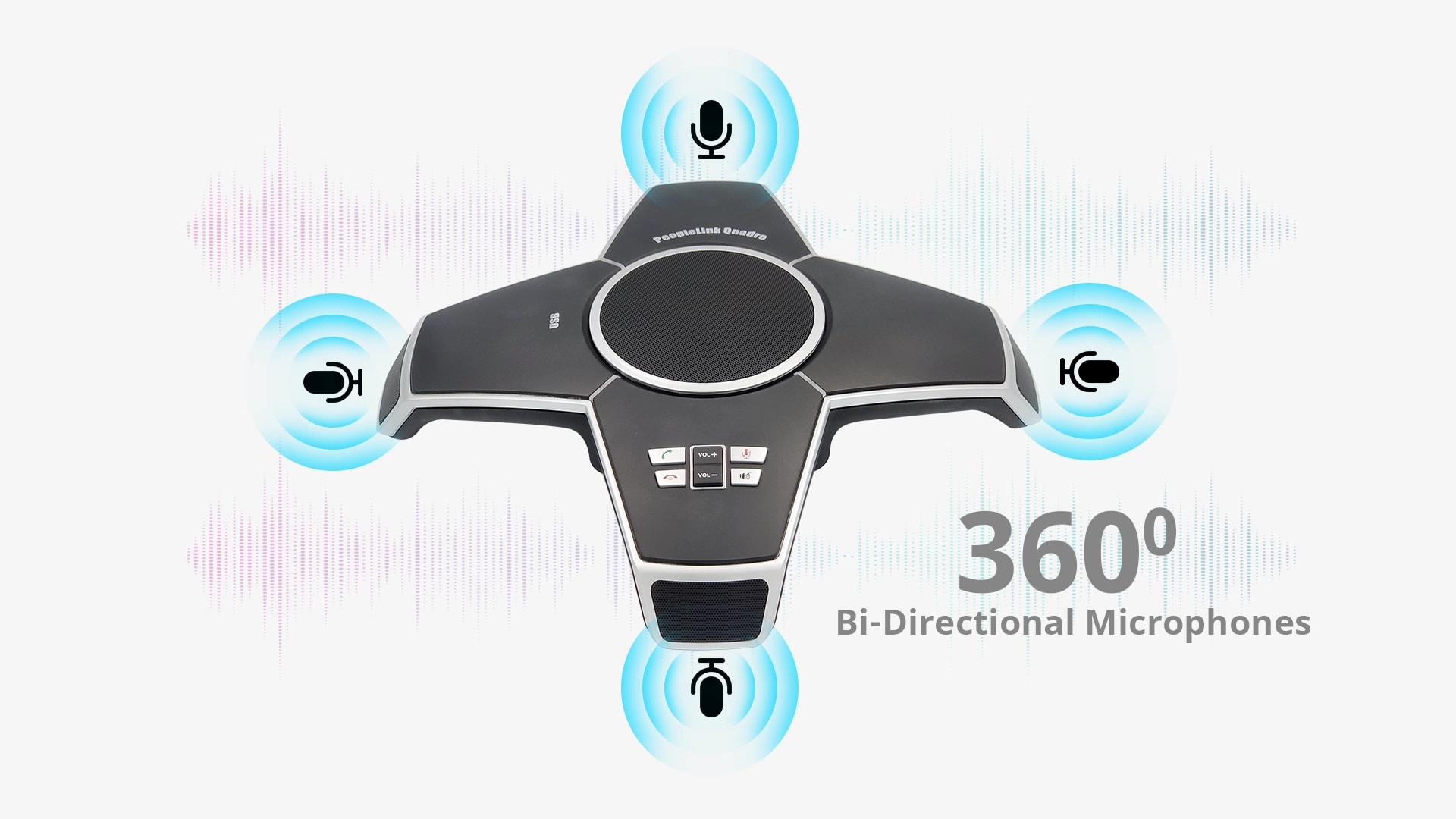

360° Bi-Directional Microphones

This gadget embodies 4 bi-directional stereo microphones with a 360° capture range; thus, capturing the audio from all angles is easier. This cutting-edge technology delivers high-quality sound, which originates even from the remotest positions, eliminating the so-called "echo chamber" and facilitating natural communication and interactions.

Features

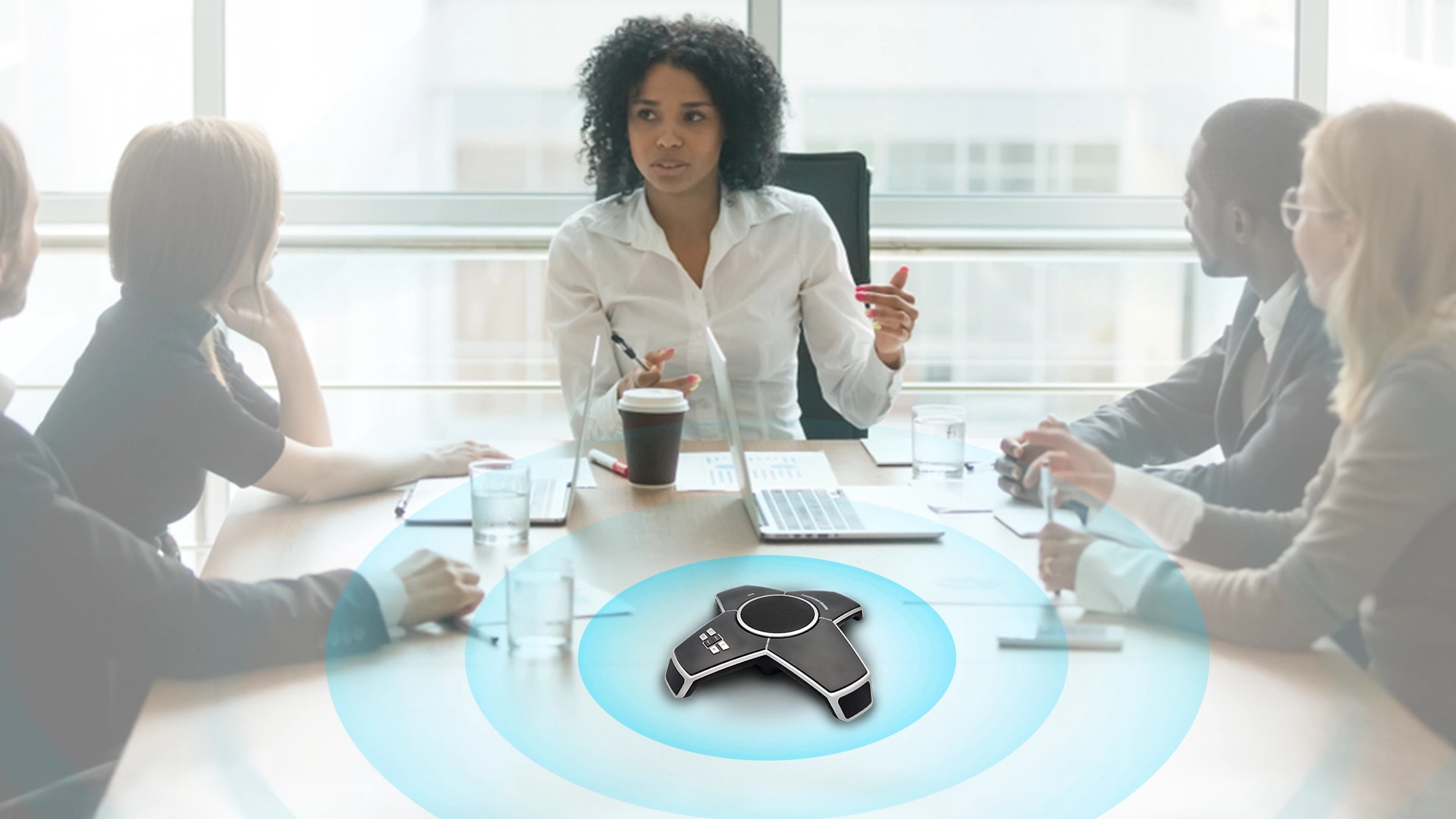

92 dB Speaker Out

The main reason the PeopleLink Quadro 92dB speaker is loved on the speaker market is that it is the highest in quality, not only in audio Output but also in sound fidelity. Explore the intricacies of sound reproduction with this speaker, equipped with advanced engineering. It offers an audibly enriched experience with the utmost clarity, whether the speaker is used to deliver clear communication, make presentations, or provide fantastic entertainment.

Features

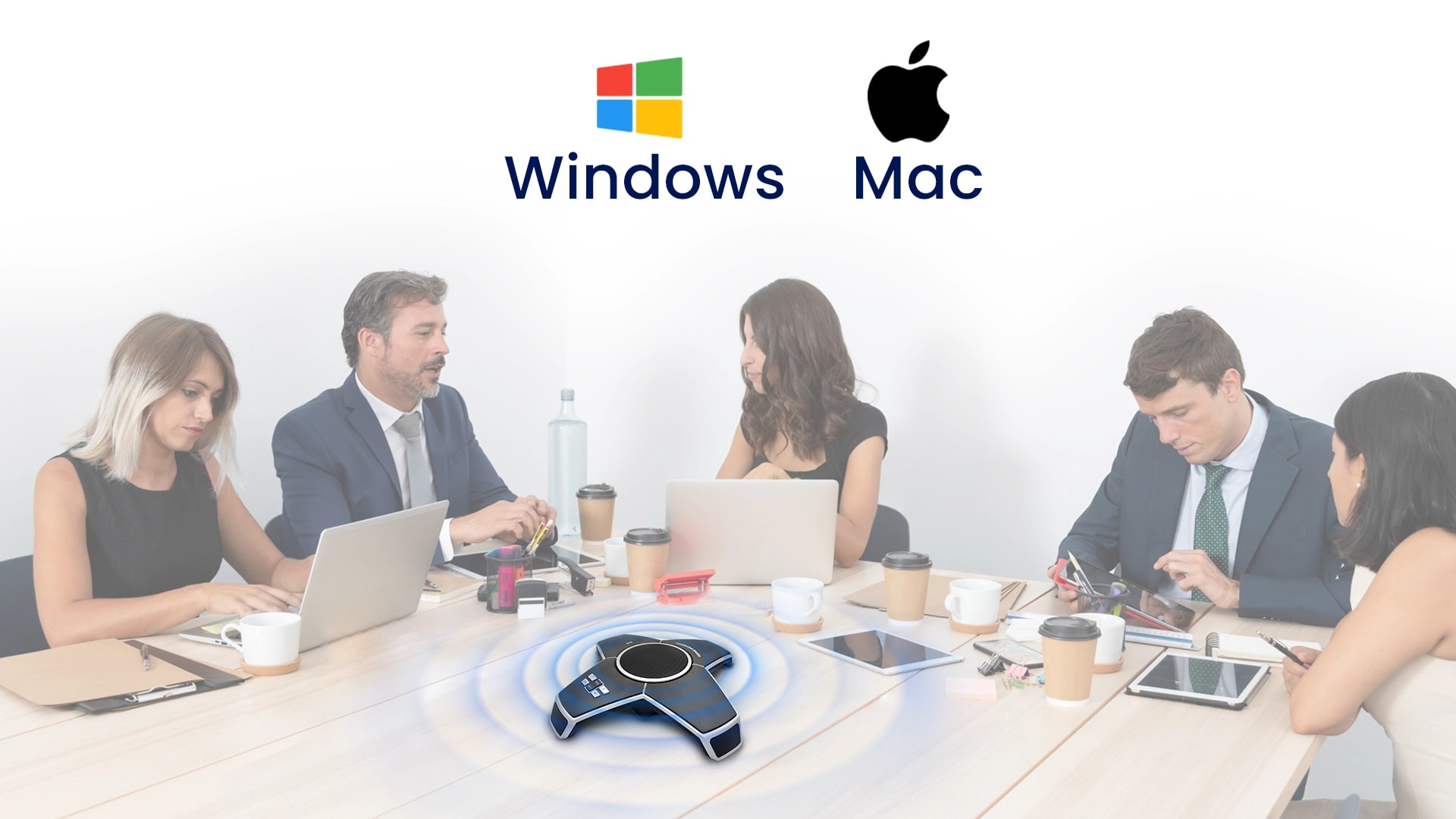

Comprehensive compatibility

The speakerphone is compatible with multiple devices and operating systems like Windows 7, 8, and 10, as well as Mac OS. It has been tested and optimized for various mainstream conference applications.

Features

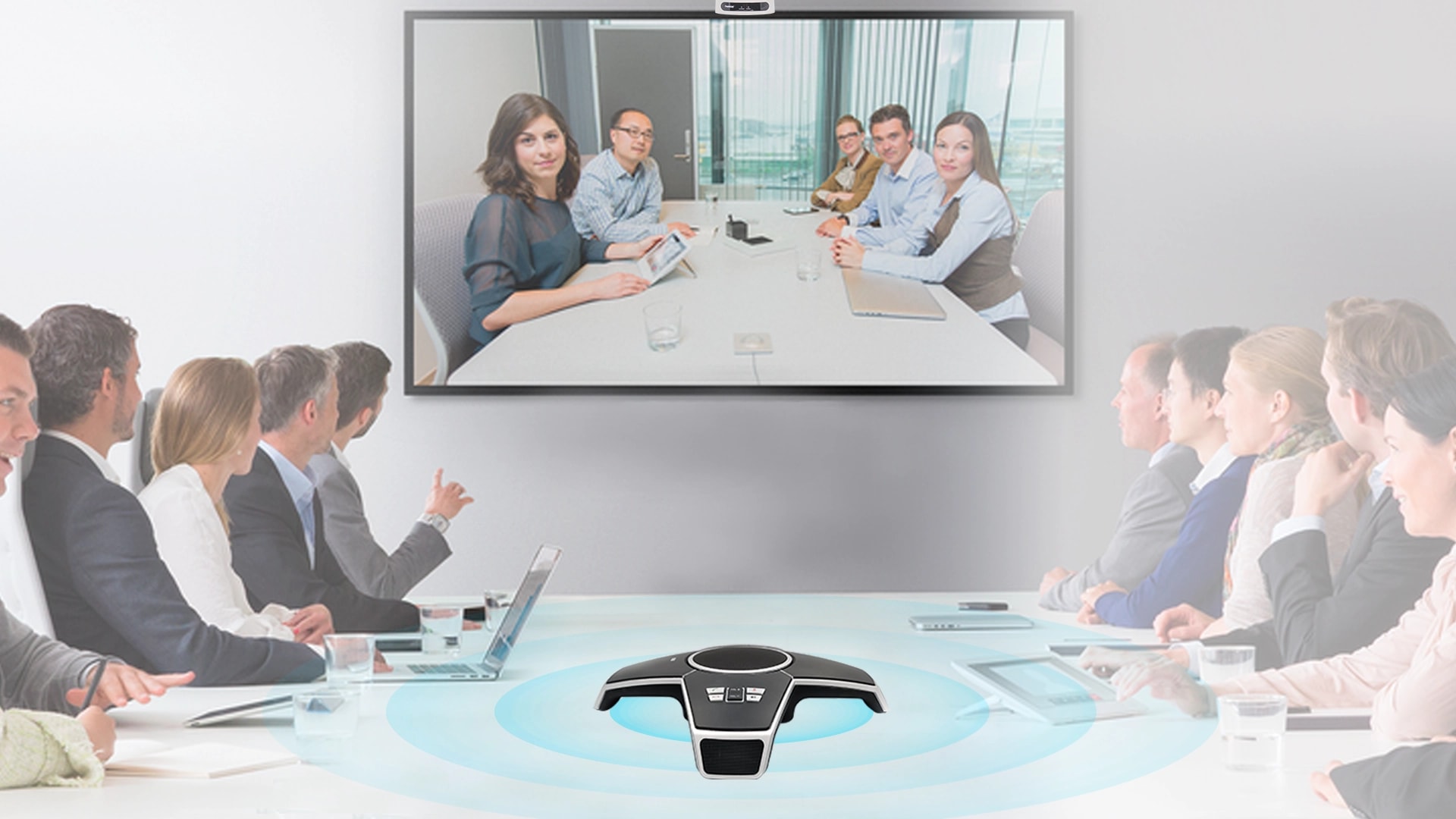

Digital Conference Units

These control units enable users to oversee their conferencing sessions effectively, eventually minimizing the burden of collaboration and ensuring a solid conference experience. Quadro Digital conference units have been designed with intuitiveness in mind, and they help with simplified and effective communication in any conferencing scenario.

Features

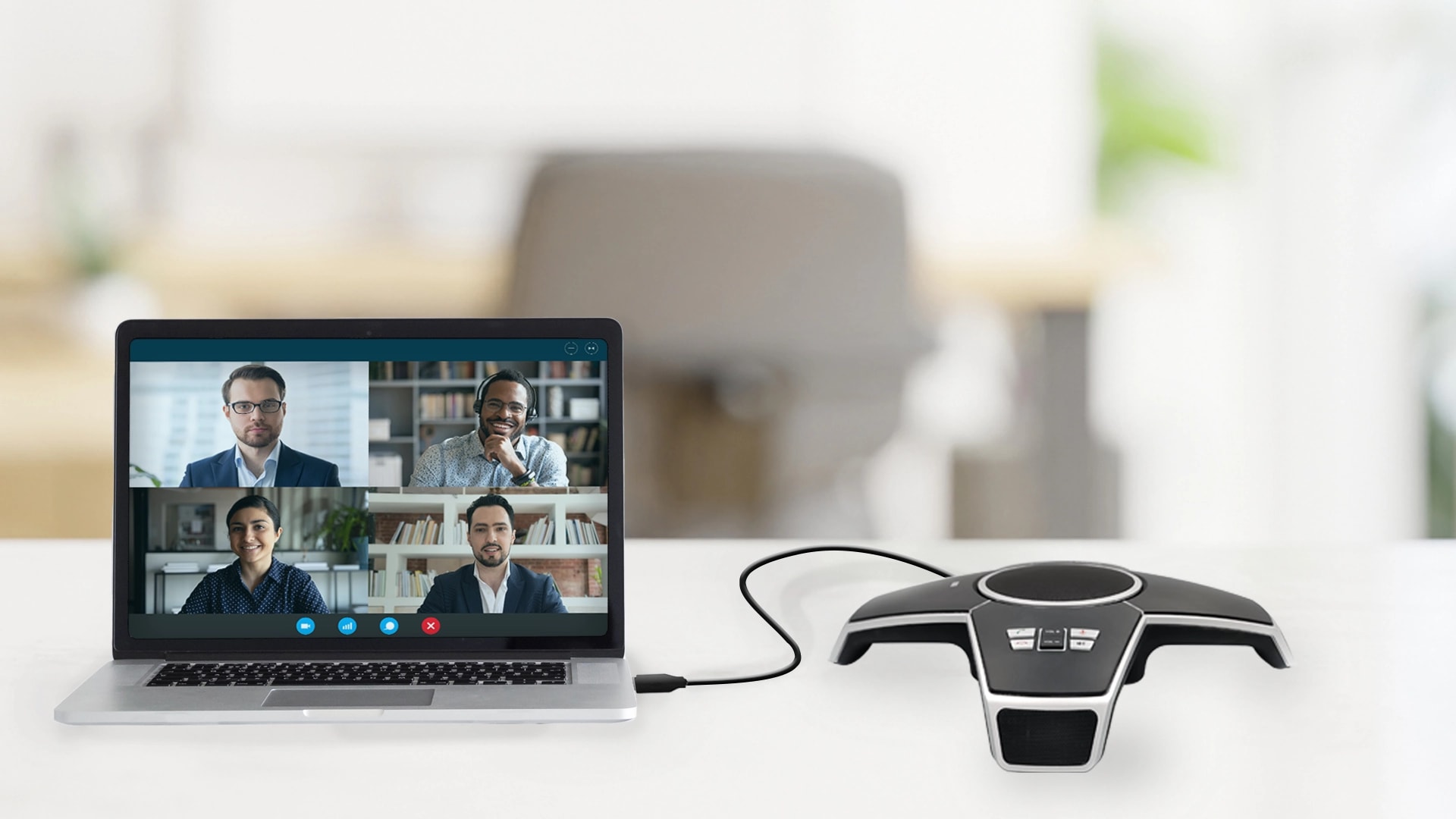

Efficiency of Any Collaboration

The USB speakerphone is the best audio conferencing solution due to its ability to deliver quality sound and ease of use. Thanks to its drag-and-drop ease, this ensures a carefree installation suitable for crystal-clear conversations. The Quadro-USB speakerphone increases the quality of virtual gatherings, giving the participants a chance to communicate naturally and enhancing effectiveness.

Features

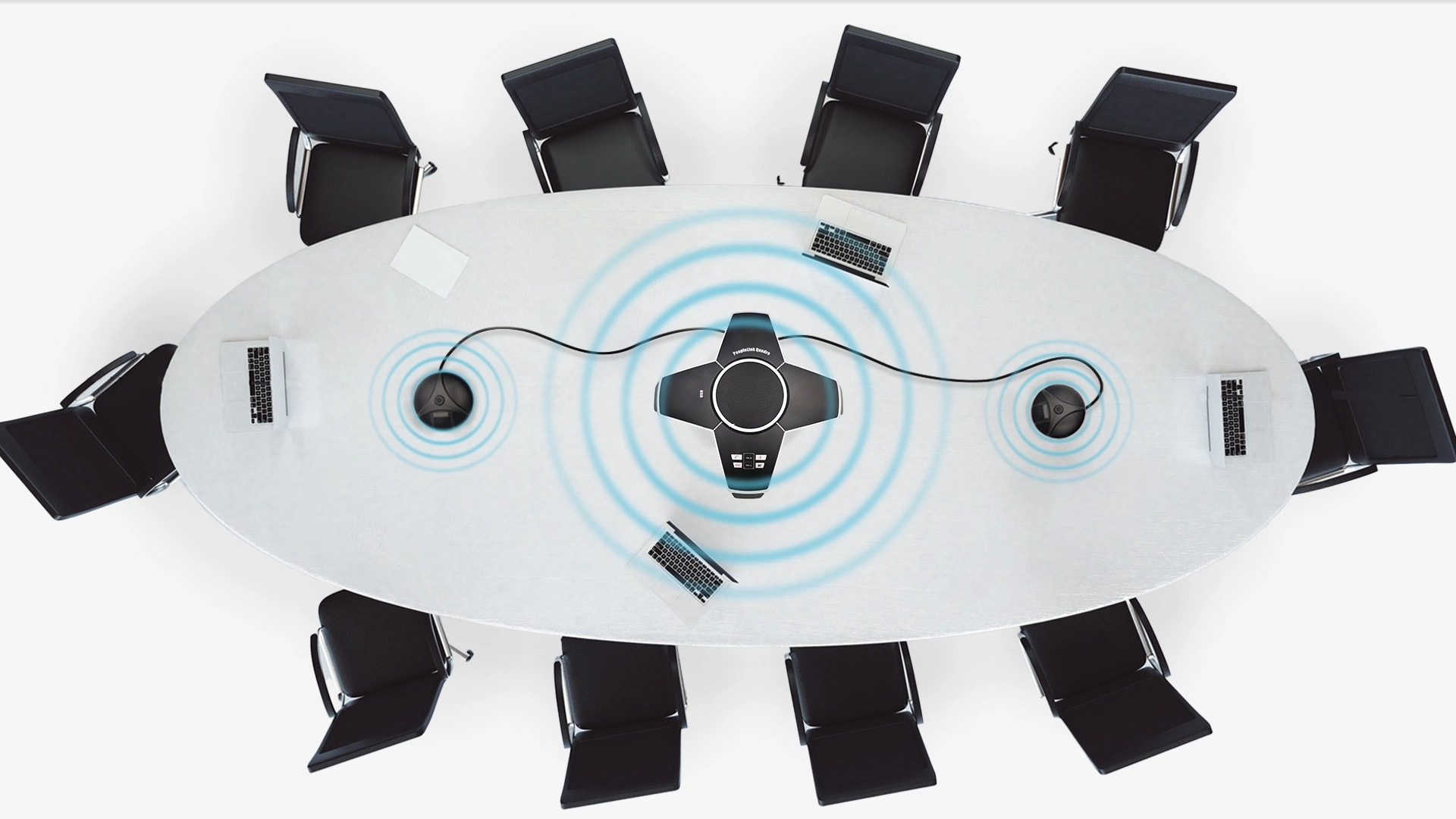

External Microphones Addition

The Quadro allows you to plug the additional extension microphone into the EXT1 and EXT2 jacks. The microphone will pick up well if you are facing it. There are mute buttons and status LEDs on the extension microphone. The green LED indicates that the microphone is on. The red LED indicates that the microphone is muted.

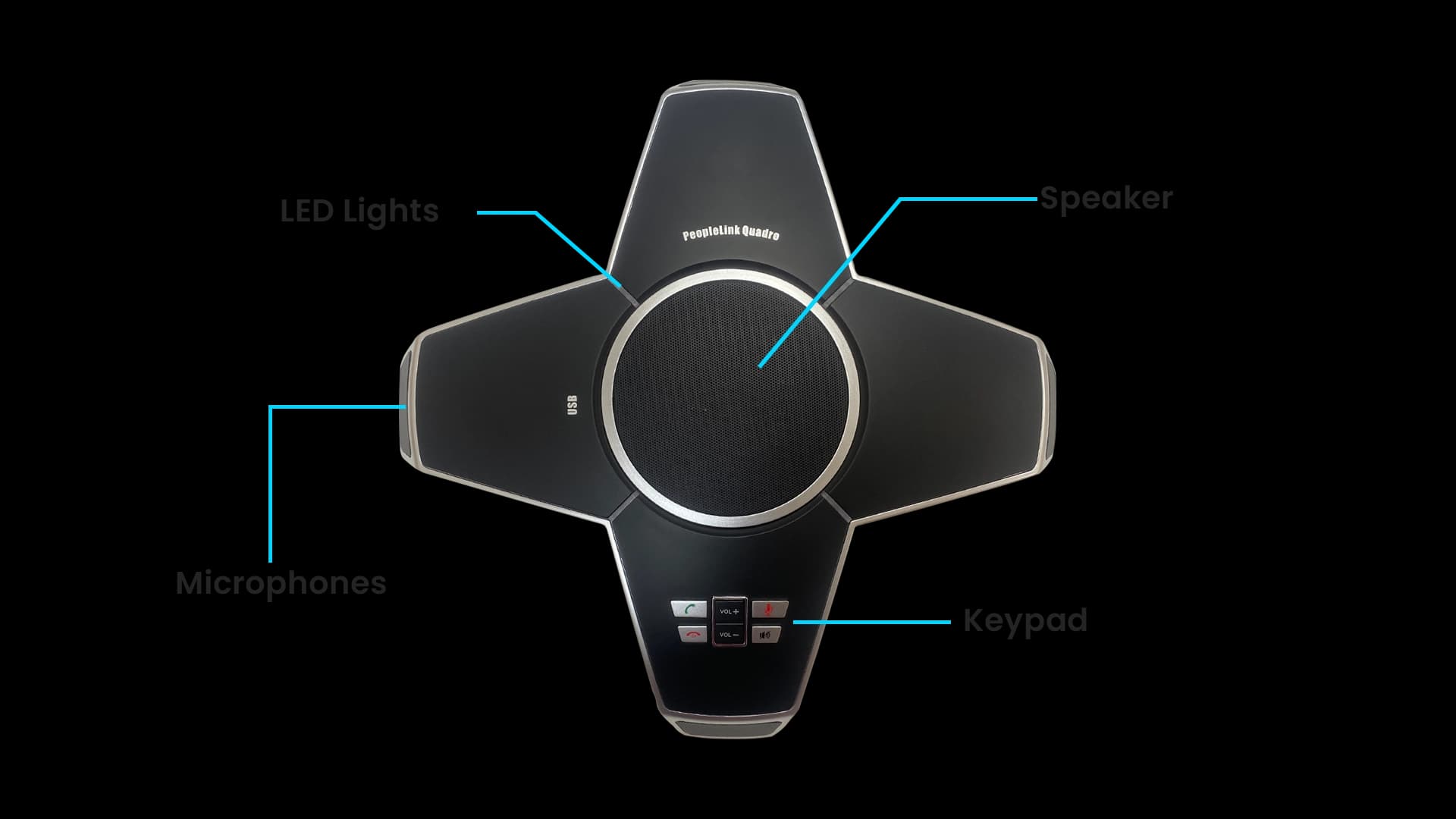

How it Works

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink Quadro
Microphones	4 bi-directional
Voice pickup	360° Voice pickup
Speaker	92 dB Speaker Out
Frequency	100 Hz to 22KHz

Rooms It Serves

Boardrooms

A 92dB Speaker Out and 360° Voice Pickup for formal meetings.

Conference rooms

Four Bi-directional Microphones cover a 30ft by 20ft space.

Larger tables

Two optional Extension Mics add 2 metres of pickup each.

Where an USB Speakerphone Fits in Your Organisation

How organisations deploy an USB Speakerphone, and what changes for the teams that use it

Enterprise

Boardroom Audio for a Bank's Headquarters

A bank's headquarters keeps the PeopleLink Quadro at the centre of its Boardroom table, where 15 to 20 people sit in a room of about 30ft by 20ft. Four bi-directional microphones capture the table through 360 degrees, and a 92dB Speaker Out carries remote voices to the far chairs. Built-in AEC, AGC and ANS hold the level steady when one speaker leans in and another sits back. One USB 2.0 cable to the room PC keeps the setup simple beside a PeopleLink Camera.

Education

Training Room Audio for a University

A university runs its weekly Training Room sessions on the PeopleLink Quadro, plugged into the podium PC over USB 2.0 with no driver to install. The speakerphone picks up voices to 3 metres, and two extension microphones on the EXT1 and EXT2 jacks each reach a further 2 metres for the back of a longer table. Green and red status LEDs show at a glance which microphone is live and which is muted, which keeps a busy session orderly.

Healthcare

Case Conference Audio for a Private Hospital Group

Clinicians at a private hospital group join case conferences from a meeting room fitted with the PeopleLink Quadro. Noise-isolating microphones and Acoustic Echo Cancellation keep speech intelligible when equipment hums in the background, and a frequency range of 100 Hz to 22KHz carries detail in quieter voices. The keypad Mute Button and its indicator light make it plain when the room microphone is open, which matters while patient details are discussed.

Not sure which model fits your Boardrooms or Conference rooms?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink Quadro	Typical Alternative
Microphones	4 bi-directional, 360-degree pickup	Single directional mic
Speaker	92dB speaker out	Quieter speaker
Expansion	Supports 2 extension mics	No expansion
Processing	Built-in AEC, AGC and ANS	No echo or noise control

Why PeopleLink

Hardware and Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Audio Devices pair with PeopleLink Cameras, Control and Room Solutions out of the box.

Deployed Globally

Trusted across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

It is a USB Speakerphone that plugs into a PC or laptop over USB 2.0 Type B, with no driver to install, and it has been tested with mainstream conference applications on Windows and Mac OS as well as iOS and Android. Where a table is longer than the 3 metre pickup range, two extension microphones on the EXT1 and EXT2 jacks add 2 metres each. Share your room layout and platform with a PeopleLink specialist for a configuration recommendation.

Explore Related Resources

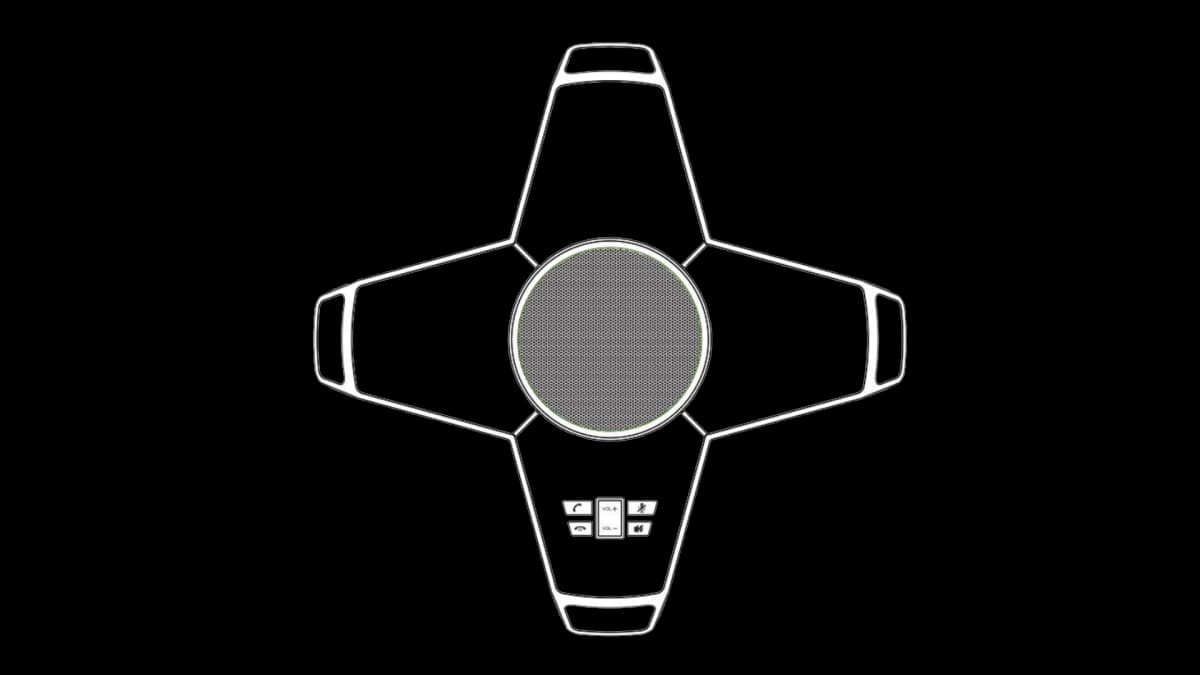

Specifications

Connectivity	: USB Connection
Microphone	: 4 bi-directional microphones
Frequency	: 100 Hz to 22KHz
Voice Pickup Range	: 3 meters
Voice Pickup Radius	: 360° Voice pickup
Speaker	: 92 dB Speaker Out
Expansion Mic	: Supports 2 extension mics
Ext Mic audio Pickup Range	: 2 meters
Echo Length Cancellation	: 500ms
Interface	: USB 2.0 B TypeB
User Interface	: Keypad
3A Algorithm	: Built in AEC, AGC & ANS
Operating System	: IOS/Android/Windows
Ideal Room Size	: 30ft by 20ft
Seating Capacity	: 15 - 20 seater
Application	: Board room, conference room

FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

Product	Quadro	Quad Speakerphone 6	Quad Speakerphone 12
Connectivity	USB Connection	USB & Bluetooth	USB & Bluetooth
Microphone	4 bi-directional microphones	4 mic array	12 mic array
Frequency	100 Hz to 22KHz	100Hz-22KHz	100Hz-22KHz
Voice Pickup Range	3 meters	4 meters	6 meters
Voice Pickup Radius	360° Voice pickup	360° Voice pickup	360° Voice pickup
Speaker	92 dB Speaker Out	85 dB Speaker Out	95 dB Speaker Out
Expansion Mic	Supports 2 extension mics	Yes (Optional)	Supports 2 extension mics
Ext Mic audio Pickup Range	2 meters	4 meters	3 meters
Echo Length Cancellation	500ms	500ms	500ms
Interface	USB 2.0 B TypeB	Type-B, RJ45, Line in/out	Type-B, RJ9, Line in/out, Din6
User Interface	Keypad	Keypad	LCD Display with Keypad
3A Algorithm	Built in AEC, AGC & ANS	Built in AEC, AGC & ANS	Built in AEC, AGC & ANS
Bluetooth	N/A	Yes	Yes
Bluetooth range	N/A	10 meters	10 meters
Wireless	N/A	N/A	N/A
Built-in battery	N/A	Built-in 4000mAh battery	Built-in 5200mAh battery
Operating System	IOS/Android/Windows	IOS/Android/Windows	IOS/Android/Windows
Ideal Room Size	30ft by 20ft	40ft by 20ft	50ft by 20ft
Seating Capacity	15 - 20 seater	15 - 20 seater	15 - 20 seater
Application	Board room, conference room	Medium to Large conference room	Medium to Large conference room

Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.

In the Room

Speakerphones in Live Meeting Rooms

Boardrooms and meeting rooms photographed on site.

Boardroom with speakerphone in the foreground and an interactive display with video bar — Boardroom StackSpeakerphone, Display and Video Bar

Boardroom with a large display, camera and speakerphone on the table — Boardroom StackLarge Display, Camera and Speakerphone

U-shape wooden meeting room with speakerphone and wall display, wide view — U-Shape Meeting RoomWide View

Accessories

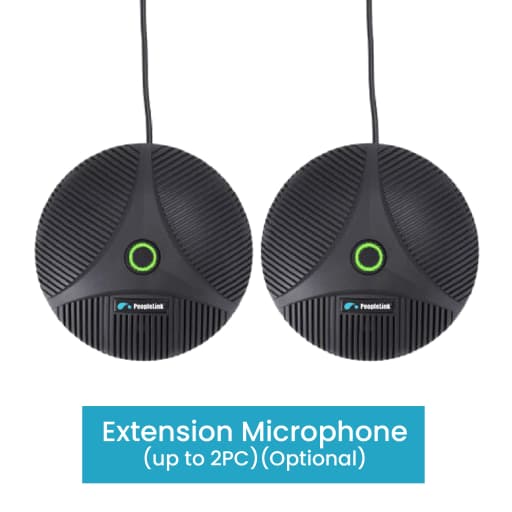

Extension Microphone

Audio Transfer Plug

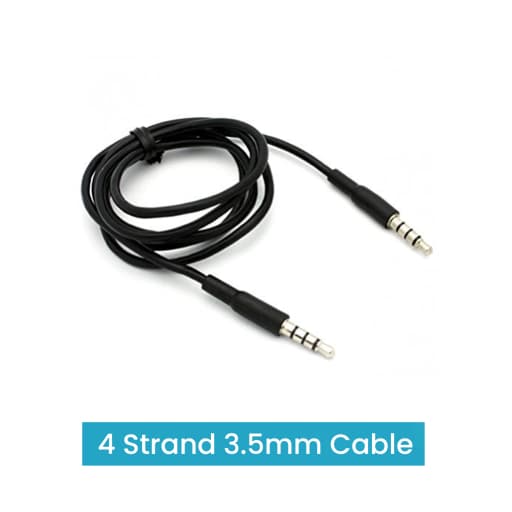

4-Strand 3.5mm Cable

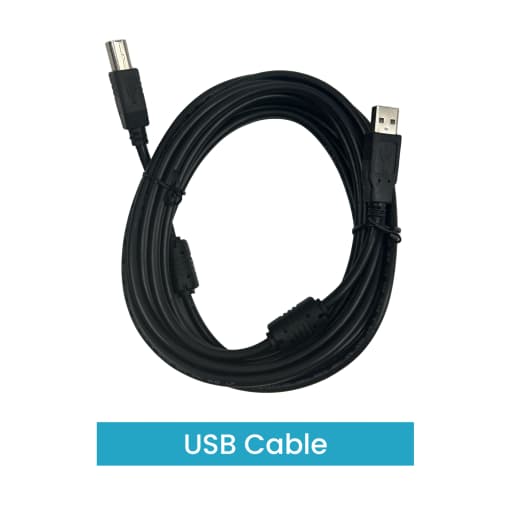

USB Cable

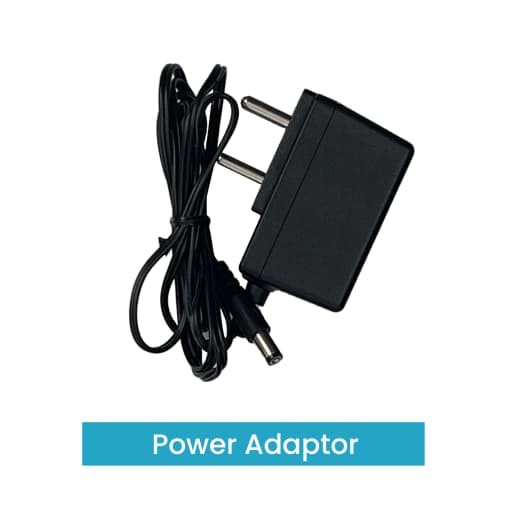

Power Adapter

User Manual

Videos

See the Quadro in action

Documents

Product Datasheet

Download

User Manual

Download
