What video resolution does the PeopleLink i20 Plus Videobar capture?

It captures up to 3840x2160 at 30fps, with 4x Digital Zoom for a tighter frame. In a Huddle Room that resolution keeps faces and a shared document clear at the far end. Aperture, brightness, contrast and white balance are automatic, and the shortest shooting distance is 50cm, which suits a bar sitting under a display.

What image sensor and field of view does the Videobar use?

It uses a 1/3.0 inch sensor at 8.0 Megapixels, with a field of view of D94°, H90° and V55°. That width takes in a small table from the display wall without anyone moving their chair. The bar can sit on the desk, on a wall or above or below the display using the supplied mounting bracket.

Does the Videobar support AI Face Tracking or Auto Framing?

Yes. The ePTZ camera uses AI Face Tracking and Auto Framing to centre whoever is speaking, and it tracks anyone who appears within the lens field of view. Because the movement is electronic there are no moving parts in the bar. A remote control is supplied for anyone who prefers to set the frame manually.

How does the Videobar connect and is it compatible with video platforms?

It connects over a single USB 2.0 cable of 1.8m and works as a UVC device with any application that supports standard USB audio and video drivers. Supported systems include Windows 7 through 11, macOS 10.10 or above, Chrome OS and Android 5.0 or above, so it covers common video conferencing platforms. PeopleLink also supplies the matching Audio, Control and Room Solutions for larger rooms.

Who installs and supports the video bar?

Installation, service and support are delivered through PeopleLink Partners and Resellers in your region, with PeopleLink AV Specialists supporting them on sizing and integration. At 0.4kg with a supplied mounting bracket and a single USB cable, most rooms are a short visit and the bar can be moved between rooms later.

Web Cameras · 4K Videobar

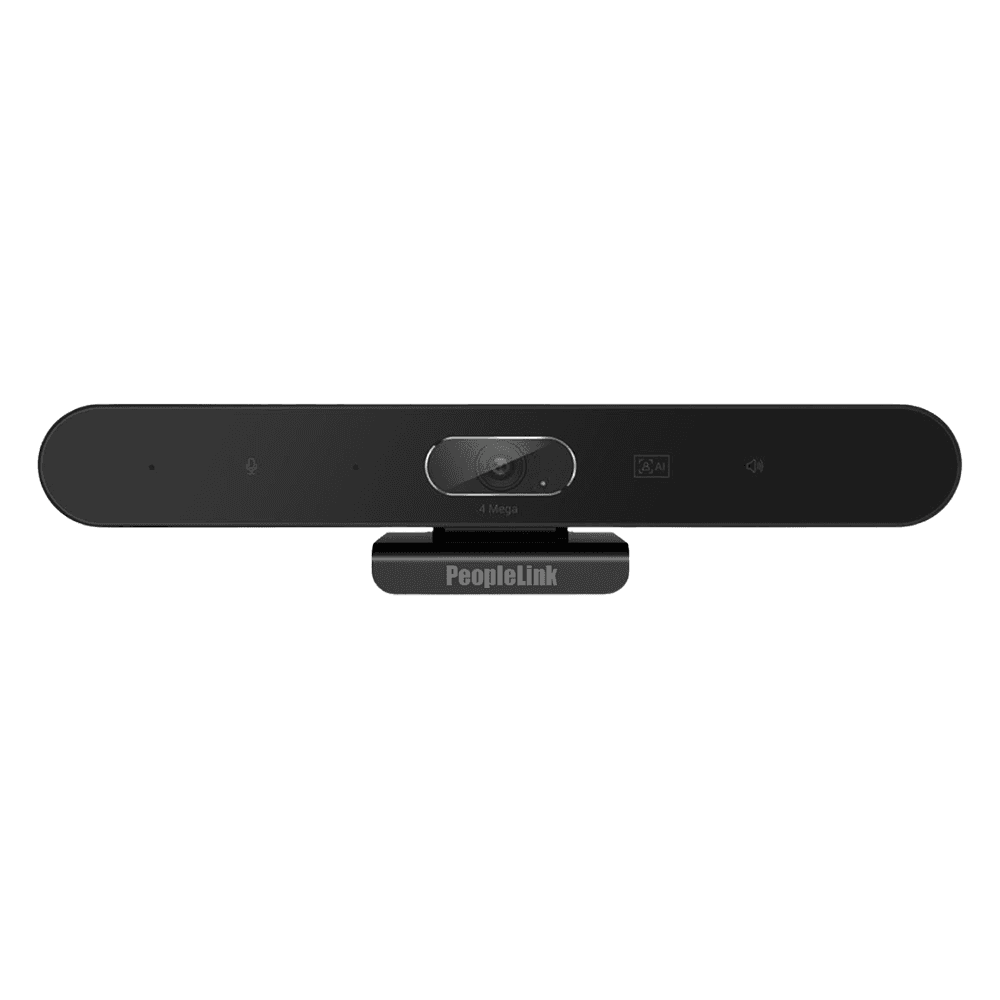

PeopleLink i20 Plus Videobar4K Videobar with Dual Microphone Array for Huddle Rooms and Small Meeting Rooms

The PeopleLink i20 Plus Videobar is a Videobar for Huddle Rooms and Small Meeting Rooms.

4K UHD Resolution
D94°/H90°/V55° Field of view
8.0 MP 1/3.0" sensor

Request a Quote WhatsApp

1 / 2

One OEM
Hardware and Software from a single vendor
Deployed Globally
Enterprise, Government, Education and Healthcare
Regional Partner Support
Service and Support through PeopleLink Partners and Resellers in your region
Published Specifications
PDF Datasheets available for PeopleLink products

Overview

What a 4K Videobar does in a Huddle Room

The PeopleLink i20 Plus Videobar is a Videobar for Huddle Rooms and Small Meeting Rooms. A 1/3.0 inch 8 Megapixel sensor captures up to 3840x2160 at 30fps, with 4x Digital Zoom and a D94°/H90°/V55° field of view. An ePTZ camera with AI Face Tracking keeps the speaker centred, Omnidirectional Microphones reach 7m, and a 2W speaker at 82 dB carries the far end. One 1.8m USB 2.0 cable makes it a UVC device on Windows, macOS, Chrome OS and Android for common video conferencing platforms. Audio 3A processing for AEC, AGC and ANS is what removes the separate speakerphone from a small room.

Panoramic View with 94° wide-angle FoV
AI Face Tracking
360° Voice Pickup
Audio 3A Algorithm
2K - FHD Video Output

Features

i20 Plus Videobar features for Small Rooms

4K capture, wide field of view and dual microphone array, explained.

Features

See All, Hear All

Experience the pinnacle of visual excellence with the PeopleLink i20 Plus all-in-one video bar, meticulously crafted to elevate your online interactions. With built-in wide angle 2K camera and optimized audio that easily accommodates huddle meetings spaces, the all-in-one conference camera lets you hear and see everyone during conference.

Features

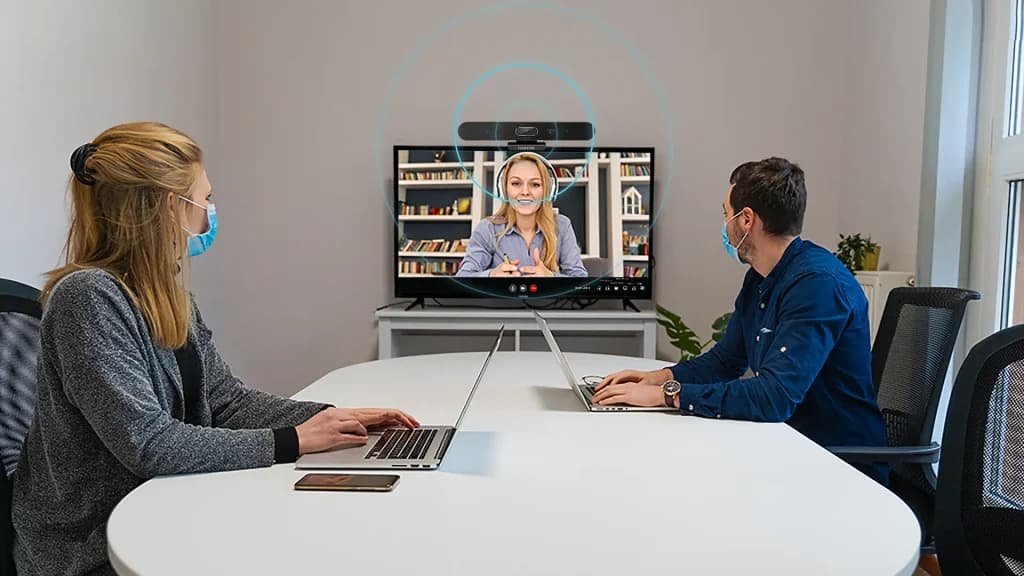

Great Conversations with 2K - FHD Video Output

Unleash the power of the 2K ePTZ camera, capable of delivering stunning 2560 x 1440@30 frames video calls. Enjoy high-definition image quality, perfect for ultra-high-definition video calls. Each frame is a masterpiece, capturing details with unparalleled precision. The PeopleLink all-in-one video bar redefines the essence of crystal-clear visual experiences in the digital realm.

Features

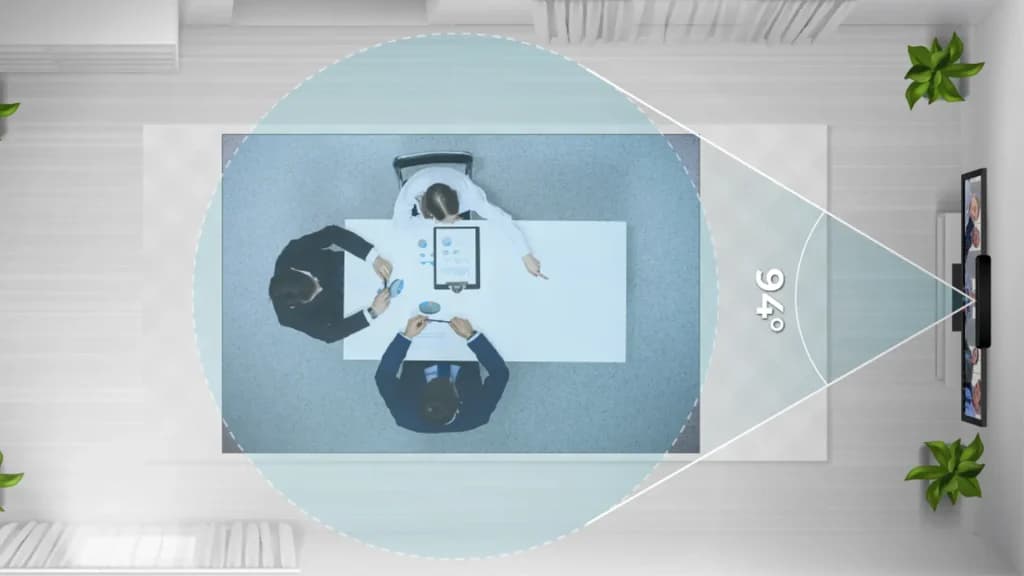

See Every Corner of the Room with 94° FoV

With an expansive 94° FoV i20 plus video bar can track everyone who appears in the filed of view of the lens and makes everyone clearly appear in the center of the screen.

Features

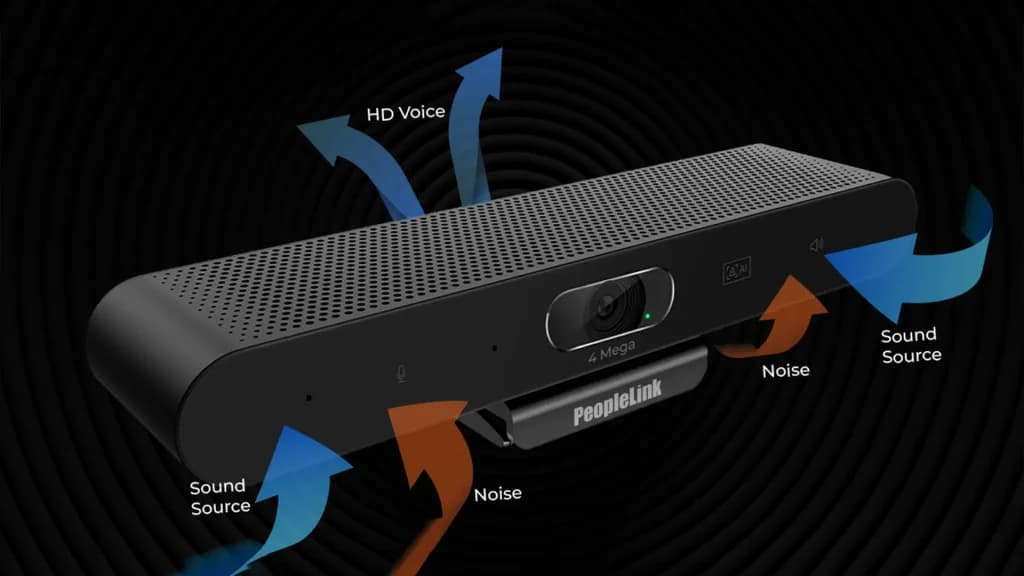

Sound Optimization & Automatic Echo Catching

The i20 Plus video bar boasts 4 integrated microphone arrays that eliminate the need for additional mics. With an expansive voice pickup range of up to 3 meters, experience crystal-clear and smooth video calls. Say goodbye to background noise and echo disruptions, as this advanced technology delivers unparalleled audio precision, making your virtual meetings and conversations truly immersive and distraction-free.

Features

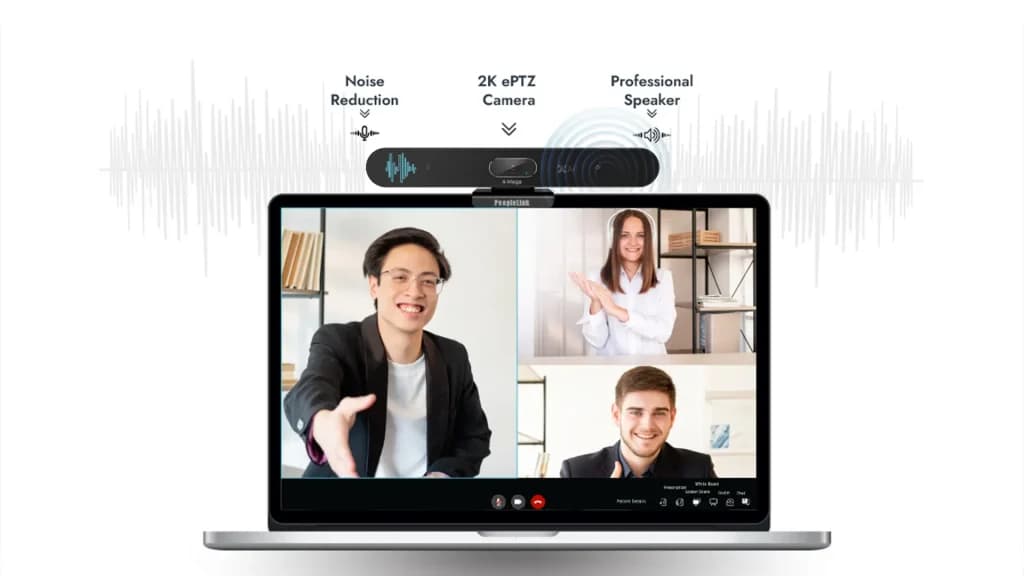

True Voice Speaker

The i20 Plus video bar uses carefully tuned 2W true voice speakers with 82db Speaker output, which can achieve 360° sound diffusion, true and full. Suitable for individuals and small meetings rooms without additional audio devices.

Features

AI Face Tracking

Embark on a seamless virtual meeting journey with the PeopleLink all-in-one video bar, featuring intelligent face tracking and auto-framing capabilities. Enjoy the brilliance of clear and natural visuals, elevating your virtual interactions to new heights. With rich detail and precision, the PeopleLink video bar transforms online meetings into an immersive and engaging experience.

Features

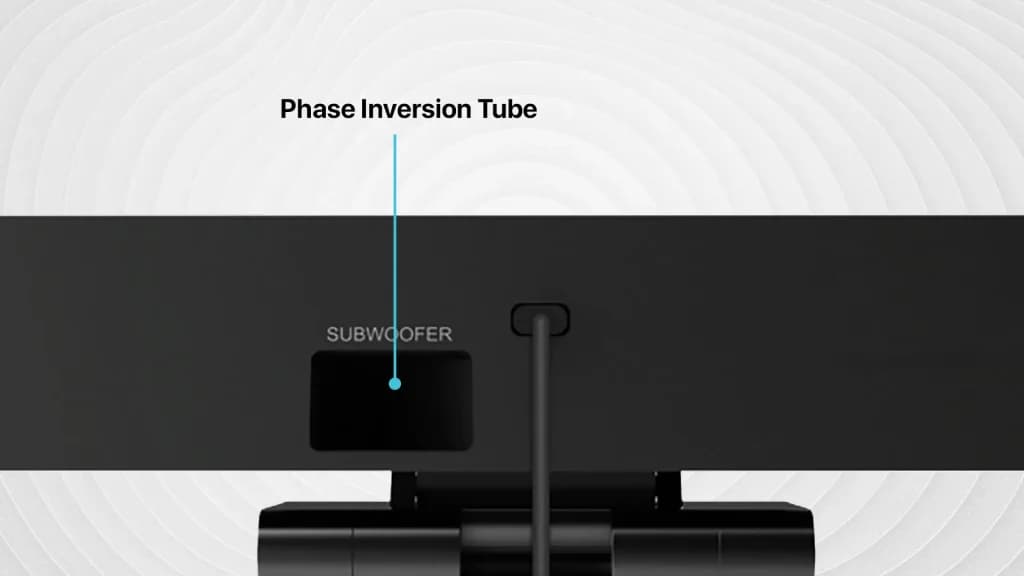

Phase Inversion Hole

The built-in phase inversion hole elevates sound performance to unparalleled heights, ensuring an immersive and crystal-clear auditory experience. Let every word resonate with clarity, making your virtual interactions more engaging and impactful. Elevate your online communication with the remarkable audio prowess of PeopleLink, where every meeting becomes an auditory masterpiece.

Features

Audio 3A Algorithm

Immerse yourself in pristine audio quality with our cutting-edge Audio 3A algorithm. Precision meets perfection by integrating advanced noise reduction, echo cancellation, and automatic gain control. Elevate your conversations confidently, knowing that every word will be heard precisely and every nuance captured with finesse.

Features

Fits in Any Meeting Room

No matter what kind of room you have, you can find a way to set up the video conference bar. Place it on a desk, mount on the wall, or attach it on top of or under the TV to maximize usable space.

Features

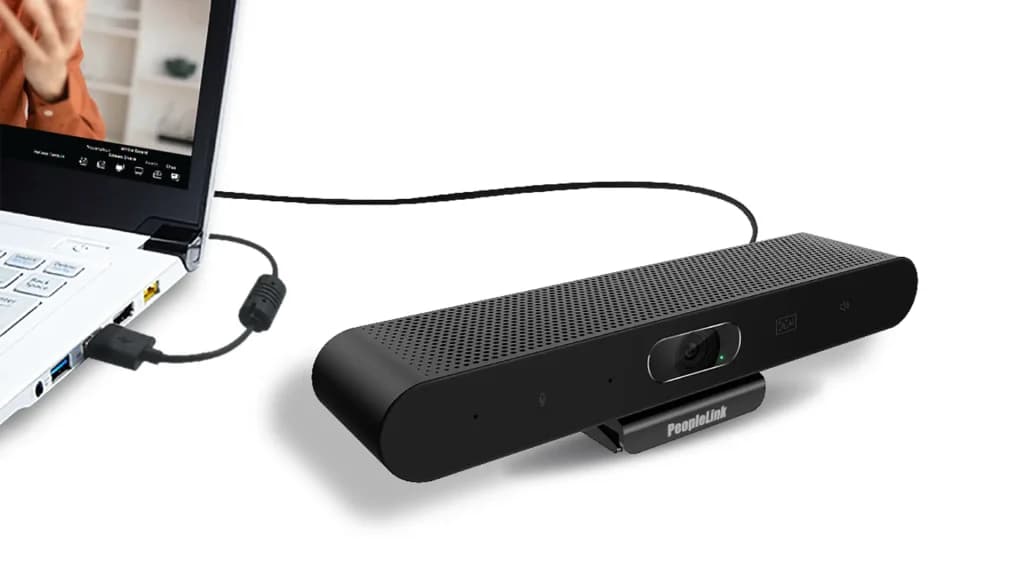

Plug-and-Play USB Connectivity

Simplify your setup with the PeopleLink all-in-one video bar, featuring a seamless USB cable for effortless connectivity. This plug-and-play marvel integrates with any PC or UC platform, guaranteeing a swift and trouble-free connection. Our innovative design ensures a quick, hassle-free setup, allowing you to focus on what truly matters, your seamless online interactions.

How it Works

Key Specifications

Headline specifications from the product Datasheet. Full model-by-model detail is in the PDF.

Item	PeopleLink i20 Plus Videobar
Resolution	4K UHD
Field of view	D94°/H90°/V55°
1/3.0" sensor	8.0 MP
Microphones	2 mic array

Rooms It Serves

Huddle rooms

One device covers the ePTZ Camera, Microphones and Speaker.

Small meeting rooms

ePTZ Face Tracking keeps the speaker centred without an operator.

Hybrid meetings

Audio 3A processing and 7m microphone pickup keep every voice clear.

Where a Videobar Fits in Your Organisation

How organisations deploy a Videobar, and what changes for the teams that use it

Enterprise

Small Meeting Room Calls for a Bank's Regional Offices

A national bank standardises its Regional Offices on the PeopleLink i20 Plus Videobar for Small Meeting Rooms that host morning calls with head office. The bar sits under the room display and combines the ePTZ camera, 4 Microphone Arrays and an 82 dB speaker in one USB device. AI Face Tracking keeps whoever is speaking centred, and the 94° Field of View covers the whole table from the display wall. The Audio 3A Algorithm suppresses echo and background noise, so the head-office team hears each branch without repeated questions.

Healthcare

Telehealth Consultation Room for a Private Hospital Group

A private hospital group runs Telehealth consultations from a dedicated room on each ward, using the PeopleLink i20 Plus Videobar mounted above the display. A consultant and a nurse sit together, and the 94° Field of View places both in frame while AI Face Tracking follows whoever is talking to the remote specialist. 360° Voice Pickup with the Audio 3A Algorithm keeps medical detail clear with corridor noise behind the door. Plug and Play over USB lets the hospital's IT team use the same laptop cart in every room.

Education

Tutorial Room Remote Learning for a University

A university in Europe converts Tutorial Rooms for Remote Learning so students on campus and at home share the same seminar. The PeopleLink i20 Plus Videobar is placed on the desk facing the group, and its ePTZ camera with AI Face Tracking moves between students as the discussion passes around the room. The built-in speaker carries remote voices into the room, and the 4 Microphone Arrays carry the room back out. The bar works on Windows, macOS and Chrome OS, so tutors connect whichever laptop they bring.

Not sure which model fits your Huddle rooms or Small meeting rooms?

Tell us the room size and seating. A PeopleLink specialist will recommend the right model.

Talk to Sales

How It Compares

Capability	PeopleLink i20 Plus Videobar	Typical Alternative
All-in-one	Camera, mics and speaker in one bar	Separate camera and audio
Resolution	4K UHD	1080p typical
Auto framing	ePTZ face tracking	None
Audio pickup	Four mics, up to 7m	Single mic typical
Deployment	USB plug-and-play	A basic USB webcam

Why PeopleLink

Hardware and Software

Cameras, Audio, Control and Collaboration Platforms, built by one OEM.

Integrates Cleanly

PeopleLink Cameras pair with PeopleLink Audio, Control and Room Solutions out of the box.

Deployed Globally

Used across Enterprise, Government, Education and Healthcare environments.

Specialist Support

Talk to PeopleLink AV Specialists for sizing, integration and rollout.

Planning a multi-room or campus rollout?

Get one consolidated quote covering Hardware, Software and Installation from One OEM.

Request a Quote

Frequently Asked Questions

The i20 Plus is designed for Huddle Rooms and Small Meeting Rooms: its 94° Field of View, 4 Microphone Arrays and built-in 82 dB speaker cover a small table from the display wall, and it mounts on a desk, a wall or above or below the display. For medium and large Meeting Rooms, PeopleLink offers bars with wider pickup and longer zoom, such as those in the comparison table on this page. Share your room dimensions and seat count with a PeopleLink specialist for the right fit.

Explore Related Resources

Specifications

AI Framing	: Auto Framing and face tracking function
Sensor	: 4 Megapixel Sony sensor
Image Resolution	: 2K, 2560 x 1440 Pixels @ 30 fps
Zoom	: 4x Digital Zoom
FoV	: 94° Field Of View
Focus	: Fixed focal
Microphone	: Built-in 4 Microphone Arrays
Audio Pickup	: Range Up to 3 meters
Speaker	: Built-in Speaker with 82dB Speaker Output
Interface	: USB 2.0
Audio Algorithm	: Audio 3A algorithm for accurate noise reduction
Digital Noise Reduction	: 2D&3D digital noise reduction
Low Light	: Automatic Low light correction
Video Compression	: MJPEG Dual Stream Output
Plug & Play	: USB
Applications	: Huddle Room, Meeting Rooms

FIND THE PRODUCTS THAT ARE RIGHT FOR YOU

Product	i20 Plus Videobar	PeopleLink AIO Alpha	4K AF Camera Soundbar Plus
AI Framing	Auto Framing and face tracking function	AI-Powered Framing/Presenter Tracking/Speaker Tracking	AI-Powered Framing
Sensor	4 Megapixel Sony sensor	1/2.5-Inch SONY Low Illumination 8.5MP Sensor	Sensor: 1/2.5 inch, CMOS, 8.51M pixel
Image Resolution	2K, 2560 x 1440 Pixels @ 30 fps	4k@30fps, 2k@30fps 1080p@30fps	UHD 4K@60fps, 4K@30fps, 1080P@60fps
Zoom	4x Digital Zoom	16x digital zoom	5x Zoom
FoV	94° Field Of View	128°(D/120°（H） /82°（V）	121° (DFOV), 110° (HFOV), 75° (VFOV),
Focus	Fixed focal	Focul Length 2.2mm	Fixed focal
ePTZ	Intelligent ePTZ	e-PTZ (UVC /IR remote control)	MPT (pan/tilt ±15)+ EPTZ
Microphone	Built-in 4 Microphone Arrays	Built in 6PCS microphone array	Built-in 4 Beamforming microphones
Audio Pickup	Range Up to 3 meters	Distance up to 6 meters	Distance up to 6 meters
Speaker	Built-in Speaker with 82dB Speaker Output	2 speaker element sound bar Adopts	96 dB Full Frequency Speaker
Interface	USB 2.0	USB 3.0: Type B, 3.5mm jack	HDMI V.2, USB3.0, Type C, USB2.0, Type A
Audio Algorithm	Audio 3A algorithm for accurate noise reduction	Built-in AGC, AEC, ANS	Built-in audio 3A algorithm
Digital Noise Reduction	2D&3D digital noise reduction	2D&3D digital noise reduction	2D&3D digital noise reduction
Low Light	Automatic Low light correction	Automatic Low light correction	Supports Backlight Compensation
Video Compression	MJPEG Dual Stream Output	YUY2/MJPEG	H.264 / MJPEG /YUY2 /NV12 Compression
Plug & Play	USB	USB	USB
Remote Control	N/A	IR remote control	IR remote control
Applications	Huddle Room, Meeting Rooms	Huddle Room, Meeting Rooms	Huddle Room, Meeting Rooms
Certifications & Approvals	CE, ROHS and FCC	CE, ROHS and FCC	CE, ROHS and FCC

Disclaimer: Features and specifications are subject to change without prior notification. Images shown are for representational purposes only; actual may vary.

In the Room

Small Rooms, Photographed on Site

Huddle rooms and meeting tables where one device carries the call.

Huddle room with a PeopleLink display, camera and speakerphone — Huddle RoomDisplay, Camera and Speakerphone

Meeting table with speakerphone, PTZ camera and interactive display — Meeting RoomDisplay with PTZ Camera and Speakerphone

Meeting table with speakerphone facing an interactive display and camera — Meeting Room StackSpeakerphone, Display and Camera
