Product Features:
Ultra HD super wide angle
Equipped with a new generation of UHD CMOS image sensor, with more accurate native resolution, richer color information, four times the effect of high‐ definition images, and shoots full‐ detailed 4K video. Equipped with a 110‐ degree super‐ large viewing angle and low‐ distortion 4K lens for panoramic views.
USB 3.0
Full‐ featured USB 3.0 interface, which integrates power supply, video, and audio. It can also support 2 USB video signal sources (optional) and 1 audio source at the same time.
Microphone array formed by wave velocity
Built‐ in beamforming microphone array, unique noise suppression algorithm and automatic gain algorithm, the pickup distance is up to 6 meters, so that your voice is perfectly presented
AI capability
Multi‐ layer convolutional neural network design, cutting‐ edge deep learning algorithm, so that the camera has intelligent characteristics, high‐ quality analysis data can be obtained through open API
Auto Framing
Using advanced deep learning algorithms, it automatically adjusts the viewing angle of the screen according to the people in the detection field of view, eliminating the need for manual adjustment of camera operations, and bringing you a brand‐ new intelligent experience.
AI Humanoid tracking
Built‐ in NNE hardware unit, using deep learning technology, by extracting target features, it can achieve smooth human figure tracking no matter where the face is facing, which is suitable for application scenarios such as speaker automatic tracking
Convenient Operation
Through the exquisite infrared remote control and exclusive software, one‐ key
Product Specifications:
Camera
Sensor | : 1/2.7″, CMOS, Effective Pixel: 8.29M |
---|---|
Scanning Mode | : Progressive |
Lens Mount | : M12 |
Lens | : Focus: f=2.2mm |
Wide Angle | : FOV: 110° |
Zoom | : 8X Digital Zoom |
Minimal Illumination | : 0.05 Lux @ (F1.8, AGC ON) |
Shutter | : 1/30s ~ 1/10000s |
White Balance | : Auto, Indoor, Outdoor, One push, Manual |
Camera Bracket | : Bracket with damper |
Digital Noise Reduction | : 2D,3D digital noise reduction |
Audio Pickup Range | : 3 Meters |

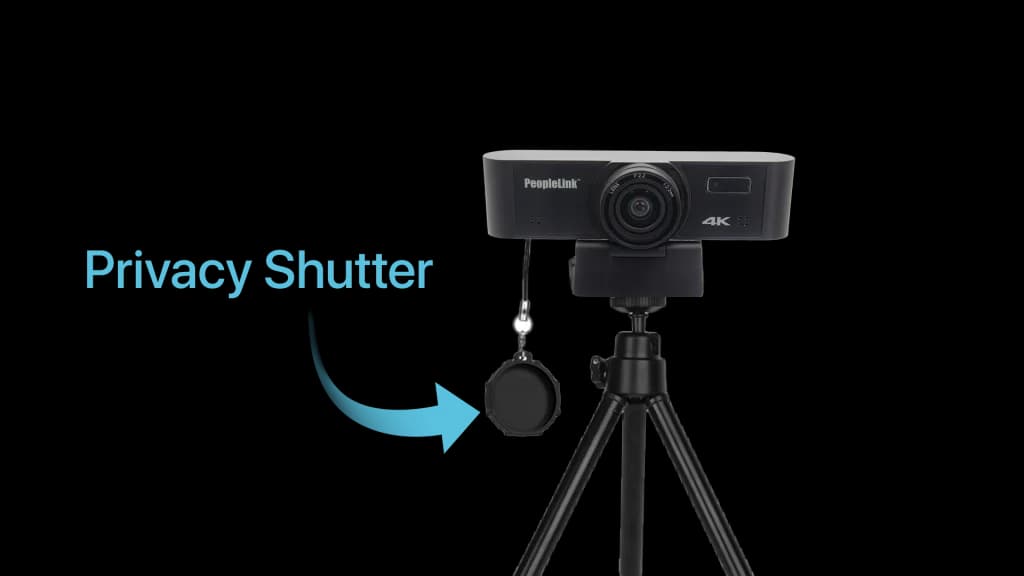

Privacy Shelter | : Support |
USB Features
Operate System | : | Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher mac OS™ 10.10 or higher, Google™ Chromebook™ Version 29.0.1547.70 or higher, Linux |
---|---|---|
: | 2.4 GHz Intel® Core 2 Duo processor or higher 2 GB RAM or more USB 2.0 port (4K require USB 3.0) | |
Color System / Compression | : | H.264 / MJPEG /YUY2 /NV12 |
Video Format | : | 4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps, 640x360p@30fps/25fps |
USB Video Communication Protocol | : | UVC 1.1 |
UVC ePTZ | : | Support |
Input/Output Interface
USB Interface | : 1xUSB 3.0: Type C |
---|---|
Infrared remote control | : Support |
General Specifications
Input Voltage | : | 5V (USB power supply) |
---|---|---|
Current Consumption | : | 600mA(MAX) |
Operating Temperature | : | 0°C ~ 40°C |
Storage Temperature | : | -40°C ~ 60°C |
Power Consumption | : | 3.0W(MAX) |
Dimentions | : | 118mm x37.2mm x 30.8mm |
MTBF | : | 30000h |
Warranty | : | 1 Year Warranty |
Ordering Information
PeopleLink Eagle 4K Web Camera
Part Code | : | PPU-PVC-WC-I9 |
---|
